1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9b8t
沉积日期 deposition_date	2024-03-31
结构标题 title	Human polymerase epsilon bound to PCNA and DNA in the nucleotide bound state
关键词 keywords	DNA polymerase, DNA, DNA Binding Protein-DNA complex; DNA Binding Protein/DNA
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	42.08 Å
回转半径 Rg (电子) rg_electron	41.83 Å
零角强度 I(0) i0	886227000.00
分子量 molecular_weight	234770.0 kDa
排除体积 excluded_volume	289430 Å³
包络体积 envelope_volume	411540 Å³
水化壳体积 shell_volume	79272 Å³
包络直径 envelope_diameter	138.4 Å
壳层 Rg shell_rg	49.51 Å
包络 Rg envelope_rg	40.79 Å
形状 Rg shape_rg	41.84 Å
总 Rg total_rg	42.13 Å
总原子数 total_atoms	16399
残基数 n_residues	1979
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	133.8 Å
Rg (实空间) rg_real	41.92 Å
Rg 误差 (实空间) rg_real_error	0.96 Å
I(0) (实空间) i0_real	8.8620e+08
I(0) 误差 (实空间) i0_real_error	1.4310e+07
Rg (倒空间) rg_reciprocal	42.08 Å
I(0) (倒空间) i0_reciprocal	886400000.0000
解质量估计 total_estimate	0.8970
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	52.8 Å
偏度 Skewness skewness	0.188
峰度 Kurtosis kurtosis	-0.513
角度范围 angular_range	— – 0.1900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	151400000.0000
实空间数据点数 n_real_points	39
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.916; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.929

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	DNA polymerase epsilon catalytic subunit
分子量 formula_weight	261782.3 kDa
EC 编号 ec_number	2.7.7.7
突变 mutation	D275A, E277A
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	16399

MSLRSGGRRRADPGADGEASRDDGATSSVSALKRLERSQWTDKMDLRFGFERLKEPGEKTGWLINMHPTEILDEDKRLGSAVDYYFIQDDGSRFKVALPYKPYFYIATRKGCEREVSSFLSKKFQGKIAKVETVPKEDLDLPNHLVGLKRNYIRLSFHTVEDLVKVRKEISPAVKKNREQDHASDAYTALLSSVLQRGGVITDEEETSKKIADQLDNIVDMREYDVPYHIRLSIDLKIHVAHWYNVRYRGNAFPVEITRRDDLVERPDPVVLAFAIATTKLPLKFPDAETDQIMMISYMIDGQGYLITNREIVSEDIEDFEFTPKPEYEGPFCVFNEPDEAHLIQRWFEHVQETKPTIMVTYNGDFFDWPFVEARAAVHGLSMQQEIGFQKDSQGEYKAPQCIHMDCLRWVKRDSYLPVGSHNLKAAAKAKLGYDPVELDPEDMCRMATEQPQTLATYSVSDAVATYYLYMKYVHPFIFALCTIIPMEPDEVLRKGSGTLCEALLMVQAFHANIIFPNKQEQEFNKLTDDGHVLDSETYVGGHVEALESGVFRSDIPCRFRMNPAAFDFLLQRVEKTLRHALEEEEKVPVEQVTNFEEVCDEIKSKLASLKDVPSRIECPLIYHLDVGAMYPNIILTNRLQPSAMVDEATCAACDFNKPGANCQRKMAWQWRGEFMPASRSEYHRIQHQLESEKFPPLFPEGPARAFHELSREEQAKYEKRRLADYCRKAYKKIHITKVEERLTTICQRENSFYVDTVRAFRDRRYEFKGLHKVWKKKLSAAVEVGDAAEVKRCKNMEVLYDSLQLAHKCILNSFYGYVMRKGARWYSMEMAGIVCFTGANIITQARELIEQIGRPLELDTDGIWCVLPNSFPENFVFKTTNVKKPKVTISYPGAMLNIMVKEGFTNDQYQELAEPSSLTYVTRSENSIFFEVDGPYLAMILPASKEEGKKLKKRYAVFNEDGSLAELKGFEVKRRGELQLIKIFQSSVFEAFLKGSTLEEVYGSVAKVADYWLDVLYSKAANMPDSELFELISENRSMSRKLEDYGEQKSTSISTAKRLAEFLGDQMVKDAGLSCRYIISRKPEGSPVTERAIPLAIFQAEPTVRKHFLRKWLKSSSLQDFDIRAILDWDYYIERLGSAIQKIITIPAALQQVKNPVPRVKHPDWLHKKLLEKNDVYKQKKISELFTLEGRRQVTMAEASEDSPRPSAPDMEDFGLVKLPHPAAPVTVKRKRVLWESQEESQDLTPTVPWQEILGQPPALGTSQEEWLVWLRFHKKKWQLQARQRLARRKRQRLESAEGVLRPGAIRDGPATGLGSFLRRTARSILDLPWQIVQISETSQAGLFRLWALVGSDLHCIRLSIPRVFYVNQRVAKAEEGASYRKVNRVLPRSNMVYNLYEYSVPEDMYQEHINEINAELSAPDIEGVYETQVPLLFRALVHLGCVCVVNKQLVRHLSGWEAETFALEHLEMRSLAQFSYLEPGSIRHIYLYHHAQAHKALFGIFIPSQRRASVFVLDTVRTDQMPSLGALYSAEHGLLLEKVGPELLPPPKHTFEVRAETDLKTICRAIQRFLLAYKEERRGPTLIAVQSSWELKRLASEIPVLEEFPLVPICVADKINYGVLDWQRHGARRMIRHYLNLDTCLSQAFEMSRYFHIPIGNLPEDISTFGSDLFFARHLQRHNHLLWLSPTARPDLGGKEADDNCLVMEFDDQATVEINSSGCYSTVCVELDLQNLAVNTILQSHHVNDMEGADSMGISFDVIQQASLEDMITGGQAASAPASYDETALCSNTFRILKSMVVGWVKEITQYHNIYADNQVMHFYRWLRSPSSLLHDPALHRTLHNMMKKLFLQLIAEFKRLGSSVIYANFNRIILCTKKRRVEDAIAYVEYITSSIHSKETFHSLTISFSRCWEFLLWMDPSNYGGIKGKVSSRIHCGLQDSQKAGGAEDEQENEDDEEERDGEEEEEAEESNVEDLLENNWNILQFLPQAASCQNYFLMIVSAYIVAVYHCMKDGLRRSAPGSTPVRRRGASQLSQEAEGAVGALPGMITFSQDYVANELTQSFFTITQKIQKKVTGSRNSTELSEMFPVLPGSHLLLNNPALEFIKYVCKVLSLDTNITNQVNKLNRDLLRLVDVGEFSEEAQFRDPCRSYVLPEVICRSCNFCRDLDLCKDSSFSEDGAVLPQWLCSNCQAPYDSSAIEMTLVEVLQKKLMAFTLQDLVCLKCRGVKETSMPVYCTCAGDFALTIHTQVFMEQIGIFRNIAQHYGMSYLLETLEWLLQKNPQLGH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Insect cell expression vector pTIE1

Entity 2 polymer

描述 description	Proliferating cell nuclear antigen
分子量 formula_weight	28795.8 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,C,D

MFEARLVQGSILKKVLEALKDLINEACWDISSSGVNLQSMDSSHVSLVQLTLRSEGFDTYRCDRNLAMGVNLTSMSKILKCAGNEDIITLRAEDNADTLALVFEAPNQEKVSDYEMKLMDLDVEQLGIPEQEYSCVVKMPSGEFARICRDLSHIGDAVVISCAKDGVKFSASGELGNGNIKLSQTSNVDKEEEAVTIEMNEPVQLTFALRYLNFFTKATPLSSTVTLSMSADVPLVVEYKIADMGHLKYYLAPKIEDEEGS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Insect cell expression vector pTIE1

Entity 3 polymer

描述 description	Primer DNA
分子量 formula_weight	10824.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	P

TGAGGTTCAGCAAGGTGATGCTTTAGATTTTTCAC

Entity 4 polymer

描述 description	Template DNA
分子量 formula_weight	18136.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	T

GCCACGCTGAGAGCCAGCAGCAAAGTGAAAAATCTAAAGCATCACCTTGCTGAACCTCA

Entity 5 non-polymer

描述 description	THYMIDINE-5'-TRIPHOSPHATE
分子量 formula_weight	482.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 6 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.95 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	320111

fit	/app/data/saxs_computation/b8/9b8t/9b8t.fit
pddf	/app/data/pr_computation/b8/9b8t/9b8t.pr.out
profile	/app/data/saxs_computation/b8/9b8t/9b8t.dat

Human polymerase epsilon bound to PCNA and DNA in the nucleotide bound state

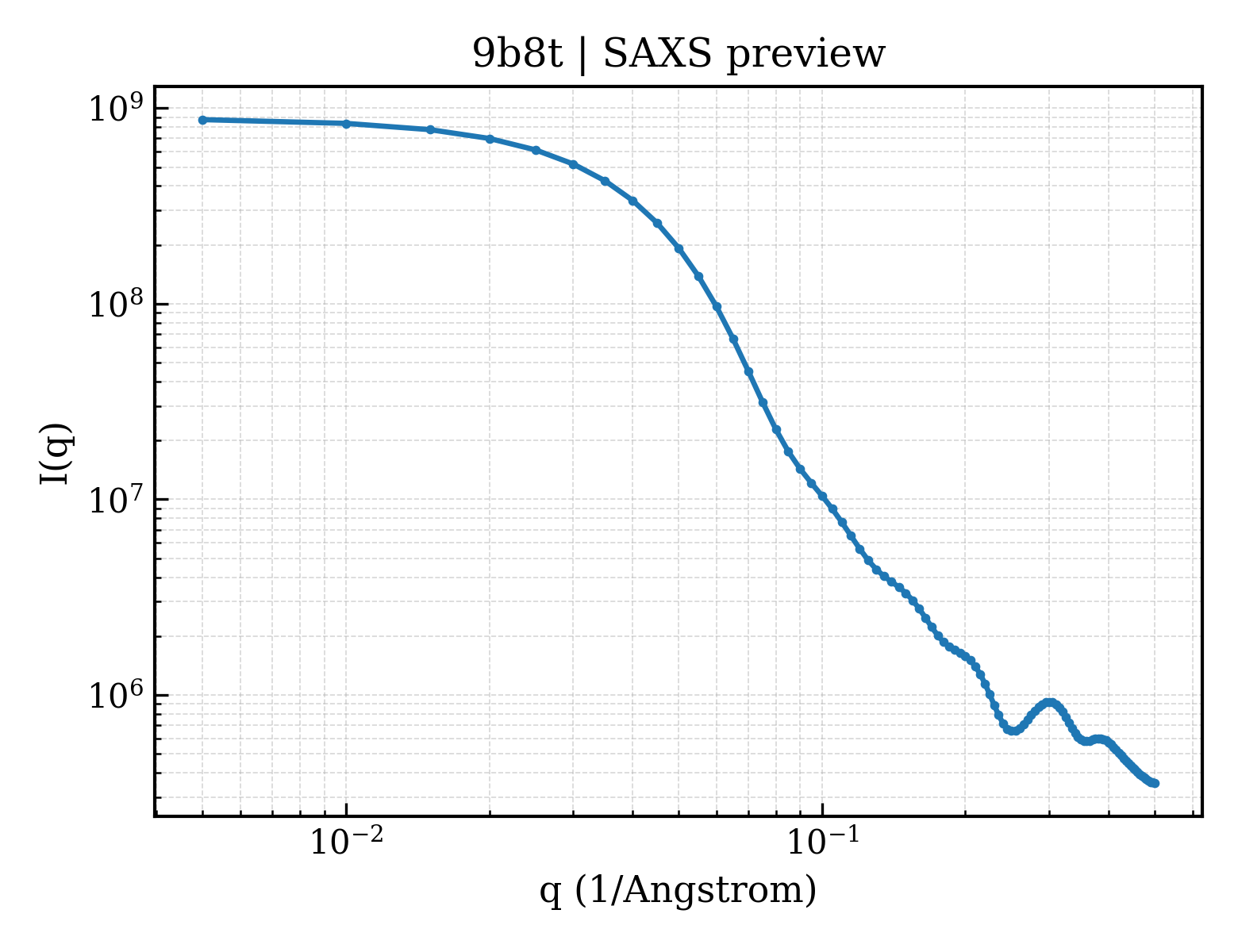

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution
