9box

;Room-temperature X-ray structure of human mitochondrial serine hydroxymethyltransferase (hSHMT2) with PLP-glycine external aldimine and 5-formyltetrahydrofolate (folinic acid) ;

Method: X-RAY DIFFRACTION D_max: 146.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

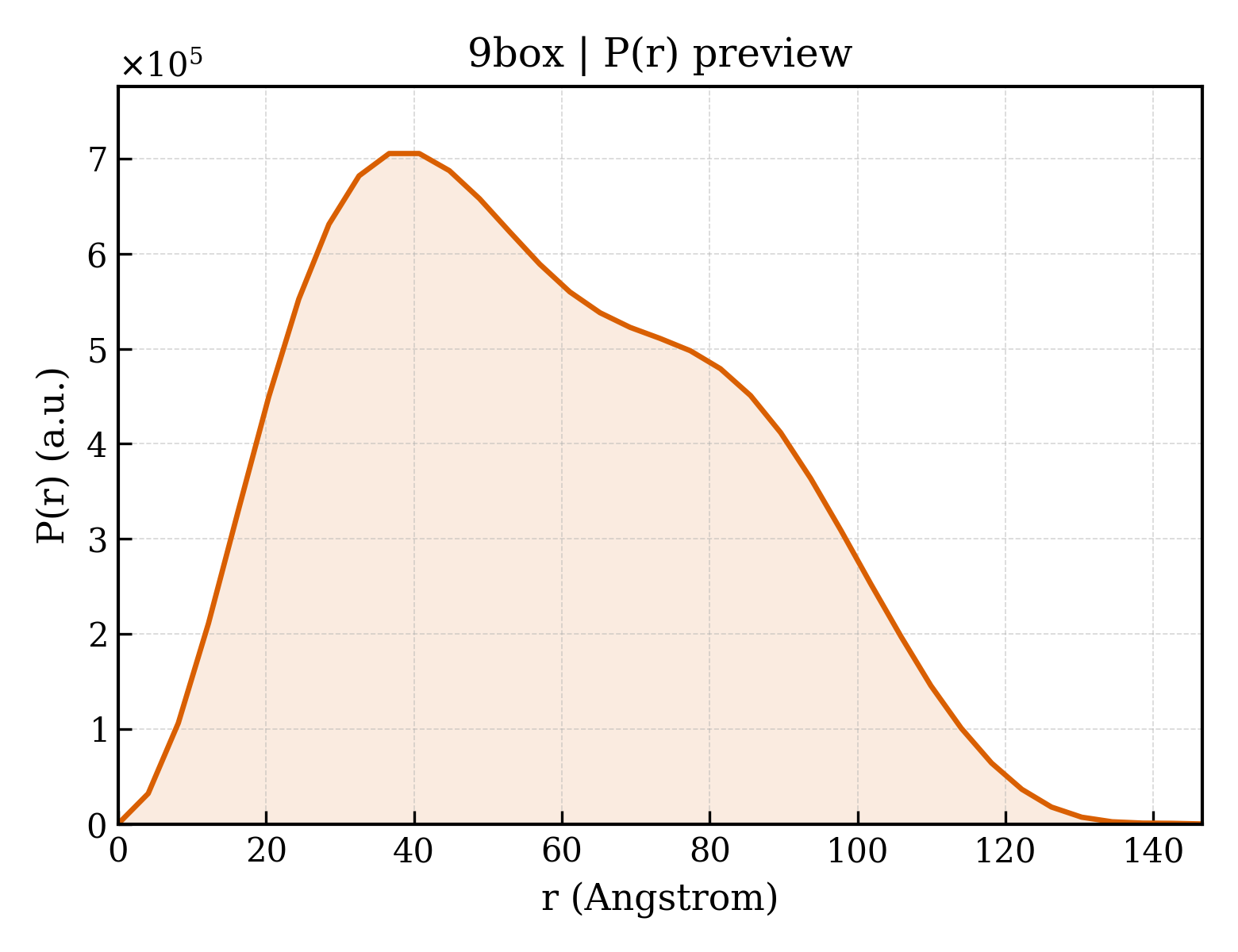

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9box
沉积日期 deposition_date	2024-05-06
最后修订 last_revision	2024-08-28
结构标题 title	;Room-temperature X-ray structure of human mitochondrial serine hydroxymethyltransferase (hSHMT2) with PLP-glycine external aldimine and 5-formyltetrahydrofolate (folinic acid) ;
关键词 keywords	;PYRIDOXAL 5'-PHOSPHATE, PLP, FOLD TYPE 1, ONE CARBON METABOLISM, TRANSFERASE ;; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	44.24 Å
回转半径 Rg (电子) rg_electron	44.18 Å
零角强度 I(0) i0	636052000.00
分子量 molecular_weight	206170.0 kDa
排除体积 excluded_volume	257060 Å³
包络体积 envelope_volume	323040 Å³
水化壳体积 shell_volume	59812 Å³
包络直径 envelope_diameter	156.7 Å
壳层 Rg shell_rg	49.87 Å
包络 Rg envelope_rg	43.84 Å
形状 Rg shape_rg	44.16 Å
总 Rg total_rg	44.45 Å
总原子数 total_atoms	14508
残基数 n_residues	1830
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	146.6 Å
Rg (实空间) rg_real	44.36 Å
Rg 误差 (实空间) rg_real_error	1.23 Å
I(0) (实空间) i0_real	6.3610e+08
I(0) 误差 (实空间) i0_real_error	1.1040e+07
Rg (倒空间) rg_reciprocal	44.25 Å
I(0) (倒空间) i0_reciprocal	636000000.0000
解质量估计 total_estimate	0.8659
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	0
主峰位置 r_peak_primary	— Å
偏度 Skewness skewness	0.299
峰度 Kurtosis kurtosis	-0.755
角度范围 angular_range	— – 0.1800 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	153900000.0000
实空间数据点数 n_real_points	37
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.821; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.900; Smooth: 0.888

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Serine hydroxymethyltransferase, mitochondrial
分子量 formula_weight	51329.5 kDa
EC 编号 ec_number	2.1.2.1
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	15295

WTGQESLSDSDPEMWELLQREKDRQCRGLELIASENFCSRAALEALGSCLNNKYSEGYPGKRYYGGAEVVDEIELLCQRRALEAFDLDPAQWGVNVQPYSGSPANLAVYTALLQPHDRIMGLDLPDGGHLTHGYMSDVKRISATSIFFESMPYKLNPKTGLIDYNQLALTARLFRPRLIIAGTSAYARLIDYARMREVCDEVKAHLLADMAHISGLVAAKVIPSPFKHADIVTTTTHKTLRGARSGLIFYRKGVKAVDPKTGREIPYTFEDRINFAVFPSLQGGPHNHAIAAVAVALKQACTPMFREYSLQVLKNARAMADALLERGYSLVSGGTDNHLVLVDLRPKGLDGARAERVLELVSITANKNTCPGDRSAITPGGLRLGAPALTSRQFREDDFRRVVDFIDEGVNIGLEVKSKTAKLQDFKSFLLKDSETSQRLANLRQRVEQFARAFPMPGFDEH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	(E)-N-({3-hydroxy-2-methyl-5-[(phosphonooxy)methyl]pyridin-4-yl}methylidene)glycine
分子量 formula_weight	304.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	N-[4-({[(6S)-2-amino-5-formyl-4-oxo-3,4,5,6,7,8-hexahydropteridin-6-yl]methyl}amino)benzoyl]-L-glutamic acid
分子量 formula_weight	473.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	765

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	142.980 Å
晶胞边长 b length_b	119.300 Å
晶胞边长 c length_c	134.627 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 2 2 21
空间群编号 int_tables_number	17
晶系 crystal_system	—

分辨率 resolution	2.100 Å
最低分辨率 resolution_low	42.820 Å
R 因子 r_factor	0.1636
R_work r_work	0.1623
R_free r_free	0.1886
