9cm2

Cryo-EM model derived from localized reconstruction of human adenovirus 6-hexon-FX complex at 4.3A resolution

Method: ELECTRON MICROSCOPY D_max: 195.5 Å Quality: REASONABLE

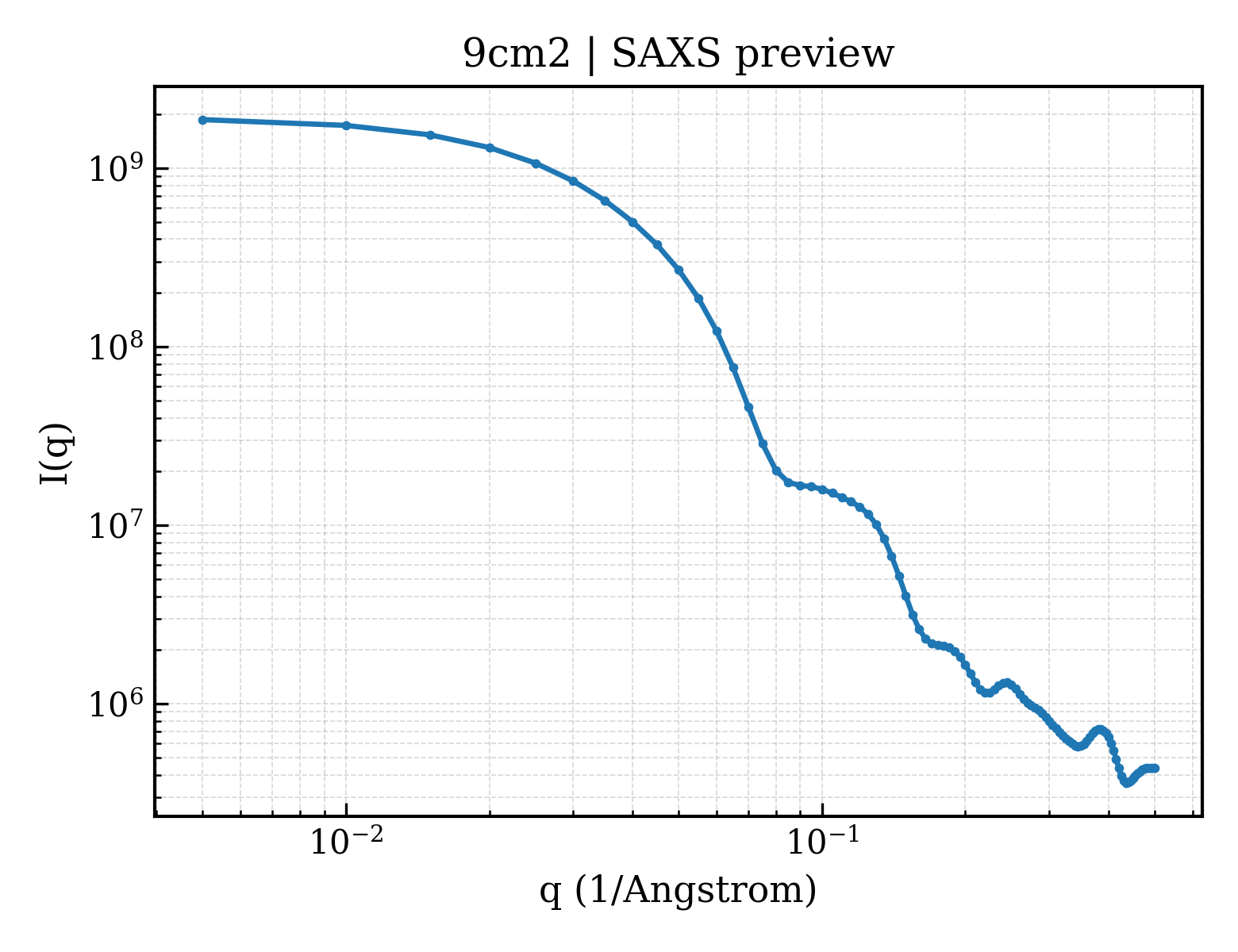

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9cm2
沉积日期 deposition_date	2024-07-12
最后修订 last_revision	2024-11-27
结构标题 title	Cryo-EM model derived from localized reconstruction of human adenovirus 6-hexon-FX complex at 4.3A resolution
关键词 keywords	Adenovirus, Hexon, Coagulation factor X, Coagulation factor II, Prothrombin, Complex, Interactions, VIRUS, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	54.28 Å
回转半径 Rg (电子) rg_electron	54.72 Å
零角强度 I(0) i0	1914700000.00
分子量 molecular_weight	358350.0 kDa
排除体积 excluded_volume	445060 Å³
包络体积 envelope_volume	666640 Å³
水化壳体积 shell_volume	105000 Å³
包络直径 envelope_diameter	206.4 Å
壳层 Rg shell_rg	55.04 Å
包络 Rg envelope_rg	56.63 Å
形状 Rg shape_rg	54.66 Å
总 Rg total_rg	54.95 Å
总原子数 total_atoms	25229
残基数 n_residues	3162
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	195.5 Å
Rg (实空间) rg_real	54.96 Å
Rg 误差 (实空间) rg_real_error	2.13 Å
I(0) (实空间) i0_real	1.9150e+09
I(0) 误差 (实空间) i0_real_error	3.7200e+07
Rg (倒空间) rg_reciprocal	53.73 Å
I(0) (倒空间) i0_reciprocal	1911000000.0000
解质量估计 total_estimate	0.7474
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	60.7 Å
偏度 Skewness skewness	0.877
峰度 Kurtosis kurtosis	0.566
角度范围 angular_range	— – 0.1450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	194100000.0000
实空间数据点数 n_real_points	30
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.468; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.328

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Hexon protein
分子量 formula_weight	108635.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J,K,L
原子数 atom_count	25229

MATPSMMPQWSYMHISGQDASEYLSPGLVQFARATETYFSLNNKFRNPTVAPTHDVTTDRSQRLTLRFIPVDREDTAYSYKARFTLAVGDNRVLDMASTYFDIRGVLDRGPTFKPYSGTAYNALAPKGAPNSCEWEQNETAQVDAQELDEEENEANEAQAREQEQAKKTHVYAQAPLSGIKITKEGLQIGTADATVAGAGKEIFADKTFQPEPQVGESQWNEADATAAGGRVLKKTTPMKPCYGSYARPTNSNGGQGVMVEQNGKLESQVEMQFFSTSTNATNEVNNIQPTVVLYSEDVNMETPDTHLSYKPKMGDKNAKVMLGQQAMPNRPNYIAFRDNFIGLMYYNSTGNMGVLAGQASQLNAVVDLQDRNTELSYQLLLDSIGDRTRYFSMWNQAVDSYDPDVRIIENHGTEDELPNYCFPLGGIGITDTFQAVKTTAANGDQGNTTWQKDSTFAERNEIGVGNNFAMEINLNANLWRNFLYSNIALYLPDKLKYNPTNVEISDNPNTYDYMNKRVVAPGLVDCYINLGARWSLEYMDNVNPFNHHRNAGLRYRSMLLGNGRYVPFHIQVPQKFFAIKNLLLLPGSYTYEWNFRKDVNMVLQSSLGNDLRVDGASIKFDSICLYATFFPMAHNTASTLEAMLRNDTNDQSFNDYLSAANMLYPIPANATNVPISIPSRNWAAFRGWAFTRLKTKETPSLGSGYDPYYTYSGSIPYLDGTFYLNHTFKKVAITFDSSVSWPGNDRLLTPNEFEIKRSVDGEGYNVAQCNMTKDWFLVQMLANYNIGYQGFYIPESYKDRMYSFFRNFQPMSRQVVDDTKYKDYQQVGIIHQHNNSGFVGYLAPTMREGQAYPANVPYPLIGKTAVDSITQKKFLCDRTLWRIPFSSNFMSMGALTDLGQNLLYANSAHALDMTFEVDPMDEPTLLYVLFEVFDVVRVHQPHRGVIETVYLRTPFSAGNATT

Entity 2 polymer

描述 description	Coagulation factor X
分子量 formula_weight	55286.7 kDa
EC 编号 ec_number	3.4.21.6
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

MGRPLHLVLLSASLAGLLLLGESLFIRREQANNILARVTRANSFLEEMKKGHLERECMEETCSYEEAREVFEDSDKTNEFWNKYKDGDQCETSPCQNQGKCKDGLGEYTCTCLEGFEGKNCELFTRKLCSLDNGDCDQFCHEEQNSVVCSCARGYTLADNGKACIPTGPYPCGKQTLERRKRSVAQATSSSGEAPDSITWKPYDAADLDPTENPFDLLDFNQTQPERGDNNLTRIVGGQECKDGECPWQALLINEENEGFCGGTILSEFYILTAAHCLYQAKRFKVRVGDRNTEQEEGGEAVHEVEVVIKHNRFTKETYDFDIAVLRLKTPITFRMNVAPACLPERDWAESTLMTQKTGIVSGFGRTHEKGRQSTRLKMLEVPYVDRNSCKLSSSFIITQNMFCAGYDTKQEDACQGDSGGPHVTRFKDTYFVTGIVSWGEGCARKGKYGIYTKVTAFLKWIDRSMKTRGLPKAKSHAPEVITSSPLK

Entity 3 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	5.01 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	1769

fit	/app/data/saxs_computation/cm/9cm2/9cm2.fit
pddf	/app/data/pr_computation/cm/9cm2/9cm2.pr.out
profile	/app/data/saxs_computation/cm/9cm2/9cm2.dat
