9cls

Cryo-EM model derived from localized reconstruction of human adenovirus 6 (Ad6)-hexon-FII complex

Method: ELECTRON MICROSCOPY D_max: 193.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

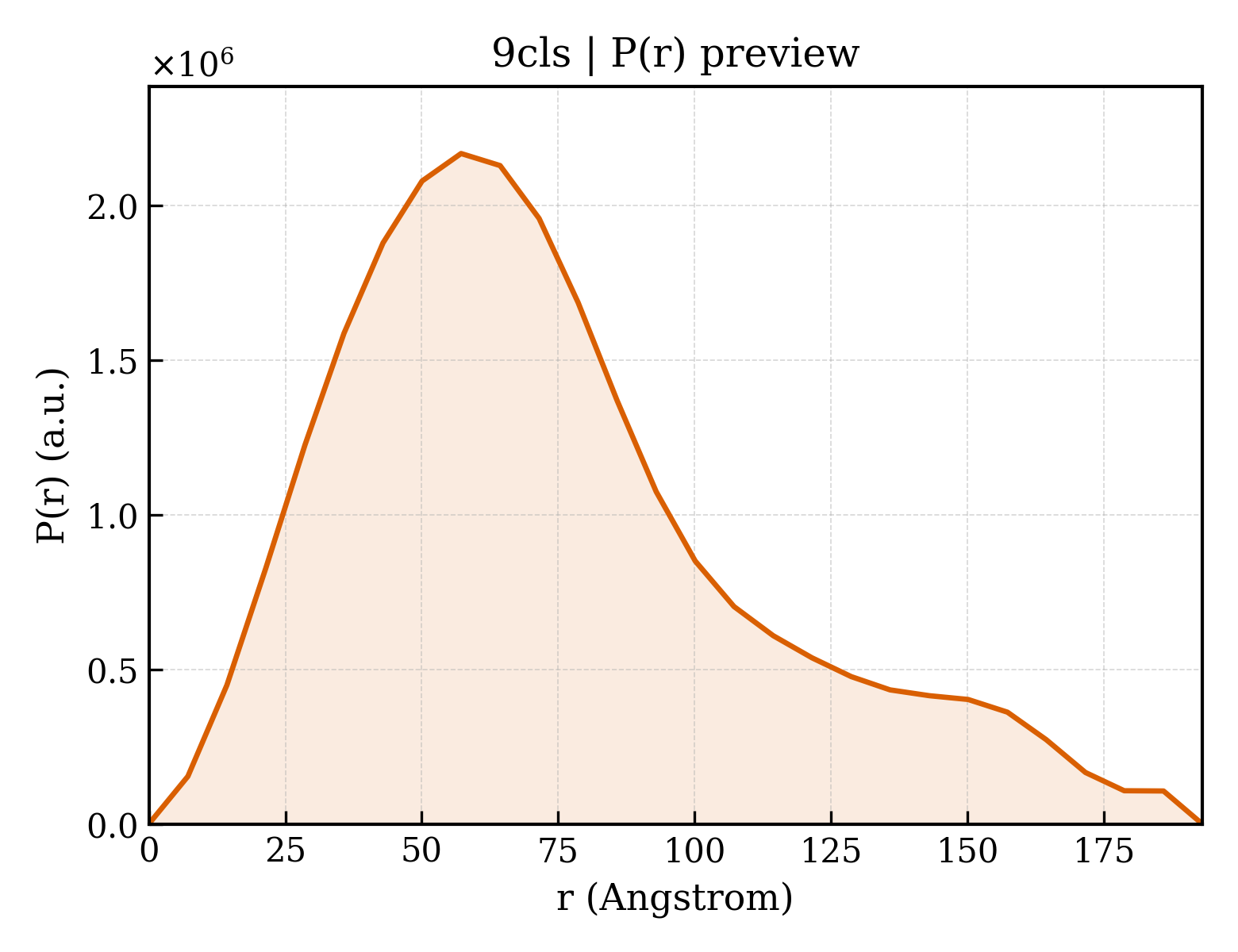

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9cls
沉积日期 deposition_date	2024-07-12
最后修订 last_revision	2024-11-27
结构标题 title	Cryo-EM model derived from localized reconstruction of human adenovirus 6 (Ad6)-hexon-FII complex
关键词 keywords	Adenovirus, Hexon, Coagulation factor X, Coagulation factor II, Prothrombin, Complex, Interactions, VIRUS, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	57.28 Å
回转半径 Rg (电子) rg_electron	58.00 Å
零角强度 I(0) i0	2157930000.00
分子量 molecular_weight	381200.0 kDa
排除体积 excluded_volume	473450 Å³
包络体积 envelope_volume	702450 Å³
水化壳体积 shell_volume	106500 Å³
包络直径 envelope_diameter	210.2 Å
壳层 Rg shell_rg	55.47 Å
包络 Rg envelope_rg	59.43 Å
形状 Rg shape_rg	57.99 Å
总 Rg total_rg	57.98 Å
总原子数 total_atoms	26845
残基数 n_residues	3365
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	193.0 Å
Rg (实空间) rg_real	58.09 Å
Rg 误差 (实空间) rg_real_error	1.76 Å
I(0) (实空间) i0_real	2.1580e+09
I(0) 误差 (实空间) i0_real_error	4.1850e+07
Rg (倒空间) rg_reciprocal	56.60 Å
I(0) (倒空间) i0_reciprocal	2153000000.0000
解质量估计 total_estimate	0.7599
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	57.2 Å
偏度 Skewness skewness	0.799
峰度 Kurtosis kurtosis	0.171
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	177300000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.599; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.937; Smooth: 0.141

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Hexon protein
分子量 formula_weight	108635.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J,K,L
原子数 atom_count	26845

MATPSMMPQWSYMHISGQDASEYLSPGLVQFARATETYFSLNNKFRNPTVAPTHDVTTDRSQRLTLRFIPVDREDTAYSYKARFTLAVGDNRVLDMASTYFDIRGVLDRGPTFKPYSGTAYNALAPKGAPNSCEWEQNETAQVDAQELDEEENEANEAQAREQEQAKKTHVYAQAPLSGIKITKEGLQIGTADATVAGAGKEIFADKTFQPEPQVGESQWNEADATAAGGRVLKKTTPMKPCYGSYARPTNSNGGQGVMVEQNGKLESQVEMQFFSTSTNATNEVNNIQPTVVLYSEDVNMETPDTHLSYKPKMGDKNAKVMLGQQAMPNRPNYIAFRDNFIGLMYYNSTGNMGVLAGQASQLNAVVDLQDRNTELSYQLLLDSIGDRTRYFSMWNQAVDSYDPDVRIIENHGTEDELPNYCFPLGGIGITDTFQAVKTTAANGDQGNTTWQKDSTFAERNEIGVGNNFAMEINLNANLWRNFLYSNIALYLPDKLKYNPTNVEISDNPNTYDYMNKRVVAPGLVDCYINLGARWSLEYMDNVNPFNHHRNAGLRYRSMLLGNGRYVPFHIQVPQKFFAIKNLLLLPGSYTYEWNFRKDVNMVLQSSLGNDLRVDGASIKFDSICLYATFFPMAHNTASTLEAMLRNDTNDQSFNDYLSAANMLYPIPANATNVPISIPSRNWAAFRGWAFTRLKTKETPSLGSGYDPYYTYSGSIPYLDGTFYLNHTFKKVAITFDSSVSWPGNDRLLTPNEFEIKRSVDGEGYNVAQCNMTKDWFLVQMLANYNIGYQGFYIPESYKDRMYSFFRNFQPMSRQVVDDTKYKDYQQVGIIHQHNNSGFVGYLAPTMREGQAYPANVPYPLIGKTAVDSITQKKFLCDRTLWRIPFSSNFMSMGALTDLGQNLLYANSAHALDMTFEVDPMDEPTLLYVLFEVFDVVRVHQPHRGVIETVYLRTPFSAGNATT

Entity 2 polymer

描述 description	Prothrombin
分子量 formula_weight	70562.9 kDa
EC 编号 ec_number	3.4.21.5
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

MAHVRGLQLPGCLALAALCSLVHSQHVFLAPQQARSLLQRVRRANTFLEEVRKGNLERECVEETCSYEEAFEALESSTATDVFWAKYTACETARTPRDKLAACLEGNCAEGLGTNYRGHVNITRSGIECQLWRSRYPHKPEINSTTHPGADLQENFCRNPDSSTTGPWCYTTDPTVRRQECSIPVCGQDQVTVAMTPRSEGSSVNLSPPLEQCVPDRGQQYQGRLAVTTHGLPCLAWASAQAKALSKHQDFNSAVQLVENFCRNPDGDEEGVWCYVAGKPGDFGYCDLNYCEEAVEEETGDGLDEDSDRAIEGRTATSEYQTFFNPRTFGSGEADCGLRPLFEKKSLEDKTERELLESYIDGRIVEGSDAEIGMSPWQVMLFRKSPQELLCGASLISDRWVLTAAHCLLYPPWDKNFTENDLLVRIGKHSRTRYERNIEKISMLEKIYIHPRYNWRENLDRDIALMKLKKPVAFSDYIHPVCLPDRETAASLLQAGYKGRVTGWGNLKETWTANVGKGQPSVLQVVNLPIVERPVCKDSTRIRITDNMFCAGYKPDEGKRGDACEGDSGGPFVMKSPFNNRWYQMGIVSWGEGCDRDGKYGFYTHVFRLKKWIQKVIDQFGE

Entity 3 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	7

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.70 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	13045

fit	/app/data/saxs_computation/cl/9cls/9cls.fit
pddf	/app/data/pr_computation/cl/9cls/9cls.pr.out
profile	/app/data/saxs_computation/cl/9cls/9cls.dat
