SAXSdb — 1jou

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Thrombin, light chain

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SODIUM ION × 1 GLYCEROL × 4 ACETIC ACID × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	SODIUM ION × 1 ACETIC ACID × 1 water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SODIUM ION × 1 ACETIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	THRB_HUMAN
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–49； UniProt 315–363 Author chain C； PDBConstruct 1–49； UniProt 315–363 Author chain E； PDBConstruct 1–49； UniProt 315–363 Author chain B； PDBConstruct 1–259； UniProt 364–622 Author chain D； PDBConstruct 1–259； UniProt 364–622 Author chain F； PDBConstruct 1–259； UniProt 364–622

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jou
Deposition date deposition_date	2001-07-31
Structure title title	Crystal Structure of Native S195A Thrombin with an Unoccupied Active Site
Keywords keywords	protease, proteinase, thrombin, factor IIa, enzyme, BLOOD CLOTTING; BLOOD CLOTTING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jou__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1jou__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

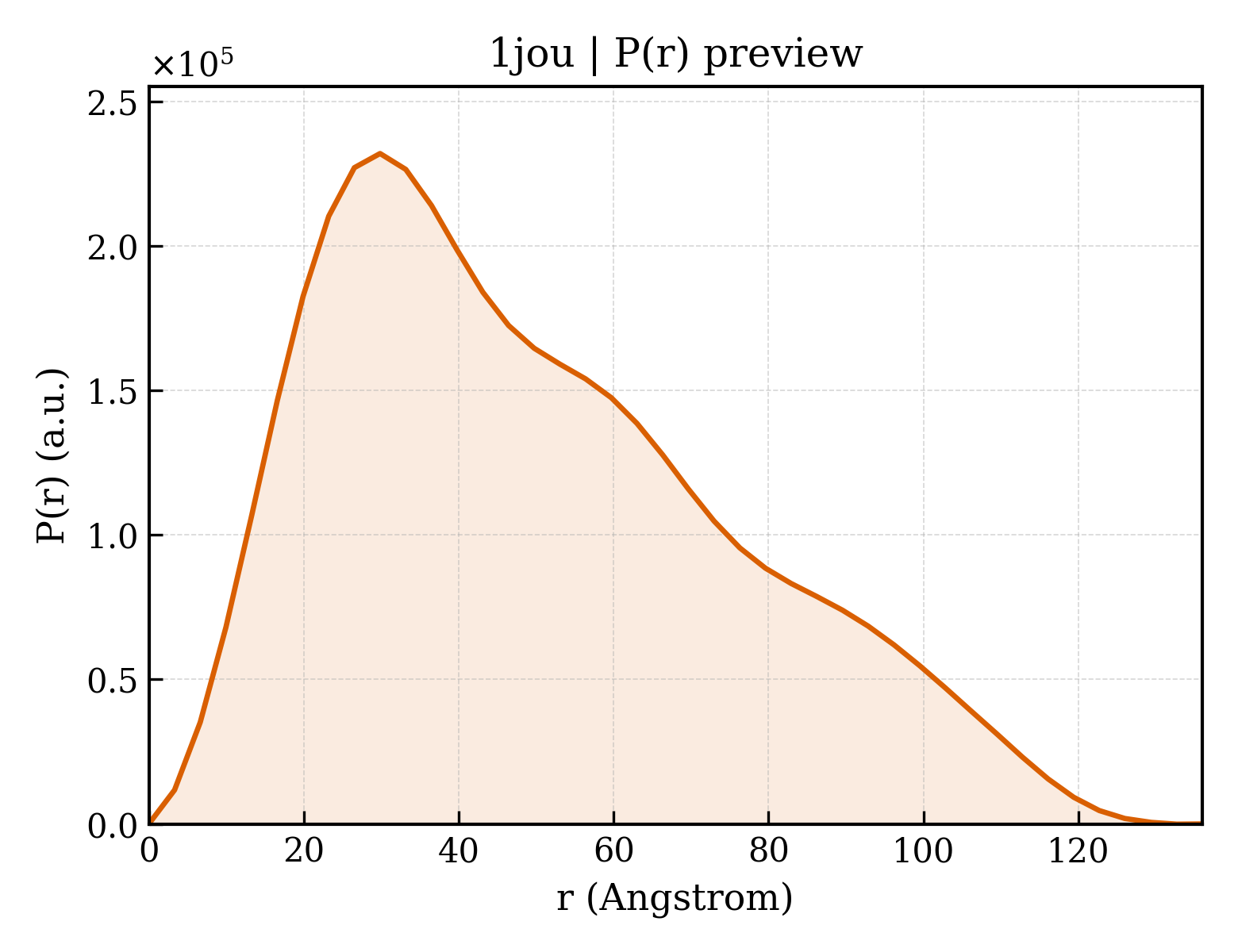

1jou__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.70 Å
Rg (electron density)	18.40 Å
Total Rg	19.43 Å
Atom count	2505
Residues	304
Excluded volume	44573 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jou__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1jou__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1jou__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Thrombin, light chain
Molecular weight formula_weight	5641.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E
Atom count atom_count	7838

TATSEYQTFFNPRTFGSGEADCGLRPLFEKKSLEDKTERELLESYIDGR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 2 Entity 2 polymer

Description description	Thrombin, heavy chain
Molecular weight formula_weight	29764.2 kDa
Mutation mutation	S195A
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F

IVEGSDAEIGMSPWQVMLFRKSPQELLCGASLISDRWVLTAAHCLLYPPWDKNFTENDLLVRIGKHSRTRYERNIEKISMLEKIYIHPRYNWRENLDRDIALMKLKKPVAFSDYIHPVCLPDRETAASLLQAGYKGRVTGWGNLKETWTANVGKGQPSVLQVVNLPIVERPVCKDSTRIRITDNMFCAGYKPDEGKRGDACEGDAGGPFVMKSPFNNRWYQMGIVSWGEGCDRDGKYGFYTHVFRLKKWIQKVIDQFGE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 3 Entity 3 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	ACETIC ACID
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	372

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1jou.1
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1jou.2
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1jou.3
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

CATH v4.4 (9 domains)

Domain ID domain_id	1jouA00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	140 — Epsilon-Thrombin; Chain L
Homologous superfamily homologous superfamily	10 — Thrombin light chain domain

Domain ID domain_id	1jouB01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1jouB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1jouC00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	140 — Epsilon-Thrombin; Chain L
Homologous superfamily homologous superfamily	10 — Thrombin light chain domain

Domain ID domain_id	1jouD01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1jouD02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1jouE00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	140 — Epsilon-Thrombin; Chain L
Homologous superfamily homologous superfamily	10 — Thrombin light chain domain

Domain ID domain_id	1jouF01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1jouF02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

▶

Unit-cell length a length_a	71.230 Å
Unit-cell length b length_b	76.580 Å
Unit-cell length c length_c	97.320 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	106.64 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	24.690 Å
R factor r_factor	—
R_work r_work	0.2220
R_free r_free	0.2450
