1a5g

HUMAN THROMBIN COMPLEXED WITH NOVEL SYNTHETIC PEPTIDE MIMETIC INHIBITOR AND HIRUGEN

Method: X-RAY DIFFRACTION D_max: 56.7 Å Quality: EXCELLENT

SAXS Profile

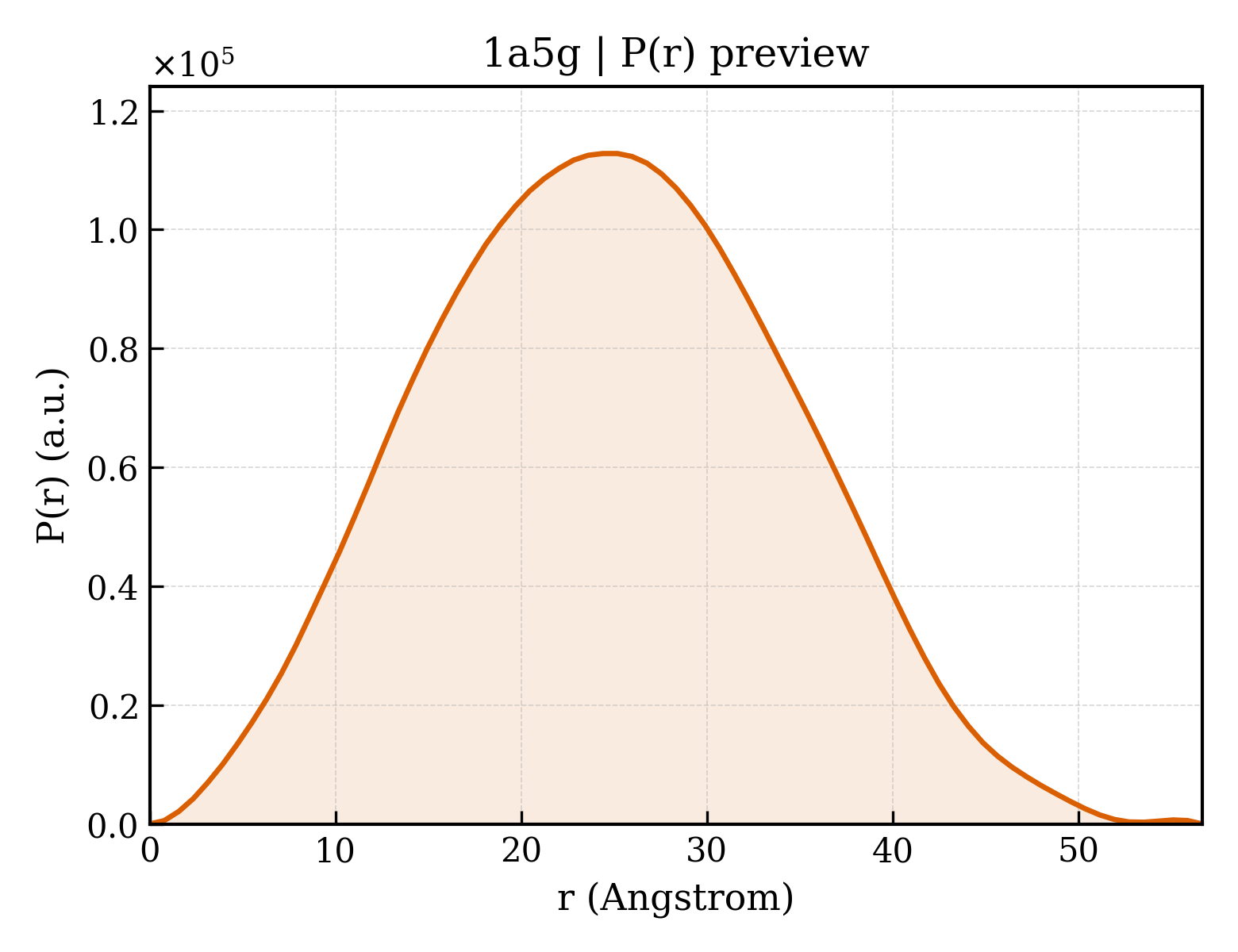

P(r) Distribution

▼

1. Structure Basics

entry_id	1a5g
deposition_date	1998-02-16
title	HUMAN THROMBIN COMPLEXED WITH NOVEL SYNTHETIC PEPTIDE MIMETIC INHIBITOR AND HIRUGEN
keywords	COMPLEX (SERINE PROTEASE-INHIBITOR), HYDROLASE-HYDROLASE INHIBITOR COMPLEX; HYDROLASE/HYDROLASE INHIBITOR
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	18.89 Å
rg_electron	17.91 Å
i0	36716700.00
molecular_weight	31450.0 kDa
excluded_volume	30461 Å³
envelope_volume	46836 Å³
shell_volume	21028 Å³
envelope_diameter	58.2 Å
shell_rg	25.06 Å
envelope_rg	18.20 Å
shape_rg	17.90 Å
total_rg	18.66 Å
total_atoms	2378
n_residues	286
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	56.7 Å
rg_real	18.74 Å
rg_real_error	0.24 Å
i0_real	3.6720e+07
i0_real_error	3.8760e+05
rg_reciprocal	18.77 Å
i0_reciprocal	36720000.0000
total_estimate	0.9032
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	55.1 Å
skewness	0.101
kurtosis	-0.477
angular_range	— – 0.4200 Å⁻¹
current_alpha	0.0000
highest_alpha	12640000.0000
n_real_points	73
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.925; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.988

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	ALPHA-THROMBIN (SMALL SUBUNIT)
formula_weight	4096.5 kDa
ec_number	3.4.21.5
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	L
atom_count	2513

TFGSGEADCGLRPLFEKKSLEDKTERELLESYIDGR

Entity 2 polymer

description	ALPHA-THROMBIN (LARGE SUBUNIT)
formula_weight	29780.2 kDa
ec_number	3.4.21.5
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

IVEGSDAEIGMSPWQVMLFRKSPQELLCGASLISDRWVLTAAHCLLYPPWDKNFTENDLLVRIGKHSRTRYERNIEKISMLEKIYIHPRYNWRENLDRDIALMKLKKPVAFSDYIHPVCLPDRETAASLLQAGYKGRVTGWGNLKETWTANVGKGQPSVLQVVNLPIVERPVCKDSTRIRITDNMFCAGYKPDEGKRGDACEGDSGGPFVMKSPFNNRWYQMGIVSWGEGCDRDGKYGFYTHVFRLKKWIQKVIDQFGE

Entity 3 polymer

description	HIRUGEN
formula_weight	1534.6 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	I

NGDFEEIPEEYL

Entity 4 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	;(1S,7S)-7-amino-7-benzyl-N-[(1S)-4-carbamimidamido-1-{(1S)-1-hydroxy-2-oxo-2-[(2-phenylethyl)amino]ethyl}butyl]-8-oxohexahydro-1H-pyrazolo[1,2-a]pyridazine-1-carboxamide ;
formula_weight	578.7 kDa
src_method	syn
entity_count	1

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	135

▶

6. Citations (3)

▶

length_a	70.810 Å
length_b	72.250 Å
length_c	72.790 Å
angle_alpha	90.00 °
angle_beta	100.80 °
angle_gamma	90.00 °
z_pdb	4

space_group	C 1 2 1
int_tables_number	5
crystal_system	—

resolution	2.060 Å
resolution_low	7.000 Å
r_factor	—
r_work	0.1580
r_free	—

fit	/app/data/saxs_computation/a5/1a5g/1a5g.fit
pddf	/app/data/pr_computation/a5/1a5g/1a5g.pr.out
profile	/app/data/saxs_computation/a5/1a5g/1a5g.dat
