9h5n

;Crystal structure of Thrombin in complex with a Chlorothiophene-based inhibitor, CP3, discovered by a novel rapid nanoscale library screening. ;

Method: X-RAY DIFFRACTION D_max: 89.1 Å Quality: GOOD

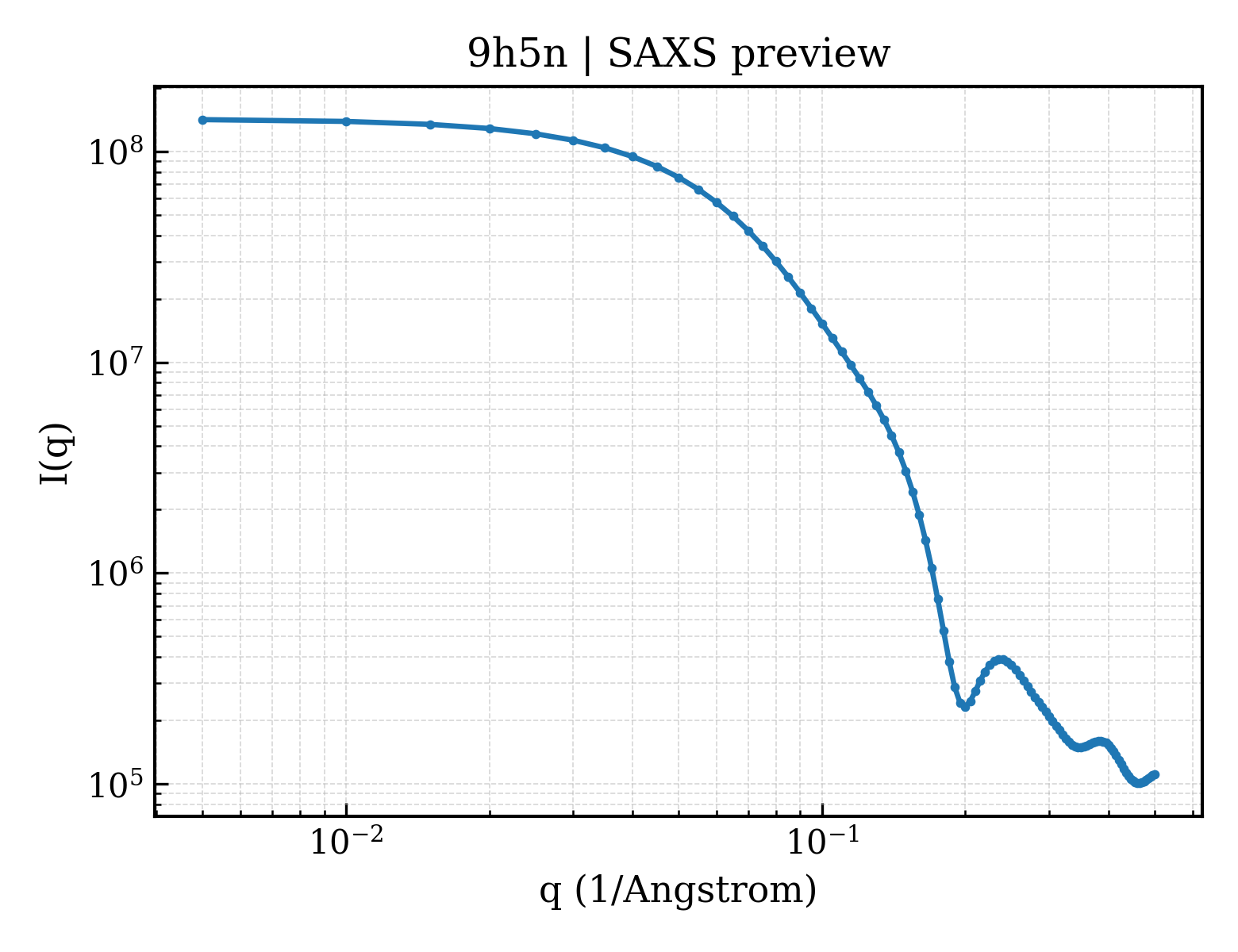

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9h5n
沉积日期 deposition_date	2024-10-22
最后修订 last_revision	2025-11-05
结构标题 title	;Crystal structure of Thrombin in complex with a Chlorothiophene-based inhibitor, CP3, discovered by a novel rapid nanoscale library screening. ;
关键词 keywords	Thrombin, protease, combinatorial design of nanoscale libraries, small molecules inhibitors, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.74 Å
回转半径 Rg (电子) rg_electron	27.12 Å
零角强度 I(0) i0	142257000.00
分子量 molecular_weight	62757.0 kDa
排除体积 excluded_volume	60547 Å³
包络体积 envelope_volume	101870 Å³
水化壳体积 shell_volume	31379 Å³
包络直径 envelope_diameter	94.8 Å
壳层 Rg shell_rg	34.48 Å
包络 Rg envelope_rg	27.16 Å
形状 Rg shape_rg	27.11 Å
总 Rg total_rg	27.69 Å
总原子数 total_atoms	4740
残基数 n_residues	573
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	89.1 Å
Rg (实空间) rg_real	27.78 Å
Rg 误差 (实空间) rg_real_error	0.57 Å
I(0) (实空间) i0_real	1.4230e+08
I(0) 误差 (实空间) i0_real_error	2.0340e+06
Rg (倒空间) rg_reciprocal	27.77 Å
I(0) (倒空间) i0_reciprocal	142300000.0000
解质量估计 total_estimate	0.8911
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	28.1 Å
偏度 Skewness skewness	0.348
峰度 Kurtosis kurtosis	-0.576
角度范围 angular_range	— – 0.2850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	42190000.0000
实空间数据点数 n_real_points	58
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.879; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.973

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Thrombin light chain
分子量 formula_weight	5641.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	4740

TATSEYQTFFNPRTFGSGEADCGLRPLFEKKSLEDKTERELLESYIDGR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Prothrombin
分子量 formula_weight	29780.2 kDa
EC 编号 ec_number	3.4.21.5
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

IVEGSDAEIGMSPWQVMLFRKSPQELLCGASLISDRWVLTAAHCLLYPPWDKNFTENDLLVRIGKHSRTRYERNIEKISMLEKIYIHPRYNWRENLDRDIALMKLKKPVAFSDYIHPVCLPDRETAASLLQAGYKGRVTGWGNLKETWTANVGKGQPSVLQVVNLPIVERPVCKDSTRIRITDNMFCAGYKPDEGKRGDACEGDSGGPFVMKSPFNNRWYQMGIVSWGEGCDRDGKYGFYTHVFRLKKWIQKVIDQFGE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 non-polymer

描述 description	;~{N}-[(3~{S})-4-[3-(2-azanyl-2-oxidanylidene-ethyl)sulfanylpropylamino]-4-oxidanylidene-3-(2-phenylethanoylamino)butyl]-5-chloranyl-thiophene-2-carboxamide ;
分子量 formula_weight	511.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	90.931 Å
晶胞边长 b length_b	98.260 Å
晶胞边长 c length_c	145.661 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	3.100 Å
最低分辨率 resolution_low	66.740 Å
R 因子 r_factor	0.2642
R_work r_work	0.2632
R_free r_free	0.2844

fit	/app/data/saxs_computation/h5/9h5n/9h5n.fit
pddf	/app/data/pr_computation/h5/9h5n/9h5n.pr.out
profile	/app/data/saxs_computation/h5/9h5n/9h5n.dat
