SAXSdb — 1sr5

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1sr5
沉积日期 deposition_date	2004-03-22
结构标题 title	ANTITHROMBIN-ANHYDROTHROMBIN-HEPARIN TERNARY COMPLEX STRUCTURE
关键词 keywords	;SERINE PROTEINASE INHIBITOR, ANTITHROMBIN ACTIVATION BY HEP ANHYDROTHROMBIN, PROTEIN-PROTEIN INTERACTIONS, HYDROLASE-HYDROLASE INHIBITOR COMPLEX ;; HYDROLASE/HYDROLASE INHIBITOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.24 Å
回转半径 Rg (电子) rg_electron	33.20 Å
零角强度 I(0) i0	95037000.00
分子量 molecular_weight	77722.0 kDa
排除体积 excluded_volume	97116 Å³
包络体积 envelope_volume	119260 Å³
水化壳体积 shell_volume	32051 Å³
包络直径 envelope_diameter	114.0 Å
壳层 Rg shell_rg	37.36 Å
包络 Rg envelope_rg	33.00 Å
形状 Rg shape_rg	33.19 Å
总 Rg total_rg	33.55 Å
总原子数 total_atoms	5459
残基数 n_residues	648
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	113.0 Å
Rg (实空间) rg_real	33.65 Å
Rg 误差 (实空间) rg_real_error	1.11 Å
I(0) (实空间) i0_real	9.5040e+07
I(0) 误差 (实空间) i0_real_error	1.7050e+06
Rg (倒空间) rg_reciprocal	33.48 Å
I(0) (倒空间) i0_reciprocal	95020000.0000
解质量估计 total_estimate	0.7978
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	28.2 Å
偏度 Skewness skewness	0.500
峰度 Kurtosis kurtosis	-0.570
角度范围 angular_range	— – 0.2400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	41680000.0000
实空间数据点数 n_real_points	49
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.629; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.617; Smooth: 0.865

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	Antithrombin-III
分子量 formula_weight	49101.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	5534

HGSPVDICTAKPRDIPMNPMCIYRSPEKKATEDEGSEQKIPEATNRRVWELSKANSRFATTFYQHLADSKNDNDNIFLSPLSISTAFAMTKLGACNDTLQQLMEVFKFDTISEKTSDQIHFFFAKLNCRLYRKANKSSKLVSANRLFGDKSLTFNETYQDISELVYGAKLQPLDFKENAEQSRAAINKWVSNKTEGRITDVIPSEAINELTVLVLVNTIYFKGLWKSKFSPENTRKELFYKADGESCSASMMYQEGKFRYRRVAEGTQVLELPFKGDDITMVLILPKPEKSLAKVEKELTPEVLQEWLDELEEMMLVVHMPRFRIEDGFSLKEQLQDMGLVDLFSPEKSKLPGIVAEGRDDLYVSDAFHKAFLEVNEEGSEAAASTAVVIAGRSLNPNRVTFKANRPFLVFIREVPLNTIIFMGRVANPCVK

Entity 2 polymer

描述 description	Prothrombin
分子量 formula_weight	4096.5 kDa
EC 编号 ec_number	3.4.21.5
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

TFGSGEADCGLRPLFEKKSLEDKTERELLESYIDGR

Entity 3 polymer

描述 description	Prothrombin
分子量 formula_weight	29780.2 kDa
EC 编号 ec_number	3.4.21.5
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

IVEGSDAEIGMSPWQVMLFRKSPQELLCGASLISDRWVLTAAHCLLYPPWDKNFTENDLLVRIGKHSRTRYERNIEKISMLEKIYIHPRYNWRENLDRDIALMKLKKPVAFSDYIHPVCLPDRETAASLLQAGYKGRVTGWGNLKETWTANVGKGQPSVLQVVNLPIVERPVCKDSTRIRITDNMFCAGYKPDEGKRGDACEGDSGGPFVMKSPFNNRWYQMGIVSWGEGCDRDGKYGFYTHVFRLKKWIQKVIDQFGE

Entity 4 branched

描述 description	;4-deoxy-2,3,6-tri-O-methyl-alpha-D-xylo-hexopyranose-(1-4)-2,3,6-tri-O-methyl-beta-D-glucopyranose-(1-4)-2,3-di-O-methyl-6-O-sulfo-alpha-D-glucopyranose-(1-4)-(2R,3R,4S,5S,6S)-6-(dihydroxymethyl)-3,4-dimethoxytetrahydro-2H-pyran-2,5-diol-(1-4)-2,3,6-tri-O-sulfo-alpha-D-glucopyranose-(1-4)-(2R,3R,4S,5S,6R)-6-(dihydroxymethyl)-3,4-dimethoxytetrahydro-2H-pyran-2,5-diol-(1-4)-1,5-anhydro-3-O-methyl-2,6-di-O-sulfo-D-glucitol ;
分子量 formula_weight	1815.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 6 non-polymer

描述 description	2,3,4,6-tetra-O-sulfonato-alpha-D-glucopyranose
分子量 formula_weight	500.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 7 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	75

▼

6. 折叠分类 (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1sr5.1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.47 — Trypsin-like serine proteases
超家族 Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
家族 Family family	b.47.1.2 — Eukaryotic proteases

结构域编号 domain_id	d1sr5a_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.1 — Serpins
超家族 Superfamily superfamily	e.1.1 — Serpins
家族 Family family	e.1.1.1 — Serpins

CATH v4.4 (4 domains)

结构域编号 domain_id	1sr5A01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	39 — Alpha-1-antitrypsin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Alpha-1-antitrypsin, domain 1

结构域编号 domain_id	1sr5A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	497 — Antithrombin; Chain I, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Antithrombin, subunit I, domain 2

结构域编号 domain_id	1sr5C01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1sr5C02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	90.040 Å
晶胞边长 b length_b	90.700 Å
晶胞边长 c length_c	159.900 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	3.100 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	—
R_work r_work	0.2270
R_free r_free	0.2780

fit	/app/data/saxs_computation/sr/1sr5/1sr5.fit
pddf	/app/data/pr_computation/sr/1sr5/1sr5.pr.out
profile	/app/data/saxs_computation/sr/1sr5/1sr5.dat

ANTITHROMBIN-ANHYDROTHROMBIN-HEPARIN TERNARY COMPLEX STRUCTURE

SAXS 散射曲线 SAXS Profile

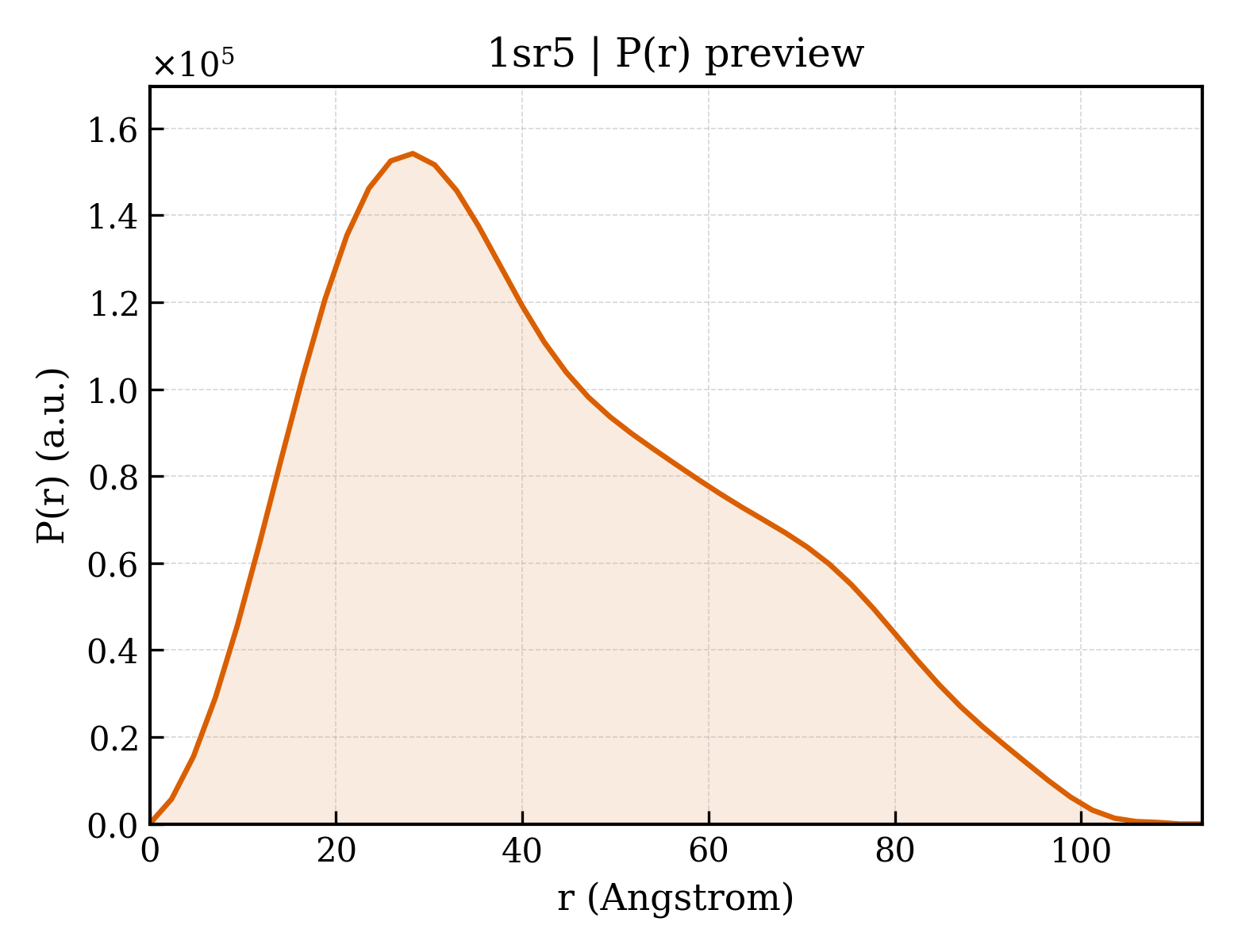

P(r) 距离分布 P(r) Distribution
