1cgl
Structure of the catalytic domain of fibroblast collagenase complexed with an inhibitor
SAXS Profile

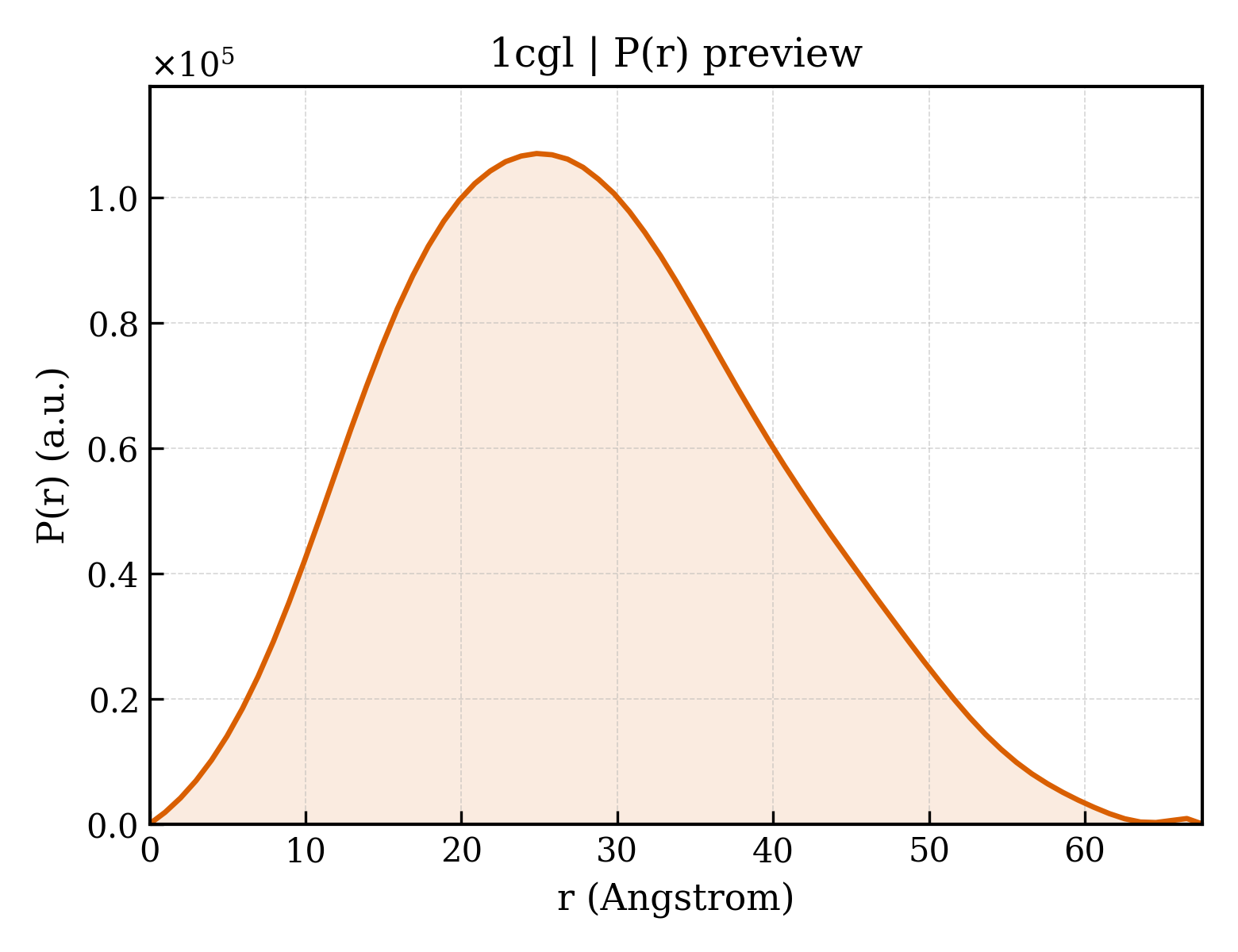

P(r) Distribution
1. Structure Basics
| entry_id | 1cgl |
| deposition_date | 1993-11-17 |
| title | Structure of the catalytic domain of fibroblast collagenase complexed with an inhibitor |
| keywords | METALLOPROTEASE, HYDROLASE-HYDROLASE INHIBITOR complex; HYDROLASE/HYDROLASE INHIBITOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 21.45 Å |
| rg_electron | 20.69 Å |
| i0 | 41710700.00 |
| molecular_weight | 35943.0 kDa |
| excluded_volume | 36978 ų |
| envelope_volume | 54217 ų |
| shell_volume | 21859 ų |
| envelope_diameter | 69.0 Å |
| shell_rg | 27.22 Å |
| envelope_rg | 20.95 Å |
| shape_rg | 20.78 Å |
| total_rg | 21.15 Å |
| total_atoms | 3284 |
| n_residues | 325 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 67.5 Å |
| rg_real | 21.40 Å |
| rg_real_error | 0.34 Å |
| i0_real | 4.1710e+07 |
| i0_real_error | 4.3900e+05 |
| rg_reciprocal | 21.41 Å |
| i0_reciprocal | 41710000.0000 |
| total_estimate | 0.8956 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 24.8 Å |
| skewness | 0.295 |
| kurtosis | -0.416 |
| angular_range | — – 0.3700 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 9416000.0000 |
| n_real_points | 69 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.916; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.893 |
