SAXSdb — 1nrs

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ALPHA-THROMBIN (SMALL SUBUNIT)

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	RECEPTOR BASED PEPTIDE NRP × 1 HIRUGEN × 1 （P09945） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	THRB_HUMAN
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain L； PDBConstruct 1–22； UniProt 328–363 Author chain H； PDBConstruct 1–259； UniProt 364–622

HIRUGEN

Hirudo medicinalis

UniProt P09945

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	ALPHA-THROMBIN (SMALL SUBUNIT) × 1 （P00734） ALPHA-THROMBIN (LARGE SUBUNIT) × 1 （P00734） RECEPTOR BASED PEPTIDE NRP × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ITH3_HIRME
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain I； PDBConstruct 1–12； UniProt 60–71

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1nrs
Deposition date deposition_date	1994-01-18
Structure title title	CRYSTALLOGRAPHIC STRUCTURES OF THROMBIN COMPLEXED WITH THROMBIN RECEPTOR PEPTIDES: EXISTENCE OF EXPECTED AND NOVEL BINDING MODES
Keywords keywords	SERINE PROTEINASE, RECEPTOR, HYDROLASE-HYDROLASE INHIBITOR complex; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1nrs__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1nrs__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

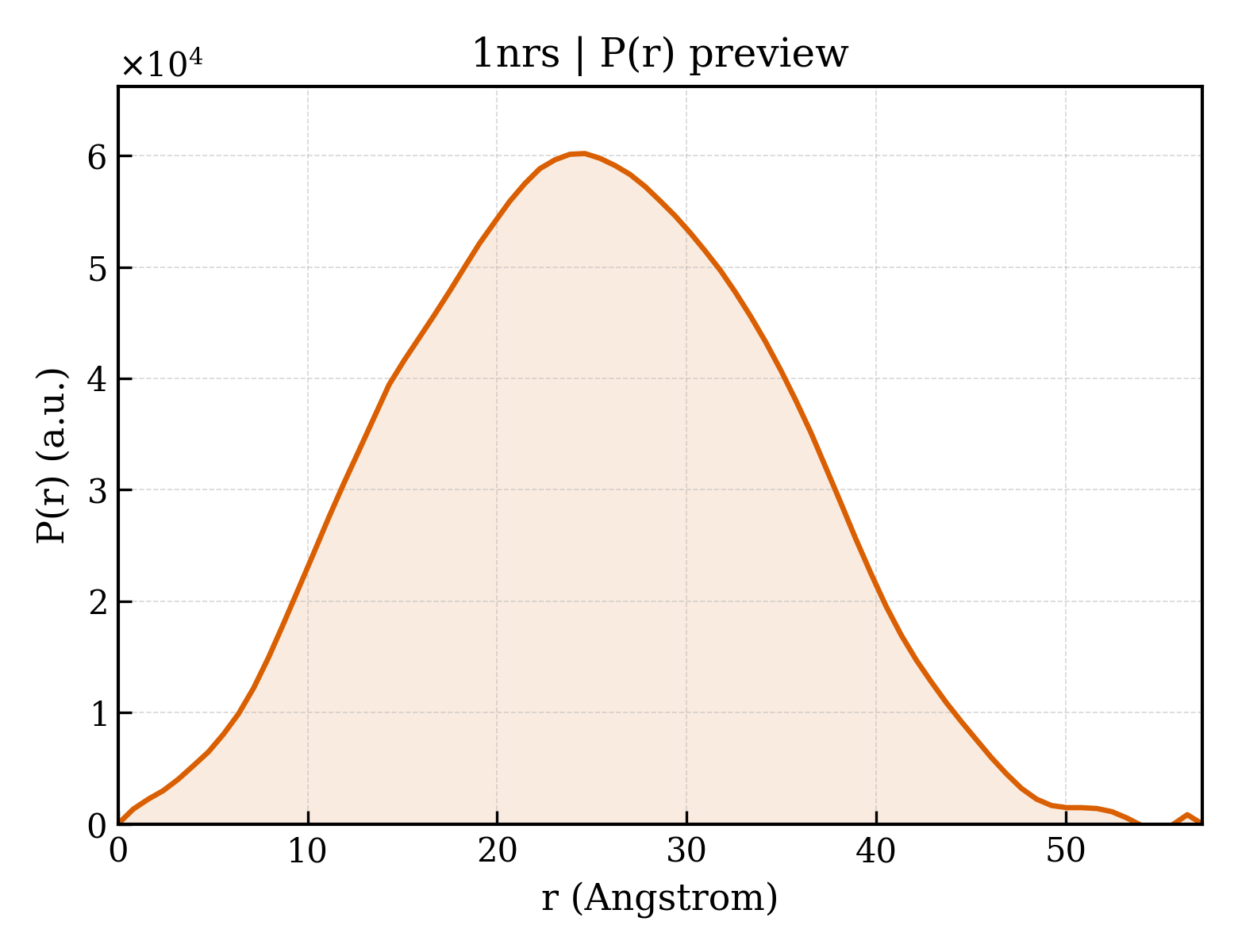

1nrs__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.13 Å
Rg (electron density)	17.90 Å
Total Rg	18.88 Å
Atom count	2363
Residues	291
Excluded volume	42022 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1nrs__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	ALPHA-THROMBIN (SMALL SUBUNIT)
Molecular weight formula_weight	4096.5 kDa
EC 编号 ec_number	3.4.21.5
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	2573

TFGSGEADCGLRPLFEKKSLEDKTERELLESYIDGR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606

Entity 2 Entity 2 polymer

Description description	ALPHA-THROMBIN (LARGE SUBUNIT)
Molecular weight formula_weight	29780.2 kDa
EC 编号 ec_number	3.4.21.5
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

IVEGSDAEIGMSPWQVMLFRKSPQELLCGASLISDRWVLTAAHCLLYPPWDKNFTENDLLVRIGKHSRTRYERNIEKISMLEKIYIHPRYNWRENLDRDIALMKLKKPVAFSDYIHPVCLPDRETAASLLQAGYKGRVTGWGNLKETWTANVGKGQPSVLQVVNLPIVERPVCKDSTRIRITDNMFCAGYKPDEGKRGDACEGDSGGPFVMKSPFNNRWYQMGIVSWGEGCDRDGKYGFYTHVFRLKKWIQKVIDQFGE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606

Entity 3 Entity 3 polymer

Description description	RECEPTOR BASED PEPTIDE NRP
Molecular weight formula_weight	500.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

LDPR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606

Entity 4 Entity 4 polymer

Description description	HIRUGEN
Molecular weight formula_weight	1534.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

NGDFEEIPEEYL

Source Source

Source organism organism	Hirudo medicinalis
Common name common_name	medicinal leech
NCBI taxonomy ID ncbi_taxonomy_id	6421

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	210

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1nrs.1
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

CATH v4.4 (2 domains)

Domain ID domain_id	1nrsH01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1nrsH02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

▶

Unit-cell length a length_a	71.000 Å
Unit-cell length b length_b	72.400 Å
Unit-cell length c length_c	72.800 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	101.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	7.000 Å
R factor r_factor	0.1460
R_work r_work	—
R_free r_free	—

CRYSTALLOGRAPHIC STRUCTURES OF THROMBIN COMPLEXED WITH THROMBIN RECEPTOR PEPTIDES: EXISTENCE OF EXPECTED AND NOVEL BINDING MODES
