2a45

Crystal structure of the complex between thrombin and the central "E" region of fibrin

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Thrombin light chain

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Fibrinogen alpha chain × 2 （P02671） Fibrinogen beta chain × 2 （P02675） Fibrinogen gamma chain × 2 （P02679） D-phenylalanyl-N-[(2S,3S)-6-{[amino(iminio)methyl]amino}-1-chloro-2-hydroxyhexan-3-yl]-L-prolinamide × 2 PHOSPHATE ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	THRB_HUMAN
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–36； UniProt 328–363 Author chain D； PDBConstruct 1–36； UniProt 328–363 Author chain B； PDBConstruct 1–259； UniProt 364–622 Author chain E； PDBConstruct 1–259； UniProt 364–622

Fibrinogen alpha chain

OrganismNot specified

UniProt P02671

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Thrombin light chain × 2 （P00734） Thrombin heavy chain × 2 （P00734） Fibrinogen beta chain × 2 （P02675） Fibrinogen gamma chain × 2 （P02679） D-phenylalanyl-N-[(2S,3S)-6-{[amino(iminio)methyl]amino}-1-chloro-2-hydroxyhexan-3-yl]-L-prolinamide × 2 PHOSPHATE ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FIBA_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–57； UniProt 36–92 Author chain J； PDBConstruct 1–57； UniProt 36–92

Fibrinogen beta chain

OrganismNot specified

UniProt P02675

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Thrombin light chain × 2 （P00734） Thrombin heavy chain × 2 （P00734） Fibrinogen alpha chain × 2 （P02671） Fibrinogen gamma chain × 2 （P02679） D-phenylalanyl-N-[(2S,3S)-6-{[amino(iminio)methyl]amino}-1-chloro-2-hydroxyhexan-3-yl]-L-prolinamide × 2 PHOSPHATE ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FIBB_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain H； PDBConstruct 1–91； UniProt 45–135 Author chain K； PDBConstruct 1–91； UniProt 45–135

Fibrinogen gamma chain

OrganismNot specified

UniProt P02679

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Thrombin light chain × 2 （P00734） Thrombin heavy chain × 2 （P00734） Fibrinogen alpha chain × 2 （P02671） Fibrinogen beta chain × 2 （P02675） D-phenylalanyl-N-[(2S,3S)-6-{[amino(iminio)methyl]amino}-1-chloro-2-hydroxyhexan-3-yl]-L-prolinamide × 2 PHOSPHATE ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FIBG_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain I； PDBConstruct 1–45； UniProt 27–71 Author chain L； PDBConstruct 1–45； UniProt 27–71

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2a45
Deposition date deposition_date	2005-06-27
Structure title title	Crystal structure of the complex between thrombin and the central "E" region of fibrin
Keywords keywords	;THROMBIN, FIBRIN, FRAGMENT E, THROMBIN-FIBRIN COMPLEX, COILED COILS, DISULFIDE RINGS, BLOOD CLOTTING, HYDROLASE-HYDROLASE INHIBITOR COMPLEX ;; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2a45__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2a45__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

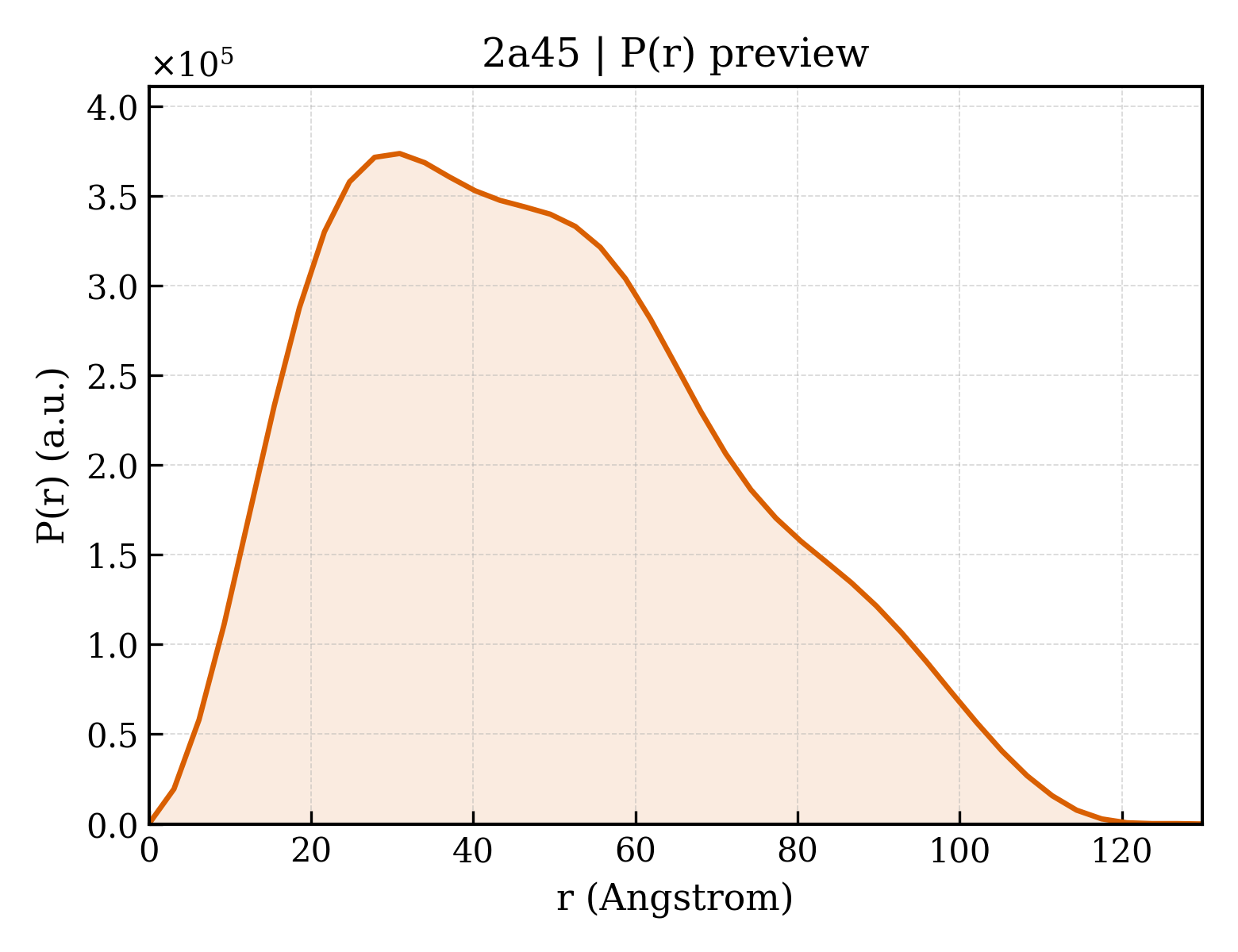

2a45__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.84 Å
Rg (electron density)	38.06 Å
Total Rg	38.07 Å
Atom count	6904
Residues	864
Excluded volume	121490 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2a45__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Thrombin light chain
Molecular weight formula_weight	4096.5 kDa
EC 编号 ec_number	3.4.21.5
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	6904

TFGSGEADCGLRPLFEKKSLEDKTERELLESYIDGR

Entity 2 Entity 2 polymer

Description description	Thrombin heavy chain
Molecular weight formula_weight	29780.2 kDa
EC 编号 ec_number	3.4.21.5
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

IVEGSDAEIGMSPWQVMLFRKSPQELLCGASLISDRWVLTAAHCLLYPPWDKNFTENDLLVRIGKHSRTRYERNIEKISMLEKIYIHPRYNWRENLDRDIALMKLKKPVAFSDYIHPVCLPDRETAASLLQAGYKGRVTGWGNLKETWTANVGKGQPSVLQVVNLPIVERPVCKDSTRIRITDNMFCAGYKPDEGKRGDACEGDSGGPFVMKSPFNNRWYQMGIVSWGEGCDRDGKYGFYTHVFRLKKWIQKVIDQFGE

Entity 3 Entity 3 polymer

Description description	Fibrinogen alpha chain
Molecular weight formula_weight	6642.4 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,J

GPRVVERHQSACKDSDWPFCSDEDWNYKCPSGCRMKGLIDEVNQDFTNRINKLKNSL

Entity 4 Entity 4 polymer

Description description	Fibrinogen beta chain
Molecular weight formula_weight	9787.1 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,K

GHRPLDKKREEAPSLRPAPPPISGGGYRARPAKAAATQKKVERKAPDAGGCLHADPDLGVLCPTGCQLQEALLQQERPIRNSVDELNNNVE

Entity 5 Entity 5 polymer

Description description	Fibrinogen gamma chain
Molecular weight formula_weight	5103.7 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,L

YVATRDNCCILDERFGSYCPTTCGIADFLSTYQTKVDKDLQSLED

Entity 6 Entity 6 non-polymer

Description description	D-phenylalanyl-N-[(2S,3S)-6-{[amino(iminio)methyl]amino}-1-chloro-2-hydroxyhexan-3-yl]-L-prolinamide
Molecular weight formula_weight	454.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d2a45.1
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d2a45.2
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d2a45g_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
Family Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

Domain ID domain_id	d2a45h_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
Family Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

Domain ID domain_id	d2a45i_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
Family Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

Domain ID domain_id	d2a45j_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
Family Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

Domain ID domain_id	d2a45k_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
Family Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

Domain ID domain_id	d2a45l_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
Family Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

CATH v4.4 (10 domains)

Domain ID domain_id	2a45B01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	2a45B02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	2a45E01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	2a45E02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	2a45G00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	2a45H00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	2a45I00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	2a45J00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	2a45K00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	2a45L00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	50 —

▶

Unit-cell length a length_a	76.263 Å
Unit-cell length b length_b	76.263 Å
Unit-cell length c length_c	192.452 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31
Space-group number int_tables_number	144
Crystal system crystal_system	—

Resolution resolution	3.650 Å
Low-resolution limit resolution_low	19.700 Å
R factor r_factor	0.2210
R_work r_work	—
R_free r_free	0.2900

Crystal structure of the complex between thrombin and the central "E" region of fibrin

1. Protein Identity and Related Structures Protein Identity & Related Structures

Thrombin light chain

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Fibrinogen alpha chain

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Fibrinogen beta chain

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Fibrinogen gamma chain

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2a45__assembly_1__model_1

2a45__assembly_1__model_1 | I(q)

2a45__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 polymer

Polymer Polymer

Entity 5 Entity 5 polymer

Polymer Polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (8 domains)

CATH v4.4 (10 domains)

7. Citations (2)
