1tb6

2.5A Crystal Structure of the Antithrombin-Thrombin-Heparin Ternary Complex

Method: X-RAY DIFFRACTION D_max: 108.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

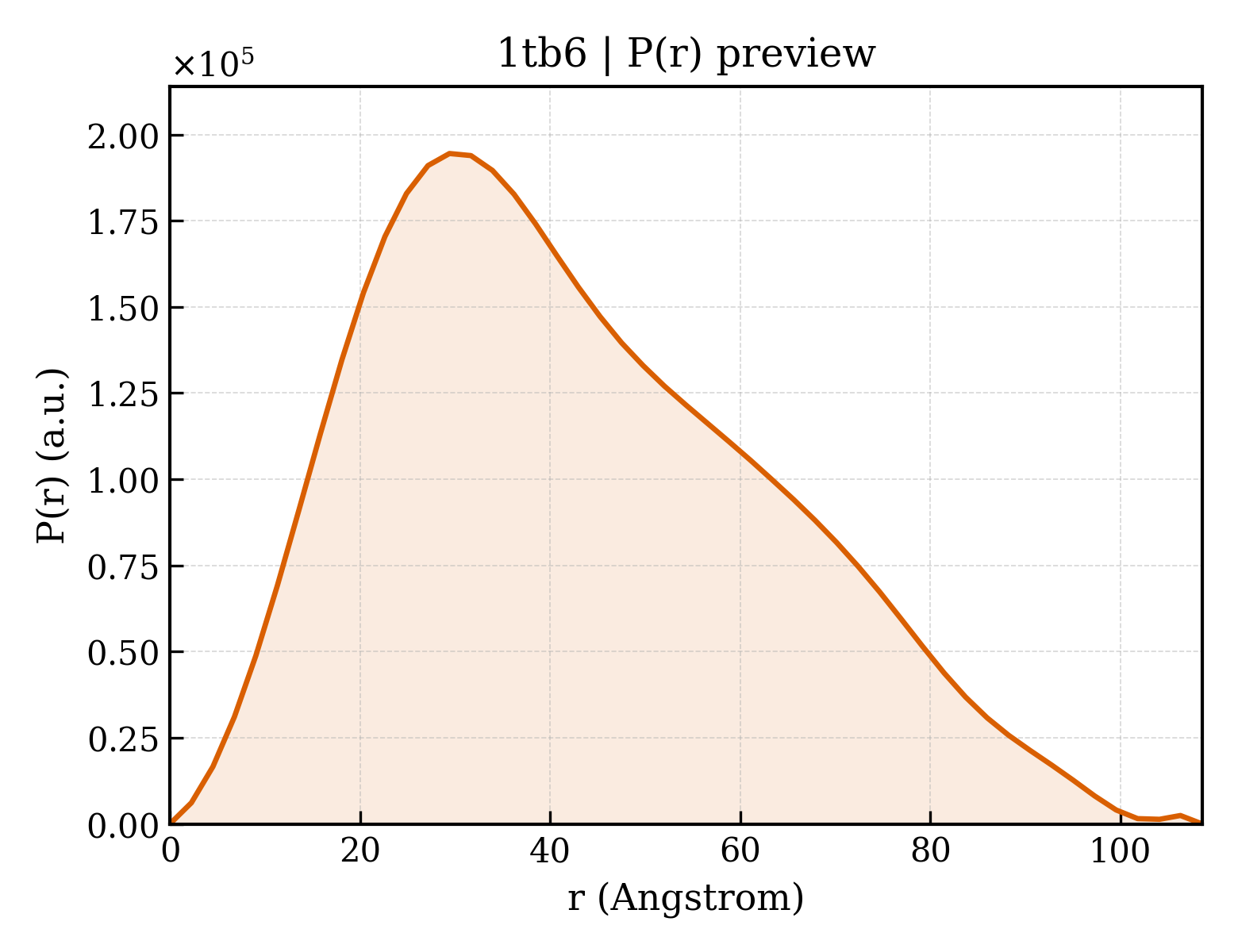

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1tb6
沉积日期 deposition_date	2004-05-19
结构标题 title	2.5A Crystal Structure of the Antithrombin-Thrombin-Heparin Ternary Complex
关键词 keywords	Heparin, HYDROLASE-BLOOD CLOTTING COMPLEX; HYDROLASE/BLOOD CLOTTING
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.17 Å
回转半径 Rg (电子) rg_electron	32.82 Å
零角强度 I(0) i0	121905000.00
分子量 molecular_weight	88398.0 kDa
排除体积 excluded_volume	110690 Å³
包络体积 envelope_volume	137260 Å³
水化壳体积 shell_volume	36385 Å³
包络直径 envelope_diameter	117.5 Å
壳层 Rg shell_rg	37.98 Å
包络 Rg envelope_rg	32.58 Å
形状 Rg shape_rg	32.82 Å
总 Rg total_rg	33.24 Å
总原子数 total_atoms	6178
残基数 n_residues	657
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	108.6 Å
Rg (实空间) rg_real	33.44 Å
Rg 误差 (实空间) rg_real_error	0.88 Å
I(0) (实空间) i0_real	1.2190e+08
I(0) 误差 (实空间) i0_real_error	1.9860e+06
Rg (倒空间) rg_reciprocal	33.33 Å
I(0) (倒空间) i0_reciprocal	121900000.0000
解质量估计 total_estimate	0.8477
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	29.4 Å
偏度 Skewness skewness	0.461
峰度 Kurtosis kurtosis	-0.490
角度范围 angular_range	— – 0.2400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	39750000.0000
实空间数据点数 n_real_points	49
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.813; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.860; Smooth: 0.716

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (10)

Entity 1 polymer

描述 description	thrombin
分子量 formula_weight	5641.2 kDa
突变 mutation	S195A
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L
原子数 atom_count	6324

TATSEYQTFFNPRTFGSGEADCGLRPLFEKKSLEDKTERELLESYIDGR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 2 polymer

描述 description	thrombin
分子量 formula_weight	29764.2 kDa
EC 编号 ec_number	3.4.21.5
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

IVEGSDAEIGMSPWQVMLFRKSPQELLCGASLISDRWVLTAAHCLLYPPWDKNFTENDLLVRIGKHSRTRYERNIEKISMLEKIYIHPRYNWRENLDRDIALMKLKKPVAFSDYIHPVCLPDRETAASLLQAGYKGRVTGWGNLKETWTANVGKGQPSVLQVVNLPIVERPVCKDSTRIRITDNMFCAGYKPDEGKRGDACEGDAGGPFVMKSPFNNRWYQMGIVSWGEGCDRDGKYGFYTHVFRLKKWIQKVIDQFGE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 3 polymer

描述 description	Antithrombin-III
分子量 formula_weight	49091.1 kDa
突变 mutation	S137A,V317C,T401C
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

HGSPVDICTAKPRDIPMNPMCIYRSPEKKATEDEGSEQKIPEATNRRVWELSKANSRFATTFYQHLADSKNDNDNIFLSPLSISTAFAMTKLGACNDTLQQLMEVFKFDTISEKTSDQIHFFFAKLNCRLYRKANKASKLVSANRLFGDKSLTFNETYQDISELVYGAKLQPLDFKENAEQSRAAINKWVSNKTEGRITDVIPSEAINELTVLVLVNTIYFKGLWKSKFSPENTRKELFYKADGESCSASMMYQEGKFRYRRVAEGTQVLELPFKGDDITMVLILPKPEKSLAKVEKELTPEVLQEWLDELEEMMLCVHMPRFRIEDGFSLKEQLQDMGLVDLFSPEKSKLPGIVAEGRDDLYVSDAFHKAFLEVNEEGSEAAASTAVVIAGRSLNPNRVCFKANRPFLVFIREVPLNTIIFMGRVANPCVK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 4 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	570.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 branched

描述 description	;2,3,4,6-tetra-O-sulfonato-alpha-D-glucopyranose-(1-4)-2,3,6-tri-O-sulfo-alpha-D-glucopyranose-(1-4)-2,3,6-tri-O-sulfonato-beta-D-glucopyranose-(1-4)-2,3-di-O-methyl-6-O-sulfonato-alpha-D-glucopyranose-(1-4)-2,3,6-tri-O-methyl-beta-D-glucopyranose-(1-4)-2,3,6-tri-O-methyl-alpha-D-glucopyranose-(1-4)-2,3,6-tri-O-methyl-beta-D-glucopyranose-(1-4)-2,3,6-tri-O-methyl-alpha-D-glucopyranose-(1-4)-2,3,6-tri-O-methyl-beta-D-glucopyranose-(1-4)-2,3,6-tri-O-methyl-alpha-D-glucopyranose-(1-4)-2,3,6-tri-O-methyl-beta-D-glucopyranose-(1-4)-2,3-di-O-methyl-6-O-sulfonato-alpha-D-glucopyranose-(1-4)-2,3-di-O-methyl-beta-D-glucopyranuronic acid-(1-4)-2,3,6-tri-O-sulfo-alpha-D-glucopyranose-(1-4)-2,3-di-O-methyl-alpha-L-idopyranuronic acid-(1-4)-methyl 3-O-methyl-2,6-di-O-sulfo-alpha-D-glucopyranoside ;
分子量 formula_weight	4431.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 6 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 7 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 8 non-polymer

描述 description	(4S)-2-METHYL-2,4-PENTANEDIOL
分子量 formula_weight	118.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 9 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 10 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	146

▼

6. 折叠分类 (SCOP + CATH) 7 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1tb6.1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.47 — Trypsin-like serine proteases
超家族 Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
家族 Family family	b.47.1.2 — Eukaryotic proteases

结构域编号 domain_id	d1tb6i_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.1 — Serpins
超家族 Superfamily superfamily	e.1.1 — Serpins
家族 Family family	e.1.1.1 — Serpins

CATH v4.4 (5 domains)

结构域编号 domain_id	1tb6H01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1tb6H02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1tb6I01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	39 — Alpha-1-antitrypsin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Alpha-1-antitrypsin, domain 1

结构域编号 domain_id	1tb6I02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	497 — Antithrombin; Chain I, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Antithrombin, subunit I, domain 2

结构域编号 domain_id	1tb6L00
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	140 — Epsilon-Thrombin; Chain L
同源超家族 H-superfamily homologous superfamily	10 — Thrombin light chain domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	88.409 Å
晶胞边长 b length_b	88.404 Å
晶胞边长 c length_c	117.218 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	37.460 Å
R 因子 r_factor	—
R_work r_work	0.2080
R_free r_free	0.2450
