SAXSdb — 9dxm

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein MSN5

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–1224	Not recorded	GTP-binding nuclear protein GSP1/CNR1 × 1 （P32835） GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.20 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9DXM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9D43 Cryo-EM structure of unliganded yeast Exportin Msn5 Deposited 2024-08-12	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–1224（1224 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.39 Å
9D45 Cryo-EM structure of yeast Exportin Msn5 bound to cargo Pho4 and RanGTP Deposited 2024-08-12	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–1224（1224 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9DZ6 Cryo-EM structure of yeast Exportin Msn5 bound to RanGTP and Pho4 (not modeled) (State 3-1) Deposited 2024-10-15	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–1224（1224 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MSN5_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1224； UniProt 1–1224

GTP-binding nuclear protein GSP1/CNR1

Saccharomyces cerevisiae

UniProt P32835

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 2–179	Mutation：Q71L	Protein MSN5 × 1 （P52918） GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.20 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9DXM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2X19 Crystal structure of Importin13 - RanGTP complex Deposited 2009-12-23	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 8–179（172 aa） Fragment：RESIDUES 8-179	Mutation：YES	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；100MM BIS-TRIS PH 6 23% 9W/V) PEG 3350 100MM NA-THIIOCYANATE RT	Resolution 2.80 Å R-free 0.268
3ICQ Karyopherin nuclear state Deposited 2009-07-18	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 2 PDB declaration: trimeric	Chain B 9–179（171 aa） Fragment：Ran, UNP residues 9-179	Mutation：Q71L	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；100mM Bis-Tris, pH5.5, 20% PEG3350, 180mM sodium acetate at 18 degrees, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.20 Å R-free 0.294
3ICQ Karyopherin nuclear state Deposited 2009-07-18	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–RNA Heteromer；Protein × 2 PDB declaration: trimeric	Chain C 9–179（171 aa） Fragment：Ran, UNP residues 9-179	Mutation：Q71L	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；100mM Bis-Tris, pH5.5, 20% PEG3350, 180mM sodium acetate at 18 degrees, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.20 Å R-free 0.294
3M1I Crystal structure of yeast CRM1 (Xpo1p) in complex with yeast RanBP1 (Yrb1p) and yeast RanGTP (Gsp1pGTP) Deposited 2010-03-05	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–219（219 aa）	Mutation：Q71L	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；293 K；0.1M Bis-Tris, 0.2M ammonium nitrate, 18% PEG3350, pH 6.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.220
8DYO Cryo-EM structure of Importin-4 bound to RanGTP Deposited 2022-08-04	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–219（219 aa）	Not recorded	MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.10 Å
8F19 Cryo-EM structure of Kap114 bound to Gsp1 (RanGTP) Deposited 2022-11-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–179（179 aa）	Mutation：Q71L	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM Tris pH 7.5, 300 mM NaCl, 2 mM MgCl2, 1 mM TCEP, and 0.1% NP-40 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.49 Å
8F1E Cryo-EM structure of Kap114 bound to Gsp1 (RanGTP) and H2A-H2B Deposited 2022-11-04	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–179（179 aa）	Not recorded	MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.28 Å
8F7A Cryo-EM structure of Importin-9 bound to RanGTP Deposited 2022-11-18	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–219（219 aa）	Not recorded	MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.78 Å
8QYZ Crystal structure of hiNES2 in complex with Xpo1 and RanGTP Deposited 2023-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–182（182 aa）	Mutation：1-182, Q71L	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Tris, PEG 20K, magnesium acetate	Resolution 3.00 Å R-free 0.247
8QYZ Crystal structure of hiNES2 in complex with Xpo1 and RanGTP Deposited 2023-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–182（182 aa）	Mutation：1-182, Q71L	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Tris, PEG 20K, magnesium acetate	Resolution 3.00 Å R-free 0.247
8QYZ Crystal structure of hiNES2 in complex with Xpo1 and RanGTP Deposited 2023-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–182（182 aa）	Mutation：1-182, Q71L	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Tris, PEG 20K, magnesium acetate	Resolution 3.00 Å R-free 0.247
8QYZ Crystal structure of hiNES2 in complex with Xpo1 and RanGTP Deposited 2023-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 1–182（182 aa）	Mutation：1-182, Q71L	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Tris, PEG 20K, magnesium acetate	Resolution 3.00 Å R-free 0.247
9D45 Cryo-EM structure of yeast Exportin Msn5 bound to cargo Pho4 and RanGTP Deposited 2024-08-12	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 2–179（178 aa）	Mutation：Q71L	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9DZ6 Cryo-EM structure of yeast Exportin Msn5 bound to RanGTP and Pho4 (not modeled) (State 3-1) Deposited 2024-10-15	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2–179（178 aa）	Mutation：Q71L	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9OGB Cryo-EM structure of human exportin-1 conjugated with selinexor and bound to yeast RAN-GTP and human ASB8-ELOB/C Deposited 2025-04-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–179（179 aa） Fragment：residues 1-179	Mutation：Q71L	V6A selinexor, bound form × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；20 mM HEPES pH 7.4, 110 mM KOAc, 2 mM Mg(OAc)2, 2 mM TCEP cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.25 Å

11 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GSP1_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 3–180； UniProt 2–179

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9dxm
Deposition date deposition_date	2024-10-11
Structure title title	Cryo-EM structure of yeast Exportin Msn5 bound to RanGTP and Pho4 (not modeled) (State 2-1)
Keywords keywords	Karyopherin, Exportin, Nuclear Export, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	39.66 Å
Radius of gyration Rg (electron density) rg_electron	39.02 Å
Forward intensity I(0) i0	279053000.00
Molecular weight molecular_weight	142770.0 kDa
Excluded volume excluded_volume	181540 Å³
Envelope volume envelope_volume	249200 Å³
Hydration-shell volume shell_volume	53142 Å³
Envelope diameter envelope_diameter	121.9 Å
Shell Rg shell_rg	45.71 Å
Envelope Rg envelope_rg	37.25 Å
Shape Rg shape_rg	39.03 Å
Total Rg total_rg	39.38 Å
Total atoms total_atoms	20213
Residues n_residues	1224
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

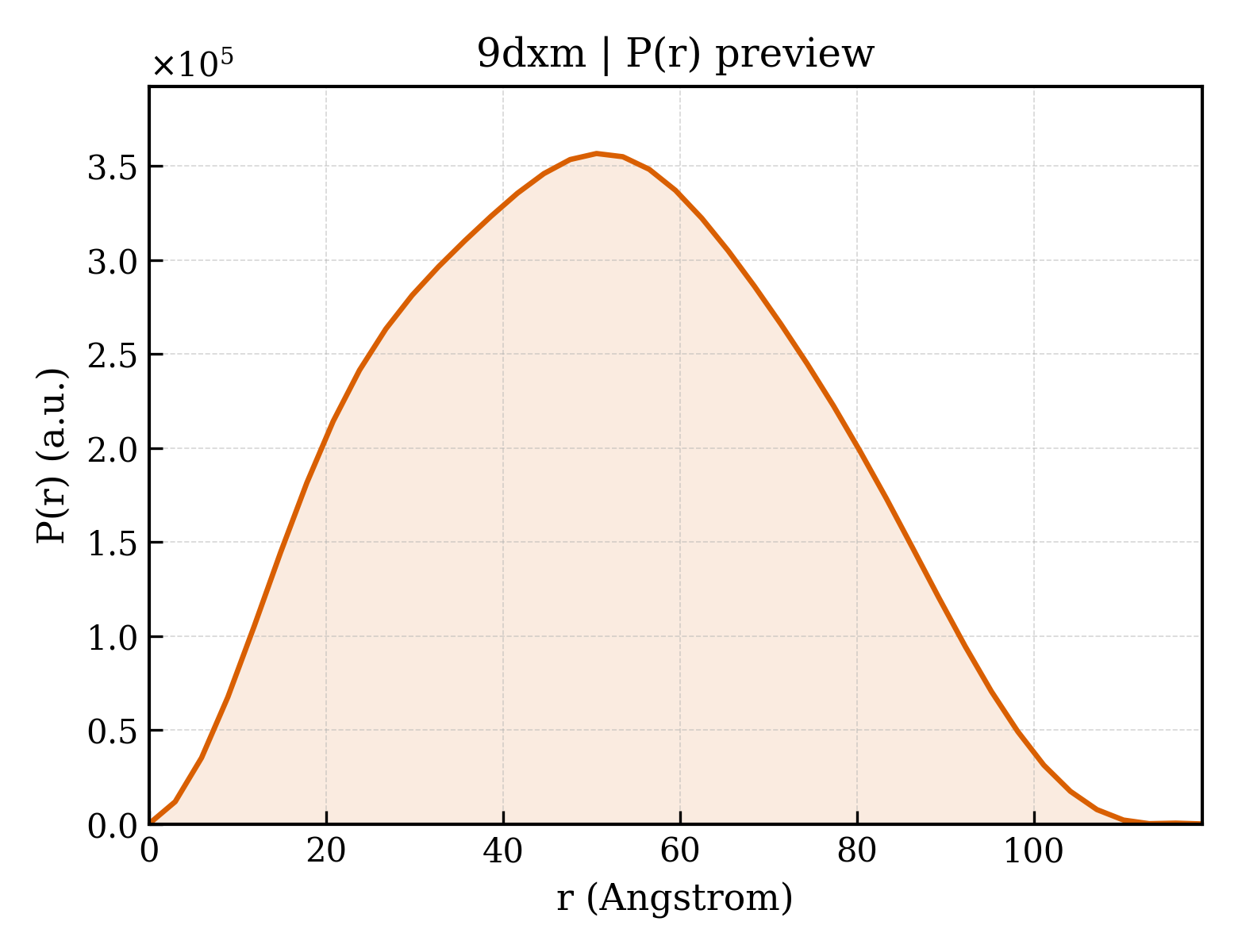

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	119.0 Å
Rg (real space) rg_real	39.50 Å
Rg uncertainty (real space) rg_real_error	0.72 Å
I(0) (real space) i0_real	2.7910e+08
I(0) uncertainty (real space) i0_real_error	4.7490e+06
Rg (reciprocal space) rg_reciprocal	39.61 Å
I(0) (reciprocal space) i0_reciprocal	279100000.0000
Solution quality estimate total_estimate	0.8865
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	50.6 Å
Skewness Skewness skewness	0.108
Kurtosis Kurtosis kurtosis	-0.716
Angular range angular_range	— – 0.2000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	30770000.0000
Real-space data points n_real_points	41
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.990; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.551

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Protein MSN5
Molecular weight formula_weight	143067.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	20213

MDSTGASQIVSALDVIYSPKSNNSQRQEAQKFLDEVKLCSESPFWGYEIALQNPTNSILKYFGLGLLDHAVKKNWNDYDEGKRVALRKWVMELNFGVQDYDTRYIKEKLATLWVEVAKRTWGEALKQTNPTEEQLLTSWVDMDNNLFELWNINQSSRELALIIFRILFEDVFLLDDLIVLKRMTVIQPLCVMIVCPIEVFAIKYKFSDKWTKFKANEEGWFSVWIPELNNALQQNNSEYIIRLLETLKTCLNWPLTEVIVRNDVLSSLLTCLSSNIPRAQSMALDSIHILLTRPYSNESHYQMTIDRVFDNMDLLDSVYESLLFDPTDDIDETKYPIIKKFVDMISCLYVCVPKIKETNGQIQKYFKLVLKTTYNPSLIVSGLTLDLWCTCLRNDEYLPKLEKYVIPDLLQFAADALVYYEQIDGHISKKFAEIDFQSKSEFQTFCSTYRKRIRDIIRLISCVELDLTYDWLNNRLNNYFSSPFGQQVLSSTFLDHKLEPYLGALSQYMIVECFINGCIRWKIWYPTGDDYDEKLDSILQKLEILSNQLIALNLREPLLLKKQIQNFALFLTMLKDNVLFTLLEKIITSATMDYPEINLEERGAESDAVRDLRYACGIELNRMALLMPESLKKIYPDLESVIARIMPNLSYHEKISFKSFLLIIVLKSSLDMKEERFAAIVDPELLAWSDKTTVVGLSDLHWFMERLGIVQIAEYFQRRDIDENSDLLSIPIDDEGKELKSELTKRWQSLFPVRATRMFIHYSMQSIKTDEEFKMLQDLWRPRIVPILPYITRLLYQLQSYHDPDNWKGLPTVVQSFVKYSTIERFWEAGASNKSKDEFIDEHMKAMQTLRDFADSVGHIIRYTREYTLLVLSAISSLGSVFYLLDESPDLLLNSIAIFKPGSNEISPGVSTHGWKHIMNIAIRPILKGCPKDCLGKFMPAFLPKLFEILDLLLCQKWSSHMNDMDMNPVPTDDDQMTEEILEENLLRQLTTVVVRIVIDCVGQGNANPNSAKSRLNNHQMEMRKIIFNDLNTLAPFLKLLNHLISFKDTKCSFNSILVMKCCLTSVLNQNNTVDEYFTFEVMKNLLLNVLCNSAFKDSFHEALYAFTVIFLTLCKEYPSARAFLFEISNGYNIDELYRNLRSVDEYKTQRALMIDFIDWVKSTSGKEDGNVDHAGDERKRQEKREAILKKANERLIKKNKENGDMLDDPNIEDGAVGNLFDDNENLYFQ

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	GTP-binding nuclear protein GSP1/CNR1
Molecular weight formula_weight	21283.5 kDa
Mutation mutation	Q71L
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MASAPAANGEVPTFKLVLVGDGGTGKTTFVKRHLTGEFEKKYIATIGVEVHPLSFYTNFGEIKFDVWDTAGLEKFGGLRDGYYINAQCAIIMFDVTSRITYKNVPNWHRDLVRVCENIPIVLCGNKVDVKERKVKAKTITFHRKKNLQYYDISAKSNYNFEKPFLWLARKLAGNPQLEFVENLYFQ

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.20 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	102289

fit	/app/data/saxs_computation/dx/9dxm/9dxm.fit
pddf	/app/data/pr_computation/dx/9dxm/9dxm.pr.out
profile	/app/data/saxs_computation/dx/9dxm/9dxm.dat
