SAXSdb — 3icq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Exportin-T

Schizosaccharomyces pombe

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 2 RNA 1	GTP-binding nuclear protein GSP1/CNR1 × 1 （P32835） RNA (62-MER) × 1 GUANOSINE-5'-TRIPHOSPHATE × 1 MAGNESIUM ION × 1 water × 1	Consistent with all polymers
2	Protein–RNA	Heteromer	Protein 2 RNA 1	GTP-binding nuclear protein GSP1/CNR1 × 1 （P32835） RNA (62-MER) × 1 GUANOSINE-5'-TRIPHOSPHATE × 1 MAGNESIUM ION × 1 water × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	XPOT_SCHPO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain T； PDBConstruct 3–980； UniProt 1–978 Author chain U； PDBConstruct 3–980； UniProt 1–978

GTP-binding nuclear protein GSP1/CNR1

Saccharomyces cerevisiae

UniProt P32835

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 2 RNA 1	Exportin-T × 1 （O94258） RNA (62-MER) × 1 GUANOSINE-5'-TRIPHOSPHATE × 1 MAGNESIUM ION × 1 water × 1	Consistent with all polymers
2	Protein–RNA	Heteromer	Protein 2 RNA 1	Exportin-T × 1 （O94258） RNA (62-MER) × 1 GUANOSINE-5'-TRIPHOSPHATE × 1 MAGNESIUM ION × 1 water × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GSP1_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–171； UniProt 9–179 Author chain C； PDBConstruct 1–171； UniProt 9–179

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3icq
Deposition date deposition_date	2009-07-18
Structure title title	Karyopherin nuclear state
Keywords keywords	karyopherin, exportin, HEAT repeat, tRNA, GTPase, RNA BINDING PROTEIN; RNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3icq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3icq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

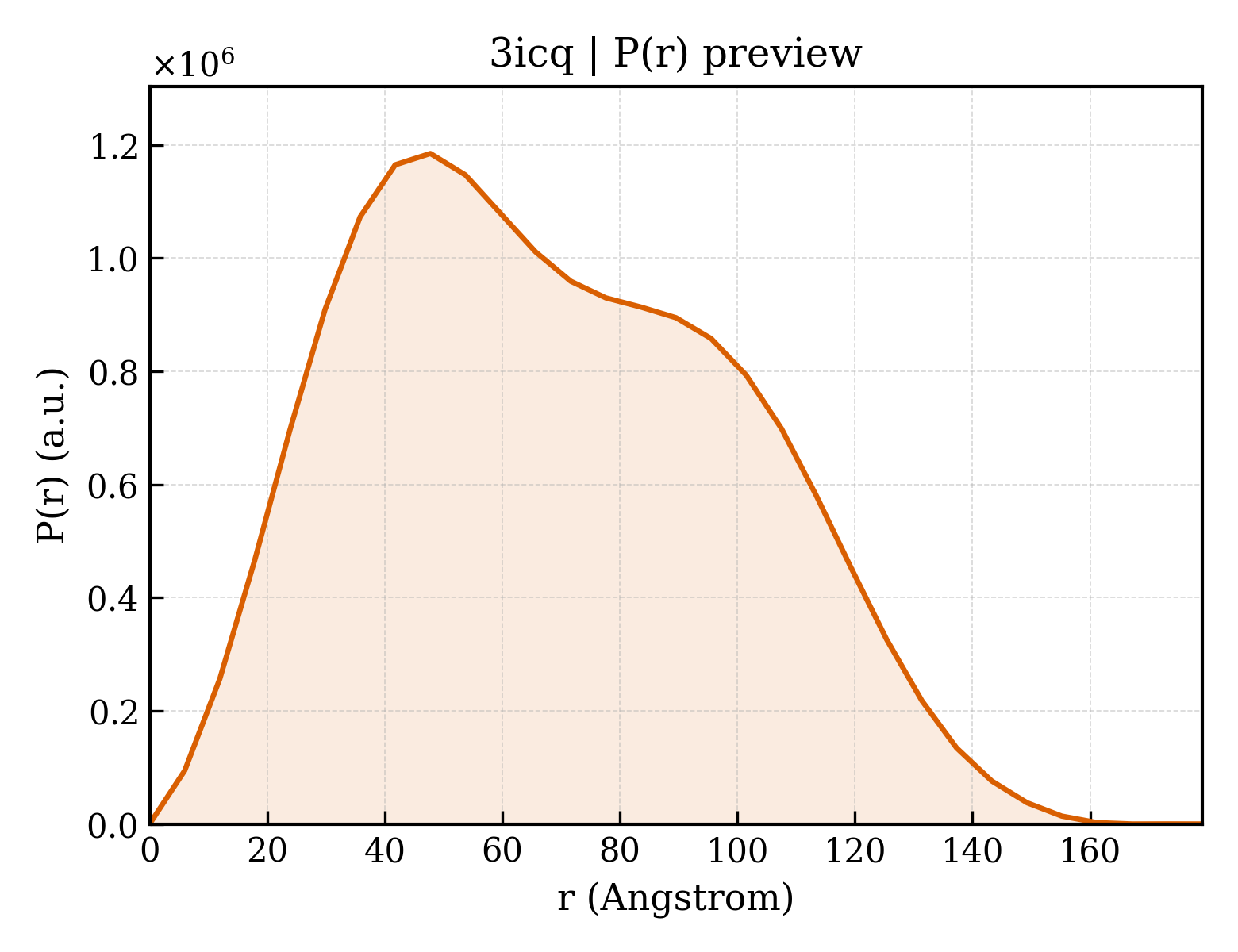

3icq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.38 Å
Rg (electron density)	34.28 Å
Total Rg	34.71 Å
Atom count	9673
Residues	1178
Excluded volume	167590 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3icq__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3icq__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Exportin-T
Molecular weight formula_weight	110354.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	T,U
Atom count atom_count	19125

GPMSAQDVENAVEAALDPSVGPIIKQQATDFIGSLRSSSTGWKICHEIFSEKTKYKPSTRLICLQTLSEKVREWNNESNLLELQMIRDSVWSYIKELSFLDEPAYISNAVQHLLTLLFLQLYPSNWNDFFASLQGVIAASSQSEFSNFYLKVLLSIGDEIADSLVLKTDVQIQKDNLVKDAIRANDMSDIVSFVYEMMLAYSNAKNYGTVGLCLQVYAQWVSWININLIVNEPCMNLLYSFLQIEELRCAACETMTEIVNKKMKPLEKLNLLNILNLNLFFSKSQEQSTDPNFDEHVAKLINAQGVELVAIKSDPSELSPELKENCSFQLYNLFPYLIRYLSDDYDETSTAVFPFLSDLLVSLRKESSSKELSASLKEFLKSLLEAIIKKMKYDESQEWDDDPDSEEEAEFQEMRKKLKIFQDTINSIDSSLFSSYMYSAITSSLSTAATLSPENSWQLIEFALYETYIFGEGLRGPDAFFNEVDKSPTVLSQILALVTTSQVCRHPHPLVQLLYMEILVRYASFFDYESAAIPALIEYFVGPRGIHNTNERVRPRAWYLFYRFVKSIKKQVVNYTESSLAMLGDLLNISVSPVTDMDAPVPTLNSSIRNSDFNSQLYLFETVGVLISSGNLTPEEQALYCDSLINALIGKANAALSSDLSALENIISVYCSLMAIGNFAKGFPARGSEEVAWLASFNKASDEIFLILDRMGFNEDIRGAVRFTSGRIINVVGPDMLPKVPQLISILLNSIDMNELVDVLSFISQLIHIYKDNMMEITNRMLPTLLMRIFSSLSAAPQGTDDAVKQNDLRKSYISFILQLLNKGFGSILFTEENQVYFDPLINSILHFANLVGEPATQKSSIALVSKMVSLWGGKDGIAGFENFTLSLTPLCFEMPVNPNFNTRDGQSLVVLGELAGLQKIILEKLGDIYKSYLVTVYFPTVNFPDVMASEYLQALSNLDSRSFKQFFQKFIQALKSGNV

Source Source

Source organism organism	Schizosaccharomyces pombe
Common name common_name	Fission yeast
NCBI taxonomy ID ncbi_taxonomy_id	4896
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	GTP-binding nuclear protein GSP1/CNR1
Molecular weight formula_weight	19717.8 kDa
Mutation mutation	Q71L
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C

EVPTFKLVLVGDGGTGKTTFVKRHLTGEFEKKYIATIGVEVHPLSFYTNFGEIKFDVWDTAGLEKFGGLRDGYYINAQCAIIMFDVTSRITYKNVPNWHRDLVRVCENIPIVLCGNKVDVKERKVKAKTITFHRKKNLQYYDISAKSNYNFEKPFLWLARKLAGNPQLEFV

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	RNA (62-MER)
Molecular weight formula_weight	21554.8 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	D,E

GCGGAUUUAACUCAGUUGGGAGAGCGCCUUCGGGAGGUCCUGUGUUCGAUCCACAGAAUUCGCACCA

Entity 4 Entity 4 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	4

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	3icqB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3icqC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	143.000 Å
Unit-cell length b length_b	143.800 Å
Unit-cell length c length_c	166.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	—
R_work r_work	0.2430
R_free r_free	0.2940
