SAXSdb — 8f19

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Importin subunit beta-5

Saccharomyces cerevisiae S288C

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	GTP-binding nuclear protein GSP1/CNR1 × 1 （P32835） GUANOSINE-5'-TRIPHOSPHATE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IMB5_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1004； UniProt 1–1004

GTP-binding nuclear protein GSP1/CNR1

Saccharomyces cerevisiae S288C

UniProt P32835

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Importin subunit beta-5 × 1 （P53067） GUANOSINE-5'-TRIPHOSPHATE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GSP1_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–179； UniProt 1–179

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8f19
Deposition date deposition_date	2022-11-04
Structure title title	Cryo-EM structure of Kap114 bound to Gsp1 (RanGTP)
Keywords keywords	Karyopherin Beta, Nuclear Transport, GTPase, PROTEIN TRANSPORT-NUCLEAR PROTEIN complex; PROTEIN TRANSPORT/NUCLEAR PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8f19__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8f19__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

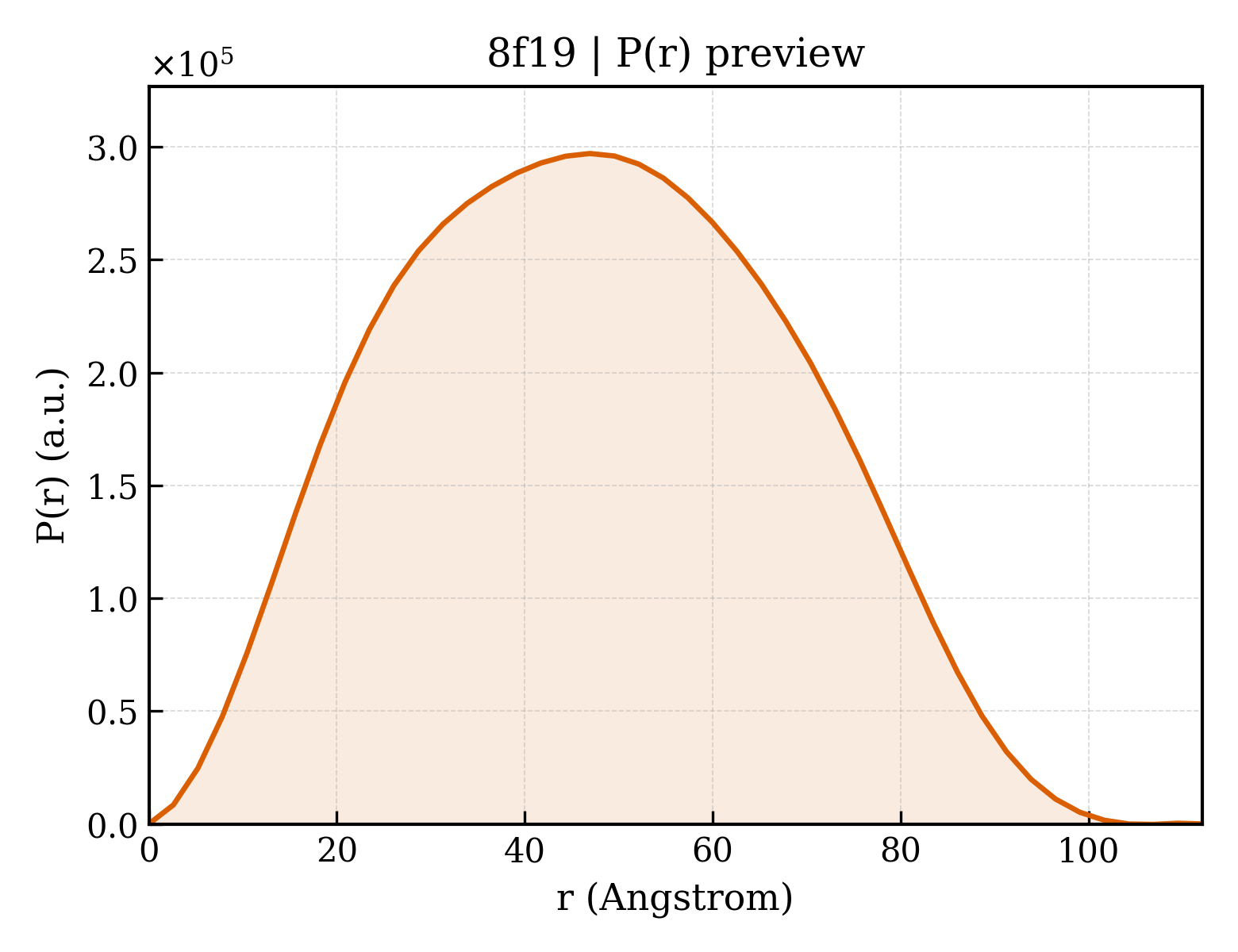

8f19__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.57 Å
Rg (electron density)	36.01 Å
Total Rg	36.56 Å
Atom count	8717
Residues	1087
Excluded volume	157040 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8f19__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Importin subunit beta-5
Molecular weight formula_weight	114019.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8717

MDINELIIGAQSADKHTREVAETQLLQWCDSDASQVFKALANVALQHEASLESRQFALLSLRKLITMYWSPGFESYRSTSNVEIDVKDFIREVLLKLCLNDNENTKIKNGASYCIVQISAVDFPDQWPQLLTVIYDAISHQHSLNAMSLLNEIYDDVVSEEMFFEGGIGLATMEIVFKVLNTETSTLIAKIAALKLLKACLLQMSSHNEYDEASRKSFVSQCLATSLQILGQLLTLNFGNVDVISQLKFKSIIYENLVFIKNDFSRKHFSSELQKQFKIMAIQDLENVTHINANVETTESEPLLETVHDCSIYIVEFLTSVCTLQFSVEEMNKIITSLTILCQLSSETREIWTSDFNTFVSKETGLAASYNVRDQANEFFTSLPNPQLSLIFKVVSNDIEHSTCNYSTLESLLYLLQCILLNDDEITGENIDQSLQILIKTLENILVSQEIPELILARAILTIPRVLDKFIDALPDIKPLTSAFLAKSLNLALKSDKELIKSATLIAFTYYCYFAELDSVLGPEVCSETQEKVIRIINQVSSDAEEDTNGALMEVLSQVISYNPKEPHSRKEILQAEFHLVFTISSEDPANVQVVVQSQECLEKLLDNINMDNYKNYIELCLPSFINVLDSNNANNYRYSPLLSLVLEFITVFLKKKPNDGFLPDEINQYLFEPLAKVLAFSTEDETLQLATEAFSYLIFNTDTRAMEPRLMDIMKVLERLLSLEVSDSAAMNVGPLVVAIFTRFSKEIQPLIGRILEAVVVRLIKTQNISTEQNLLSVLCFLTCNDPKQTVDFLSSFQIDNTDALTLVMRKWIEAFEVIRGEKRIKENIVALSNLFFLNDKRLQKVVVNGNLIPYEGDLIITRSMAKKMPDRYVQVPLYTKIIKLFVSELSFQSKQPNPEQLITSDIKQEVVNANKDDDNDDWEDVDDVLDYDKLKEYIDDDVDEEADDDSDDITGLMDVKESVVQLLVRFFKEVASKDVSGFHCIYETLSDSERKVLSEALL

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 Entity 2 polymer

Description description	GTP-binding nuclear protein GSP1/CNR1
Molecular weight formula_weight	20417.6 kDa
Mutation mutation	Q71L
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSAPAANGEVPTFKLVLVGDGGTGKTTFVKRHLTGEFEKKYIATIGVEVHPLSFYTNFGEIKFDVWDTAGLEKFGGLRDGYYINAQCAIIMFDVTSRITYKNVPNWHRDLVRVCENIPIVLCGNKVDVKERKVKAKTITFHRKKNLQYYDISAKSNYNFEKPFLWLARKLAGNPQLEFV

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 3 Entity 3 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.49 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	277305

Cryo-EM structure of Kap114 bound to Gsp1 (RanGTP)
