9e2e

The structure of the junction region of the wild-type murine native cardiac thin filament in Ca2+-free state

Method: ELECTRON MICROSCOPY D_max: 197.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9e2e
沉积日期 deposition_date	2024-10-22
结构标题 title	The structure of the junction region of the wild-type murine native cardiac thin filament in Ca2+-free state
关键词 keywords	thin filament, troponin T, muscle, motor protein; MOTOR PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	56.03 Å
回转半径 Rg (电子) rg_electron	56.44 Å
零角强度 I(0) i0	1586770000.00
分子量 molecular_weight	327060.0 kDa
排除体积 excluded_volume	407280 Å³
包络体积 envelope_volume	601910 Å³
水化壳体积 shell_volume	92541 Å³
包络直径 envelope_diameter	213.7 Å
壳层 Rg shell_rg	54.97 Å
包络 Rg envelope_rg	56.22 Å
形状 Rg shape_rg	56.45 Å
总 Rg total_rg	56.35 Å
总原子数 total_atoms	22924
残基数 n_residues	2880
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

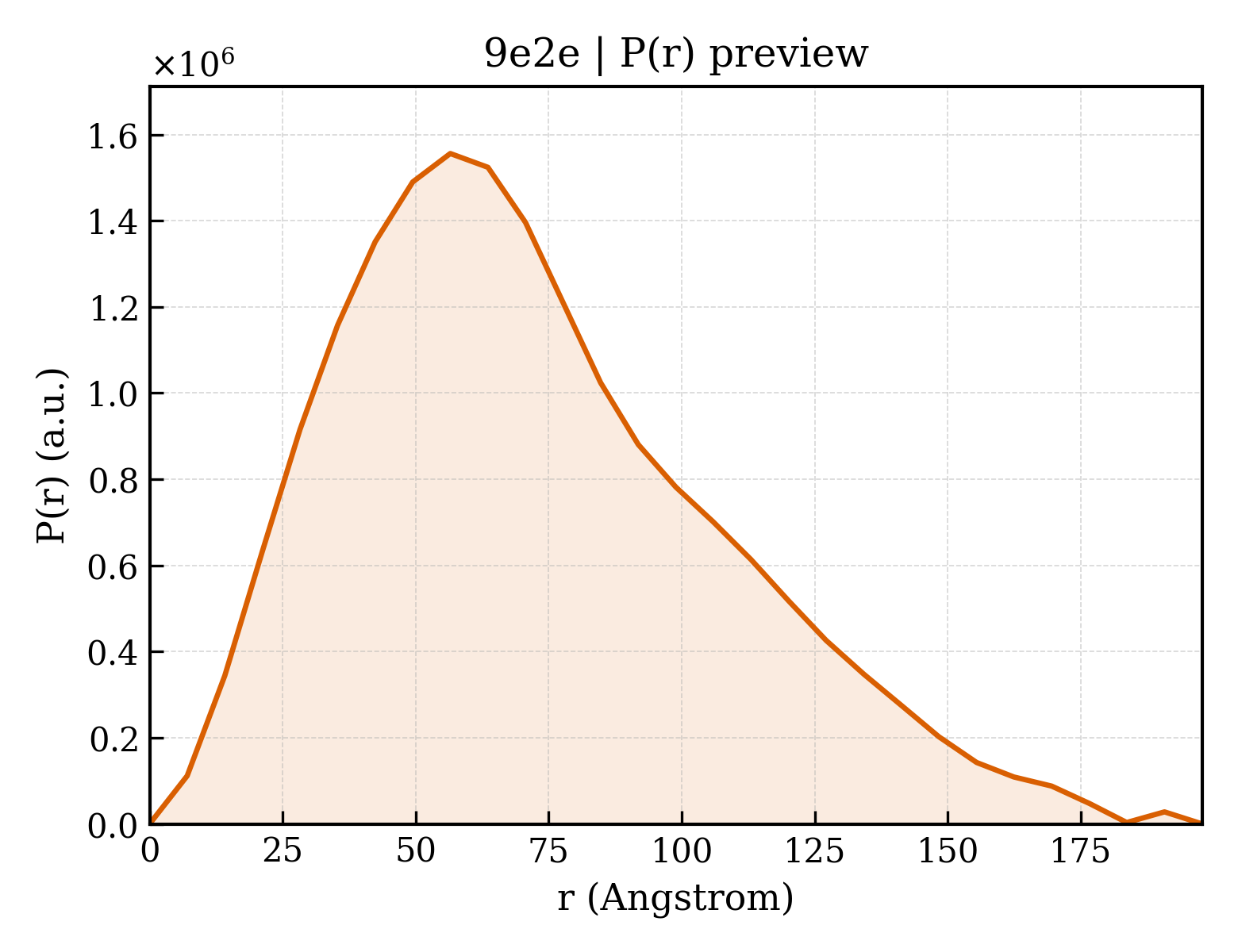

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	197.8 Å
Rg (实空间) rg_real	56.50 Å
Rg 误差 (实空间) rg_real_error	2.29 Å
I(0) (实空间) i0_real	1.5870e+09
I(0) 误差 (实空间) i0_real_error	3.0820e+07
Rg (倒空间) rg_reciprocal	55.64 Å
I(0) (倒空间) i0_reciprocal	1585000000.0000
解质量估计 total_estimate	0.8098
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	56.5 Å
偏度 Skewness skewness	0.622
峰度 Kurtosis kurtosis	-0.047
角度范围 angular_range	— – 0.1400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	147600000.0000
实空间数据点数 n_real_points	29
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.665; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.952; Smooth: 0.579

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Actin, alpha cardiac muscle 1
分子量 formula_weight	42064.9 kDa
EC 编号 ec_number	3.6.4.-
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F
原子数 atom_count	22924

MCDDEETTALVCDNGSGLVKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIITNWDDMEKIWHHTFYNELRVAPEEHPTLLTEAPLNPKANREKMTQIMFETFNVPAMYVAIQAVLSLYASGRTTGIVLDSGDGVTHNVPIYEGYALPHAIMRLDLAGRDLTDYLMKILTERGYSFVTTAEREIVRDIKEKLCYVALDFENEMATAASSSSLEKSYELPDGQVITIGNERFRCPETLFQPSFIGMESAGIHETTYNSIMKCDIDIRKDLYANNVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWISKQEYDEAGPSIVHRKCF

Entity 2 polymer

描述 description	Tropomyosin alpha-1 chain
分子量 formula_weight	32735.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,H,I,J,L,M,N,O

MDAIKKKMQMLKLDKENALDRAEQAEADKKAAEDRSKQLEDELVSLQKKLKGTEDELDKYSEALKDAQEKLELAEKKATDAEADVASLNRRIQLVEEELDRAQERLATALQKLEEAEKAADESERGMKVIESRAQKDEEKMEIQEIQLKEAKHIAEDADRKYEEVARKLVIIESDLERAEERAELSEGKCAELEEELKTVTNNLKSLEAQAEKYSQKEDKYEEEIKVLSDKLKEAETRAEFAERSVTKLEKSIDDLEDELYAQKLKYKAISEELDHALNDMTSI

Entity 3 polymer

描述 description	Isoform A2 of Troponin T, cardiac muscle
分子量 formula_weight	34616.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K,P

MSDAEEVVEEYEEEQEEQEEAVEEEEAGGAEPEPEGEAETEEANVEEVGPDEEAKDAEEGPVEDTKPKPSRLFMPNLVPPKIPDGERVDFDDIHRKRVEKDLNELQTLIEAHFENRKKEEEELISLKDRIEKRRAERAEQQRIRNEREKERQNRLAEERARREEEENRRKAEDEARKKKALSNMMHFGGYIQKQAQTERKSGKRQTEREKKKKILAERRKALAIDHLNEDQLREKAKELWQSIHNLEAEKFDLQEKFKQQKYEINVLRNRINDNQKVSKTRGKAKVTGRWK

Entity 4 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 5 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

▶

7. 引用文献 (1)

▶

分辨率 resolution	4.00 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	68660

fit	/app/data/saxs_computation/e2/9e2e/9e2e.fit
pddf	/app/data/pr_computation/e2/9e2e/9e2e.pr.out
profile	/app/data/saxs_computation/e2/9e2e/9e2e.dat
