SAXSdb — 9enp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA polymerase catalytic subunit

Human alphaherpesvirus 1 strain KOS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 2 DNA 2	DNA polymerase processivity factor × 1 （P10226） DNA (46-MER) × 1 DNA (67-MER) × 1 CALCIUM ION × 2 water × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DPOL_HHV11
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1235； UniProt 1–1235

DNA polymerase processivity factor

Human alphaherpesvirus 1 strain KOS

UniProt P10226

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 2 DNA 2	DNA polymerase catalytic subunit × 1 （P04293） DNA (46-MER) × 1 DNA (67-MER) × 1 CALCIUM ION × 2 water × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PAP_HHV11
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–488； UniProt 1–488

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9enp
Deposition date deposition_date	2024-03-13
Structure title title	HSV-1 DNA polymerase-processivity factor complex in exonuclease state with 1-bp DNA mismatch
Keywords keywords	DNA, Polymerase, Complex, TRANSFERASE; TRANSFERASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9enp__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9enp__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

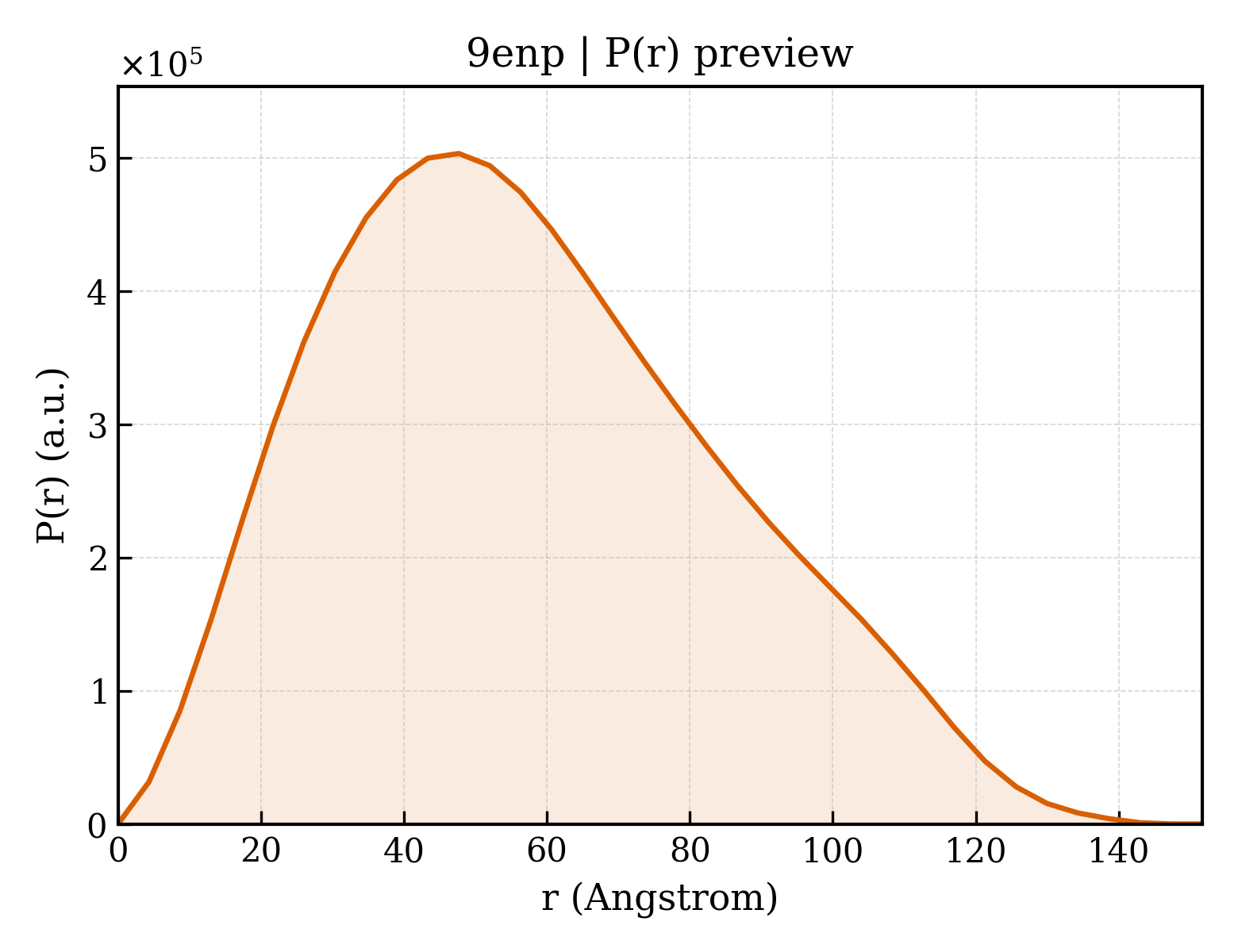

9enp__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.62 Å
Rg (electron density)	44.35 Å
Total Rg	44.43 Å
Atom count	11523
Residues	1386
Excluded volume	202720 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9enp__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	DNA polymerase catalytic subunit
Molecular weight formula_weight	136683.8 kDa
EC 编号 ec_number	2.7.7.7,3.1.26.4
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	11552

MFSGGGGPLSPGGKSAARAASGFFAPAGPRGASRGPPPCLRQNFYNPYLAPVGTQQKPTGPTQRHTYYSECDEFRFIAPRVLDEDAPPEKRAGVHDGHLKRAPKVYCGGDERDVLRVGSGGFWPRRSRLWGGVDHAPAGFNPTVTVFHVYDILENVEHAYGMRAAQFHARFMDAITPTGTVITLLGLTPEGHRVAVHVYGTRQYFYMNKEEVDRHLQCRAPRDLCERMAAALRESPGASFRGISADHFEAEVVERTDVYYYETRPALFYRVYVRSGRVLSYLCDNFCPAIKKYEGGVDATTRFILDNPGFVTFGWYRLKPGRNNTLAQPRAPMAFGTSSDVEFNCTADNLAIEGGMSDLPAYKLMCFDIECKAGGEDELAFPVAGHPEDLVIQISCLLYDLSTTALEHVLLFSLGSCDLPESHLNELAARGLPTPVVLEFDSEFEMLLAFMTLVKQYGPEFVTGYNIINFDWPFLLAKLTDIYKVPLDGYGRMNGRGVFRVWDIGQSHFQKRSKIKVNGMVNIDMYGIITDKIKLSSYKLNAVAEAVLKDKKKDLSYRDIPAYYAAGPAQRGVIGEYCIQDSLLVGQLFFKFLPHLELSAVARLAGINITRTIYDGQQIRVFTCLLRLADQKGFILPDTQGRFRGAGGEAPKRPAAAREDEERPEEEGEDEDEREEGGGEREPEGARETAGRHVGYQGARVLDPTSGFHVNPVVVFDFASLYPSIIQAHNLCFSTLSLRADAVAHLEAGKDYLEIEVGGRRLFFVKAHVRESLLSILLRDWLAMRKQIRSRIPQSSPEEAVLLDKQQAAIKVVCNSVYGFTGVQHGLLPCLHVAATVTTIGREMLLATREYVHARWAAFEQLLADFPEAADMRAPGPYSMRIIYGDTDSIFVLCRGLTAAGLTAVGDKMASHISRALFLPPIKLECEKTFTKLLLIAKKKYIGVIYGGKMLIKGVDLVRKNNCAFINRTSRALVDLLFYDDTVSGAAAALAERPAEEWLARPLPEGLQAFGAVLVDAHRRITDPERDIQDFVLTAELSRHPRAYTNKRLAHLTVYYKLMARRAQVPSIKDRIPYVIVAQTREVEETVARLAALRELDAAAPGDEPAPPAALPSPAKRPRETPSPADPPGGASKPRKLLVSELAEDPAYAIAHGVALNTDYYFSHLLGAACVTFKALFGNNAKITESLLKRFIPEVWHPPDDVAARLRTAGFGAVGAGATAEETRRMLHRAFDTLA

Source Source

Source organism organism	Human alphaherpesvirus 1 strain KOS
NCBI taxonomy ID ncbi_taxonomy_id	10306
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	DNA polymerase processivity factor
Molecular weight formula_weight	51208.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MTDSPGGVAPASPVEDASDASLGQPEEGAPCQVVLQGAELNGILQAFAPLRTSLLDSLLVMGDRGILIHNTIFGEQVFLPLEHSQFSRYRWRGPTAAFLSLVDQKRSLLSVFRANQYPDLRRVELAITGQAPFRTLVQRIWTTTSDGEAVELASETLMKRELTSFVVLVPQGTPDVQLRLTRPQLTKVLNATGADSATPTTFELGVNGKFSVFTTSTCVTFAAREEGVSSSTSTQVQILSNALTKAGQAAANAKTVYGENTHRTFSVVVDDCSMRAVLRRLQVGGGTLKFFLTTPVPSLCVTATGPNAVSAVFLLKPQKICLDWLGHSQGSPSAGSSASRASGSEPTDSQDSASDAVSHGDPEDLDGAARAGEAGALHACPMPSSTTRVTPTTKRGRSGGEDARADTALKKPKTGSPTAPPPADPVPLDTEDDSDAADGTAARPAAPDARSGSRYACYFRDLPTGEASPGAFSAFRGGPQTPYGFGFP

Source Source

Source organism organism	Human alphaherpesvirus 1 strain KOS
NCBI taxonomy ID ncbi_taxonomy_id	10306
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	DNA (46-MER)
Molecular weight formula_weight	13963.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C

GCCACTACGACACCTTGATCGCCTCGCAGCCGTCCAACCAACTCAA

Entity 4 Entity 4 polymer

Description description	DNA (67-MER)
Molecular weight formula_weight	20902.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D

ATTTGCTGACCTTTGTTCTGGGTGAGTTGGTTGGACGGCTGCGAGGCGATCAAGGTGTCGTAGTGGC

Entity 5 Entity 5 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	7

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.120 Å
Low-resolution limit resolution_low	2.120 Å
R factor r_factor	—
R_work r_work	0.3288
R_free r_free	—

Resolution resolution	2.12 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	577658
