9ewf

Cholera toxin B subunit in complex with fluorinated GM1

Method: X-RAY DIFFRACTION D_max: 93.2 Å Quality: EXCELLENT

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cholera enterotoxin subunit B

Vibrio cholerae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Homooligomer Protein × 5 其他Polymer 1 PDB declaration: pentameric（5） Consistent with protein copy count	Chain A； UniProt 22–124 Chain B； UniProt 22–124 Chain C； UniProt 22–124 Chain I； UniProt 22–124 Chain J； UniProt 22–124	Not recorded	;2-deoxy-2-fluoro-beta-D-galactopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-galactopyranose-(1-4)-[N-acetyl-alpha-neuraminic acid-(2-3)]beta-D-galactopyranose ; × 1 A1H7V (2R,3S,4S,5R,6R)-6-dodecoxy-5-fluoranyl-2-(hydroxymethyl)oxane-3,4-diol × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.1M MES/Imidazole pH 7.5, 0.03M MgCl2, 0.03M CaCl2, 16% PEG1000, 12% PEG3350 and 10% MPD	Resolution 2.10 Å R-free 0.221
2	Other combination Homooligomer Protein × 5 其他Polymer 1 PDB declaration: pentameric（5） Consistent with protein copy count	Chain D； UniProt 22–124 Chain E； UniProt 22–124 Chain F； UniProt 22–124 Chain G； UniProt 22–124 Chain H； UniProt 22–124	Not recorded	;2-deoxy-2-fluoro-beta-D-galactopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-galactopyranose-(1-4)-[N-acetyl-alpha-neuraminic acid-(2-3)]beta-D-galactopyranose ; × 1 A1H7V (2R,3S,4S,5R,6R)-6-dodecoxy-5-fluoranyl-2-(hydroxymethyl)oxane-3,4-diol × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.1M MES/Imidazole pH 7.5, 0.03M MgCl2, 0.03M CaCl2, 16% PEG1000, 12% PEG3350 and 10% MPD	Resolution 2.10 Å R-free 0.221

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9EWF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CHP SURPRISING LEADS FOR A CHOLERA TOXIN RECEPTOR BINDING ANTAGONIST; CRYSTALLOGRAPHIC STUDIES OF CTB MUTANTS Deposited 1995-02-15	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Mutation：G33D Mutation：G33D Mutation：G33D Mutation：G33D Mutation：G33D	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.00 Å
1CHQ SURPRISING LEADS FOR A CHOLERA TOXIN RECEPTOR BINDING ANTAGONIST; CRYSTALLOGRAPHIC STUDIES OF CTB MUTANTS Deposited 1995-02-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain D 29–131（103 aa） Chain E 29–131（103 aa） Chain F 29–131（103 aa） Chain G 29–131（103 aa） Chain H 29–131（103 aa）	Mutation：R35D Mutation：R35D Mutation：R35D Mutation：R35D Mutation：R35D	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.4；pH 6.4	Resolution 2.10 Å
1CT1 CHOLERA TOXIN B-PENTAMER MUTANT G33R BOUND TO RECEPTOR PENTASACCHARIDE Deposited 1997-06-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 5 PDB declaration: pentameric	Chain D 22–124（103 aa） Fragment：B-PENTAMER Chain E 22–124（103 aa） Fragment：B-PENTAMER Chain F 22–124（103 aa） Fragment：B-PENTAMER Chain G 22–124（103 aa） Fragment：B-PENTAMER Chain H 22–124（103 aa） Fragment：B-PENTAMER	Mutation：G33R Mutation：G33R Mutation：G33R Mutation：G33R Mutation：G33R	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions PROTEIN, 20 MM TRIS, 1 MM GM1-OS, PH 7.5 200 MM MGCL2, 100 MM CACODYLATE, 19% PEG 1000, 0.2% AGAROSE, PH 7.2	Resolution 2.30 Å R-free 0.250
1FGB TOXIN Deposited 1996-02-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.40 Å
1G8Z HIS57ALA MUTANT OF CHOLERA TOXIN B-PENATMER Deposited 2000-11-21	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Mutation：H57A Mutation：H57A Mutation：H57A Mutation：H57A Mutation：H57A	GAL beta-D-galactopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；298 K；PEG 5000, NaCl, Tris HCl, galactose, pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.239
1JR0 CHOLERA TOXIN B-PENTAMER WITH LIGAND BMSC-0011 Deposited 2001-08-09	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Not recorded	A24 (3-NITRO-5-(2-MORPHOLIN-4-YL-ETHYLAMINOCARBONYL)PHENYL)-GALACTOPYRANOSIDE × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；PEG 3000, NaCl, MgCl2, Tris HCl, pH 7.5, VAPOR DIFFUSION, SITTING DROP	Resolution 1.30 Å R-free 0.183
1JR0 CHOLERA TOXIN B-PENTAMER WITH LIGAND BMSC-0011 Deposited 2001-08-09	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 10 PDB declaration: decameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Not recorded	A24 (3-NITRO-5-(2-MORPHOLIN-4-YL-ETHYLAMINOCARBONYL)PHENYL)-GALACTOPYRANOSIDE × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；PEG 3000, NaCl, MgCl2, Tris HCl, pH 7.5, VAPOR DIFFUSION, SITTING DROP	Resolution 1.30 Å R-free 0.183
1RCV Cholera Toxin B-Pentamer Complexed With Bivalent Nitrophenol-Galactoside Ligand BV1 Deposited 2003-11-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Not recorded	BV1 [3-(4-{3-[3-NITRO-5-(GALACTOPYRANOSYLOXY)-BENZOYLAMINO]-PROPYL}-PIPERAZIN-1-YL)-PROPYLAMINO] -2-(3-{4-[3-(3-NITRO-5-[GALACTOPYRANOSYLOXY]-BENZOYLAMINO)-PROPYL]-PIPERAZIN-1-YL} -PROPYL-AMINO)-3,4-DIOXO-CYCLOBUTENE × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；30% PEG 300, 50 mM NaCl, 100 mM Tris-HCl, and 2.3mM BV1, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298.0K	Resolution 1.60 Å R-free 0.193
1RD9 Cholera Toxin B-Pentamer Complexed With Bivalent Nitrophenol-Galactoside Ligand BV2 Deposited 2003-11-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Not recorded	BV2 1,3-BIS-([3-(4-{3-[3-NITRO-5-(GALACTOPYRANOSYLOXY)-BENZOYLAMINO]-PROPYL}-PIPERAZIN-1-YL)-PROPYL-AMINO]-CARBONYLOXY)-2-AMINO-PROPANE × 5 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 P6G HEXAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；38% PEG 300, 50 mM NaCl, 100 mM Tris-HCl, and 2.3mM BV2, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.44 Å R-free 0.184
1RDP Cholera Toxin B-Pentamer Complexed With Bivalent Nitrophenol-Galactoside Ligand BV3 Deposited 2003-11-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Not recorded	BV3 1,3-BIS-([[3-(4-{3-[3-NITRO-5-(GALACTOPYRANOSYLOXY)-BENZOYLAMINO]-PROPYL}-PIPERAZIN-1-YL)-PROPYLAMINO-3,4-DIOXO-CYCLOBU TENYL]-AMINO-ETHYL]-AMINO-CARBONYLOXY)-2-AMINO-PROPANE × 5 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；12% PEG 8000, 50 mM NaCl, 100 mM Tris-HCl, 20mM MgCl2, and 2.3mM BV3, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298.0K	Resolution 1.35 Å R-free 0.171
1RF2 Cholera Toxin B-Pentamer Complexed With Bivalent Nitrophenol-Galactoside Ligand BV4 Deposited 2003-11-07	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Not recorded	BV4 1,3-BIS-([3-[3-[3-(4-{3-[3-NITRO-5-(GALACTOPYRANOSYLOXY)-BENZOYLAMINO]-PROPYL}-PIPERAZIN-1-YL)-PROPYLAMINO-3,4-DIOXO-CYCLOBUTENYL]-AMINO-PROPOXY-ETHOXY-ETHOXY]-PROPYL-]AMINO-CARBONYLOXY)-2-AMINO-PROPANE × 5 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；16% PEG 8000, 50 mM NaCl, 100 mM Tris-HCl, 20mM MgCl2, and 2.3mM BV4, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298.0K	Resolution 1.35 Å R-free 0.174
1S5B Cholera holotoxin with an A-subunit Y30S mutation Form 3 Deposited 2004-01-20	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；PEG 2000mme, MES, kemptide, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.13 Å R-free 0.224
1S5C Cholera holotoxin with an A-subunit Y30S mutation, Crystal form 1 Deposited 2004-01-20	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；PEG 2000mme, MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.50 Å R-free 0.262
1S5D Cholera holotoxin with an A-subunit Y30S mutation, Crystal form 2 Deposited 2004-01-20	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Not recorded	NA SODIUM ION × 1 GOL GLYCEROL × 5 GAL beta-D-galactopyranose × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；PEG 3350, sodium citrate, galactose, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.75 Å R-free 0.191
1S5E Cholera holotoxin, Crystal form 1 Deposited 2004-01-20	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Not recorded	NA SODIUM ION × 1 GAL beta-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；PEG 3350, magnesium acetate, galactose, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.90 Å R-free 0.205
1S5E Cholera holotoxin, Crystal form 1 Deposited 2004-01-20	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain J 22–124（103 aa） Chain K 22–124（103 aa） Chain L 22–124（103 aa） Chain M 22–124（103 aa） Chain N 22–124（103 aa）	Not recorded	NA SODIUM ION × 1 GAL beta-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；PEG 3350, magnesium acetate, galactose, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.90 Å R-free 0.205
1S5F Cholera holotoxin, Crystal form 2 Deposited 2004-01-20	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Not recorded	NA SODIUM ION × 1 GAL beta-D-galactopyranose × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；PEG 3350, lithium citrate, galactose, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.60 Å R-free 0.260
1S5F Cholera holotoxin, Crystal form 2 Deposited 2004-01-20	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Not recorded	NA SODIUM ION × 1 GAL beta-D-galactopyranose × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；PEG 3350, lithium citrate, galactose, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.60 Å R-free 0.260
1XTC CHOLERA TOXIN Deposited 1996-01-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.40 Å
2CHB CHOLERA TOXIN B-PENTAMER COMPLEXED WITH GM1 PENTASACCHARIDE Deposited 1997-06-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 5 PDB declaration: pentameric	Chain D 22–124（103 aa） Fragment：B-PENTAMER Chain E 22–124（103 aa） Fragment：B-PENTAMER Chain F 22–124（103 aa） Fragment：B-PENTAMER Chain G 22–124（103 aa） Fragment：B-PENTAMER Chain H 22–124（103 aa） Fragment：B-PENTAMER	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；200 MM MGCL2 100 MM CACODYLATE 5% PEG 1000 PH 7.5	Resolution 2.00 Å
3CHB CHOLERA TOXIN B-PENTAMER COMPLEXED WITH GM1 PENTASACCHARIDE Deposited 1998-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 5 PDB declaration: pentameric	Chain D 1–124（124 aa） Fragment：B-PENTAMER Chain E 1–124（124 aa） Fragment：B-PENTAMER Chain F 1–124（124 aa） Fragment：B-PENTAMER Chain G 1–124（124 aa） Fragment：B-PENTAMER Chain H 1–124（124 aa） Fragment：B-PENTAMER	Mutation：H94R Mutation：H94R Mutation：H94R Mutation：H94R Mutation：H94R	UNX UNKNOWN LIGAND × 5 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；SITTING DROP, pH 7.0, vapor diffusion - sitting drop	Resolution 1.25 Å R-free 0.180
5ELC Cholera toxin El Tor B-pentamer in complex with Lewis-y Deposited 2015-11-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 5 PDB declaration: pentameric	Chain A 22–124（103 aa） Chain B 22–124（103 aa） Chain C 22–124（103 aa） Chain D 22–124（103 aa） Chain E 22–124（103 aa）	Not recorded	CA CALCIUM ION × 10 BCN BICINE × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.1 M Bicine-Tris, 12.5% PEG1000, 12.5% PEG3350, 12.5% MPD, 0.03 M calcium chloride, 0.03 M magnesium chloride	Resolution 1.50 Å R-free 0.260
5ELC Cholera toxin El Tor B-pentamer in complex with Lewis-y Deposited 2015-11-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 5 PDB declaration: pentameric	Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa） Chain I 22–124（103 aa） Chain J 22–124（103 aa）	Not recorded	FUC alpha-L-fucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.1 M Bicine-Tris, 12.5% PEG1000, 12.5% PEG3350, 12.5% MPD, 0.03 M calcium chloride, 0.03 M magnesium chloride	Resolution 1.50 Å R-free 0.260
5ELE Cholera toxin El Tor B-pentamer in complex with A Lewis-y Deposited 2015-11-04	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 5 PDB declaration: pentameric	Chain A 22–124（103 aa） Chain B 22–124（103 aa） Chain C 22–124（103 aa） Chain D 22–124（103 aa） Chain E 22–124（103 aa）	Not recorded	CA CALCIUM ION × 10 FUC alpha-L-fucopyranose × 1 BCN BICINE × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.1 M Bicine-Tris, 9% PEG1000, 9% PEG3350, 9% MPD, 0.03 M calcium chloride, 0.03 M magnesium chloride	Resolution 1.60 Å R-free 0.226
5ELE Cholera toxin El Tor B-pentamer in complex with A Lewis-y Deposited 2015-11-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 5 PDB declaration: pentameric	Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa） Chain I 22–124（103 aa） Chain J 22–124（103 aa）	Not recorded	FUC alpha-L-fucopyranose × 3 1PE PENTAETHYLENE GLYCOL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.1 M Bicine-Tris, 9% PEG1000, 9% PEG3350, 9% MPD, 0.03 M calcium chloride, 0.03 M magnesium chloride	Resolution 1.60 Å R-free 0.226
5ELF Cholera toxin El Tor B-pentamer in complex with A-pentasaccharide Deposited 2015-11-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 5 PDB declaration: pentameric	Chain A 22–124（103 aa） Chain B 22–124（103 aa） Chain C 22–124（103 aa） Chain D 22–124（103 aa） Chain E 22–124（103 aa）	Not recorded	CA CALCIUM ION × 10 BCN BICINE × 10 FUC alpha-L-fucopyranose × 1 GLC alpha-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.1 M Bicine-Tris, 9% PEG1000, 9% PEG3350, 9% MPD, 0.03 M calcium chloride, 0.03 M magnesium chloride. Microseeding.	Resolution 1.55 Å R-free 0.220
5ELF Cholera toxin El Tor B-pentamer in complex with A-pentasaccharide Deposited 2015-11-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 5 PDB declaration: pentameric	Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa） Chain I 22–124（103 aa） Chain J 22–124（103 aa）	Not recorded	FUC alpha-L-fucopyranose × 1 GLC alpha-D-glucopyranose × 1 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.1 M Bicine-Tris, 9% PEG1000, 9% PEG3350, 9% MPD, 0.03 M calcium chloride, 0.03 M magnesium chloride. Microseeding.	Resolution 1.55 Å R-free 0.220
5LZG Cholera toxin El Tor B-pentamer in complex with inhibitor PC262 Deposited 2016-09-29	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain A 22–124（103 aa） Chain B 22–124（103 aa） Chain C 22–124（103 aa） Chain D 22–124（103 aa） Chain E 22–124（103 aa）	Not recorded	7BN (2~{R},4~{S},5~{R},6~{R})-5-acetamido-2-[4-[3-[2-[(2~{S},3~{R},4~{R},5~{R},6~{R})-6-(hydroxymethyl)-3,4,5-tris(oxidanyl)oxan-2-yl]ethylamino]-3-oxidanylidene-propyl]-1,2,3-triazol-1-yl]-4-oxidanyl-6-[(1~{R},2~{R})-1,2,3-tris(oxidanyl)propyl]oxane-2-carboxylic acid × 5 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 IMD IMIDAZOLE × 2 PEG DI(HYDROXYETHYL)ETHER × 1 MRD (4R)-2-METHYLPENTANE-2,4-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M MES/Imidazole buffer, pH 6.5, 10% PEG 1000, 10 % PEG 3350, 10 % MPD, 0.03 M divalent cations	Resolution 1.13 Å R-free 0.198
5LZJ Cholera toxin El Tor B-pentamer in complex with inhibitor Laura237 Deposited 2016-09-29	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain A 22–124（103 aa） Chain B 22–124（103 aa） Chain C 22–124（103 aa） Chain D 22–124（103 aa） Chain E 22–124（103 aa）	Not recorded	SO4 SULFATE ION × 1 PEG DI(HYDROXYETHYL)ETHER × 2 PGE TRIETHYLENE GLYCOL × 2 7BT (~{Z})-~{N}-[2-[(2~{R},3~{R},4~{R},5~{R},6~{R})-6-(hydroxymethyl)-3,4,5-tris(oxidanyl)oxan-2-yl]ethyl]-3-(3,4,5-trimethoxyphenyl)prop-2-enamide × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M MES pH 6, 30% PEG 400, 3% PGA-LM	Resolution 1.20 Å R-free 0.228
8OXS Cholera holotoxin variant (chimera with E. coli heat-labile enterotoxin, 4 C-terminal substitutions) Deposited 2023-05-02	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Not recorded	NA SODIUM ION × 1 GAL beta-D-galactopyranose × 6 GLA alpha-D-galactopyranose × 4 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293.15 K；Crystallization mix: 20% w/v PEG 6K 0.1 M HEPES pH 7.0 0.2 M NH4Cl Protein storage buffer: 0.05 M Tris/HCl pH 7.5 0.2 M NaCl 0.05 M D-(+)-galactose	Resolution 1.60 Å R-free 0.224
8OXS Cholera holotoxin variant (chimera with E. coli heat-labile enterotoxin, 4 C-terminal substitutions) Deposited 2023-05-02	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 22–124（103 aa） Chain I 22–124（103 aa） Chain J 22–124（103 aa） Chain K 22–124（103 aa） Chain L 22–124（103 aa）	Not recorded	NA SODIUM ION × 1 GAL beta-D-galactopyranose × 4 GLA alpha-D-galactopyranose × 3 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293.15 K；Crystallization mix: 20% w/v PEG 6K 0.1 M HEPES pH 7.0 0.2 M NH4Cl Protein storage buffer: 0.05 M Tris/HCl pH 7.5 0.2 M NaCl 0.05 M D-(+)-galactose	Resolution 1.60 Å R-free 0.224
8Q6I Cholera holotoxin variant (chimera with E. coli heat-labile enterotoxin, 1 C-terminal substitution) Deposited 2023-08-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Not recorded	NA SODIUM ION × 2 GOL GLYCEROL × 11 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293.15 K；Crystallization mix: 20% PEG6000 0.2 M lithium chloride 0.1 M Tris pH 8.0 Protein storage buffer: 0.05 M Tris/HCl pH 7.5 0.2 M NaCl	Resolution 1.60 Å R-free 0.222
8QRE Cholera holotoxin (wildtype) Deposited 2023-10-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 22–124（103 aa） Chain E 22–124（103 aa） Chain F 22–124（103 aa） Chain G 22–124（103 aa） Chain H 22–124（103 aa）	Not recorded	NA SODIUM ION × 2 GAL beta-D-galactopyranose × 6 GOL GLYCEROL × 7 ACT ACETATE ION × 2 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；293.15 K；Crystallization mix: 0.125 M Magnesium acetate 24% PEG 3350 300 mM galactose (in protein storage buffer) Protein storage buffer: 50 mM Tris pH 7.4 200 mM NaCl 1 mM EDTA 3 mM sodium azide	Resolution 2.30 Å R-free 0.263
8QRE Cholera holotoxin (wildtype) Deposited 2023-10-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 22–124（103 aa） Chain I 22–124（103 aa） Chain J 22–124（103 aa） Chain K 22–124（103 aa） Chain L 22–124（103 aa）	Not recorded	NA SODIUM ION × 2 GAL beta-D-galactopyranose × 4 GOL GLYCEROL × 7 ACT ACETATE ION × 1 GLA alpha-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；293.15 K；Crystallization mix: 0.125 M Magnesium acetate 24% PEG 3350 300 mM galactose (in protein storage buffer) Protein storage buffer: 50 mM Tris pH 7.4 200 mM NaCl 1 mM EDTA 3 mM sodium azide	Resolution 2.30 Å R-free 0.263

26 other PDB entries and 34 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CHTB_VIBCH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–103； UniProt 22–124 Author chain B； PDBConstruct 1–103； UniProt 22–124 Author chain C； PDBConstruct 1–103； UniProt 22–124 Author chain D； PDBConstruct 1–103； UniProt 22–124 Author chain E； PDBConstruct 1–103； UniProt 22–124 Author chain F； PDBConstruct 1–103； UniProt 22–124 Author chain G； PDBConstruct 1–103； UniProt 22–124 Author chain H； PDBConstruct 1–103； UniProt 22–124 Author chain I； PDBConstruct 1–103； UniProt 22–124 Author chain J； PDBConstruct 1–103； UniProt 22–124

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

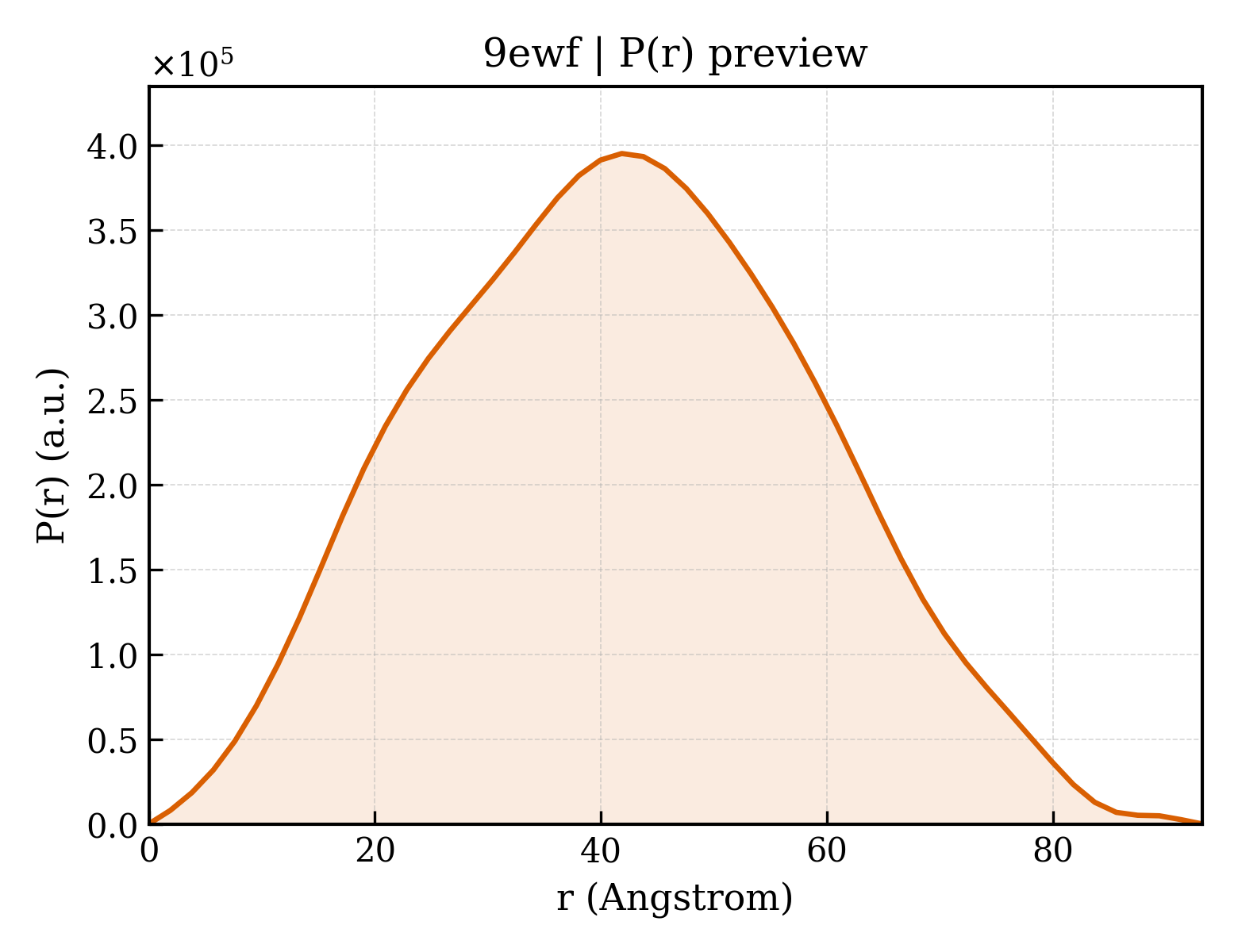

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ewf
Deposition date deposition_date	2024-04-03
最后修订 last_revision	2025-02-26
Structure title title	Cholera toxin B subunit in complex with fluorinated GM1
Keywords keywords	Cholera, GM1, fluorinated, complex, TOXIN; TOXIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.15 Å
Radius of gyration Rg (electron density) rg_electron	30.75 Å
Forward intensity I(0) i0	221868000.00
Molecular weight molecular_weight	118120.0 kDa
Excluded volume excluded_volume	147720 Å³
Envelope volume envelope_volume	179930 Å³
Hydration-shell volume shell_volume	47476 Å³
Envelope diameter envelope_diameter	100.3 Å
Shell Rg shell_rg	39.02 Å
Envelope Rg envelope_rg	30.26 Å
Shape Rg shape_rg	30.63 Å
Total Rg total_rg	31.81 Å
Total atoms total_atoms	16576
Residues n_residues	1030
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	93.2 Å
Rg (real space) rg_real	31.92 Å
Rg uncertainty (real space) rg_real_error	0.47 Å
I(0) (real space) i0_real	2.2190e+08
I(0) uncertainty (real space) i0_real_error	3.1930e+06
Rg (reciprocal space) rg_reciprocal	32.02 Å
I(0) (reciprocal space) i0_reciprocal	221900000.0000
Solution quality estimate total_estimate	0.9014
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	41.8 Å
Skewness Skewness skewness	0.094
Kurtosis Kurtosis kurtosis	-0.543
Angular range angular_range	— – 0.2450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	122900000.0000
Real-space data points n_real_points	50
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.975; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.807

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Cholera enterotoxin subunit B
Molecular weight formula_weight	11623.3 kDa
Source method src_method	man
Copy count entity_count	10

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,I,J,D,E,F,G,H
Atom count atom_count	17405

TPQNITDLCAEYHNTQIHTLNDKIFSYTESLAGKREMAIITFKNGATFQVEVPGSQHIDSQKKAIERMKDTLRIAYLTEAKVEKLCVWNNKTPHAIAAISMAN

来源 Source

来源生物 organism	Vibrio cholerae
NCBI Class编号 ncbi_taxonomy_id	666
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 branched

Description description	;2-deoxy-2-fluoro-beta-D-galactopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-galactopyranose-(1-4)-[N-acetyl-alpha-neuraminic acid-(2-3)]beta-D-galactopyranose ;
Molecular weight formula_weight	838.7 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	(2R,3S,4S,5R,6R)-6-dodecoxy-5-fluoranyl-2-(hydroxymethyl)oxane-3,4-diol
Molecular weight formula_weight	350.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	829

▶

8. Citations (2)

▶

Unit-cell length a length_a	132.516 Å
Unit-cell length b length_b	132.516 Å
Unit-cell length c length_c	113.853 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	80

Space group space_group	P 4 21 2
Space-group number int_tables_number	90
Crystal system crystal_system	tetragonal

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	46.850 Å
R factor r_factor	0.1851
R_work r_work	0.1832
R_free r_free	0.2213
