9fvy

Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate, succinate and the hudroxylated product of Factor X derived peptide fragment after O2 exposure

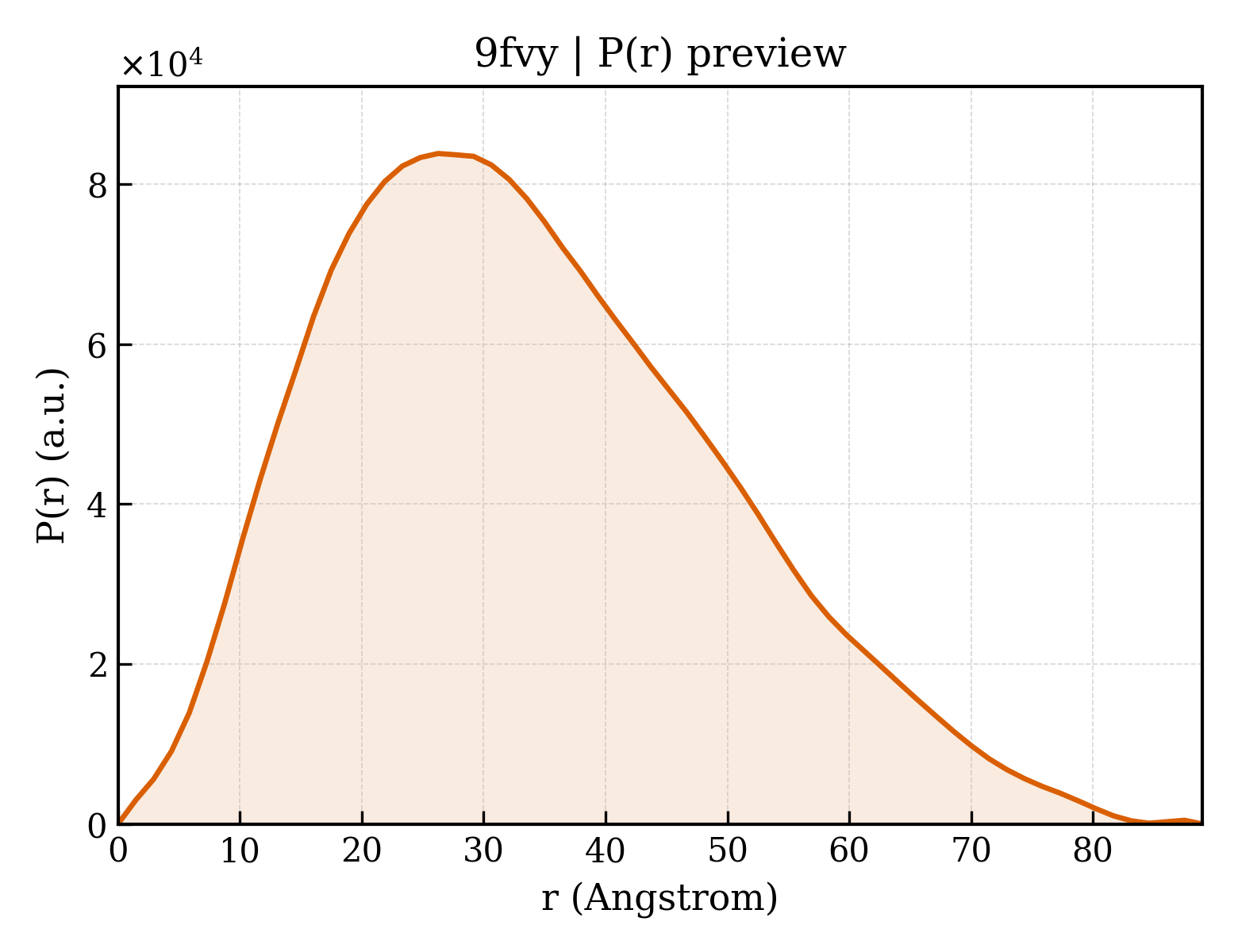

Method: X-RAY DIFFRACTION Dmax: 89.0 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Aspartyl/asparaginyl beta-hydroxylase

Homo sapiens

UniProt Q12797

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 330–758 Not recorded Factor X light chain × 1 （P00742） AKG 2-OXOGLUTARIC ACID × 1 SIN SUCCINIC ACID × 1 PEG DI(HYDROXYETHYL)ETHER × 2 FE FE (III) ION × 1 GOL GLYCEROL × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；278 K；0.1 M bis tris propane pH 7.5, 0.2 M NaBr, 20% PEG 3350 Resolution 1.90 Å R-free 0.199

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9FVY Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5APA Crystal structure of human aspartate beta-hydroxylase isoform a Deposited 2015-09-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 562–758（197 aa） Fragment：UNP RESIDUES 562-758
Not recorded NI NICKEL (II) ION × 1 LMR (2S)-2-hydroxybutanedioic acid × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 50MM SODIUM MALATE, 20% PEG3350, 3% DEXTRAN SULFATE, 20MM NISO4
Resolution 2.05 Å R-free 0.185
5JQY Aspartyl/Asparaginyl beta-hydroxylase (AspH)oxygenase and TPR domains in complex with manganese, N-oxalylglycine and factor X substrate peptide fragment(39mer-4Ser) Deposited 2016-05-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa） Fragment：UNP residues 330-758
Not recorded MN MANGANESE (II) ION × 1 OGA N-OXALYLGLYCINE × 1 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；100mM SPG buffer, 25% PEG 1500, 2mM NOG, 1mM MnCl2, 18mg/ml protein
Resolution 1.99 Å R-free 0.205
5JTC Aspartyl/Asparaginyl beta-hydroxylase (AspH)oxygenase and TPR domains in complex with manganese, 2,4-pyridine dicarboxylate and factor X substrate peptide fragment(39mer-4Ser) Deposited 2016-05-09 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa） Fragment：UNP Residues 330-758
Not recorded MN MANGANESE (II) ION × 1 PD2 PYRIDINE-2,4-DICARBOXYLIC ACID × 1 BR BROMIDE ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；20% PEG3350, 200mM NaBr, 100mM BisTris Propane, 1mM MnCl2, 2mM 2,4-PDCA, 330uM ASPH, 726uM Factor X
Resolution 2.24 Å R-free 0.208
5JZ6 Aspartyl/Asparaginyl beta-hydroxylase (AspH)oxygenase and TPR domains in complex with manganese and L-malate Deposited 2016-05-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 330–758（429 aa）
Not recorded MN MANGANESE (II) ION × 1 GOL GLYCEROL × 4 LMR (2S)-2-hydroxybutanedioic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；1mM MMT buffer (DL-Malic acid, MES, Tris base), 25% PEG1500, 1 mM MnCl2, 2 mM N-oxalylglycine, 18 mg/ml protein
Resolution 2.35 Å R-free 0.220
5JZ8 Aspartyl/Asparaginyl beta-hydroxylase (AspH)oxygenase and TPR domains in complex with manganese, N-oxalylglycine, and factor X substrate peptide fragment (39mer) Deposited 2016-05-16 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded MN MANGANESE (II) ION × 1 OGA N-OXALYLGLYCINE × 1 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100 mM Bis-tris propane, 200mM sodium acetate, 20% PEG 3350, 1 mM manganese chloride, 2 mM N-oxalylglycine, 726 uM FX peptide, 18 mg/ml protein
Resolution 2.10 Å R-free 0.216
5JZA Aspartyl/Asparaginyl beta-hydroxylase (AspH)oxygenase and TPR domains in complex with manganese and N-oxalylglycine Deposited 2016-05-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 330–758（429 aa）
Not recorded MN MANGANESE (II) ION × 1 GOL GLYCEROL × 4 OGA N-OXALYLGLYCINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；277 K；100 mM bicine, 100 mM sodium chloride, 27% PEG 550 MME, 1 mM manganese chloride, 2 mM N-oxalylglycine, 18 mg/ml protein
Resolution 2.14 Å R-free 0.198
5JZU Aspartyl/Asparaginyl beta-hydroxylase (AspH)oxygenase and TPR domains in complex with manganese, N-oxalylglycine and factor X substrate peptide fragment (26mer) Deposited 2016-05-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded MN MANGANESE (II) ION × 1 OGA N-OXALYLGLYCINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100 mM Bis-tris propane, 20 mM sodium/potassium phosphate, 20% PEG 3350, 1 mM manganese chloride, 2 mM N-oxalylglycine, 1.65 mM factor X peptide, 18 mg/ml asph protein
Resolution 2.50 Å R-free 0.229
6Q9F Aspartyl/Asparaginyl beta-hydroxylase (AspH) H679A in complex with Mn, NOG and Factor X peptide fragment (39mer-4Ser) Deposited 2018-12-18 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Mutation：H679A MN MANGANESE (II) ION × 1 OGA N-OXALYLGLYCINE × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；0.2 M sodium chloride 0.1 M Tris-HCl 8.0 20 % w/v PEG 6000
Resolution 1.63 Å R-free 0.200
6Q9I Aspartyl/Asparaginyl beta-hydroxylase (AspH) H679A in complex with Factor X peptide fragment (39mer-4Ser) Deposited 2018-12-18 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Mutation：H679A FMT FORMIC ACID × 3 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.2 M sodium formate, 20 % w/v PEG 3350
Resolution 1.85 Å R-free 0.223
6QA5 Aspartyl/Asparaginyl beta-hydroxylase (AspH) H679A in the apo form Deposited 2018-12-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 301–729（429 aa）
Mutation：H679A ACT ACETATE ION × 2 PG4 TETRAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；277 K；0.1 M PCTP (Propionic acid, Cacodylate, Bis-tris propane) buffer pH 9.0 25 % w/v PEG 1500
Resolution 2.65 Å R-free 0.224
6RK9 Aspartyl/Asparaginyl beta-hydroxylase (AspH)oxygenase and TPR domains in complex with manganese, N-oxalylglycine and cyclic peptide substrate mimic of factor X Deposited 2019-04-30 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded MN MANGANESE (II) ION × 1 OGA N-OXALYLGLYCINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100 mM Bis-tris propane, 200 mM potassium thiocyanate, 20% PEG 3350, 2 mM N-oxalylglycine, 1 mM manganese chloride, 3.3 mM cyclic peptide, 18 mg/ml asph protein
Resolution 2.29 Å R-free 0.235
6RK9 Aspartyl/Asparaginyl beta-hydroxylase (AspH)oxygenase and TPR domains in complex with manganese, N-oxalylglycine and cyclic peptide substrate mimic of factor X Deposited 2019-04-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 330–758（429 aa）
Not recorded MN MANGANESE (II) ION × 1 OGA N-OXALYLGLYCINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100 mM Bis-tris propane, 200 mM potassium thiocyanate, 20% PEG 3350, 2 mM N-oxalylglycine, 1 mM manganese chloride, 3.3 mM cyclic peptide, 18 mg/ml asph protein
Resolution 2.29 Å R-free 0.235
6YYU Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with manganese and 2-oxoglutarate Deposited 2020-05-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 330–758（429 aa）
Not recorded MN MANGANESE (II) ION × 1 AKG 2-OXOGLUTARIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；100 mM HEPES sodium, 10% v/v 2-Propanol, 20% w/v PEG 4000, 1 mM manganese chloride, 2 mM 2-oxoglutarate, 18 mg/ml protein
Resolution 2.11 Å R-free 0.231
6YYV Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with manganese and 3-methyl-2-oxoglutarate Deposited 2020-05-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 330–758（429 aa）
Not recorded MN MANGANESE (II) ION × 1 Q1Z (3~{R})-3-methyl-2-oxidanylidene-pentanedioic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.9；277 K；200 mM magnesium acetate tetrahydrate, 20% w/v PEG 3350, 1 mM manganese chloride, 2 mM 3-methyl-2-oxoglutarate, 18 mg/ml protein
Resolution 1.77 Å R-free 0.208
6YYW Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with manganese, 2-oxoglutarate, and factor X substrate peptide fragment(39mer-4Ser) Deposited 2020-05-06 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded MN MANGANESE (II) ION × 1 AKG 2-OXOGLUTARIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；100 mM Bis Tris Propane, 200 mM sodium acetate trihydrate, 20% w/v PEG 3350, 1 mM manganese chloride, 2 mM 2-oxoglutarate, 18 mg/ml protein
Resolution 2.27 Å R-free 0.224
6YYX Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with manganese, 3-methyl-2-oxoglutarate, and factor X substrate peptide fragment(39mer-4Ser) Deposited 2020-05-06 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded MN MANGANESE (II) ION × 1 Q1Z (3~{R})-3-methyl-2-oxidanylidene-pentanedioic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；200 mM Bis Tris Propane, 200 mM sodium/potassium phosphate, 20% w/v PEG 3350, 1 mM manganese chloride, 2 mM 3-methyl-2-oxoglutarate, 18 mg/ml protein
Resolution 1.53 Å R-free 0.192
6YYY Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with manganese, 4,4-dimethyl-2-oxoglutarate, and factor X substrate peptide fragment(39mer-4Ser) Deposited 2020-05-06 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded MN MANGANESE (II) ION × 1 Q1W 2,2-dimethyl-4-oxidanylidene-pentanedioic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；200 mM sodium bromide, 20% w/v PEG 3350, 1 mM manganese chloride, 2 mM 4,4-dimethyl-2-oxoglutarate, 18 mg/ml protein
Resolution 2.29 Å R-free 0.244
6Z6Q Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with manganese, 3-ethyl-2-oxoglutarate, and factor X substrate peptide fragment(39mer-4Ser) Deposited 2020-05-29 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded GOL GLYCEROL × 1 MN MANGANESE (II) ION × 1 QA8 (3~{R})-3-ethyl-2-oxidanylidene-pentanedioic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；100 mM HEPES sodium, 200 mM ammonium chloride, 20% w/v PEG 6000, 1 mM manganese chloride, 2 mM 3-ethyl-2-oxoglutarate, 18 mg/ml protein
Resolution 1.81 Å R-free 0.232
6Z6R Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with manganese, N-oxalyl-alpha-methylalanine, and factor X substrate peptide fragment(39mer-4Ser) Deposited 2020-05-29 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded MN MANGANESE (II) ION × 1 BR BROMIDE ION × 1 GOL GLYCEROL × 1 UQK N-oxalyl-alpha-methylalanine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100 mM Bis Tris propane, 200 mM sodium bromide, 20% w/v PEG 3350, 1 mM manganese chloride, 2 mM N-oxalyl-alpha-methylalanine, 18 mg/ml protein
Resolution 2.13 Å R-free 0.242
7BMI Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with manganese, 3-fluoropyridine-2,4-dicarboxylic acid, and factor X substrate peptide fragment (39mer-4Ser) Deposited 2021-01-20 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded MN MANGANESE (II) ION × 1 U4B 3-fluoranylpyridine-2,4-dicarboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；100 mM HEPES sodium, 200 mM ammonium chloride, 20% w/v PEG 4000, 1 mM manganese chloride, 2 mM 2-oxoglutarate, 18 mg/ml protein
Resolution 1.66 Å R-free 0.220
7BMJ Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with manganese, 5-fluoropyridine-2,4-dicarboxylic acid, and factor X substrate peptide fragment (39mer-4Ser) Deposited 2021-01-20 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded MN MANGANESE (II) ION × 1 U4Q 5-fluoranylpyridine-2,4-dicarboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；200 mM sodium nitrate, 20% w/v PEG 3350, 1 mM manganese chloride, 18 mg/ml protein
Resolution 1.75 Å R-free 0.251
7BMJ Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with manganese, 5-fluoropyridine-2,4-dicarboxylic acid, and factor X substrate peptide fragment (39mer-4Ser) Deposited 2021-01-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 330–758（429 aa）
Not recorded MN MANGANESE (II) ION × 1 U4Q 5-fluoranylpyridine-2,4-dicarboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；200 mM sodium nitrate, 20% w/v PEG 3350, 1 mM manganese chloride, 18 mg/ml protein
Resolution 1.75 Å R-free 0.251
7E6J Aspartyl/Asparaginyl beta-hydroxylase (AspH) H725A in complex with Factor X peptide fragment (39mer-4Ser) Deposited 2021-02-22 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Mutation：H725A GOL GLYCEROL × 3 PPI PROPANOIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；100mM PCTP, 25% w/v PEG 1500
Resolution 1.90 Å R-free 0.213
7YB8 Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with D-2-hydroxyglutarate and factor X-derived peptide (39mer-4Ser) Deposited 2022-06-29 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded GOL GLYCEROL × 2 MN MANGANESE (II) ION × 1 2HG (2R)-2-hydroxypentanedioic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；0.2 M lithium chloride, 20 % w/v Polyethylene glycol 6,000, 0.1 M Tris-HCl
Resolution 1.98 Å R-free 0.248
7YB9 Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with L-2-hydroxyglutarate and factor X-derived peptide (39mer-4Ser) Deposited 2022-06-29 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 329–758（430 aa）
Not recorded MN MANGANESE (II) ION × 1 S2G (2S)-2-HYDROXYPENTANEDIOIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.2 M lithium chloride, 20 % w/v Polyethylene glycol 6,000, 0.1 M Bis-Tris propane
Resolution 1.54 Å R-free 0.215
7YBA Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with D-4-hydroxy-2-oxoglutarate Deposited 2022-06-29 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 330–758（429 aa）
Not recorded MN MANGANESE (II) ION × 1 IO9 (2~{R})-2-oxidanyl-4-oxidanylidene-pentanedioic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.1；277 K；0.2 M Ammonium acetate, 20% w/v Polyethylene glycol 3,350
Resolution 1.86 Å R-free 0.202
7YBB Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with D-4-hydroxy-2-oxoglutarate and factor X-derived peptide (39mer-4Ser) Deposited 2022-06-29 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded MN MANGANESE (II) ION × 1 IO9 (2~{R})-2-oxidanyl-4-oxidanylidene-pentanedioic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；0.02 M Sodium/potassium phosphate, 20 % w/v Polyethylene glycol 3,350, 0.1 M Bis-Tris propane
Resolution 1.68 Å R-free 0.219
7YBC Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with (S)-4-hydroxy-4-methyl-2-oxoglutarate and factor X-derived peptide (39mer-4Ser) Deposited 2022-06-29 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded MN MANGANESE (II) ION × 1 GOL GLYCEROL × 1 IOW (2~{S})-2-methyl-2-oxidanyl-4-oxidanylidene-pentanedioic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；0.2 M Sodium acetate trihydrate, 20 % w/v Polyethylene glycol 3,350, 0.1 M Bis Tris propane
Resolution 1.84 Å R-free 0.199
8RE5 Aspartyl/Asparaginyl beta-hydroxylase (AspH) R735Q variant in complex with Mn, 2-oxosuberate and a Factor X derived peptide fragment Deposited 2023-12-10 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 315–758（444 aa）
Mutation：R735Q YQX 2-oxidanylideneoctanedioic acid × 2 MN MANGANESE (II) ION × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M bis tris propane pH 7.5, 0.2 M NaBr, 20% PEG 3350
Resolution 1.70 Å R-free 0.207
8RE6 Aspartyl/Asparaginyl beta-hydroxylase (AspH) R735Q variant in complex with Mn, 2-oxoglutarate and a Factor X derived peptide fragment Deposited 2023-12-10 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 315–758（444 aa）
Mutation：R735Q MN MANGANESE (II) ION × 1 AKG 2-OXOGLUTARIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M HEPES pH 7.5, 0.2 M NaCl, 20% PEG 3350
Resolution 1.92 Å R-free 0.216
8RE7 Aspartyl/Asparaginyl beta-hydroxylase (AspH) R735W variant in complex with Mn, 2-oxoglutarate and a Factor X derived peptide fragment Deposited 2023-12-10 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 315–758（444 aa）
Mutation：R735W AKG 2-OXOGLUTARIC ACID × 1 MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M HEPES pH 7.5, 0.2 M NaCl, 20% PEG 3350
Resolution 1.95 Å R-free 0.242
8RE8 Aspartyl/Asparaginyl beta-hydroxylase (AspH) R688Q variant in complex with Mn, (3R)-methyl-2-oxoglutarate and a Factor X derived peptide fragment Deposited 2023-12-10 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 315–758（444 aa）
Mutation：R688Q Q1Z (3~{R})-3-methyl-2-oxidanylidene-pentanedioic acid × 1 PEG DI(HYDROXYETHYL)ETHER × 5 MN MANGANESE (II) ION × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M HEPES pH 7.5, 0.2 M NaCl, 20% PEG 3350
Resolution 1.85 Å R-free 0.208
8RE9 Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Mn, 2-oxoglutarate and a Factor X derived peptide fragment Deposited 2023-12-10 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 315–758（444 aa）
Not recorded AKG 2-OXOGLUTARIC ACID × 1 MN MANGANESE (II) ION × 1 PEG DI(HYDROXYETHYL)ETHER × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M HEPES pH 7.5 20 % v/v PEG Smear High (BCS screen)
Resolution 1.84 Å R-free 0.196
9FVU Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate, thiocyanate and Factor X derived peptide fragment Deposited 2024-06-28 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–758（758 aa）
Not recorded AKG 2-OXOGLUTARIC ACID × 1 FE FE (III) ION × 1 PEG DI(HYDROXYETHYL)ETHER × 8 SCN THIOCYANATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；278 K；0.1 M bis tris propane pH 7.5, 0.2 M NaSCN, 20% PEG 3350
Resolution 1.70 Å R-free 0.187
9FVV Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Mn, 2OG, thiocyanate and Factor X peptide fragment (39mer-4Ser) Deposited 2024-06-28 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded AKG 2-OXOGLUTARIC ACID × 1 ACT ACETATE ION × 2 PEG DI(HYDROXYETHYL)ETHER × 1 MN MANGANESE (II) ION × 1 SCN THIOCYANATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；278 K；0.1 M bis tris propane pH 7.5, 0.2 M NaSCN, 20% PEG 3350
Resolution 1.60 Å R-free 0.191
9FVW Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2OG, SIN and hydroxylated product of Factor X peptide fragment (39mer-4Ser) Deposited 2024-06-28 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded SIN SUCCINIC ACID × 1 AKG 2-OXOGLUTARIC ACID × 1 FE FE (III) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；278 K；0.1 M bis tris propane pH 7.5, 0.2 M NaBr, 20% PEG 3350
Resolution 1.90 Å R-free 0.224
9FVX Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate and Factor X derived peptide fragment Deposited 2024-06-28 Different construct Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 331–758（428 aa）
Not recorded AKG 2-OXOGLUTARIC ACID × 1 PEG DI(HYDROXYETHYL)ETHER × 7 CL CHLORIDE ION × 2 FE FE (III) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；278 K；0.1 M bis tris propane pH 7.5, 0.2 M NaBr, 20% PEG 3350
Resolution 1.90 Å R-free 0.212
9FVZ Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate and a Factor X derived peptide fragment Deposited 2024-06-28 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 331–758（428 aa）
Not recorded AKG 2-OXOGLUTARIC ACID × 1 PEG DI(HYDROXYETHYL)ETHER × 6 GOL GLYCEROL × 1 FE FE (III) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；278 K；0.1 M bis tris propane pH 7.5, 0.2 M NaBr, 20% PEG 3350
Resolution 1.98 Å R-free 0.213
9FW0 Room temperature structure of Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate and Factor X derived peptide fragment Deposited 2024-06-28 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 331–758（428 aa）
Not recorded AKG 2-OXOGLUTARIC ACID × 1 FE FE (III) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；pH 7.5；278 K；16% PEG 3350, 0.1 M Bis Tris propane pH 7.5, 0.1 M KSCN
Resolution 1.95 Å R-free 0.207
9HNZ Room temperature structure of Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate and hydroxylated Factor X derived peptide fragment, 2 h O2 exposure Deposited 2024-12-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded SIN SUCCINIC ACID × 1 FE FE (III) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；pH 7.5；278 K；16% PEG3350, 0.1 M bis tris propane pH 7.5, 0.1 M KSCN
Resolution 2.40 Å R-free 0.237
9HO0 Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate, succinate and the hydroxylated product of Factor X derived peptide fragment, 12 h O2 exposure Deposited 2024-12-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded SIN SUCCINIC ACID × 1 FE FE (III) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；pH 7.5；278 K；16% PEG 3350, 0.1 M bis-tris propane pH 7.5, 0.1 M KSCN
Resolution 2.14 Å R-free 0.232
9HO1 Room temperature structure of Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate, and hydroxylated Factor X derived peptide fragment, 1.5 s O2 exposure Deposited 2024-12-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded AKG 2-OXOGLUTARIC ACID × 1 SIN SUCCINIC ACID × 1 FE FE (III) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；pH 7.5；278 K；16% PEG3350, 0.1M Bis Tris propane pH 7.5, 0.1 M KSCN
Resolution 1.85 Å R-free 0.221
9HO2 Room temperature structure of Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate and Factor X derived peptide fragment, excess Fe removed Deposited 2024-12-11 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 331–758（428 aa）
Not recorded AKG 2-OXOGLUTARIC ACID × 1 FE FE (III) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；pH 7.5；278 K；16% PEG 3350, 0.1 M Bis Tris propane pH 7.5, 0.1 M KSCN
Resolution 1.83 Å R-free 0.219
9HO3 Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2OG, nitric oxide, and Factor X peptide fragment Deposited 2024-12-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 330–758（429 aa）
Not recorded NA SODIUM ION × 1 K POTASSIUM ION × 1 FE FE (III) ION × 1 AKG 2-OXOGLUTARIC ACID × 1 NO NITRIC OXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；278 K；0.1 M bis tris propane pH 7.5, 16% PEG3350, 0.1 M KSCN
Resolution 2.39 Å R-free 0.242

42 other PDB entries and 44 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ASPH_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–429； UniProt 330–758

Factor X light chain

OrganismNot specified

UniProt P00742

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain B； UniProt 86–124 Mutation：C90S, C95S, C112S, C121S Non-standard monomer：Yes (specific site not provided by mmCIF) Aspartyl/asparaginyl beta-hydroxylase × 1 （Q12797） AKG 2-OXOGLUTARIC ACID × 1 SIN SUCCINIC ACID × 1 PEG DI(HYDROXYETHYL)ETHER × 2 FE FE (III) ION × 1 GOL GLYCEROL × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；278 K；0.1 M bis tris propane pH 7.5, 0.2 M NaBr, 20% PEG 3350 Resolution 1.90 Å R-free 0.199

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9FVY Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1C5M STRUCTURAL BASIS FOR SELECTIVITY OF A SMALL MOLECULE, S1-BINDING, SUB-MICROMOLAR INHIBITOR OF UROKINASE TYPE PLASMINOGEN ACTIVATOR Deposited 1999-12-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain D 235–488（254 aa） Fragment：HEAVY CHAIN
Chain F 84–179（96 aa） Fragment：LIGHT CHAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；crystallization conditions : Crystals of truncated human factor Xa were grown in hanging drops from equal volumes of protein solution (5.0 mg/ml in 20 mM Hepes, 50 mM ammonimum sulfate, pH 8.0) and well solution (25 % PEG 5K, 0.10 M Hepes, 0.2 M ammonium sulfate, pH 7.5)., VAPOR DIFFUSION
Resolution 1.95 Å R-free 0.307
1EZQ CRYSTAL STRUCTURE OF HUMAN COAGULATION FACTOR XA COMPLEXED WITH RPR128515 Deposited 2000-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa） Fragment：ACTIVATED FACTOR XA, HEAVY CHAIN
Chain B 46–179（134 aa） Fragment：FACTOR X LIGHT CHAIN
Not recorded CA CALCIUM ION × 1 RPR 3-[(3'-AMINOMETHYL-BIPHENYL-4-CARBONYL)-AMINO]-2-(3-CARBAMIMIDOYL-BENZYL)-BUTYRIC ACID METHYL ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；292 K；18-20% PEG 600, 50mM Mes-NaOH, 1mM RPR128515, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 292K
Resolution 2.20 Å R-free 0.267
1F0R CRYSTAL STRUCTURE OF HUMAN COAGULATION FACTOR XA COMPLEXED WITH RPR208815 Deposited 2000-05-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa） Fragment：ACTIVATED FACTOR XA, HEAVY CHAIN
Chain B 46–179（134 aa） Fragment：FACTOR X LIGHT CHAIN
Not recorded CA CALCIUM ION × 1 815 THIENO[3,2-B]PYRIDINE-2-SULFONIC ACID [1-(1-AMINO-ISOQUINOLIN-7-YLMETHYL)-2-OXO-PYRROLDIN-3-YL]-AMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；292 K；18-22%PEG 600, 50mM Mes-NaOH, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 292K
Resolution 2.10 Å R-free 0.263
1F0S Crystal Structure of Human Coagulation Factor XA Complexed with RPR208707 Deposited 2000-05-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa） Fragment：ACTIVATED FACTOR XA, HEAVY CHAIN
Chain B 46–179（134 aa） Fragment：FACTOR X LIGHT CHAIN
Not recorded CA CALCIUM ION × 1 PR2 THIENO[3,2-B]PYRIDINE-2-SULFONIC ACID [2-OXO-1-(1H-PYRROLO[2,3-C]PYRIDIN-2-YLMETHYL)-PYRROLIDIN-3-YL]-AMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；292 K；18-22%PEG 600, 50mM Mes-NaOH, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 292K
Resolution 2.10 Å R-free 0.263
1FAX COAGULATION FACTOR XA INHIBITOR COMPLEX Deposited 1996-08-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–481（247 aa）
Chain L 84–179（96 aa）
Mutation：PROTEOLYTIC CLEAVAGE PRODUCT, GLA DOMAIN, RESIDUES 1 - 44 OF THE LIGHT CHAIN, ARE REMOVED Mutation：PROTEOLYTIC CLEAVAGE PRODUCT, GLA DOMAIN, RESIDUES 1 - 44 OF THE LIGHT CHAIN, ARE REMOVED CA CALCIUM ION × 1 DX9 (2S)-3-(7-carbamimidoylnaphthalen-2-yl)-2-[4-({(3R)-1-[(1Z)-ethanimidoyl]pyrrolidin-3-yl}oxy)phenyl]propanoic acid × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.00 Å R-free 0.261
1FJS CRYSTAL STRUCTURE OF THE INHIBITOR ZK-807834 (CI-1031) COMPLEXED WITH FACTOR XA Deposited 2000-08-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：HEAVY CHAIN, CATALYTIC DOMAIN
Chain L 127–178（52 aa） Fragment：LIGHT CHAIN, EPIDERMAL GROWTH FACTOR LIKE DOMAIN
Not recorded CA CALCIUM ION × 1 CL CHLORIDE ION × 1 Z34 N-[2-[5-[AMINO(IMINO)METHYL]-2-HYDROXYPHENOXY]-3,5-DIFLUORO-6-[3-(4,5-DIHYDRO-1-METHYL-1H-IMIDAZOL-2-YL)PHENOXY]PYRIDIN-4-YL]-N-METHYLGLYCINE × 1 GOL GLYCEROL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；295 K；Drop; 2 microliter, 12 mg/ml Factor Xa, 50 mM Tris pH 8.0, 75 mM NaCl + 2 microlter reservoir: Reservoir; 15-21% PEG-1500 and 10mM CaCl2, VAPOR DIFFUSION, temperature 295K
Resolution 1.92 Å R-free 0.256
1G2L FACTOR XA INHIBITOR COMPLEX Deposited 2000-10-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–469（235 aa） Fragment：CATALYTIC DOMAIN
Chain B 86–179（94 aa） Fragment：DES-GLA FRAGMENT
Not recorded CA CALCIUM ION × 1 T87 [(1-{2[(4-CARBAMIMIDOYL-PHENYLAMINO)-METHYL]-1-METHYL-1H-BENZOIMIDAZOL-5-YL}-CYCLOPROPYL)-PYRIDIN-2-YL-METHYLENEAMINOOXY]-ACETIC ACID ETHYL ESTER × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.90 Å R-free 0.272
1G2M FACTOR XA INHIBITOR COMPLEX Deposited 2000-10-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–469（235 aa） Fragment：CATALYTIC DOMAIN
Chain B 86–179（94 aa） Fragment：DES-GLA FRAGMENT
Not recorded CA CALCIUM ION × 1 R11 4-{[1-METHYL-5-(2-METHYL-BENZOIMIDAZOL-1-YLMETHYL)-1H-BENZOIMIDAZOL-2-YLMETHYL]-AMINO}-BENZAMIDINE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.02 Å R-free 0.278
1HCG STRUCTURE OF HUMAN DES(1-45) FACTOR XA AT 2.2 ANGSTROMS RESOLUTION Deposited 1993-05-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–475（241 aa）
Chain B 129–179（51 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.20 Å
1IOE Human coagulation factor Xa in complex with M55532 Deposited 2001-03-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–469（235 aa） Fragment：HEAVY CHAIN, CATALYTIC DOMAIN (RESIDUES 235-469)
Chain L 84–179（96 aa） Fragment：LIGHT CHAIN, EPIDERMAL GROWTH FACTOR LIKE DOMAIN (RESIDUES 84-179)
Not recorded CA CALCIUM ION × 1 XMA (-)-7-[(6-CHLORO-2-NAPHTHALENYL)SULFONYL]TETRAHYDRO-8A-(METHOXYMETHYL)-1'-(4-PYRIDINYL)-SPIRO[5H-OXAZOLO[3,2-A]PYRAZINE-2(3H),4'-PIPERIDIN]-5-ONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；PEG1500, CALCIUM CHLORIDE, M55532,TRIS-HCL, pH 7.20, VAPOR DIFFUSION, SITTING DROP, temperature 293.0K
Resolution 2.90 Å R-free 0.295
1IQE Human coagulation factor Xa in complex with M55590 Deposited 2001-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–469（235 aa） Fragment：heavy chain, catalytic domain (residues 235-469)
Chain L 84–179（96 aa） Fragment：light chain, epidermal growth factor like domain (residues 84-179)
Not recorded CA CALCIUM ION × 1 XMB 4-[(2R)-3-[[(6-CHLORO-2-NAPHTHALENYL)SULFONYL]AMINO]-1-OXO-2-[[[1-(4-PYRIDINYL)-4-PIPERIDINYL]METHYL]AMINO]PROPYL]-THIOMORPHOLINE-1,1-DIOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；PEG1500, calcium chloride, M55590, tris-HCl, pH 7.2, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.90 Å R-free 0.297
1IQF Human coagulation factor Xa in complex with M55165 Deposited 2001-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–469（235 aa） Fragment：heavy chain, catalytic domain (residues 235-469)
Chain L 84–179（96 aa） Fragment：light chain, epidermal growth factor like domain (residues 84-179)
Not recorded CA CALCIUM ION × 1 XMD (2R)-4-[(6-CHLORO-2-NAPHTHALENYL)SULFONYL]-6-OXO-1-[[1-(4-PYRIDINYL)-4-PIPERIDINYL]METHYL]-2-PIPERAZINECARBOXYLIC ACID ETHYL ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；PEG1500, calcium chloride, M55165, tris-HCl, pH 7.2, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.20 Å R-free 0.277
1IQG Human coagulation factor Xa in complex with M55159 Deposited 2001-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–469（235 aa） Fragment：heavy chain, catalytic domain (residues 235-469)
Chain L 84–179（96 aa） Fragment：light chain, epidermal growth factor like domain (residues 84-179)
Not recorded CA CALCIUM ION × 1 XME 4-[(6-CHLORO-2-NAPHTHALENYL)SULFONYL]-1-[[4-HYDROXYIMINOMETHYL-1-(4-PYRIDINYL)-4-PIPERIDINYL]METHYL]PIPERAZINONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；PEG1500, calcium chloride, M55159, tris-HCl, pH 7.20, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.60 Å R-free 0.271
1IQH Human coagulation factor Xa in complex with M55143 Deposited 2001-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–469（235 aa） Fragment：heavy chain, catalytic domain (residues 235-469)
Chain L 84–179（96 aa） Fragment：light chain, epidermal growth factor like domain (residues 84-179)
Not recorded CA CALCIUM ION × 1 XMF 4-[(6-CHLORO-2-NAPHTHALENYL)SULFONYL]-1-[[4-HYDROXYMETHYL-1-(4-PYRIDINYL)-4-PIPERIDINYL]METHYL]PIPERAZINONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；PEG1500, calcium chloride, M55143, tris-HCl, pH 7.20, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.00 Å R-free 0.286
1IQI Human coagulation factor Xa in complex with M55125 Deposited 2001-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–469（235 aa） Fragment：heavy chain, catalytic domain (residues 235-469)
Chain L 84–179（96 aa） Fragment：light chain, epidermal growth factor like domain (residues 84-179)
Not recorded CA CALCIUM ION × 1 XMG 4-[(6-CHLORO-2-NAPHTHALENYL)SULFONYL]-1-[[1-(4-PYRIDINYL)-4-PIPERIDINYL] METHYL]-2-PIPERAZINECARBOXYLIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；PEG1500, calcium chloride, M55125, tris-HCl, pH 7.20, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.90 Å R-free 0.290
1IQJ Human coagulation factor Xa in complex with M55124 Deposited 2001-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–469（235 aa） Fragment：heavy chain, catalytic domain (residues 235-469)
Chain L 84–179（96 aa） Fragment：light chain, epidermal growth factor like domain (residues 84-179)
Not recorded CA CALCIUM ION × 1 XMH 4-[(6-CHLORO-2-NAPHTHALENYL)SULFONYL]-1-[[1-(4-PYRIDINYL)-4-PIPERIDINYL]METHYL]-2-PIPERAZINECARBOXYLIC ACID ETHYL ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；PEG1500, calcium chloride, M55124, tris-HCl, pH 7.20, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.00 Å R-free 0.293
1IQK Human coagulation factor Xa in complex with M55113 Deposited 2001-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–469（235 aa） Fragment：heavy chain, catalytic domain (residues 235-469)
Chain L 84–179（96 aa） Fragment：light chain, epidermal growth factor like domain (residues 84-179)
Not recorded CA CALCIUM ION × 1 XMI 4-[(6-CHLORO-2-NAPHTHALENYL)SULFONYL]-1-[[1-(4-PYRIDINYL)-4-PIPERIDINYL]METHYL]PIPERAZINONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；PEG1500, calcium chloride, M55113, tris-HCl, pH 7.20, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.20 Å R-free 0.280
1IQL Human coagulation factor Xa in complex with M54476 Deposited 2001-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–469（235 aa） Fragment：heavy chain, catalytic domain (residues 235-469)
Chain L 84–179（96 aa） Fragment：light chain, epidermal growth factor like domain (residues 84-179)
Not recorded CA CALCIUM ION × 1 XMJ 4-[[(1E)-2-(4-CHLOROPHENYL)ETHENYL]SULFONYL]-1-[[1-(4-PYRIDINYL)-4-PIPERIDINYL]METHYL]PIPERAZINONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；PEG1500, calcium chloride, M54476, tris-HCl, pH 7.20, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.304
1IQM Human coagulation factor Xa in complex with M54471 Deposited 2001-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–469（235 aa） Fragment：heavy chain, catalytic domain (residues 235-469)
Chain L 84–179（96 aa） Fragment：light chain, epidermal growth factor like domain (residues 84-179)
Not recorded CA CALCIUM ION × 1 XMK 1-[[(1E)-2-(4-CHLOROPHENYL)ETHENYL]SULFONYL]-4-[[1-(4-PYRIDINYL)-4-PIPERIDINYL]METHYL]PIPERAZINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；PEG1500, calcium chloride, M54471, tris-HCl, pH 7.20, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.60 Å R-free 0.284
1IQN Human coagulation factor Xa in complex with M55192 Deposited 2001-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–469（235 aa） Fragment：heavy chain, catalytic domain (residues 235-469)
Chain L 84–179（96 aa） Fragment：light chain, epidermal growth factor like domain (residues 84-179)
Not recorded CA CALCIUM ION × 1 XMC 4-[[4-[(6-CHLORO-2-NAPHTHALENYL)SULFONYL]-6-OXO-1-[[1-(4-PYRIDINYL)-4-PIPERIDINYL]METHYL]-2-PIPERAZINYL]CARBONYL]MORPHOLINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；PEG1500, calcium chloride, M55192, tris-HCl, pH 7.2, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.60 Å R-free 0.254
1KSN Crystal Structure of Human Coagulation Factor XA Complexed with FXV673 Deposited 2002-01-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa） Fragment：ACTIVATED FACTOR XA, HEAVY CHAIN
Chain B 46–179（134 aa） Fragment：FACTOR X LIGHT CHAIN
Not recorded CA CALCIUM ION × 1 FXV METHYL-3-(4'-N-OXOPYRIDYLPHENOYL)-3-METHYL-2-(M-AMIDINOBENZYL)-PROPIONATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；292 K；18-20% PEG 600, 50MM MES-NAOH, 1MM RPR128515, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 292K
Resolution 2.10 Å
1LPG CRYSTAL STRUCTURE OF FXA IN COMPLEX WITH 79. Deposited 2002-05-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 46–179（134 aa） Fragment：light chain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；298 K；PEG600, MES, CaCl2, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.00 Å R-free 0.288
1LPG CRYSTAL STRUCTURE OF FXA IN COMPLEX WITH 79. Deposited 2002-05-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 235–488（254 aa）
Not recorded CA CALCIUM ION × 1 IMA [4-({[5-BENZYLOXY-1-(3-CARBAMIMIDOYL-BENZYL)-1H-INDOLE-2-CARBONYL]-AMINO}-METHYL)-PHENYL]-TRIMETHYL-AMMONIUM × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；298 K；PEG600, MES, CaCl2, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.00 Å R-free 0.288
1LPK CRYSTAL STRUCTURE OF FXA IN COMPLEX WITH 125. Deposited 2002-05-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 46–179（134 aa） Fragment：light chain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；298 K；PEG600, MES, CaCl2, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.20 Å R-free 0.280
1LPK CRYSTAL STRUCTURE OF FXA IN COMPLEX WITH 125. Deposited 2002-05-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 235–488（254 aa）
Not recorded CA CALCIUM ION × 1 CBB 1-(3-CARBAMIMIDOYL-BENZYL)-1H-INDOLE-2-CARBOXYLIC ACID 3-CARBAMIMIDOYL-BENZYLESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；298 K；PEG600, MES, CaCl2, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.20 Å R-free 0.280
1LPZ CRYSTAL STRUCTURE OF FXA IN COMPLEX WITH 41. Deposited 2002-05-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 46–179（134 aa） Fragment：light chain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；298 K；PEG600, MES, CaCl2, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.40 Å R-free 0.279
1LPZ CRYSTAL STRUCTURE OF FXA IN COMPLEX WITH 41. Deposited 2002-05-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 235–488（254 aa）
Not recorded CA CALCIUM ION × 1 CMB 1-(3-carbamimidoylbenzyl)-N-(3,5-dichlorobenzyl)-4-methyl-1H-indole-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；298 K；PEG600, MES, CaCl2, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.40 Å R-free 0.279
1LQD CRYSTAL STRUCTURE OF FXA IN COMPLEX WITH 45. Deposited 2002-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 46–179（134 aa） Fragment：light chain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；298 K；PEG600, MES, CaCl2, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.70 Å R-free 0.295
1LQD CRYSTAL STRUCTURE OF FXA IN COMPLEX WITH 45. Deposited 2002-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 235–488（254 aa）
Not recorded CA CALCIUM ION × 1 CMI 1-(3-CARBAMIMIDOYL-BENZYL)-4-METHYL-1H-INDOLE-2-CARBOXYLIC ACID 3,5-DIMETHYL-BENZYLAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；298 K；PEG600, MES, CaCl2, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.70 Å R-free 0.295
1MQ5 Crystal Structure of 3-chloro-N-[4-chloro-2-[[(4-chlorophenyl)amino]carbonyl]phenyl]-4-[(4-methyl-1-piperazinyl)methyl]-2-thiophenecarboxamide Complexed with Human Factor Xa Deposited 2002-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–467（233 aa） Fragment：CATALYTIC DOMAIN
Chain L 127–177（51 aa） Fragment：EPIDERMAL GROWTH FACTOR LIKE DOMAIN 2
Not recorded CA CALCIUM ION × 1 XLC 3-CHLORO-N-[4-CHLORO-2-[[(4-CHLOROPHENYL)AMINO]CARBONYL]PHENYL]-4-[(4-METHYL-1-PIPERAZINYL)METHYL]-2-THIOPHENECARBOXAMIDE × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；A THREE-FOLD EXCESS OF A PROPRIETARY FACTOR XA INHIBITOR WITH PICOMOLAR AFFINITY WAS ADDED TO THE DES-GLA-FACTOR XA. THIS INHIBITOR IS BASED ON THE SAME TEMPLATE AS XLC IN 1MQ5. THE PROTEIN WAS THEN CONCENTRATED TO 12-17 MG/ML. CRYSTALS WERE GROWN USING 2 UL OF COMPLEX WITH 2 UL OF RESERVOIR CONTAINING 15-21% PEG1500 AND 10 MM CACL2. 30-40 UL SITTING DROPS CONTAINING SATURATED INHIBITOR (5 MM) IN 21% PEG1500, 5 MM CACL2, 50 MM NACL, 50 MM TRIS PH 7.5 (CRYSTAL SOAKING SOLUTION) WERE EQUILIBRATED OVER A 1 ML RESERVOIR CONTAINING THE CRYSTAL SOAKING SOLUTION FOR 1 TO 2 DAYS. A SINGLE FACTOR XA CRYSTAL WAS TRANSFERRED USING A MOUNTED CRYOLOOP INTO ONE OF THESE SITTING DROPS AND ALLOWED TO SOAK FOR THREE OR MORE Days. AFTER THE INITIAL SOAK, EACH CRYSTAL WAS THEN TRANSFERRED TO AN UNUSED DROP AND ALLOWED TO SOAK FOR SECOND PERIOD OF THREE OR MORE DAYS. pH 7.50, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.10 Å R-free 0.264
1MQ6 Crystal Structure of 3-chloro-N-[4-chloro-2-[[(5-chloro-2-pyridinyl)amino]carbonyl]-6-methoxyphenyl]-4-[[(4,5-dihydro-2-oxazolyl)methylamino]methyl]-2-thiophenecarboxamide Complexed with Human Factor Xa Deposited 2002-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–467（233 aa） Fragment：CATALYTIC DOMAIN
Chain L 127–177（51 aa） Fragment：EPIDERMAL GROWTH FACTOR LIKE DOMAIN 2
Not recorded CA CALCIUM ION × 1 XLD 3-CHLORO-N-[4-CHLORO-2-[[(5-CHLORO-2-PYRIDINYL)AMINO]CARBONYL]-6-METHOXYPHENYL]-4-[[(4,5-DIHYDRO-2-OXAZOLYL)METHYLAMINO]METHYL]-2-THIOPHENECARBOXAMIDE × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；A THREE-FOLD EXCESS OF A PROPRIETARY FACTOR XA INHIBITOR WITH PICOMOLAR AFFINITY WAS ADDED TO THE DES-GLA-FACTOR XA. THIS INHIBITOR IS BASED ON THE SAME TEMPLATE AS XLD IN 1MQ6. THE PROTEIN WAS THEN CONCENTRATED TO 12-17 MG/ML. CRYSTALS WERE GROWN USING 2 UL OF COMPLEX WITH 2 UL OF RESERVOIR CONTAINING 15-21% PEG1500 AND 10 MM CACL2. 30-40 UL SITTING DROPS CONTAINING SATURATED INHIBITOR (5 MM) IN 21% PEG1500, 5 MM CACL2, 20 MM NACL, 25 MM TRIS PH 7.5 (CRYSTAL SOAKING SOLUTION) WERE EQUILIBRATED OVER A 1 ML RESERVOIR CONTAINING THE CRYSTAL SOAKING SOLUTION FOR 1 TO 2 DAYS. A SINGLE FACTOR XA CRYSTAL WAS TRANSFERRED USING A MOUNTED CRYOLOOP INTO ONE OF THESE SITTING DROPS AND ALLOWED TO SOAK FOR THREE OR MORE DAYS. AFTER THE INITIAL SOAK, EACH CRYSTAL WAS THEN TRANSFERRED TO AN UNUSED DROP AND ALLOWED TO SOAK FOR SECOND PERIOD OF THREE OR MORE DAYS. pH 7.50, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.10 Å R-free 0.268
1NFU CRYSTAL STRUCTURE OF HUMAN COAGULATION FACTOR XA COMPLEXED WITH RPR132747 Deposited 2002-12-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa）
Chain B 46–240（195 aa）
Not recorded CA CALCIUM ION × 1 RRP 3-({4-[(6-CHLORO-1-BENZOTHIEN-2-YL)SULFONYL]-2-OXOPIPERAZIN-1-YL}METHYL)BENZENECARBOXIMIDAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；292 K；18-20% PEG 600, 50MM MES-NAOH,1MM RPR132747, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 292K
Resolution 2.05 Å
1NFW CRYSTAL STRUCTURE OF HUMAN COAGULATION FACTOR XA COMPLEXED WITH RPR209685 Deposited 2002-12-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa）
Chain B 46–179（134 aa）
Not recorded CA CALCIUM ION × 1 RRR 4-{[(E)-2-(5-CHLOROTHIEN-2-YL)VINYL]SULFONYL}-1-(1H-PYRROLO[3,2-C]PYRIDIN-2-YLMETHYL)PIPERAZIN-2-ONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；292 K；18-20% PEG 600, 50MM MES-NAOH,1MM RPR209685, pH 5.70 , VAPOR DIFFUSION, HANGING DROP, temperature 292 K
Resolution 2.10 Å
1NFX CRYSTAL STRUCTURE OF HUMAN COAGULATION FACTOR XA COMPLEXED WITH RPR208944 Deposited 2002-12-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa）
Chain B 46–179（134 aa）
Not recorded CA CALCIUM ION × 1 RDR 4-[(6-CHLORO-1-BENZOTHIEN-2-YL)SULFONYL]-1-{[1-(2-HYDROXYETHYL)-1H-PYRROLO[3,2-C]PYRIDIN-2-YL]METHYL}PIPERAZIN-2-ONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；292 K；18-20% PEG 600, 50MM MES-NAOH,1MM RPR208944, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 292K
Resolution 2.15 Å
1NFY CRYSTAL STRUCTURE OF HUMAN COAGULATION FACTOR XA COMPLEXED WITH RPR200095 Deposited 2002-12-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa）
Chain B 46–179（134 aa）
Not recorded CA CALCIUM ION × 1 RTR 4-({4-[(6-CHLORO-1-BENZOTHIEN-2-YL)SULFONYL]-2-OXOPIPERAZIN-1-YL}METHYL)BENZENECARBOXIMIDAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；292 K；18-20% PEG 600, 50MM MES-NAOH,1MM RPR200095, pH 5.70, VAPOR DIFFUSION, HANGING DROP, temperature 292K
Resolution 2.10 Å
1P0S Crystal Structure of Blood Coagulation Factor Xa in Complex with Ecotin M84R Deposited 2003-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain H 235–488（254 aa） Fragment：Factor Xa Heavy Chain
Chain L 41–178（138 aa） Fragment：Factor Xa Light Chain
Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 8 NA SODIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.1；298 K；PEG 3350, sodium potassium tartrate, sodium chloride, magnesium chloride, glycerol, MPD , pH 7.1, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.80 Å R-free 0.234
1V3X Factor Xa in complex with the inhibitor 1-[6-methyl-4,5,6,7-tetrahydrothiazolo(5,4-c)pyridin-2-yl] carbonyl-2-carbamoyl-4-(6-chloronaphth-2-ylsulphonyl)piperazine Deposited 2003-11-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–467（233 aa） Fragment：Residues 16-243
Chain B 127–178（52 aa） Fragment：Residues 87-138
Not recorded CA CALCIUM ION × 2 D76 (2R)-4-[(6-CHLORO-2-NAPHTHYL)SULFONYL]-1-[(5-METHYL-4,5,6,7-TETRAHYDRO[1,3]THIAZOLO[5,4-C]PYRIDIN-2-YL)CARBONYL]PIPERAZ INE-2-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions vapor diffusion, macro-seeding, Soaking；pH 5；293 K；PEG6000, sodium acetate, Malate imidazole, Calcium chloride, pH 5.00, vapor diffusion, macro-seeding, Soaking, temperature 293K
Resolution 2.20 Å R-free 0.233
1WU1 Factor Xa in complex with the inhibitor 4-[(5-chloroindol-2-yl)sulfonyl]-2-(2-methylpropyl)-1-[[5-(pyridin-4-yl) pyrimidin-2-yl]carbonyl]piperazine Deposited 2004-11-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–467（233 aa） Fragment：RESIDUES 16-243
Chain B 85–179（95 aa） Fragment：RESIDUES 85-138
Non-standard monomer：Yes (specific site not provided by mmCIF) CA CALCIUM ION × 2 D91 5-CHLORO-2-({3-ISOBUTYL-4-[(5-PYRIDIN-4-YLPYRIMIDIN-2-YL)CARBONYL]PIPERAZIN-1-YL}SULFONYL)-1H-INDOLE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；PEG6000, NaAcetate, pH 5.00, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.30 Å R-free 0.235
1XKA FACTOR XA COMPLEXED WITH A SYNTHETIC INHIBITOR FX-2212A,(2S)-(3'-AMIDINO-3-BIPHENYLYL)-5-(4-PYRIDYLAMINO)PENTANOIC ACID Deposited 1998-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 235–469（235 aa） Fragment：PROTEOLYTIC CLEAVAGE PRODUCT, GLA DOMAIN
Chain L 85–179（95 aa） Fragment：PROTEOLYTIC CLEAVAGE PRODUCT, GLA DOMAIN
Non-standard monomer：Yes (specific site not provided by mmCIF) CA CALCIUM ION × 1 4PP (2S)-(3'-AMIDINO-3-BIPHENYL)-5-(4-PYRIDYLAMINO)PENTANOIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.5；pH 5.5
Resolution 2.30 Å R-free 0.287
1XKB FACTOR XA COMPLEXED WITH A SYNTHETIC INHIBITOR FX-2212A,(2S)-(3'-AMIDINO-3-BIPHENYLYL)-5-(4-PYRIDYLAMINO)PENTANOIC ACID Deposited 1998-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 85–179（95 aa） Fragment：PROTEOLYTIC CLEAVAGE PRODUCT, GLA DOMAIN
Chain C 235–469（235 aa） Fragment：PROTEOLYTIC CLEAVAGE PRODUCT, GLA DOMAIN
Non-standard monomer：Yes (specific site not provided by mmCIF) CA CALCIUM ION × 2 4PP (2S)-(3'-AMIDINO-3-BIPHENYL)-5-(4-PYRIDYLAMINO)PENTANOIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；pH 6.0
Resolution 2.40 Å R-free 0.294
1XKB FACTOR XA COMPLEXED WITH A SYNTHETIC INHIBITOR FX-2212A,(2S)-(3'-AMIDINO-3-BIPHENYLYL)-5-(4-PYRIDYLAMINO)PENTANOIC ACID Deposited 1998-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 85–179（95 aa） Fragment：PROTEOLYTIC CLEAVAGE PRODUCT, GLA DOMAIN
Chain D 235–469（235 aa） Fragment：PROTEOLYTIC CLEAVAGE PRODUCT, GLA DOMAIN
Non-standard monomer：Yes (specific site not provided by mmCIF) CA CALCIUM ION × 1 4PP (2S)-(3'-AMIDINO-3-BIPHENYL)-5-(4-PYRIDYLAMINO)PENTANOIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；pH 6.0
Resolution 2.40 Å R-free 0.294
1XKB FACTOR XA COMPLEXED WITH A SYNTHETIC INHIBITOR FX-2212A,(2S)-(3'-AMIDINO-3-BIPHENYLYL)-5-(4-PYRIDYLAMINO)PENTANOIC ACID Deposited 1998-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 85–179（95 aa） Fragment：PROTEOLYTIC CLEAVAGE PRODUCT, GLA DOMAIN
Chain B 85–179（95 aa） Fragment：PROTEOLYTIC CLEAVAGE PRODUCT, GLA DOMAIN
Chain C 235–469（235 aa） Fragment：PROTEOLYTIC CLEAVAGE PRODUCT, GLA DOMAIN
Chain D 235–469（235 aa） Fragment：PROTEOLYTIC CLEAVAGE PRODUCT, GLA DOMAIN
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) CA CALCIUM ION × 3 4PP (2S)-(3'-AMIDINO-3-BIPHENYL)-5-(4-PYRIDYLAMINO)PENTANOIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；pH 6.0
Resolution 2.40 Å R-free 0.294
1XKB FACTOR XA COMPLEXED WITH A SYNTHETIC INHIBITOR FX-2212A,(2S)-(3'-AMIDINO-3-BIPHENYLYL)-5-(4-PYRIDYLAMINO)PENTANOIC ACID Deposited 1998-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 85–179（95 aa） Fragment：PROTEOLYTIC CLEAVAGE PRODUCT, GLA DOMAIN
Chain B 85–179（95 aa） Fragment：PROTEOLYTIC CLEAVAGE PRODUCT, GLA DOMAIN
Chain C 235–469（235 aa） Fragment：PROTEOLYTIC CLEAVAGE PRODUCT, GLA DOMAIN
Chain D 235–469（235 aa） Fragment：PROTEOLYTIC CLEAVAGE PRODUCT, GLA DOMAIN
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) CA CALCIUM ION × 3 4PP (2S)-(3'-AMIDINO-3-BIPHENYL)-5-(4-PYRIDYLAMINO)PENTANOIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；pH 6.0
Resolution 2.40 Å R-free 0.294
1Z6E Factor XA in complex with the inhibitor 1-(3'-amino-1,2-benzisoxazol-5'-yl)-n-(4-(2'-((dimethylamino)methyl)-1h-imidazol-1-yl)-2-fluorophenyl)-3-(trifluoromethyl)-1h-pyrazole-5-carboxamide (razaxaban; DPC906; BMS-561389) Deposited 2005-03-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：UNP residues 235-468
Chain L 127–178（52 aa） Fragment：UNP residues 127-178
Not recorded IK8 1-(3-AMINO-1,2-BENZISOXAZOL-5-YL)-N-(4-{2-[(DIMETHYLAMINO)METHYL]-1H-IMIDAZOL-1-YL}-2-FLUOROPHENYL)-3-(TRIFLUOROMETHYL) -1H-PYRAZOLE-5-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；200 mM Sodium Acetate, pH 5.5, 18% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.80 Å R-free 0.260
2BMG Crystal structure of factor Xa in complex with 50 Deposited 2005-03-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 126–178（53 aa） Fragment：LIGHT CHAIN, RESIDUES 126-178
Chain B 235–468（234 aa） Fragment：HEAVY CHAIN, RESIDUES 235-468
Not recorded CA CALCIUM ION × 1 I1H 3-[2-(2,4-DICHLOROPHENYL)ETHOXY]-4-METHOXY-N-[(1-PYRIDIN-4-YLPIPERIDIN-4-YL)METHYL]BENZAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；298 K；PEG600, MES, CACL2, PH 5.7, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 298.0K
Resolution 2.70 Å R-free 0.277
2BOH Crystal structure of factor Xa in complex with compound "1" Deposited 2005-04-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 126–234（109 aa） Fragment：LIGHT CHAIN, RESIDUES 126-234
Chain B 235–488（254 aa） Fragment：LIGHT CHAIN, RESIDUES 235-488
Not recorded CA CALCIUM ION × 1 IIA 1-{[5-(5-CHLORO-2-THIENYL)ISOXAZOL-3-YL]METHYL}-N-(1-ISOPROPYLPIPERIDIN-4-YL)-1H-INDOLE-2-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；298 K；PEG600, MES, CACL2, PH 5.7, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 298.0 K
Resolution 2.20 Å R-free 0.253
2BOK Factor Xa - cation Deposited 2005-04-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–475（241 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 234-475
Chain L 126–180（55 aa） Fragment：EGF2 DOMAIN, RESIDUES 126-180
Mutation：YES 784 [AMINO (4-{(3AS,4R,8AS,8BR)-1,3-DIOXO-2- [3-(TRIMETHYLAMMONIO) PROPYL]DECAHYDROPYRROLO[3,4-A] PYRROLIZIN-4-YL}PHENYL) METHYLENE]AMMONIUM × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.5；pH 5.50
Resolution 1.64 Å R-free 0.237
2BQ6 Crystal structure of factor Xa in complex with 21 Deposited 2005-04-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 126–177（52 aa） Fragment：DES-GLA LIGHT CHAIN, RESIDUES 126-177
Chain B 220–368（149 aa） Fragment：HEAVY CHAIN, RESIDUES 220-468
Chain B 369–441（73 aa） Fragment：HEAVY CHAIN, RESIDUES 220-468
Chain B 442–468（27 aa） Fragment：HEAVY CHAIN, RESIDUES 220-468
Not recorded CA CALCIUM ION × 1 IIB 1-{[5-(5-CHLORO-2-THIENYL)ISOXAZOL-3-YL]METHYL}-3-CYANO-N-(1-ISOPROPYLPIPERIDIN-4-YL)-7-METHYL-1H-INDOLE-2-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；298 K；PEG600, MES, CACL2, PH 5.7, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 298.0K
Resolution 3.00 Å R-free 0.298
2BQ7 Crystal structure of factor Xa in complex with 43 Deposited 2005-04-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 126–177（52 aa） Fragment：DES-GLA LIGHT CHAIN, RESIDUES 126-177
Chain B 220–368（149 aa） Fragment：HEAVY CHAIN, RESIDUES 220-468
Chain B 369–441（73 aa） Fragment：HEAVY CHAIN, RESIDUES 220-468
Chain B 342–468（127 aa） Fragment：HEAVY CHAIN, RESIDUES 220-468
Not recorded IID N-(1-ISOPROPYLPIPERIDIN-4-YL)-1-(3-METHOXYBENZYL)-1H-INDOLE-2-CARBOXAMIDE × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；298 K；PEG600, MES, CACL2, PH 5.7, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 298.0 K
Resolution 2.20 Å R-free 0.272
2BQW CRYSTAL STRUCTURE OF FACTOR XA IN COMPLEX WITH COMPOUND 45 Deposited 2005-04-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 126–177（52 aa） Fragment：DES-GLA LIGHT CHAIN, RESIDUES 126-177
Chain B 220–368（149 aa） Fragment：HEAVY CHAIN, RESIDUES 220-468
Chain B 369–441（73 aa） Fragment：HEAVY CHAIN, RESIDUES 220-468
Chain B 442–468（27 aa） Fragment：HEAVY CHAIN, RESIDUES 220-468
Not recorded CA CALCIUM ION × 1 IIE 1-{2-[(4-CHLOROPHENYL)AMINO]-2-OXOETHYL}-N-(1-ISOPROPYLPIPERIDIN-4-YL)-1H-INDOLE-2-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；298 K；PEG600, MES, CACL2, PH 5.7, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 298.0 K
Resolution 2.95 Å R-free 0.261
2CJI Crystal structure of a Human Factor Xa inhibitor complex Deposited 2006-04-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–368（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain A 369–441（73 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain A 442–488（47 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded CA CALCIUM ION × 1 GSK 6-CHLORO-N-{(3S)-1-[(1S)-1-METHYL-2-(4-MORPHOLINYL)-2-OXO ETHYL]-2-OXO-3-PYRROLIDINYL}-2-NAPHTHALENESULFONAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.75；18% PEG 6K, 100MM MES PH5.75, 10MM CACL2
Resolution 2.10 Å R-free 0.242
2D1J Factor Xa in complex with the inhibitor 2-[[4-[(5-chloroindol-2-yl)sulfonyl]piperazin-1-yl] carbonyl]thieno[3,2-b]pyridine n-oxide Deposited 2005-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–467（233 aa） Fragment：RESIDUES 16-243
Chain B 125–178（54 aa） Fragment：RESIDUES 85-138
Not recorded CA CALCIUM ION × 2 D01 2-({4-[(5-CHLORO-1H-INDOL-2-YL)SULFONYL]PIPERAZIN-1-YL}CARBONYL)THIENO[3,2-B]PYRIDINE 4-OXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SEEDING；pH 5；293 K；pH 5.00, VAPOR DIFFUSION, SEEDING, temperature 293K
Resolution 2.20 Å R-free 0.232
2EI6 FACTOR XA IN COMPLEX WITH THE INHIBITOR (-)-cis-N1-[(5-Chloroindol-2-yl)carbonyl]-N2-[(5-methyl-4,5,6,7-tetrahydrothiazolo[5,4-c]pyridin-2-yl)carbonyl]-1,2-cyclohexanediamine Deposited 2007-03-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–467（233 aa） Fragment：RESIDUES 16-243
Chain B 125–178（54 aa） Fragment：RESIDUES 85-138
Not recorded CA CALCIUM ION × 2 D92 N-((1R,2S)-2-(5-CHLORO-1H-INDOLE-2-CARBOXAMIDO)CYCLOHEXYL)-5-METHYL-4,5,6,7-TETRAHYDROTHIAZOLO[5,4-C]PYRIDINE-2-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions vapor diffusion, hanging drop, seeding；pH 5；293 K；pH 5.00, vapor diffusion, hanging drop, seeding, temperature 293K
Resolution 2.30 Å R-free 0.262
2EI7 FACTOR XA IN COMPLEX WITH THE INHIBITOR trans-N1-[(5-Chloroindol-2-yl)carbonyl]-N2-[(5-methyl-4,5,6,7-tetrahydrothiazolo[5,4-c]pyridin-2-yl)carbonyl]-1,2-cyclohexanediamine Deposited 2007-03-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–467（233 aa） Fragment：RESIDUES 16-243
Chain B 125–178（54 aa） Fragment：RESIDUES 85-138
Not recorded CA CALCIUM ION × 2 D93 N-((1R,2R)-2-(5-CHLORO-1H-INDOLE-2-CARBOXAMIDO)CYCLOHEXYL)-5-METHYL-4,5,6,7-TETRAHYDROTHIAZOLO[5,4-C]PYRIDINE-2-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions vapor diffusion, hanging drop, seeding；pH 5；293 K；compound introduced with soaking method at pH 7, pH 5.00, vapor diffusion, hanging drop, seeding, temperature 293K
Resolution 2.30 Å R-free 0.273
2EI8 FACTOR XA IN COMPLEX WITH THE INHIBITOR (1S,2R,4S)-N1-[(5-chloroindol-2-yl)carbonyl]-4-(N,N-dimethylcarbamoyl)-N2-[(5-methyl-4,5,6,7-tetrahydrothiazolo[5,4-c]pyridin-2-yl)carbonyl]-1,2-cyclohexanediamine Deposited 2007-03-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–467（233 aa） Fragment：RESIDUES 16-243
Chain B 125–178（54 aa） Fragment：RESIDUES 85-138
Not recorded CA CALCIUM ION × 2 DT8 N-((1R,2S,5S)-2-(5-CHLORO-1H-INDOLE-2-CARBOXAMIDO)-5-(DIMETHYLCARBAMOYL)CYCLOHEXYL)-5-METHYL-4,5,6,7-TETRAHYDROTHIAZOLO[5,4-C]PYRIDINE-2-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions vapor diffusion, hanging drop, seeding；pH 5；293 K；soaking method at pH 7, pH 5.00, vapor diffusion, hanging drop, seeding, temperature 293K
Resolution 2.10 Å R-free 0.250
2FZZ Factor Xa in complex with the inhibitor 1-(3-amino-1,2-benzisoxazol-5-yl)-6-(2'-(((3r)-3-hydroxy-1-pyrrolidinyl)methyl)-4-biphenylyl)-3-(trifluoromethyl)-1,4,5,6-tetrahydro-7h-pyrazolo[3,4-c]pyridin-7-one Deposited 2006-02-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：Coagulation Factor X, Heavy Chain
Chain L 127–178（52 aa） Fragment：Coagulation Factor X, Light Chain
Not recorded 5QC 1-(3-AMINO-1,2-BENZISOXAZOL-5-YL)-6-(2'-{[(3R)-3-HYDROXYPYRROLIDIN-1-YL]METHYL}BIPHENYL-4-YL)-3-(TRIFLUOROMETHYL)-1,4,5,6-TETRAHYDRO-7H-PYRAZOLO[3,4-C]PYRIDIN-7-ONE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.20 Å R-free 0.294
2G00 Factor Xa in complex with the inhibitor 3-(6-(2'-((dimethylamino)methyl)-4-biphenylyl)-7-oxo-3-(trifluoromethyl)-4,5,6,7-tetrahydro-1H-pyrazolo[3,4-c]pyridin-1-yl)benzamide Deposited 2006-02-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：Coagulation Factor X, Heavy Chain
Chain L 127–178（52 aa） Fragment：Coagulation Factor X, Light Chain
Not recorded 4QC 3-[6-{2'-[(DIMETHYLAMINO)METHYL]BIPHENYL-4-YL}-7-OXO-3-(TRIFLUOROMETHYL)-4,5,6,7-TETRAHYDRO-1H-PYRAZOLO[3,4-C]PYRIDIN-1-YL]BENZAMIDE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.10 Å R-free 0.284
2GD4 Crystal Structure of the Antithrombin-S195A Factor Xa-Pentasaccharide Complex Deposited 2006-03-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 235–475（241 aa） Fragment：Residues 235-475
Chain L 126–182（57 aa） Fragment：Residues 126-182
Mutation：S195A CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；294 K；20% PEG 3350, 200mM Calcium Acetate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.30 Å R-free 0.298
2GD4 Crystal Structure of the Antithrombin-S195A Factor Xa-Pentasaccharide Complex Deposited 2006-03-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 126–182（57 aa） Fragment：Residues 126-182
Chain B 235–475（241 aa） Fragment：Residues 235-475
Mutation：S195A CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；294 K；20% PEG 3350, 200mM Calcium Acetate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.30 Å R-free 0.298
2H9E Crystal Structure of FXa/selectide/NAPC2 ternary complex Deposited 2006-06-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 235–467（233 aa） Fragment：catalytic domain
Chain L 86–234（149 aa） Fragment：EGF-like 1 domain
Not recorded PO4 PHOSPHATE ION × 6 ACT ACETATE ION × 3 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；peg 8000, potassium dihydrogen phosphate, acetate ion, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.20 Å R-free 0.268
2J2U CRYSTAL STRUCTURE OF A HUMAN FACTOR XA INHIBITOR COMPLEX Deposited 2006-08-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded GSQ 5-CHLORO-N-{(3S)-1-[(1S)-1-METHYL-2-MORPHOLIN-4-YL-2-5-CHLORO-N-{(3S)-1-[(1S)-1-METHYL-2-MORPHOLIN-4-YL-2-SULFONAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.85；18% PEG6K, 50MM MES PH 5.85, 5MM CACL2, 50MM NACL
Resolution 1.90 Å R-free 0.236
2J34 CRYSTAL STRUCTURE OF A HUMAN FACTOR XA INHIBITOR COMPLEX Deposited 2006-08-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–368（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain A 369–441（73 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain A 442–488（47 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded GS6 6-CHLORO-N-{(3S)-1-[(1S)-1-METHYL-2-MORPHOLIN-4-YL-2-OXOETHYL]-2-OXOPYRROLIDIN-3-YL}-1-BENZOTHIOPHENE-2-SULFONAMIDE × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.85；18% PEG6K, 50MM MES PH 5.85, 5MM CACL2, 50MM NACL
Resolution 2.01 Å R-free 0.220
2J38 CRYSTAL STRUCTURE OF A HUMAN FACTOR XA INHIBITOR COMPLEX Deposited 2006-08-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–368（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain A 369–441（73 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain A 442–488（47 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded GS5 5-CHLORO-N-{(3S)-1-[(1S)-1-METHYL-2-MORPHOLIN-4-YL-2-OXOETHYL]-2-OXOPYRROLIDIN-3-YL}-1-BENZOTHIOPHENE-2-SULFONAMIDE × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.85；16% PEG6K, 50MM MES PH5.85, 5MM CACL2, 50MM NACL
Resolution 2.10 Å R-free 0.302
2J4I CRYSTAL STRUCTURE OF A HUMAN FACTOR XA INHIBITOR COMPLEX Deposited 2006-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded GSJ 1-PYRROLIDINEACETAMIDE, 3-[[(6-CHLORO-2-NAPHTHALENYL)SULFONYL]AMINO]-ALPHA-METHYL-N-(1-METHYLETHYL)-N-[2-[(METHYLSULFONYL)AMINO]ETHYL]-2-OXO-, (ALPHAS,3S)- × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.85；18% PEG6K, 50MM MES PH 5.85, 5MM CACL2, 50MM NACL
Resolution 1.80 Å R-free 0.234
2J94 CRYSTAL STRUCTURE OF A HUMAN FACTOR XA INHIBITOR COMPLEX Deposited 2006-11-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–368（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain A 369–441（73 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain A 442–488（47 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded G15 5-(5-CHLORO-2-THIENYL)-N-{(3S)-1-[(1S)-1-METHYL-2-MORPHOLIN-4-YL-2-OXOETHYL]-2-OXOPYRROLIDIN-3-YL}-1H-1,2,4-TRIAZOLE-3-SULFONAMIDE × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.75；18% PEG6K, 50MM MES PH 5.85, 5MM CACL2, 50MM NACL
Resolution 2.10 Å R-free 0.233
2J95 CRYSTAL STRUCTURE OF A HUMAN FACTOR XA INHIBITOR COMPLEX Deposited 2006-11-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–368（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain A 369–441（73 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain A 442–488（47 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded GSX 5'-CHLORO-N-{(3S)-1-[(1S)-1-METHYL-2-MORPHOLIN-4-YL-2-OXOETHYL]-2-OXOPYRROLIDIN-3-YL}-2,2'-BITHIOPHENE-5-SULFONAMIDE × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.85；18% PEG 6K, 100MM MES PH5.75, 10MM CACL2, pH 5.85
Resolution 2.01 Å R-free 0.242
2JKH Factor Xa - cation inhibitor complex Deposited 2008-08-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–475（241 aa） Fragment：CATALYTIC, RESIDUES 235-475
Chain L 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Mutation：YES BI7 3-[(3~{a}~{S},4~{R},8~{a}~{S},8~{b}~{R})-4-[5-(5-chloranylthiophen-2-yl)-1,2-oxazol-3-yl]-1,3-bis(oxidanylidene)-4,6,7,8,8~{a},8~{b}-hexahydro-3~{a}~{H}-pyrrolo[3,4-a]pyrrolizin-2-yl]propyl-trimethyl-azanium × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.25 Å R-free 0.221
2JKH Factor Xa - cation inhibitor complex Deposited 2008-08-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 235–475（241 aa） Fragment：CATALYTIC, RESIDUES 235-475
Mutation：YES BI7 3-[(3~{a}~{S},4~{R},8~{a}~{S},8~{b}~{R})-4-[5-(5-chloranylthiophen-2-yl)-1,2-oxazol-3-yl]-1,3-bis(oxidanylidene)-4,6,7,8,8~{a},8~{b}-hexahydro-3~{a}~{H}-pyrrolo[3,4-a]pyrrolizin-2-yl]propyl-trimethyl-azanium × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.25 Å R-free 0.221
2JKH Factor Xa - cation inhibitor complex Deposited 2008-08-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain L 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.25 Å R-free 0.221
2P16 Factor Xa in Complex with the Inhibitor APIXABAN (BMS-562247) AKA 1-(4-METHOXYPHENYL)-7-OXO-6-(4-(2-OXO-1-PIPERIDINYL)PHENYL)-4,5,6,7-TETRAHYDRO-1H-PYRAZOLO[3, 4-C]PYRIDINE-3-CARBOXAMIDE Deposited 2007-03-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：Coagulation Factor X, Heavy Chain
Chain L 127–178（52 aa） Fragment：Coagulation Factor X, Light Chain
Not recorded CA CALCIUM ION × 1 GG2 1-(4-METHOXYPHENYL)-7-OXO-6-[4-(2-OXOPIPERIDIN-1-YL)PHENYL]-4,5,6,7-TETRAHYDRO-1H-PYRAZOLO[3,4-C]PYRIDINE-3-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.5；277 K；200 mM Sodium Acetate, 18% PEG6000, vapor diffusion, hanging drop, temperature 277K, pH 5.5
Resolution 2.30 Å R-free 0.277
2P3F Crystal structure of the factor Xa/NAP5 complex Deposited 2007-03-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 235–469（235 aa） Fragment：Activated factor Xa heavy chain domain
Chain L 125–178（54 aa） Fragment：EGF-like 2 domain
Not recorded NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；298 K；Peg400, sodium citrate, pH 7.50, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.10 Å R-free 0.280
2P3T Crystal structure of human factor XA complexed with 3-Chloro-4-(2-methylamino-imidazol-1-ylmethyl)-thiophene-2-carboxylic acid [4-chloro-2-(5-chloro-pyridin-2-ylcarbamoyl)-6-methoxy-phenyl]-amide Deposited 2007-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 127–178（52 aa） Fragment：EGF-like 2 domain
Chain B 235–467（233 aa） Fragment：CATALYTIC DOMAIN
Not recorded CA CALCIUM ION × 1 CL CHLORIDE ION × 1 993 3-CHLORO-4-(2-METHYLAMINO-IMIDAZOL-1-YLMETHYL)-THIOPHENE-2-CARBOXYLIC ACID [4-CHLORO-2-(5-CHLORO-PYRIDIN-2-YLCARBAMOYL)-6-METHOXY-PHENYL]-AMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；A three-fold excess of the inhibitor was added to the DES-GLA-FACTOR XA. the protein was then concentrated to 12-17 MG/ML. Crystals were grown using 2 UL of complex with 2 UL of reservoir containing 15-21% PEG1500 and 10 MM CACL2, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.92 Å R-free 0.219
2P3U Crystal structure of human factor XA complexed with 3-chloro-N-(4-chloro-2-{[(5-chloropyridin-2-yl)amino]carbonyl}-6-methoxyphenyl)-4-[(1-methyl-1H-imidazol-2-yl)methyl]thiophene-2-carboxamide {Pfizer 320663} Deposited 2007-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 127–178（52 aa） Fragment：EGF-like 2 domain
Chain B 235–467（233 aa） Fragment：CATALYTIC DOMAIN
Not recorded CA CALCIUM ION × 2 663 3-CHLORO-N-(4-CHLORO-2-{[(5-CHLOROPYRIDIN-2-YL)AMINO]CARBONYL}-6-METHOXYPHENYL)-4-[(1-METHYL-1H-IMIDAZOL-2-YL)METHYL]THIOPHENE-2-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 7.5；295 K；A THREE-FOLD EXCESS OF 3-Chloro-4-(2-methylamino-imidazol-1-ylmethyl)-thiophene-2-carboxylic acid [4-chloro-2-(5-chloro-pyridin-2-ylcarbamoyl)-6-methoxy-phenyl]-amide WAS ADDED TO THE DES-GLA-FACTOR XA. THE PROTEIN WAS THEN CONCENTRATED TO 12-17 MG/ML. CRYSTALS WERE GROWN USING 2 UL OF COMPLEX WITH 2 UL OF RESERVOIR CONTAINING 15-21% PEG1500 AND 10 MM CACL2. 30-40 UL SITTING DROPS CONTAINING SATURATED INHIBITOR (5 MM) IN 21% PEG1500, 5 MM CACL2, 20 MM NACL, 25 MM TRIS PH 7.5 (CRYSTAL SOAKING SOLUTION) WERE EQUILIBRATED OVER A 1 ML RESERVOIR CONTAINING THE CRYSTAL SOAKING SOLUTION FOR 1 TO 2 DAYS. A SINGLE FACTOR XA CRYSTAL WAS TRANSFERRED USING A MOUNTED CRYOLOOP INTO ONE OF THESE SITTING DROPS AND ALLOWED TO SOAK FOR THREE OR MORE DAYS, EVAPORATION, temperature 295K
Resolution 1.62 Å R-free 0.210
2P93 Factor xa in complex with the inhibitor 5-chloro-N-(2-(4-(2-oxopyridin-1(2H)-yl)benzamido)ethyl)thiophene-2-carboxamide Deposited 2007-03-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：Residues 16-243
Chain L 127–178（52 aa） Fragment：Residues 87-138
Not recorded ME1 5-CHLORO-N-(2-(4-(2-OXOPYRIDIN-1(2H)-YL)BENZAMIDO)ETHYL)THIOPHENE-2-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；200 mM Sodium Acetate, pH 5.5, 18% PEG6000, vapor diffusion, hanging drop, temperature 277K
Resolution 1.90 Å R-free 0.307
2P94 Factor xa in complex with the inhibitor 3-chloro-N-((1R,2S)-2-(4-(2-oxopyridin-1(2H)-yl)benzamido)cyclohexyl)-1H-indole-6-carboxamide Deposited 2007-03-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：Residues 16-244
Chain L 127–178（52 aa） Fragment：Residues 87-138
Not recorded ME4 3-CHLORO-N-((1R,2S) -2-(4-(2-OXOPYRIDIN-1(2H)-YL)BENZAMIDO)CYCLOHEXYL)-1H-INDOLE-6-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；200 mM Sodium Acetate, pH 5.5, 18% PEG6000, vapor diffusion, hanging drop, temperature 277K
Resolution 1.80 Å R-free 0.330
2P95 Factor xa in complex with the inhibitor 5-chloro-N-((1R,2S)-2-(4-(2-oxopyridin-1(2H)-YL)benzamido) cyclopentyl)thiophene-2-carboxamide Deposited 2007-03-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：Residues 16-244
Chain L 127–178（52 aa） Fragment：Residues 87-138
Not recorded ME5 5-CHLORO-N-((1R,2S)-2-(4-(2-OXOPYRIDIN-1(2H)-YL)BENZAMIDO) CYCLOPENTYL)THIOPHENE-2-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；200 mM Sodium Acetate, pH 5.5, 18% PEG6000, vapor diffusion, hanging drop, temperature 277K
Resolution 2.20 Å R-free 0.271
2PHB An Orally Efficacious Factor Xa Inhibitor Deposited 2007-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：heavy chain
Chain B 128–178（51 aa） Fragment：light chain
Not recorded CA CALCIUM ION × 1 230 (2R,4R)-N~1~-(4-CHLOROPHENYL)-N~2~-[2-FLUORO-4-(2-OXOPYRIDIN-1(2H)-YL)PHENYL]-4-METHOXYPYRROLIDINE-1,2-DICARBOXAMIDE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.30 Å R-free 0.296
2PR3 Factor XA inhibitor Deposited 2007-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：HEAVY CHAIN
Chain B 128–178（51 aa） Fragment：LIGHT CHAIN
Not recorded CA CALCIUM ION × 2 237 (2R,4R)-N~1~-(4-CHLOROPHENYL)-N~2~-[3-FLUORO-2'-(METHYLSULFONYL)BIPHENYL-4-YL]-4-METHOXYPYRROLIDINE-1,2-DICARBOXAMIDE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.50 Å R-free 0.267
2Q1J The discovery of glycine and related amino acid-based factor xa inhibitors Deposited 2007-05-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa）
Chain B 128–178（51 aa） Fragment：Residues 128-178
Not recorded CA CALCIUM ION × 1 FXI 1-(butyl{[(4-chlorophenyl)amino]carbonyl}amino)-N-[3-fluoro-2'-(methylsulfonyl)biphenyl-4-yl]cyclopropanecarboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.9；25% PEG 600, 0.3 M NACL, 0.1 M MES, PH 5.9, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 294K, pH 5.90
Resolution 1.90 Å R-free 0.272
2RA0 X-ray Structure of FXa in complex with 7-fluoroindazole Deposited 2007-09-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：heavy chain, UNP residues 235-468
Chain L 128–178（51 aa） Fragment：light chain, UNP residues 128-178
Mutation：L88V JNJ 1-(3-amino-1,2-benzisoxazol-5-yl)-6-(4-{2-[(dimethylamino)methyl]-1H-imidazol-1-yl}-2-fluorophenyl)-7-fluoro-1H-indazole-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；20%Peg 3350, 10mM CaCl2, 0.1M Tris-maleate pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.30 Å R-free 0.314
2UWL Selective and Dual Action Orally Active Inhibitors of Thrombin and Factor Xa Deposited 2007-03-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded 895 2-(5-CHLORO-2-THIENYL)-N-{(3S)-1-[(1S)-1-METHYL-2-MORPHOLIN-4-YL-2-OXOETHYL]-2-OXOPYRROLIDIN-3-YL}ETHENESULFONAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.75；18% PEG6K, 50MM HEPES PH5.75, 10MM CACL2, 150MM NACL
Resolution 1.90 Å R-free 0.238
2UWO Selective and Dual Action Orally Active Inhibitors of Thrombin and Factor Xa Deposited 2007-03-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded 701 (2R)-2-(5-CHLORO-2-THIENYL)-N-{(3S)-1-[(1S)-1-METHYL-2-MORPHOLIN-4-YL-2-OXOETHYL]-2-OXOPYRROLIDIN-3-YL}PROPENE-1-SULFONAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.75；18% PEG6K, 50MM MES PH5.75, 10MM CACL2, 150MM NACL
Resolution 1.75 Å R-free 0.254
2UWP Factor Xa inhibitor complex Deposited 2007-03-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded 894 2-(5-CHLORO-2-THIENYL)-N-{(3S)-1-[(1S)-1-METHYL-2-MORPHOLIN-4-YL-2-OXOETHYL]-2-OXOPYRROLIDIN-3-YL}ETHANESULFONAMIDE × 1 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.75；18% PEG6K, 50MM MES PH 5.75, 10MM CACL2, 150MM NACL
Resolution 1.75 Å R-free 0.212
2VH0 Structure and property based design of factor Xa inhibitors:biaryl pyrrolidin-2-ones incorporating basic heterocyclic motifs Deposited 2007-11-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 GSI 2-(5-chlorothiophen-2-yl)-N-[(3S)-1-(4-{2-[(dimethylamino)methyl]-1H-imidazol-1-yl}-2-fluorophenyl)-2-oxopyrrolidin-3-yl]ethanesulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.85；CRYSTALLISATION WAS CARRIED OUT USING THE HANGING DROP VAPOUR DIFFUSION METHOD IN 2UL DROPS CONTAINING A 1:1 MIXTURE OF PROTEIN AND WELL SOLUTION. WELL SOLUTION CONTAINED 16-20% PEG 6K, 50MM MES-NAOH (PH5.7-6.0), 5MM CACL2 AND 50MM NACL., pH 5.85
Resolution 1.70 Å R-free 0.216
2VH6 Structure and property based design of factor Xa inhibitors: pyrrolidin-2-ones with biaryl P4 motifs Deposited 2007-11-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded GSV 2-(5-chlorothiophen-2-yl)-N-{(3S)-1-[3-fluoro-2'-(methylsulfonyl)biphenyl-4-yl]-2-oxopyrrolidin-3-yl}ethanesulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.85；CRYSTALLISATION WAS CARRIED OUT USING THE HANGING DROP VAPOUR DIFFUSION METHOD IN 2UL DROPS CONTAINING A 1:1 MIXTURE OF PROTEIN AND WELL SOLUTION. WELL SOLUTION CONTAINED 16-20% PEG 6K, 50MM MES-NAOH (PH5.7-6.0), 5MM CACL2 AND 50MM NACL, pH 5.85
Resolution 1.95 Å R-free 0.242
2VVC Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–475（241 aa） Fragment：PEPTIDASE S1 DOMAIN, RESIDUES 235-475
Chain L 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Mutation：YES LZF 5-chloro-N-[(3S,4S)-1-(2-{[2-fluoro-4-(2-oxopyridin-1(2H)-yl)phenyl]amino}-2-oxoethyl)-4-methoxypyrrolidin-3-yl]thiophene-2-carboxamide × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.95 Å R-free 0.275
2VVC Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 235–475（241 aa） Fragment：PEPTIDASE S1 DOMAIN, RESIDUES 235-475
Chain K 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Mutation：YES LZF 5-chloro-N-[(3S,4S)-1-(2-{[2-fluoro-4-(2-oxopyridin-1(2H)-yl)phenyl]amino}-2-oxoethyl)-4-methoxypyrrolidin-3-yl]thiophene-2-carboxamide × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.95 Å R-free 0.275
2VVC Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 235–475（241 aa） Fragment：PEPTIDASE S1 DOMAIN, RESIDUES 235-475
Mutation：YES LZF 5-chloro-N-[(3S,4S)-1-(2-{[2-fluoro-4-(2-oxopyridin-1(2H)-yl)phenyl]amino}-2-oxoethyl)-4-methoxypyrrolidin-3-yl]thiophene-2-carboxamide × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.95 Å R-free 0.275
2VVC Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain L 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.95 Å R-free 0.275
2VVC Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 235–475（241 aa） Fragment：PEPTIDASE S1 DOMAIN, RESIDUES 235-475
Mutation：YES LZF 5-chloro-N-[(3S,4S)-1-(2-{[2-fluoro-4-(2-oxopyridin-1(2H)-yl)phenyl]amino}-2-oxoethyl)-4-methoxypyrrolidin-3-yl]thiophene-2-carboxamide × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.95 Å R-free 0.275
2VVC Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain K 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.95 Å R-free 0.275
2VVU Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–475（241 aa） Fragment：CATALYTIC, RESIDUES 235-475
Chain L 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Mutation：YES H22 5-chloro-N-[(3R)-1-(2-{[2-fluoro-4-(2-oxopyridin-1(2H)-yl)phenyl]amino}-2-oxoethyl)pyrrolidin-3-yl]thiophene-2-carboxamide × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.30 Å R-free 0.309
2VVU Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 235–475（241 aa） Fragment：CATALYTIC, RESIDUES 235-475
Mutation：YES H22 5-chloro-N-[(3R)-1-(2-{[2-fluoro-4-(2-oxopyridin-1(2H)-yl)phenyl]amino}-2-oxoethyl)pyrrolidin-3-yl]thiophene-2-carboxamide × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.30 Å R-free 0.309
2VVU Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain L 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.30 Å R-free 0.309
2VVV Aminopyrrolidine-related triazole Factor Xa inhibitor Deposited 2008-06-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–475（241 aa） Fragment：CATALYTIC, RESIDUES 235-475
Chain L 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Mutation：YES H21 5-chloro-N-[1-(2-{[2-fluoro-4-(2-oxopyridin-1(2H)-yl)phenyl]amino}-2-oxoethyl)-1H-1,2,4-triazol-3-yl]thiophene-2-carboxamide × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.73 Å R-free 0.251
2VVV Aminopyrrolidine-related triazole Factor Xa inhibitor Deposited 2008-06-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 235–475（241 aa） Fragment：CATALYTIC, RESIDUES 235-475
Mutation：YES H21 5-chloro-N-[1-(2-{[2-fluoro-4-(2-oxopyridin-1(2H)-yl)phenyl]amino}-2-oxoethyl)-1H-1,2,4-triazol-3-yl]thiophene-2-carboxamide × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.73 Å R-free 0.251
2VVV Aminopyrrolidine-related triazole Factor Xa inhibitor Deposited 2008-06-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain L 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.73 Å R-free 0.251
2VWL Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–475（241 aa） Fragment：PEPTIDASE S1, RESIDUES 235-475
Chain L 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Mutation：YES LZH 5-CHLORO-THIOPHENE-2-CARBOXYLIC ACID ((3R,5S)-1-{[2-FLUORO-4-(2-OXO-PYRIDIN-1-YL)-PHENYLCARBAMOYL]-METHYL}-5-HYDROXYMETHYL-PYRROLIDIN-3-YL)-AMIDE × 1 CL CHLORIDE ION × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.80 Å R-free 0.250
2VWL Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 235–475（241 aa） Fragment：PEPTIDASE S1, RESIDUES 235-475
Mutation：YES LZH 5-CHLORO-THIOPHENE-2-CARBOXYLIC ACID ((3R,5S)-1-{[2-FLUORO-4-(2-OXO-PYRIDIN-1-YL)-PHENYLCARBAMOYL]-METHYL}-5-HYDROXYMETHYL-PYRROLIDIN-3-YL)-AMIDE × 1 CL CHLORIDE ION × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.80 Å R-free 0.250
2VWL Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain L 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.80 Å R-free 0.250
2VWM Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–475（241 aa） Fragment：PEPTIDASE S1 DOMAIN, RESIDUES 235-475
Chain L 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Mutation：YES LZI (4R)-4-{[(5-chlorothiophen-2-yl)carbonyl]amino}-N-(cyclopropylmethyl)-1-(2-{[2-fluoro-4-(2-oxopyridin-1(2H)-yl)phenyl]amino}-2-oxoethyl)-L-prolinamide × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.96 Å R-free 0.273
2VWM Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 235–475（241 aa） Fragment：PEPTIDASE S1 DOMAIN, RESIDUES 235-475
Chain K 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Mutation：YES LZI (4R)-4-{[(5-chlorothiophen-2-yl)carbonyl]amino}-N-(cyclopropylmethyl)-1-(2-{[2-fluoro-4-(2-oxopyridin-1(2H)-yl)phenyl]amino}-2-oxoethyl)-L-prolinamide × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.96 Å R-free 0.273
2VWM Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 235–475（241 aa） Fragment：PEPTIDASE S1 DOMAIN, RESIDUES 235-475
Mutation：YES LZI (4R)-4-{[(5-chlorothiophen-2-yl)carbonyl]amino}-N-(cyclopropylmethyl)-1-(2-{[2-fluoro-4-(2-oxopyridin-1(2H)-yl)phenyl]amino}-2-oxoethyl)-L-prolinamide × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.96 Å R-free 0.273
2VWM Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain L 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.96 Å R-free 0.273
2VWM Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 235–475（241 aa） Fragment：PEPTIDASE S1 DOMAIN, RESIDUES 235-475
Mutation：YES LZI (4R)-4-{[(5-chlorothiophen-2-yl)carbonyl]amino}-N-(cyclopropylmethyl)-1-(2-{[2-fluoro-4-(2-oxopyridin-1(2H)-yl)phenyl]amino}-2-oxoethyl)-L-prolinamide × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.96 Å R-free 0.273
2VWM Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain K 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.96 Å R-free 0.273
2VWN Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–475（241 aa） Fragment：PEPTIDASE S1 DOMAIN, RESIDUES 235-475
Chain L 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Mutation：YES H25 5-Chloro-thiophene-2-carboxylic acid ((3S,4S)-1-{[2-fluoro-4-(2-oxo-2H-pyridin-1-yl)-phenylcarbamoyl]-methyl}-4-hydroxy-pyrrolidin-3-yl)-amide × 1 CA CALCIUM ION × 1 NA SODIUM ION × 2 CL CHLORIDE ION × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.61 Å R-free 0.228
2VWN Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 235–475（241 aa） Fragment：PEPTIDASE S1 DOMAIN, RESIDUES 235-475
Mutation：YES H25 5-Chloro-thiophene-2-carboxylic acid ((3S,4S)-1-{[2-fluoro-4-(2-oxo-2H-pyridin-1-yl)-phenylcarbamoyl]-methyl}-4-hydroxy-pyrrolidin-3-yl)-amide × 1 CA CALCIUM ION × 1 NA SODIUM ION × 2 CL CHLORIDE ION × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.61 Å R-free 0.228
2VWN Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain L 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.61 Å R-free 0.228
2VWO Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–475（241 aa） Fragment：PEPTIDASE S1 DOMAIN, RESIDUES 235-475
Chain L 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Mutation：YES LZG 5-CHLORO-THIOPHENE-2-CARBOXYLIC ACID ((3S,4S)-4-FLUORO- 1-{[2-FLUORO-4-(2-OXO-2H-PYRIDIN-1-YL)-PHENYLCARBAMOYL]-METHYL}-PYRROLIDIN-3-YL)-AMIDE × 1 CA CALCIUM ION × 1 NA SODIUM ION × 3 CL CHLORIDE ION × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.60 Å R-free 0.228
2VWO Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 235–475（241 aa） Fragment：PEPTIDASE S1 DOMAIN, RESIDUES 235-475
Mutation：YES LZG 5-CHLORO-THIOPHENE-2-CARBOXYLIC ACID ((3S,4S)-4-FLUORO- 1-{[2-FLUORO-4-(2-OXO-2H-PYRIDIN-1-YL)-PHENYLCARBAMOYL]-METHYL}-PYRROLIDIN-3-YL)-AMIDE × 1 CA CALCIUM ION × 1 NA SODIUM ION × 3 CL CHLORIDE ION × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.60 Å R-free 0.228
2VWO Aminopyrrolidine Factor Xa inhibitor Deposited 2008-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain L 126–180（55 aa） Fragment：EGF2, RESIDUES 126-180
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.60 Å R-free 0.228
2W26 Factor Xa in complex with BAY59-7939 Deposited 2008-10-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：RESIDUES 235-468
Chain B 129–177（49 aa） Fragment：RESIDUES 129-177
Not recorded RIV 5-chloro-N-({(5S)-2-oxo-3-[4-(3-oxomorpholin-4-yl)phenyl]-1,3-oxazolidin-5-yl}methyl)thiophene-2-carboxamide × 1 CA CALCIUM ION × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.08 Å R-free 0.259
2W3I Crystal Structure of FXa in complex with 4,4-disubstituted pyrrolidine-1,2-dicarboxamide inhibitor 2 Deposited 2008-11-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：HEAVY CHAIN, RESIDUES 235-468
Chain B 128–178（51 aa） Fragment：LIGHT CHAIN, RESIDUES 128-178
Not recorded CA CALCIUM ION × 1 L1C (2R,4S)-N^1^-(4-chlorophenyl)-4-(2,4-difluorophenyl)-4-hydroxy-N^2^-(2-oxo-2H-1,3'-bipyridin-6'-yl)pyrrolidine-1,2-dicarboxamide × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.90 Å R-free 0.261
2W3K Crystal Structure of FXa in complex with 4,4-disubstituted pyrrolidine-1,2-dicarboxamide inhibitor 1 Deposited 2008-11-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：HEAVY CHAIN, RESIDUES 235-468
Chain B 128–178（51 aa） Fragment：LIGHT CHAIN, RESIDUES 128-178
Not recorded L1D (2R,4S)-N^1^-(4-chlorophenyl)-N^2^-[2-fluoro-4-(2-oxopyridin-1(2H)-yl)phenyl]-4-hydroxy-4-phenylpyrrolidine-1,2-dicarboxamide × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.05 Å R-free 0.255
2WYG Structure and property based design of factor Xa inhibitors: pyrrolidin-2-ones with monoaryl P4 motifs Deposited 2009-11-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded 461 (E)-2-(5-CHLOROTHIOPHEN-2-YL)-N-[(3S)-1-{4-[(1R)-1-(DIMETHYLAMINO)ETHYL]-2-FLUOROPHENYL}-2-OXOPYRROLIDIN-3-YL]ETHENESULFONAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.75；CRYSTALLISATION WAS CARRIED OUT USING VAPOUR DIFFUSION IN 2UL DROPS CONTAINING A 1:1 MIXTURE OF PROTEIN AND WELL SOLUTION. WELL SOLUTION CONTAINED 16-20% PEG6K, 50MM MES-NAOH (PH5.5-6), 5MM CACL2 AND 50MM NACL., pH 5.75
Resolution 1.88 Å R-free 0.234
2WYJ Structure and property based design of factor Xa inhibitors: pyrrolidin-2-ones with monoaryl P4 motifs Deposited 2009-11-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa） Fragment：ACTIVATED DESGLA, RESIDUES 235-488
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded 898 (E)-2-(5-CHLOROTHIOPHEN-2-YL)-N-[(3S)-1-{4-[(1S)-1-(DIMETHYLAMINO)ETHYL]-2-FLUOROPHENYL}-2-OXOPYRROLIDIN-3-YL]ETHENESULFONAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.75；CRYSTALLISATION WAS CARRIED OUT USING HANG DROP VAPOUR DIFFUSION METHODS IN 2UL DROPS CONTAINING 1:1 RATIO PROTEIN AND WELL SOLUTION. WELL SOLUTION CONTAINED 16-20% PEG6K, 50MM MES-NAOH (PH5.5-6), 5MM CACL2 AND 50MM NACL, pH 5.75
Resolution 2.38 Å R-free 0.255
2XBV Factor Xa in complex with a pyrrolidine-3,4-dicarboxylic acid inhibitor Deposited 2010-04-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–475（241 aa） Fragment：HEAVY CHAIN, RESIDUES 235-475
Chain L 126–180（55 aa） Fragment：LIGHTCHAIN, RESIDUES 126-180
Mutation：YES XBV (3R,4R)-1-(2,2-DIFLUORO-ETHYL)-PYRROLIDINE-3,4-DICARBOXYLIC ACID 3-[(5-CHLORO-PYRIDIN-2-YL)-AMIDE]-4-{[2-FLUORO-4-(2-OXO-2H-PYRIDIN-1-YL)-PHENYL]-AMIDE} × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；PH 6.5
Resolution 1.66 Å R-free 0.224
2XBW Factor Xa in complex with a pyrrolidine-3,4-dicarboxylic acid inhibitor Deposited 2010-04-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–475（241 aa） Fragment：HEAVY CHAIN, RESIDUES 235-475
Chain L 126–180（55 aa） Fragment：LIGHT CHAIN, RESIDUES 126-180
Not recorded 455 (3R,4R)-1-SULFAMOYL-PYRROLIDINE-3,4-DICARBOXYLIC ACID 3-[(4-CHLORO-PHENYL)-AMIDE] 4-{[2-FLUORO-4-(2-OXO-2H-PYRIDIN-1-YL)-PHENYL]-AMIDE} × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；PH 6.5
Resolution 1.72 Å R-free 0.218
2XBX Factor Xa in complex with a pyrrolidine-3,4-dicarboxylic acid inhibitor Deposited 2010-04-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–475（241 aa） Fragment：HEAVY CHAIN, RESIDUES 235-475
Chain L 126–180（55 aa） Fragment：LIGHTCHAIN, RESIDUES 126-180
Not recorded RR8 (3R,4R)-1-METHANESULFONYL-PYRROLIDINE-3,4-DICARBOXYLIC ACID 3-[(4-CHLORO-PHENYL)-AMIDE] 4-{[2-FLUORO-4-(2-OXO-2H-PYRIDIN-1-YL)-PHENYL]-AMIDE} × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；PH 6.5
Resolution 1.85 Å R-free 0.235
2XBY Factor Xa in complex with a pyrrolidine-3,4-dicarboxylic acid inhibitor Deposited 2010-04-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–475（241 aa） Fragment：HEAVY CHAIN, RESIDUES 235-475
Chain L 126–180（55 aa） Fragment：LIGHT CHAIN, RESIDUES 126-180
Not recorded 63C (3R,4R)-1-METHYLCARBAMOYLMETHYL-PYRROLIDINE-3,4-DICARBOXYLIC ACID 3-[(4-CHLORO-PHENYL)-AMIDE] 4-{[2-FLUORO-4-(2-OXO-2H-PYRIDIN-1-YL)-PHENYL]-AMIDE} × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；PH 6.5
Resolution 2.02 Å R-free 0.246
2XC0 Factor Xa in complex with a pyrrolidine-3,4-dicarboxylic acid inhibitor Deposited 2010-04-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–475（241 aa） Fragment：HEAVY CHAIN, RESIDUES 235-475
Chain L 126–180（55 aa） Fragment：LIGHTCHAIN, RESIDUES 126-180
Not recorded 8NC (3R,4R)-1-METHANESULFONYL-PYRROLIDINE-3,4--DICARBOXYLIC ACID 3-[(3-FLUORO-4-METHOXY-PHENYL)-AMIDE] 4-{[2-FLUORO-4-(2-OXO-2H-PYRIDIN-1-YL)-PHENYL]-AMIDE} × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；PH 6.5
Resolution 2.05 Å R-free 0.240
2XC4 Factor Xa in complex with a pyrrolidine-3,4-dicarboxylic acid inhibitor Deposited 2010-04-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–475（241 aa） Fragment：HEAVY CHAIN, RESIDUES 235-475
Chain L 126–180（55 aa） Fragment：LIGHT CHAIN, RESIDUES 126-180
Not recorded CA CALCIUM ION × 1 NA SODIUM ION × 1 IVK (3R,4R)-N-(4-CHLOROPHENYL)-N'-[2-FLUORO-4-(2-OXOPYRIDIN-1(2H)-YL)PHENYL]-1-(2,2,2-TRIFLUOROETHYL)PYRROLIDINE-3,4-DICARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；PH 6.5
Resolution 1.67 Å R-free 0.244
2XC5 Factor Xa in complex with a pyrrolidine-3,4-dicarboxylic acid inhibitor Deposited 2010-04-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–475（241 aa） Fragment：HEAVY CHAIN, RESIDUES 235-475
Chain L 126–180（55 aa） Fragment：LIGHTCHAIN, RESIDUES 126-180
Not recorded OYJ (3R,4R)-1-METHANESULFONYL-PYRROLIDINE-3,4-DICARBOXYLIC ACID 3-[(4-CHLORO-3-FLUORO-PHENYL)-AMIDE] 4-{[2-FLUORO-4-(2-OXO-2H-PYRIDIN-1-YL)-PHENYL]-AMIDE} × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；PH 6.5
Resolution 1.70 Å R-free 0.232
2Y5F FACTOR XA - CATION INHIBITOR COMPLEX Deposited 2011-01-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：RESIDUES 235-468
Chain L 127–180（54 aa） Fragment：RESIDUES 127-180
Mutation：YES XWG (3AS,4R,5S,8AS,8BR)-4-[5-(5-CHLOROTHIOPHEN-2-YL)-1,2-OXAZOL-3-YL]-2-[3-[1-(2-HYDROXYETHYL)PYRROLIDIN-1-IUM-1-YL]PROPYL]-4,6,7,8,8A,8B-HEXAHYDRO-3AH-PYRROLO[3,4-A]PYRROLIZINE-1,3-DIONE × 1 NA SODIUM ION × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.29 Å R-free 0.175
2Y5G FACTOR XA - CATION INHIBITOR COMPLEX Deposited 2011-01-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：RESIDUES 235-468
Chain L 127–180（54 aa） Fragment：RESIDUES 127-180
Mutation：YES FJD 3-[(3AS,4R,5S,8AS,8BR)-4-[5-(5-CHLOROTHIOPHEN-2-YL)-1,3-OXAZOL-2-YL]-1,3-DIOXO-4,6,7,8,8A,8B-HEXAHYDRO-3AH-PYRROLO[3,4-A]PYRROLIZIN-2-YL]PROPYL-TRIMETHYL-AZANIUM × 1 NA SODIUM ION × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.29 Å R-free 0.186
2Y5H FACTOR XA - CATION INHIBITOR COMPLEX Deposited 2011-01-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：RESIDUES 235-468
Chain L 127–180（54 aa） Fragment：RESIDUES 127-180
Mutation：YES Y5H 3-[(3AS,4R,5S,8AS,8BR)-4-[2-(5-CHLOROTHIOPHEN-2-YL)-1,3-OXAZOL-4-YL]-1,3-DIOXO-4,6,7,8,8A,8B-HEXAHYDRO-3AH-PYRROLO[3,4-A]PYRROLIZIN-2-YL]PROPYL-TRIMETHYL-AZANIUM × 1 NA SODIUM ION × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.33 Å R-free 0.190
2Y7X The discovery of potent and long-acting oral factor Xa inhibitors with tetrahydroisoquinoline and benzazepine P4 motifs Deposited 2011-02-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa）
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded MZA 6-CHLORO-N-[(3S)-1-(5-FLUORO-1,2,3,4-TETRAHYDROISOQUINOLIN-6-YL)-2-OXO-PYRROLIDIN-3-YL]NAPHTHALENE-2-SULFONAMIDE × 1 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.75；16-20% PEG 6K, 50 MM MES PH 5.5-6, 5 MM CACL2, 50 MM NACL WITH SEEDING.
Resolution 1.90 Å R-free 0.230
2Y7Z Structure and property based design of factor Xa inhibitors: pyrrolidin-2-ones with aminoindane and phenylpyrrolidine P4 motifs Deposited 2011-02-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa）
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded C0Z 6-CHLORO-N-[(3S)-1-[(1S)-1-DIMETHYLAMINO-2,3-DIHYDRO-1H-INDEN-5-YL]-2-OXO-PYRROLIDIN-3-YL]NAPHTHALENE-2-SULFONAMIDE × 1 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.75；CRYSTALLISATION WAS CARRIED OUT USING VAPOUR DIFFUSION IN 2UL DROPS CONTAINING A 1:1 MIXTURE OF PROTEIN AND WELL SOLUTION. WELL SOLUTION CONTAINED 16-20% PEG6K, 50MM MES-NAOH (PH 5.5-6), 5MM CACL2 AND 50MM NACL.
Resolution 1.84 Å R-free 0.246
2Y80 Structure and property based design of factor Xa inhibitors: pyrrolidin-2-ones with aminoindane and phenylpyrrolidine P4 motifs Deposited 2011-02-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa）
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded 439 6-CHLORO-N-{(3S)-1-[(1S)-1-(DIMETHYLAMINO)-2,3-DIHYDRO-1H-INDEN-5-YL]-2-OXO-3-PYRROLIDINYL}-2-NAPHTHALENESULFONAMIDE × 1 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.75；CRYSTALLISATION WAS CARRIED OUT USING VAPOUR DIFFUSION IN 2UL DROPS CONTAINING A 1:1 MIXTURE OF PROTEIN AND WELL SOLUTION. WELL SOLUTION CONTAINED 16-20% PEG 6K, 50 MM MES-NAOH (PH 5.5-6), 5 MM CACL2 AND 50 MM NACL.
Resolution 1.90 Å R-free 0.241
2Y81 Structure and property based design of factor Xa inhibitors: pyrrolidin-2-ones with aminoindane and phenylpyrrolidine P4 motifs Deposited 2011-02-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa）
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded 931 6-CHLORO-N-((3S)-2-OXO-1-{4-[(2R)-2--PYRROLIDINYL] PHENYL}-3-PYRROLIDINYL)-2-NAPHTHALENESULFONAMIDE × 1 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.75；CRYSTALLISATION WAS CARRIED OUT USING VAPOUR DIFFUSION IN 2UL DROPS CONTAINING A 1:1 MIXTURE OF PROTEIN AND WELL SOLUTION. WELL SOLUTION CONTAINED 16-20% PEG 6K, 50 MM MES-NAOH (PH 5.5-6), 5 MM CACL2 AND 50 MM NACL.
Resolution 1.70 Å R-free 0.225
2Y82 Structure and property based design of factor Xa inhibitors: pyrrolidin-2-ones with aminoindane and phenylpyrrolidine P4 motifs Deposited 2011-02-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa）
Chain B 46–179（134 aa） Fragment：ACTIVATED DESGLA, RESIDUES 46-179
Not recorded 930 6-CHLORO-N-((3S)-2-OXO-1-{4-[(2S)-2-PYRROLIDINYL]PHENYL}-3-PYRROLIDINYL)-2-NAPHTHALENESULFONAMIDE × 1 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.75；CRYSTALLISATION WAS CARRIED OUT USING VAPOUR DIFFUSION IN 2UL DROPS CONTAINING A 1:1 MIXTURE OF PROTEIN AND WELL SOLUTION. WELL SOLUTION CONTAINED 16-20% PEG 6K, 50 MM MES-NAOH (PH 5.5-6), 5 MM CACL2 AND 50 MM NACL.
Resolution 2.20 Å R-free 0.233
3CEN Factor XA in complex with the inhibitor N-(2-(((5-chloro-2-pyridinyl) amino)sulfonyl)phenyl)-4-(2-oxo-1(2H)-pyridinyl)benzamide Deposited 2008-02-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：Activated factor Xa heavy chain, UNP residues 235-468
Chain L 127–178（52 aa） Fragment：UNP residues 127-178
Not recorded FXA N-(2-(((5-CHLORO-2-PYRIDINYL)AMINO)SULFONYL)PHENYL)-4-(2-OXO-1(2H)-PYRIDINYL)BENZAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；200 mM Sodium Acetate, pH 5.5, 18% PEG6000, vapor diffusion, hanging drop, temperature 277K
Resolution 1.60 Å R-free 0.294
3CS7 FACTOR XA IN COMPLEX WITH THE INHIBITOR 1-(4-methoxyphenyl)-6-(4-(1-(pyrrolidin-1-ylmethyl)cyclopropyl)phenyl)-3-(trifluoromethyl)-5,6-dihydro-1H-pyrazolo[3,4-c]pyridin-7(4H)-one Deposited 2008-04-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：Coagulation Factor X, Heavy Chain
Chain L 127–178（52 aa） Fragment：Coagulation Factor X, Light Chain
Not recorded CA CALCIUM ION × 1 LG0 1-(4-methoxyphenyl)-6-(4-(1-(pyrrolidin-1-ylmethyl)cyclopropyl)phenyl)-3-(trifluoromethyl)-5,6-dihydro-1H-pyrazolo[3,4-c]pyridin-7(4H)-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.5；277 K；200 mM Sodium Acetate, pH 5.5, 18% PEG6000, vapor diffusion, hanging drop, temperature 277K, pH 5.50
Resolution 2.20 Å R-free 0.274
3ENS Crystal structure of human FXA in complex with methyl (2Z)-3-[(3-chloro-1H-indol-7-yl)amino]-2-cyano-3-{[(3S)-2-oxo-1-(2-oxo-2-pyrrolidin-1-ylethyl)azepan-3-yl]amino}acrylate Deposited 2008-09-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 85–178（94 aa） Fragment：sequence database residues 93-178
Chain B 235–472（238 aa） Fragment：sequence database residues 235-472
Not recorded GOL GLYCEROL × 4 ENS methyl (2Z)-3-[(3-chloro-1H-indol-7-yl)amino]-2-cyano-3-{[(3S)-2-oxo-1-(2-oxo-2-pyrrolidin-1-ylethyl)azepan-3-yl]amino}acrylate × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；298 K；15-22% W/V PEG MME 5000, 0.01 M CALCIUM ACETATE, 0.35 M SODIUM ACETATE, 0.1 M LITHIUM SULFATE, 0.1 M MES, pH 6.500000, VAPOR DIFFUSION HANGING DROP, temperature 298K, VAPOR DIFFUSION, HANGING DROP
Resolution 2.30 Å R-free 0.286
3ENS Crystal structure of human FXA in complex with methyl (2Z)-3-[(3-chloro-1H-indol-7-yl)amino]-2-cyano-3-{[(3S)-2-oxo-1-(2-oxo-2-pyrrolidin-1-ylethyl)azepan-3-yl]amino}acrylate Deposited 2008-09-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 85–178（94 aa） Fragment：sequence database residues 93-178
Chain D 235–472（238 aa） Fragment：sequence database residues 235-472
Not recorded GOL GLYCEROL × 3 ENS methyl (2Z)-3-[(3-chloro-1H-indol-7-yl)amino]-2-cyano-3-{[(3S)-2-oxo-1-(2-oxo-2-pyrrolidin-1-ylethyl)azepan-3-yl]amino}acrylate × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；298 K；15-22% W/V PEG MME 5000, 0.01 M CALCIUM ACETATE, 0.35 M SODIUM ACETATE, 0.1 M LITHIUM SULFATE, 0.1 M MES, pH 6.500000, VAPOR DIFFUSION HANGING DROP, temperature 298K, VAPOR DIFFUSION, HANGING DROP
Resolution 2.30 Å R-free 0.286
3FFG Factor XA in complex with the inhibitor (R)-6-(2'-((3- HYDROXYPYRROLIDIN-1-YL)METHYL)BIPHENYL-4-YL)-1-(3-(5-OXO-4,5-DIHYDRO-1H-1,2,4-TRIAZOL-3-YL)PHENYL)-3-(TRIFLUOROMETHYL)-5,6-DIHYDRO-1H-PYRAZOLO[3,4-C]PYRIDIN- 7(4H)-ONE Deposited 2008-12-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：sequence database residues 235-468
Chain L 127–178（52 aa） Fragment：sequence database residues 127-178
Not recorded FFG (R)-6-(2'-((3-hydroxypyrrolidin-1-yl)methyl)biphenyl-4-yl)-1-(3-(5-oxo-4,5-dihydro-1h-1,2,4-triazol-3-yl)phenyl)-3-(trifluoromethyl)-5,6-dihydro-1h-pyrazolo[3,4-c]pyridin-7(4h)-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；200 mM Sodium Acetate, pH 5.5, 18% PEG6000, vapor diffusion, hanging drop, temperature 277K
Resolution 1.54 Å R-free 0.240
3HPT Crystal structure of human FxA in complex with (S)-2-cyano-1-(2-methylbenzofuran-5-yl)-3-(2-oxo-1-(2-oxo-2-(pyrrolidin-1-yl)ethyl)azepan-3-yl)guanidine Deposited 2009-06-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 85–178（94 aa） Fragment：Factor X light chain: UNP residues 85-178
Chain B 235–472（238 aa） Fragment：Activated factor Xa heavy chain: UNP residues 235-472
Not recorded GOL GLYCEROL × 3 YET 1-cyano-2-(2-methyl-1-benzofuran-5-yl)-3-[(3S)-2-oxo-1-(2-oxo-2-pyrrolidin-1-ylethyl)azepan-3-yl]guanidine × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 ACT ACETATE ION × 4 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；15-22% w/v PEG MME 5000, 0.01 M Calcium acetate, 0.35 M Sodium acetate, 0.1 M Lithium sulfate, 0.1 M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.19 Å R-free 0.239
3HPT Crystal structure of human FxA in complex with (S)-2-cyano-1-(2-methylbenzofuran-5-yl)-3-(2-oxo-1-(2-oxo-2-(pyrrolidin-1-yl)ethyl)azepan-3-yl)guanidine Deposited 2009-06-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 85–178（94 aa） Fragment：Factor X light chain: UNP residues 85-178
Chain D 235–472（238 aa） Fragment：Activated factor Xa heavy chain: UNP residues 235-472
Not recorded GOL GLYCEROL × 2 YET 1-cyano-2-(2-methyl-1-benzofuran-5-yl)-3-[(3S)-2-oxo-1-(2-oxo-2-pyrrolidin-1-ylethyl)azepan-3-yl]guanidine × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 ACT ACETATE ION × 4 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；15-22% w/v PEG MME 5000, 0.01 M Calcium acetate, 0.35 M Sodium acetate, 0.1 M Lithium sulfate, 0.1 M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.19 Å R-free 0.239
3IIT Factor XA in complex with a cis-1,2-diaminocyclohexane derivative Deposited 2009-08-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–467（233 aa）
Chain B 125–178（54 aa） Fragment：UNP RESIDUES 125-178
Not recorded CA CALCIUM ION × 2 D14 7-chloro-N-[(1S,2R,4S)-4-(dimethylcarbamoyl)-2-{[(5-methyl-5,6-dihydro-4H-pyrrolo[3,4-d][1,3]thiazol-2-yl)carbonyl]amino}cyclohexyl]isoquinoline-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5；293 K；pH 5.00, VAPOR DIFFUSION, temperature 293K
Resolution 1.80 Å R-free 0.233
3K9X X-ray crystal structure of human fxa in complex with (S)-N-((2-METHYLBENZOFURAN-5-YLAMINO)(2-OXO-1-(2-OXO-2- (PYRROLIDIN-1-YL)ETHYL)AZEPAN-3- YLAMINO)METHYLENE)NICOTINAMIDE Deposited 2009-10-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 85–178（94 aa） Fragment：EGF-LIKE DOMAINS (UNP residues 85 to 178)
Chain B 235–472（238 aa） Fragment：CATALYTIC DOMAINS (UNP residues 235 to 472)
Not recorded GOL GLYCEROL × 5 MBM N-{N'-(2-methyl-1-benzofuran-5-yl)-N-[(3S)-2-oxo-1-(2-oxo-2-pyrrolidin-1-ylethyl)azepan-3-yl]carbamimidoyl}pyridine-3-carboxamide × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；15-22% W/V PEG MME 5000, 0.01 M CALCIUM ACETATE, 0.35 M SODIUM ACETATE, 0.1 M LITHIUM SULFATE, 0.1 M MES, pH 6.0, VAPOR DIFFUSION HANGING DROP, temperature 298K
Resolution 1.90 Å R-free 0.240
3K9X X-ray crystal structure of human fxa in complex with (S)-N-((2-METHYLBENZOFURAN-5-YLAMINO)(2-OXO-1-(2-OXO-2- (PYRROLIDIN-1-YL)ETHYL)AZEPAN-3- YLAMINO)METHYLENE)NICOTINAMIDE Deposited 2009-10-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 85–178（94 aa） Fragment：EGF-LIKE DOMAINS (UNP residues 85 to 178)
Chain D 235–472（238 aa） Fragment：CATALYTIC DOMAINS (UNP residues 235 to 472)
Not recorded GOL GLYCEROL × 1 MBM N-{N'-(2-methyl-1-benzofuran-5-yl)-N-[(3S)-2-oxo-1-(2-oxo-2-pyrrolidin-1-ylethyl)azepan-3-yl]carbamimidoyl}pyridine-3-carboxamide × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；15-22% W/V PEG MME 5000, 0.01 M CALCIUM ACETATE, 0.35 M SODIUM ACETATE, 0.1 M LITHIUM SULFATE, 0.1 M MES, pH 6.0, VAPOR DIFFUSION HANGING DROP, temperature 298K
Resolution 1.90 Å R-free 0.240
3KL6 Discovery of Tetrahydropyrimidin-2(1H)-one derivative TAK-442: A potent, selective and orally active factor Xa inhibitor Deposited 2009-11-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–475（241 aa） Fragment：Factor X heavy chain residues 235-475
Chain B 126–179（54 aa） Fragment：Factor X light chain residues 126-179
Not recorded 443 1-(1-{(2S)-3-[(6-chloronaphthalen-2-yl)sulfonyl]-2-hydroxypropanoyl}piperidin-4-yl)tetrahydropyrimidin-2(1H)-one × 1 EDO 1,2-ETHANEDIOL × 4 CA CALCIUM ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；25.% .PEG 3350, 0.1M .tris pH 8.5 , VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 1.45 Å R-free 0.212
3KQB Factor xa in complex with the inhibitor n-(3-fluoro-2'- (methylsulfonyl)biphenyl-4-yl)-1-(3-(5-oxo-4,5-dihydro-1h- 1,2,4-triazol-3-yl)phenyl)-3-(trifluoromethyl)-1h- pyrazole-5-carboxamide Deposited 2009-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：residues 235-468 of factor X uncleaved sequence
Chain L 127–178（52 aa） Fragment：residues 127-178 of factor X uncleaved sequence
Not recorded LGJ N-(3-FLUORO-2'-(METHYLSULFONYL)BIPHENYL-4-YL)-1-(3-(5-OXO-4,5-DIHYDRO-1H-1,2,4-TRIAZOL-3-YL)PHENYL)-3-(TRIFLUOROMETHYL)-1H-PYRAZOLE-5-CARBOXAMIDE × 1 NA SODIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；200 mM NaOAc (pH 5.5), 18% PEG 6000, pH 5.500000, vapor diffusion, hanging drop, temperature 277K, VAPOR DIFFUSION, HANGING DROP
Resolution 2.25 Å R-free 0.221
3KQC Factor xa in complex with the inhibitor 6-(2'- (methylsulfonyl)biphenyl-4-yl)-1-(3-(5-oxo-4,5-dihydro-1h- 1,2,4-triazol-3-yl)phenyl)-3-(trifluoromethyl)-5,6- dihydro-1h-pyrazolo[3,4-c]pyridin-7(4h)-one Deposited 2009-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：residues 235-468 of factor X uncleaved sequence
Chain L 127–178（52 aa） Fragment：residues 127-178 of factor X uncleaved sequence
Not recorded LGK 6-(2'-(METHYLSULFONYL)BIPHENYL-4-YL)-1-(3-(5-OXO-4,5-DIHYDRO-1H-1,2,4-TRIAZOL-3-YL)PHENYL)-3-(TRIFLUOROMETHYL)-5,6-DIHYDRO-1H-PYRAZOLO[3,4-C]PYRIDIN-7(4H)-ONE × 1 NA SODIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；200 mM NaOAc (pH 5.5), 18% PEG 6000, pH 5.500000, vapor diffusion, hanging drop, temperature 277K, VAPOR DIFFUSION, HANGING DROP
Resolution 2.20 Å R-free 0.224
3KQD Factor xa in complex with the inhibitor 1-(3-(5-oxo-4,5- dihydro-1h-1,2,4-triazol-3-yl)phenyl)-6-(2'-(pyrrolidin-1- ylmethyl)biphenyl-4-yl)-3-(trifluoromethyl)-5,6-dihydro- 1h-pyrazolo[3,4-c]pyridin-7(4h)-one Deposited 2009-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：residues 235-468 of factor X uncleaved sequence
Chain L 127–178（52 aa） Fragment：residues 127-178 of factor X uncleaved sequence
Not recorded LGL 1-(3-(5-OXO-4,5-DIHYDRO-1H-1,2,4-TRIAZOL-3-YL)PHENYL)-6-(2'-(PYRROLIDIN-1-YLMETHYL)BIPHENYL-4-YL)-3-(TRIFLUOROMETHYL)-5,6-DIHYDRO-1H-PYRAZOLO[3,4-C]PYRIDIN-7(4H)-ONE × 1 NA SODIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；200 mM NaOAc (pH 5.5), 18% PEG 6000, pH 5.500000, vapor diffusion, hanging drop, temperature 277K, VAPOR DIFFUSION, HANGING DROP
Resolution 2.75 Å R-free 0.254
3KQE Factor xa in complex with the inhibitor 3-methyl-1-(3-(5- oxo-4,5-dihydro-1h-1,2,4-triazol-3-yl)phenyl)-6-(2'- (pyrrolidin-1-ylmethyl)biphenyl-4-yl)-5,6-dihydro-1h- pyrazolo[3,4-c]pyridin-7(4h)-one Deposited 2009-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：residues 235-468 of factor X uncleaved sequence
Chain L 127–178（52 aa） Fragment：residues 127-178 of factor X uncleaved sequence
Not recorded LGM 3-METHYL-1-(3-(5-OXO-4,5-DIHYDRO-1H-1,2,4-TRIAZOL-3-YL)PHENYL)-6-(2'-(PYRROLIDIN-1-YLMETHYL)BIPHENYL-4-YL)-5,6-DIHYDRO-1H-PYRAZOLO[3,4-C]PYRIDIN-7(4H)-ONE × 1 NA SODIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；200 mM NaOAc (pH 5.5), 18% PEG 6000, pH 5.500000, vapor diffusion, hanging drop, temperature 277K, VAPOR DIFFUSION, HANGING DROP
Resolution 2.35 Å R-free 0.230
3LIW Factor XA in complex with (R)-2-(1-ADAMANTYLCARBAMOYLAMINO)-3-(3-CARBAMIDOYL-PHENYL)-N-PHENETHYL-PROPIONIC ACID AMIDE Deposited 2010-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：UNP RESIDUES 235-468
Chain B 128–178（51 aa） Fragment：UNP RESIDUES 128-178
Not recorded CA CALCIUM ION × 2 RUP (R)-2-(3-ADAMANTAN-1-YL-UREIDO)-3-(3-CARBAMIMIDOYL-PHENYL)-N-PHENETHYL-PROPIONAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；298 K；CACL2, PEG 6000, MES, PH 5.8, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 298.0K
Resolution 2.22 Å R-free 0.266
3M36 Factor XA in complex with the inhibitor 1-[3-(aminomethyl)phenyl]-N-[3-fluoro-2'-(methylsulfonyl)biphenyl-4-yl]-3-(trifluoromethyl)-1H-pyrazole-5-carboxamide (DPC423) Deposited 2010-03-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：Peptidase S1
Chain L 127–178（52 aa） Fragment：UNP residues 127-178
Not recorded M35 1-[3-(aminomethyl)phenyl]-N-[3-fluoro-2'-(methylsulfonyl)biphenyl-4-yl]-3-(trifluoromethyl)-1H-pyrazole-5-carboxamide × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；200 mM Sodium Acetate, pH 5.5, 18% PEG6000, vapor diffusion, hanging drop, temperature 277K
Resolution 2.15 Å R-free 0.264
3M37 Factor XA in complex with the inhibitor 1-[2-(aminomethyl)phenyl]-N-(3-fluoro-2'-sulfamoylbiphenyl-4-yl)-3-(trifluoromethyl)-1H-pyrazole-5-carboxamide (DPC602) Deposited 2010-03-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa） Fragment：Peptidase S1
Chain L 127–178（52 aa） Fragment：UNP residues 127-178
Not recorded M37 1-[2-(aminomethyl)phenyl]-N-(3-fluoro-2'-sulfamoylbiphenyl-4-yl)-3-(trifluoromethyl)-1H-pyrazole-5-carboxamide × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；200 mM Sodium Acetate, pH 5.5, 18% PEG6000, vapor diffusion, hanging drop, temperature 277K
Resolution 1.90 Å R-free 0.262
3Q3K Factor Xa in complex with a phenylenediamine derivative Deposited 2010-12-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–467（233 aa） Fragment：UNP RESIDUES 235-467
Chain B 125–178（54 aa） Fragment：UNP RESIDUES 125-178
Not recorded CA CALCIUM ION × 2 D90 N-(2-{[(5-chloro-1H-indol-2-yl)carbonyl]amino}phenyl)-5-methyl-4,5,6,7-tetrahydro[1,3]thiazolo[5,4-c]pyridine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；macro-seeding, soak at pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.00 Å R-free 0.216
3SW2 X-ray crystal structure of human FXA in complex with 6-chloro-N-((3S)-2-oxo-1-(2-oxo-2-((5S)-8-oxo-5,6-dihydro-1H-1,5-methanopyrido[1,2-a][1,5]diazocin-3(2H,4H,8H)-yl)ethyl)piperidin-3-yl)naphthalene-2-sulfonamide Deposited 2011-07-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 85–178（94 aa） Fragment：Factor X light chain (UNP residues 85-178)
Chain B 235–472（238 aa） Fragment：Activated factor Xa heavy chain (UNP residues 235-472)
Not recorded FI1 6-chloro-N-((3S)-2-oxo-1-(2-oxo-2-((5S)-8-oxo-5,6-dihydro-1H-1,5-methanopyrido[1,2-a][1,5]diazocin-3(2H,4H,8H)-yl)ethyl)piperidin-3-yl)naphthalene-2-sulfonamide × 1 NA SODIUM ION × 1 CA CALCIUM ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；15-22% w/v PEG5000 MME, 0.01 M calcium acetate, 0.35 M sodium acetate, 0.1 M lithium sulfate, 0.1 M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.42 Å R-free 0.262
3TK5 Factor Xa in complex with D102-4380 Deposited 2011-08-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–467（233 aa） Fragment：UNP RESIDUES 235-467
Chain B 125–178（54 aa） Fragment：UNP RESIDUES 125-178
Not recorded CA CALCIUM ION × 2 D1Q 4-{3-[(4-chlorophenyl)amino]-3-oxopropyl}-3-({[5-(propan-2-yl)-4,5,6,7-tetrahydro[1,3]thiazolo[5,4-c]pyridin-2-yl]carbonyl}amino)benzoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；pH 5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.20 Å R-free 0.253
3TK6 factor Xa in complex with D46-5241 Deposited 2011-08-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–467（233 aa） Fragment：UNP RESIDUES 235-467
Chain B 125–178（54 aa） Fragment：UNP RESIDUES 125-178
Not recorded CA CALCIUM ION × 2 D46 N-[2-({[(5-chlorothiophen-2-yl)carbonyl]amino}methyl)phenyl]-5-methyl-4,5,6,7-tetrahydro[1,3]thiazolo[5,4-c]pyridine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；pH 5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.80 Å R-free 0.241
4A7I Factor Xa in complex with a potent 2-amino-ethane sulfonamide inhibitor Deposited 2011-11-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 84–179（96 aa） Fragment：DES-GLA FACTOR X LIGHT CHAIN, RESIDUES 84-179
Chain B 235–488（254 aa） Fragment：ACTIVATED FACTOR X HEAVY CHAIN, RESIDUES 235-488
Not recorded CA CALCIUM ION × 1 A7I 5-CHLORO-THIOPHENE-2-CARBOXYLIC ACID [2-(1--ISOPROPYL-PIPERIDIN-4-YLSULFAMOYL)-ETHYL]-AMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.7；PROTEIN SOLUTION: 8 MG/ML PROTEIN, 5 MM MES (PH 5.7), 5 MM CACL2, 100 MM BENZAMIDINE. RESERVOIR: 18-20% PEG-600, 50 MM MES (PH 5.7). SOAKING: ADD 10 MM INHIBITOR.
Resolution 2.40 Å R-free 0.253
4BTI factor Xa in complex with the dual thrombin-FXa inhibitor 58. Deposited 2013-06-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain E 84–179（96 aa）
Chain F 235–488（254 aa）
Not recorded CA CALCIUM ION × 1 7R9 5-Chloro-thiophene-2-carboxylic acid [(S)-2-[2-difluoromethoxy-3-(2-oxo-piperidin-1-yl)-benzenesulfonylamino]-3-((S)-3-dimethylamino-pyrrolidin-1-yl)-3-oxo-propyl]-amide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；PROTEIN SOLUTION: 8 MG/ML DESGLA FACTOR XA, 5 MM MES (PH 6.0), 5 MM CACL2, 100 MM BENZAMIDINE. RESERVOIR SOLUTION: 18-20% PEG600, 50 MM MES (PH 5.7). HANGING DROP SETUP.
Resolution 2.30 Å R-free 0.224
4BTI factor Xa in complex with the dual thrombin-FXa inhibitor 58. Deposited 2013-06-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 84–179（96 aa）
Chain B 235–488（254 aa）
Not recorded CA CALCIUM ION × 1 7R9 5-Chloro-thiophene-2-carboxylic acid [(S)-2-[2-difluoromethoxy-3-(2-oxo-piperidin-1-yl)-benzenesulfonylamino]-3-((S)-3-dimethylamino-pyrrolidin-1-yl)-3-oxo-propyl]-amide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；PROTEIN SOLUTION: 8 MG/ML DESGLA FACTOR XA, 5 MM MES (PH 6.0), 5 MM CACL2, 100 MM BENZAMIDINE. RESERVOIR SOLUTION: 18-20% PEG600, 50 MM MES (PH 5.7). HANGING DROP SETUP.
Resolution 2.30 Å R-free 0.224
4BTT factor Xa in complex with the dual thrombin-FXa inhibitor 31. Deposited 2013-06-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain E 84–179（96 aa） Fragment：LIGHT CHAIN, RESIDUES 84-179
Chain F 235–488（254 aa） Fragment：HEAVY CHAIN, RESIDUES 235-488
Not recorded CA CALCIUM ION × 1 VYR N-[(S)-1-[5-(5-Chloro-thiophen-2-yl)-isoxazol-3-ylmethyl]-2-(4-methoxy-piperidin-1-yl)-2-oxo-ethyl]-2-ethyl-3-(3-oxo-morpholin-4-yl)-benzenesulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；PROTEIN SOLUTION: 8 MG/ML DESGLA FACTOR XA, 5 MM MES (PH 6.0), 5 MM CACL2, 100 MM BENZAMIDINE. RESERVOIR SOLUTION: 18-20% PEG600, 50 MM MES (PH 5.7). HANGING DROP SETUP.
Resolution 2.59 Å R-free 0.236
4BTT factor Xa in complex with the dual thrombin-FXa inhibitor 31. Deposited 2013-06-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 84–179（96 aa） Fragment：LIGHT CHAIN, RESIDUES 84-179
Chain B 235–488（254 aa） Fragment：HEAVY CHAIN, RESIDUES 235-488
Not recorded CA CALCIUM ION × 1 VYR N-[(S)-1-[5-(5-Chloro-thiophen-2-yl)-isoxazol-3-ylmethyl]-2-(4-methoxy-piperidin-1-yl)-2-oxo-ethyl]-2-ethyl-3-(3-oxo-morpholin-4-yl)-benzenesulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；PROTEIN SOLUTION: 8 MG/ML DESGLA FACTOR XA, 5 MM MES (PH 6.0), 5 MM CACL2, 100 MM BENZAMIDINE. RESERVOIR SOLUTION: 18-20% PEG600, 50 MM MES (PH 5.7). HANGING DROP SETUP.
Resolution 2.59 Å R-free 0.236
4BTU Factor Xa in complex with the dual thrombin-FXa inhibitor 57. Deposited 2013-06-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 84–179（96 aa） Fragment：LIGHT CHAIN, RESIDUES 84-179
Chain B 235–488（254 aa） Fragment：HEAVY CHAIN, RESIDUES 235-488
Not recorded CA CALCIUM ION × 1 6XS 5-Chloro-thiophene-2-carboxylic acid [(S)-2-[2-chloro-5-fluoro-3-(2-oxo-piperidin-1-yl)-benzenesulfonylamino]-3-(4-methyl-piperazin-1-yl)-3-oxo-propyl]-amide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；PROTEIN SOLUTION: 8 MG/ML REMARK 280 DESGLA FACTOR XA, 5 MM MES (PH 6.0), 5 MM CACL2, 100 MM REMARK 280 BENZAMIDINE. RESERVOIR SOLUTION: 18-20% PEG600, 50 MM MES REMARK 280 (PH 5.7). HANGING DROP SETUP.
Resolution 2.37 Å R-free 0.248
4BTU Factor Xa in complex with the dual thrombin-FXa inhibitor 57. Deposited 2013-06-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain E 84–179（96 aa） Fragment：LIGHT CHAIN, RESIDUES 84-179
Chain F 235–488（254 aa） Fragment：HEAVY CHAIN, RESIDUES 235-488
Not recorded CA CALCIUM ION × 1 6XS 5-Chloro-thiophene-2-carboxylic acid [(S)-2-[2-chloro-5-fluoro-3-(2-oxo-piperidin-1-yl)-benzenesulfonylamino]-3-(4-methyl-piperazin-1-yl)-3-oxo-propyl]-amide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；PROTEIN SOLUTION: 8 MG/ML REMARK 280 DESGLA FACTOR XA, 5 MM MES (PH 6.0), 5 MM CACL2, 100 MM REMARK 280 BENZAMIDINE. RESERVOIR SOLUTION: 18-20% PEG600, 50 MM MES REMARK 280 (PH 5.7). HANGING DROP SETUP.
Resolution 2.37 Å R-free 0.248
4Y6D Factor Xa complex with GTC000101 Deposited 2015-02-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa）
Chain B 46–179（134 aa） Fragment：FACTOR X LIGHT CHAIN, UNP residues 46-179
Not recorded 48U 4-[(3S)-3-({[(E)-2-(5-chlorothiophen-2-yl)ethenyl]sulfonyl}amino)-2-oxopyrrolidin-1-yl]-3-fluoro-N,N-dimethylbenzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；16-20% PEG 6K, 50mM Mes-NaOH pH 5.7-6.0, 5 mM CaCl2, and 50 mM NaCl
Resolution 1.55 Å R-free 0.233
4Y71 Factor Xa complex with GTC000398 Deposited 2015-02-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa）
Chain B 46–179（134 aa） Fragment：UNP residues 46-179
Not recorded CA CALCIUM ION × 1 48W 6-chloro-N-{(3S)-1-[(2S)-1-(4-methyl-5-oxo-1,4-diazepan-1-yl)-1-oxopropan-2-yl]-2-oxopyrrolidin-3-yl}naphthalene-2-sulf onamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；16 - 20 % PEG 6000, 50 mM MES-NaOH (pH 5.7-6.0), 5 mM calcium chloride, 50 mM sodium chloride
Resolution 1.80 Å R-free 0.240
4Y76 Factor Xa complex with GTC000401 Deposited 2015-02-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa）
Chain B 46–179（134 aa） Fragment：UNP residues 46-179
Not recorded CA CALCIUM ION × 1 4O1 N~2~-[(6-chloronaphthalen-2-yl)sulfonyl]-N~2~-{(3S)-1-[(2S)-1-(4-methyl-1,4-diazepan-1-yl)-1-oxopropan-2-yl]-2-oxopyrrolidin-3-yl}glycinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.75；293 K；18% PEG 6000, 100 mm MES PH 5.75, 10 mm calcium chloride
Resolution 2.00 Å R-free 0.236
4Y79 Factor Xa complex with GTC000406 Deposited 2015-02-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa）
Chain B 46–179（134 aa） Fragment：UNP residues 46-179
Not recorded CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 4O6 (E)-2-(4-chlorophenyl)-N-{(3S)-1-[(2S)-1-(morpholin-4-yl)-1-oxopropan-2-yl]-2-oxopyrrolidin-3-yl}ethenesulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.75；293 K；18% PEG 6000, 100 mM MES PH5.75, 10 mM calcium chloride
Resolution 2.10 Å R-free 0.216
4Y7A Factor Xa complex with GTC000422 Deposited 2015-02-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa）
Chain B 46–179（134 aa） Fragment：UNP residues 46-179
Not recorded CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 987 N-[(3S)-1-{(2S)-1-[(3S)-3-aminopiperidin-1-yl]-1-oxopropan-2-yl}-2-oxopyrrolidin-3-yl]-6-chloronaphthalene-2-sulfonamid e × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；18% PEG 6000, 100 mM MES PH 5.75, 10 mM calcium chloride
Resolution 1.99 Å R-free 0.236
4Y7B Factor Xa complex with GTC000441 Deposited 2015-02-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa）
Chain B 46–179（134 aa） Fragment：UNP residues 46-179
Not recorded CA CALCIUM ION × 1 44I 6-chloro-N-{(3S)-1-[(2S)-1-{(1R,5S)-7-[2-(methylamino)ethyl]-3,7-diazabicyclo[3.3.1]non-3-yl}-1-oxopropan-2-yl]-2-oxopy rrolidin-3-yl}naphthalene-2-sulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.75；293 K；18% PEG 6000, 100 mM MES PH 5.75, 10 mM calcium chloride
Resolution 1.79 Å R-free 0.212
4ZH8 Factor Xa complex with GTC000006 Deposited 2015-04-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa） Fragment：residues 235 - 488
Chain B 46–179（134 aa） Fragment：residues 43-179
Not recorded CA CALCIUM ION × 1 4O4 6-chloro-N-{(3S)-1-[(2S)-1-(morpholin-4-yl)-1-oxopropan-2-yl]-2-oxo-2,3-dihydro-1H-pyrrol-3-yl}-N-(2-oxobutyl)naphthalene-2-sulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；16-20% PEG 6K, 50 mM Mes=NaOH pH 5.7-6.0, 5 mM CaCl2 and 50 mM NaCl
Resolution 1.80 Å R-free 0.255
4ZHA Factor Xa complex with GTC000102 Deposited 2015-04-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–488（254 aa） Fragment：residues 235-488
Chain B 46–179（134 aa） Fragment：residues 46-179
Not recorded CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 4O5 4-[(3S)-3-({[(E)-2-(5-chlorothiophen-2-yl)ethenyl]sulfonyl}amino)-2-oxo-2,3-dihydro-1H-pyrrol-1-yl]-3-fluoro-N-methylbenzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；16-20% PEG 6K, 50 mM Mes-NaOH (pH 5.7-6.0), 5 mM CaCl2, and 50 mM NaCl
Resolution 1.86 Å R-free 0.238
5JQY Aspartyl/Asparaginyl beta-hydroxylase (AspH)oxygenase and TPR domains in complex with manganese, N-oxalylglycine and factor X substrate peptide fragment(39mer-4Ser) Deposited 2016-05-05 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa） Fragment：UNP residues 86-124
Not recorded MN MANGANESE (II) ION × 1 OGA N-OXALYLGLYCINE × 1 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；100mM SPG buffer, 25% PEG 1500, 2mM NOG, 1mM MnCl2, 18mg/ml protein
Resolution 1.99 Å R-free 0.205
5JTC Aspartyl/Asparaginyl beta-hydroxylase (AspH)oxygenase and TPR domains in complex with manganese, 2,4-pyridine dicarboxylate and factor X substrate peptide fragment(39mer-4Ser) Deposited 2016-05-09 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa） Fragment：UNP Residues 86-124
Not recorded MN MANGANESE (II) ION × 1 PD2 PYRIDINE-2,4-DICARBOXYLIC ACID × 1 BR BROMIDE ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；20% PEG3350, 200mM NaBr, 100mM BisTris Propane, 1mM MnCl2, 2mM 2,4-PDCA, 330uM ASPH, 726uM Factor X
Resolution 2.24 Å R-free 0.208
5JZ8 Aspartyl/Asparaginyl beta-hydroxylase (AspH)oxygenase and TPR domains in complex with manganese, N-oxalylglycine, and factor X substrate peptide fragment (39mer) Deposited 2016-05-16 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Not recorded MN MANGANESE (II) ION × 1 OGA N-OXALYLGLYCINE × 1 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100 mM Bis-tris propane, 200mM sodium acetate, 20% PEG 3350, 1 mM manganese chloride, 2 mM N-oxalylglycine, 726 uM FX peptide, 18 mg/ml protein
Resolution 2.10 Å R-free 0.216
5JZU Aspartyl/Asparaginyl beta-hydroxylase (AspH)oxygenase and TPR domains in complex with manganese, N-oxalylglycine and factor X substrate peptide fragment (26mer) Deposited 2016-05-17 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–111（26 aa）
Not recorded MN MANGANESE (II) ION × 1 OGA N-OXALYLGLYCINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100 mM Bis-tris propane, 20 mM sodium/potassium phosphate, 20% PEG 3350, 1 mM manganese chloride, 2 mM N-oxalylglycine, 1.65 mM factor X peptide, 18 mg/ml asph protein
Resolution 2.50 Å R-free 0.229
5K0H Human factor Xa in complex with synthetic inhibitor benzylsulfonyl-dSer(Benzyl)-Gly-4-amidinobenzylamide Deposited 2016-05-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa）
Chain B 128–178（51 aa）
Not recorded CA CALCIUM ION × 2 6PK O-benzyl-N-(benzylsulfonyl)-D-seryl-N-[(4-carbamimidoylphenyl)methyl]glycinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100 mM MES, 12-18 % PEG6000, 5 mM CaCl2
Resolution 2.20 Å R-free 0.261
5VOE DesGla-XaS195A Bound to Aptamer 11F7t Deposited 2017-05-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain H 235–467（233 aa） Fragment：residues 235-467
Chain L 128–178（51 aa） Fragment：residues 128-178
Mutation：S419A NA SODIUM ION × 1 CA CALCIUM ION × 1 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；298 K；0.1 M Bicine, 0.1 M Tris base, 0.1 M Carboxylic Acids, 10% PEG 20,000, 20% PEG 500 monomethyl ester
Resolution 2.00 Å R-free 0.248
5VOF DesGla-XaS195A Bound to Aptamer 11F7t and Rivaroxaban Deposited 2017-05-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain H 235–467（233 aa） Fragment：residue 235-467
Chain L 128–178（51 aa） Fragment：residues 128-178
Mutation：S419A RIV 5-chloro-N-({(5S)-2-oxo-3-[4-(3-oxomorpholin-4-yl)phenyl]-1,3-oxazolidin-5-yl}methyl)thiophene-2-carboxamide × 1 NA SODIUM ION × 1 CA CALCIUM ION × 1 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；298 K；0.1 M Bicine, 0.1 M Tris base, 0.1 M Carboxylic acids, 10% PEG 20,000, 20% PEG 500 MME
Resolution 2.25 Å R-free 0.253
6Q9F Aspartyl/Asparaginyl beta-hydroxylase (AspH) H679A in complex with Mn, NOG and Factor X peptide fragment (39mer-4Ser) Deposited 2018-12-18 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S MN MANGANESE (II) ION × 1 OGA N-OXALYLGLYCINE × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；0.2 M sodium chloride 0.1 M Tris-HCl 8.0 20 % w/v PEG 6000
Resolution 1.63 Å R-free 0.200
6Q9I Aspartyl/Asparaginyl beta-hydroxylase (AspH) H679A in complex with Factor X peptide fragment (39mer-4Ser) Deposited 2018-12-18 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S FMT FORMIC ACID × 3 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.2 M sodium formate, 20 % w/v PEG 3350
Resolution 1.85 Å R-free 0.223
6YYW Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with manganese, 2-oxoglutarate, and factor X substrate peptide fragment(39mer-4Ser) Deposited 2020-05-06 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Not recorded MN MANGANESE (II) ION × 1 AKG 2-OXOGLUTARIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；100 mM Bis Tris Propane, 200 mM sodium acetate trihydrate, 20% w/v PEG 3350, 1 mM manganese chloride, 2 mM 2-oxoglutarate, 18 mg/ml protein
Resolution 2.27 Å R-free 0.224
6YYX Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with manganese, 3-methyl-2-oxoglutarate, and factor X substrate peptide fragment(39mer-4Ser) Deposited 2020-05-06 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Not recorded MN MANGANESE (II) ION × 1 Q1Z (3~{R})-3-methyl-2-oxidanylidene-pentanedioic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；200 mM Bis Tris Propane, 200 mM sodium/potassium phosphate, 20% w/v PEG 3350, 1 mM manganese chloride, 2 mM 3-methyl-2-oxoglutarate, 18 mg/ml protein
Resolution 1.53 Å R-free 0.192
6YYY Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with manganese, 4,4-dimethyl-2-oxoglutarate, and factor X substrate peptide fragment(39mer-4Ser) Deposited 2020-05-06 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Not recorded MN MANGANESE (II) ION × 1 Q1W 2,2-dimethyl-4-oxidanylidene-pentanedioic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；200 mM sodium bromide, 20% w/v PEG 3350, 1 mM manganese chloride, 2 mM 4,4-dimethyl-2-oxoglutarate, 18 mg/ml protein
Resolution 2.29 Å R-free 0.244
6Z6Q Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with manganese, 3-ethyl-2-oxoglutarate, and factor X substrate peptide fragment(39mer-4Ser) Deposited 2020-05-29 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Not recorded GOL GLYCEROL × 1 MN MANGANESE (II) ION × 1 QA8 (3~{R})-3-ethyl-2-oxidanylidene-pentanedioic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；100 mM HEPES sodium, 200 mM ammonium chloride, 20% w/v PEG 6000, 1 mM manganese chloride, 2 mM 3-ethyl-2-oxoglutarate, 18 mg/ml protein
Resolution 1.81 Å R-free 0.232
6Z6R Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with manganese, N-oxalyl-alpha-methylalanine, and factor X substrate peptide fragment(39mer-4Ser) Deposited 2020-05-29 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Not recorded MN MANGANESE (II) ION × 1 BR BROMIDE ION × 1 GOL GLYCEROL × 1 UQK N-oxalyl-alpha-methylalanine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100 mM Bis Tris propane, 200 mM sodium bromide, 20% w/v PEG 3350, 1 mM manganese chloride, 2 mM N-oxalyl-alpha-methylalanine, 18 mg/ml protein
Resolution 2.13 Å R-free 0.242
7AHU Anti-FX Fab of mim8 in complex with human FXa Deposited 2020-09-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 235–475（241 aa）
Chain D 126–182（57 aa）
Not recorded 0GJ L-alpha-glutamyl-N-{(1S)-4-{[amino(iminio)methyl]amino}-1-[(1S)-2-chloro-1-hydroxyethyl]butyl}glycinamide × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.2 M sodium acetate, 0.1 M sodium cacodylate, pH 6.5, 18 % (w/v) PEG 8000
Resolution 2.60 Å R-free 0.263
7AHU Anti-FX Fab of mim8 in complex with human FXa Deposited 2020-09-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 235–475（241 aa）
Chain F 126–182（57 aa）
Not recorded 0GJ L-alpha-glutamyl-N-{(1S)-4-{[amino(iminio)methyl]amino}-1-[(1S)-2-chloro-1-hydroxyethyl]butyl}glycinamide × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.2 M sodium acetate, 0.1 M sodium cacodylate, pH 6.5, 18 % (w/v) PEG 8000
Resolution 2.60 Å R-free 0.263
7BMI Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with manganese, 3-fluoropyridine-2,4-dicarboxylic acid, and factor X substrate peptide fragment (39mer-4Ser) Deposited 2021-01-20 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Not recorded MN MANGANESE (II) ION × 1 U4B 3-fluoranylpyridine-2,4-dicarboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；100 mM HEPES sodium, 200 mM ammonium chloride, 20% w/v PEG 4000, 1 mM manganese chloride, 2 mM 2-oxoglutarate, 18 mg/ml protein
Resolution 1.66 Å R-free 0.220
7BMJ Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with manganese, 5-fluoropyridine-2,4-dicarboxylic acid, and factor X substrate peptide fragment (39mer-4Ser) Deposited 2021-01-20 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Not recorded MN MANGANESE (II) ION × 1 U4Q 5-fluoranylpyridine-2,4-dicarboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；200 mM sodium nitrate, 20% w/v PEG 3350, 1 mM manganese chloride, 18 mg/ml protein
Resolution 1.75 Å R-free 0.251
7E6J Aspartyl/Asparaginyl beta-hydroxylase (AspH) H725A in complex with Factor X peptide fragment (39mer-4Ser) Deposited 2021-02-22 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S,C95S,C112S,C121S GOL GLYCEROL × 3 PPI PROPANOIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；100mM PCTP, 25% w/v PEG 1500
Resolution 1.90 Å R-free 0.213
7TPP Cryo-em structure of human prothrombin:prothrombinase at 4.1 Angstrom resolution Deposited 2022-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 41–179（139 aa） Fragment：UNP residues 41-179
Chain B 235–488（254 aa） Fragment：UNP residues 235-488
Mutation：S379A No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；20mM Hepes, 150mM NaCl, 5mM CaCl2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7YB9 Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with L-2-hydroxyglutarate and factor X-derived peptide (39mer-4Ser) Deposited 2022-06-29 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S MN MANGANESE (II) ION × 1 S2G (2S)-2-HYDROXYPENTANEDIOIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.2 M lithium chloride, 20 % w/v Polyethylene glycol 6,000, 0.1 M Bis-Tris propane
Resolution 1.54 Å R-free 0.215
7YBB Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with D-4-hydroxy-2-oxoglutarate and factor X-derived peptide (39mer-4Ser) Deposited 2022-06-29 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Not recorded MN MANGANESE (II) ION × 1 IO9 (2~{R})-2-oxidanyl-4-oxidanylidene-pentanedioic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；0.02 M Sodium/potassium phosphate, 20 % w/v Polyethylene glycol 3,350, 0.1 M Bis-Tris propane
Resolution 1.68 Å R-free 0.219
7YBC Aspartyl/Asparaginyl beta-hydroxylase (AspH) oxygenase and TPR domains in complex with (S)-4-hydroxy-4-methyl-2-oxoglutarate and factor X-derived peptide (39mer-4Ser) Deposited 2022-06-29 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S MN MANGANESE (II) ION × 1 GOL GLYCEROL × 1 IOW (2~{S})-2-methyl-2-oxidanyl-4-oxidanylidene-pentanedioic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；0.2 M Sodium acetate trihydrate, 20 % w/v Polyethylene glycol 3,350, 0.1 M Bis Tris propane
Resolution 1.84 Å R-free 0.199
8EOK Structure of the C3bB proconvertase in complex with lufaxin and factor Xa Deposited 2022-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 235–488（254 aa）
Chain L 46–179（134 aa）
Not recorded MG MAGNESIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.53 Å
8RE5 Aspartyl/Asparaginyl beta-hydroxylase (AspH) R735Q variant in complex with Mn, 2-oxosuberate and a Factor X derived peptide fragment Deposited 2023-12-10 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S YQX 2-oxidanylideneoctanedioic acid × 2 MN MANGANESE (II) ION × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M bis tris propane pH 7.5, 0.2 M NaBr, 20% PEG 3350
Resolution 1.70 Å R-free 0.207
8RE6 Aspartyl/Asparaginyl beta-hydroxylase (AspH) R735Q variant in complex with Mn, 2-oxoglutarate and a Factor X derived peptide fragment Deposited 2023-12-10 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S MN MANGANESE (II) ION × 1 AKG 2-OXOGLUTARIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M HEPES pH 7.5, 0.2 M NaCl, 20% PEG 3350
Resolution 1.92 Å R-free 0.216
8RE7 Aspartyl/Asparaginyl beta-hydroxylase (AspH) R735W variant in complex with Mn, 2-oxoglutarate and a Factor X derived peptide fragment Deposited 2023-12-10 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S AKG 2-OXOGLUTARIC ACID × 1 MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M HEPES pH 7.5, 0.2 M NaCl, 20% PEG 3350
Resolution 1.95 Å R-free 0.242
8RE8 Aspartyl/Asparaginyl beta-hydroxylase (AspH) R688Q variant in complex with Mn, (3R)-methyl-2-oxoglutarate and a Factor X derived peptide fragment Deposited 2023-12-10 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S Q1Z (3~{R})-3-methyl-2-oxidanylidene-pentanedioic acid × 1 PEG DI(HYDROXYETHYL)ETHER × 5 MN MANGANESE (II) ION × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M HEPES pH 7.5, 0.2 M NaCl, 20% PEG 3350
Resolution 1.85 Å R-free 0.208
8RE9 Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Mn, 2-oxoglutarate and a Factor X derived peptide fragment Deposited 2023-12-10 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S AKG 2-OXOGLUTARIC ACID × 1 MN MANGANESE (II) ION × 1 PEG DI(HYDROXYETHYL)ETHER × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M HEPES pH 7.5 20 % v/v PEG Smear High (BCS screen)
Resolution 1.84 Å R-free 0.196
9BVL Vitamin K-dependent gamma-carboxylase with factor X propeptide and glutamate-rich region and with vitamin K hydroquinone Deposited 2024-05-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain P 22–85（64 aa） Fragment：residues 22-85
Not recorded A1AVC vitamin K1 hydroquinone × 1 6PL (4S,7R)-4-HYDROXY-N,N,N-TRIMETHYL-9-OXO-7-[(PALMITOYLOXY)METHYL]-3,5,8-TRIOXA-4-PHOSPHAHEXACOSAN-1-AMINIUM 4-OXIDE × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9CLI Cryo-EM model derived from localized reconstruction of human adenovirus (Ad5)-hexon-FX complex at 3.6A resolution Deposited 2024-07-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain Z 1–488（488 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CA CALCIUM ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.61 Å
9CM2 Cryo-EM model derived from localized reconstruction of human adenovirus 6-hexon-FX complex at 4.3A resolution Deposited 2024-07-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain Z 1–488（488 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CA CALCIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.01 Å
9CTH Preliminary map of the Prothrombin-prothrombinase complex on nano discs Deposited 2024-07-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 41–182（142 aa）
Chain C 235–469（235 aa）
Mutation：S195A NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；20 mM HEPES, 150 mM NaCl, and 5 mM CaCl2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.47 Å
9FVU Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate, thiocyanate and Factor X derived peptide fragment Deposited 2024-06-28 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S AKG 2-OXOGLUTARIC ACID × 1 FE FE (III) ION × 1 PEG DI(HYDROXYETHYL)ETHER × 8 SCN THIOCYANATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；278 K；0.1 M bis tris propane pH 7.5, 0.2 M NaSCN, 20% PEG 3350
Resolution 1.70 Å R-free 0.187
9FVV Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Mn, 2OG, thiocyanate and Factor X peptide fragment (39mer-4Ser) Deposited 2024-06-28 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S AKG 2-OXOGLUTARIC ACID × 1 ACT ACETATE ION × 2 PEG DI(HYDROXYETHYL)ETHER × 1 MN MANGANESE (II) ION × 1 SCN THIOCYANATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；278 K；0.1 M bis tris propane pH 7.5, 0.2 M NaSCN, 20% PEG 3350
Resolution 1.60 Å R-free 0.191
9FVW Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2OG, SIN and hydroxylated product of Factor X peptide fragment (39mer-4Ser) Deposited 2024-06-28 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S Non-standard monomer：Yes (specific site not provided by mmCIF) SIN SUCCINIC ACID × 1 AKG 2-OXOGLUTARIC ACID × 1 FE FE (III) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；278 K；0.1 M bis tris propane pH 7.5, 0.2 M NaBr, 20% PEG 3350
Resolution 1.90 Å R-free 0.224
9FVX Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate and Factor X derived peptide fragment Deposited 2024-06-28 Different mutation/modification Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S AKG 2-OXOGLUTARIC ACID × 1 PEG DI(HYDROXYETHYL)ETHER × 7 CL CHLORIDE ION × 2 FE FE (III) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；278 K；0.1 M bis tris propane pH 7.5, 0.2 M NaBr, 20% PEG 3350
Resolution 1.90 Å R-free 0.212
9FVZ Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate and a Factor X derived peptide fragment Deposited 2024-06-28 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S AKG 2-OXOGLUTARIC ACID × 1 PEG DI(HYDROXYETHYL)ETHER × 6 GOL GLYCEROL × 1 FE FE (III) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；278 K；0.1 M bis tris propane pH 7.5, 0.2 M NaBr, 20% PEG 3350
Resolution 1.98 Å R-free 0.213
9FW0 Room temperature structure of Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate and Factor X derived peptide fragment Deposited 2024-06-28 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S AKG 2-OXOGLUTARIC ACID × 1 FE FE (III) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；pH 7.5；278 K；16% PEG 3350, 0.1 M Bis Tris propane pH 7.5, 0.1 M KSCN
Resolution 1.95 Å R-free 0.207
9HNZ Room temperature structure of Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate and hydroxylated Factor X derived peptide fragment, 2 h O2 exposure Deposited 2024-12-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S Non-standard monomer：Yes (specific site not provided by mmCIF) SIN SUCCINIC ACID × 1 FE FE (III) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；pH 7.5；278 K；16% PEG3350, 0.1 M bis tris propane pH 7.5, 0.1 M KSCN
Resolution 2.40 Å R-free 0.237
9HO0 Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate, succinate and the hydroxylated product of Factor X derived peptide fragment, 12 h O2 exposure Deposited 2024-12-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S Non-standard monomer：Yes (specific site not provided by mmCIF) SIN SUCCINIC ACID × 1 FE FE (III) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；pH 7.5；278 K；16% PEG 3350, 0.1 M bis-tris propane pH 7.5, 0.1 M KSCN
Resolution 2.14 Å R-free 0.232
9HO1 Room temperature structure of Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate, and hydroxylated Factor X derived peptide fragment, 1.5 s O2 exposure Deposited 2024-12-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S Non-standard monomer：Yes (specific site not provided by mmCIF) AKG 2-OXOGLUTARIC ACID × 1 SIN SUCCINIC ACID × 1 FE FE (III) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；pH 7.5；278 K；16% PEG3350, 0.1M Bis Tris propane pH 7.5, 0.1 M KSCN
Resolution 1.85 Å R-free 0.221
9HO2 Room temperature structure of Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate and Factor X derived peptide fragment, excess Fe removed Deposited 2024-12-11 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S AKG 2-OXOGLUTARIC ACID × 1 FE FE (III) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；pH 7.5；278 K；16% PEG 3350, 0.1 M Bis Tris propane pH 7.5, 0.1 M KSCN
Resolution 1.83 Å R-free 0.219
9HO3 Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2OG, nitric oxide, and Factor X peptide fragment Deposited 2024-12-11 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 86–124（39 aa）
Mutation：C90S, C95S, C112S, C121S NA SODIUM ION × 1 K POTASSIUM ION × 1 FE FE (III) ION × 1 AKG 2-OXOGLUTARIC ACID × 1 NO NITRIC OXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；278 K；0.1 M bis tris propane pH 7.5, 16% PEG3350, 0.1 M KSCN
Resolution 2.39 Å R-free 0.242
9I24 Coagulation factor Xa complex with a2-loop peptide Deposited 2025-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 235–486（252 aa）
Chain L 126–179（54 aa）
Not recorded CA CALCIUM ION × 1 NA SODIUM ION × 1 CL CHLORIDE ION × 1 IMD IMIDAZOLE × 1 0GJ L-alpha-glutamyl-N-{(1S)-4-{[amino(iminio)methyl]amino}-1-[(1S)-2-chloro-1-hydroxyethyl]butyl}glycinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；287 K；imidazole, MPD
Resolution 1.20 Å R-free 0.172
9I2H A 3.3 angstrom cryo-EM structure of an engineered high-affinity human prothrombinase complex Deposited 2025-01-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: pentameric
Chain H 235–488（254 aa）
Chain L 41–179（139 aa）
Mutation：E129N, S130E, T132K, K134D, N166H, K169M, S173D, I175R, A233R, D239K Mutation：S90R, L91A, D92F, H101K, E102R, E103V, N105S CA CALCIUM ION × 2 NA SODIUM ION × 1 0GJ L-alpha-glutamyl-N-{(1S)-4-{[amino(iminio)methyl]amino}-1-[(1S)-2-chloro-1-hydroxyethyl]butyl}glycinamide × 1 CU COPPER (II) ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20mM HEPES, 150mM NaCl and 5mM CaCl2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.28 Å
9L6S double-mutant (K217A & K218A) Vitamin K-dependent gamma-carboxylase in complex with coagulation factors X and vitamin K Deposited 2024-12-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–488（488 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 A1EMC 2-methyl-3-[(2~{E},6~{E},10~{E})-3,7,11,15-tetramethylhexadeca-2,6,10,14-tetraenyl]naphthalene-1,4-diol × 1 6PL (4S,7R)-4-HYDROXY-N,N,N-TRIMETHYL-9-OXO-7-[(PALMITOYLOXY)METHYL]-3,5,8-TRIOXA-4-PHOSPHAHEXACOSAN-1-AMINIUM 4-OXIDE × 2 CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.58 Å
9P0X Nanodisc-embedded human TF/FVIIa/XK1 in complex with 10H10 Fab (nanodisc-subtracted) Deposited 2025-06-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric
Chain X 41–171（131 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 4 CA CALCIUM ION × 12 BGC beta-D-glucopyranose × 1 FUC alpha-L-fucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9R8R Factor Xa bound to BAY 3389934 Deposited 2025-05-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 235–468（234 aa）
Chain B 128–177（50 aa）
Not recorded CA CALCIUM ION × 1 A1JDJ 2-(1-methylimidazol-2-yl)ethyl (2~{S})-3-[(5-chloranylthiophen-2-yl)carbonylamino]-2-[[2-ethyl-3-[(3~{S})-3-oxidanyl-2-oxidanylidene-pyrrolidin-1-yl]phenyl]sulfonylamino]propanoate × 1 GOL GLYCEROL × 2 PE8 3,6,9,12,15,18,21-HEPTAOXATRICOSANE-1,23-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；293 K；0.1M MES pH5.8, 3.5% PEG1000, 25% PEG600, 11% Glycerol
Resolution 2.04 Å R-free 0.266
9WF9 Cryo-EM structure of GGCX-FX complex Deposited 2025-08-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 23–50（28 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 2 MX7 (2R)-3-(phosphonooxy)propane-1,2-diyl (9Z,9'Z)bis-octadec-9-enoate × 1 CLR CHOLESTEROL × 1 A1AT1 (1aR,7aS)-1a-methyl-7a-[(2E,6E,10E)-3,7,11,15-tetramethylhexadeca-2,6,10,14-tetraen-1-yl]-1a,7a-dihydronaphtho[2,3-b]oxirene-2,7-dione × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
9YQ8 Cryo-EM complex of meizothrombinDESF1, factor Xa, and factor Va Deposited 2025-10-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 124–467（344 aa）
Mutation：S379A No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.84 Å

183 other PDB entries and 220 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name FA10_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–39； UniProt 86–124

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 9fvy

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 9fvy
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9fvy
Deposition date deposition_date2024-06-28
Structure title titleAspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate, succinate and the hudroxylated product of Factor X derived peptide fragment after O2 exposure
Keywords keywordsAspH, Aspartyl/Asparaginyl beta-hydroxylase, O2 exposure, product complex, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier26.18 Å
Radius of gyration Rg (electron density) rg_electron26.15 Å
Forward intensity I(0) i042527700.00
Molecular weight molecular_weight50744.0 kDa
Excluded volume excluded_volume63474 ų
Envelope volume envelope_volume75699 ų
Hydration-shell volume shell_volume25123 ų
Envelope diameter envelope_diameter92.0 Å
Shell Rg shell_rg32.13 Å
Envelope Rg envelope_rg26.17 Å
Shape Rg shape_rg26.12 Å
Total Rg total_rg26.88 Å
Total atoms total_atoms3576
Residues n_residues446
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax89.0 Å
Rg (real space) rg_real26.31 Å
Rg uncertainty (real space) rg_real_error0.93 Å
I(0) (real space) i0_real4.2530e+07
I(0) uncertainty (real space) i0_real_error7.2990e+05
Rg (reciprocal space) rg_reciprocal26.27 Å
I(0) (reciprocal space) i0_reciprocal42530000.0000
Solution quality estimate total_estimate0.8682
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary26.3 Å
Skewness Skewness skewness0.462
Kurtosis Kurtosis kurtosis-0.309
Angular range angular_range— – 0.3050 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha7922000.0000
Real-space data points n_real_points62
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.822; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.872; Smooth: 0.951
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (9)

▶

8. Citations (1)

▶

9. Files and Curves (10)
