9g3p

Circularly permuted lumazine synthase 12-pentamer spherical cage

Method: ELECTRON MICROSCOPY
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

6,7-dimethyl-8-ribityllumazine synthase

Aquifex aeolicus VF5

UniProt O66529

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein homooligomer Homooligomer Protein 60 No other associated polymer Consistent with protein count

Other States of the Same Protein in the Database

Monomer
8yt4 8yt4

2 assemblies

Homodimer

None

Homotetramer

None

Other homooligomers
1hqk 1nqu 1nqv 1nqw 1nqx 28ro 5mpp 5mq3 5mq7 7x7m 8f25 8pvj

31 assemblies; showing the first 12

Heteromeric or nucleic-acid complex
7a4f 7a4g 7a4h 7a4i 7a4j 9ryj 9ryk 9rym

8 assemblies

View Construct and Data Evidence
UniProt name RISB_AQUAE
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 2–71； UniProt 85–154 Author chain A； PDBConstruct 82–163； UniProt 3–84 Author chain AA； PDBConstruct 2–71； UniProt 85–154 Author chain AA； PDBConstruct 82–163； UniProt 3–84 Author chain AB； PDBConstruct 2–71； UniProt 85–154 Author chain AB； PDBConstruct 82–163； UniProt 3–84 Author chain B； PDBConstruct 2–71； UniProt 85–154 Author chain B； PDBConstruct 82–163； UniProt 3–84 Author chain BA； PDBConstruct 2–71； UniProt 85–154 Author chain BA； PDBConstruct 82–163； UniProt 3–84 Author chain BB； PDBConstruct 2–71； UniProt 85–154 Author chain BB； PDBConstruct 82–163； UniProt 3–84 Author chain C； PDBConstruct 2–71； UniProt 85–154 Author chain C； PDBConstruct 82–163； UniProt 3–84 Author chain CA； PDBConstruct 2–71； UniProt 85–154 Author chain CA； PDBConstruct 82–163； UniProt 3–84 Author chain CB； PDBConstruct 2–71； UniProt 85–154 Author chain CB； PDBConstruct 82–163； UniProt 3–84 Author chain D； PDBConstruct 2–71； UniProt 85–154 Author chain D； PDBConstruct 82–163； UniProt 3–84 Author chain DA； PDBConstruct 2–71； UniProt 85–154 Author chain DA； PDBConstruct 82–163； UniProt 3–84 Author chain DB； PDBConstruct 2–71； UniProt 85–154 Author chain DB； PDBConstruct 82–163； UniProt 3–84 Author chain E； PDBConstruct 2–71； UniProt 85–154 Author chain E； PDBConstruct 82–163； UniProt 3–84 Author chain EA； PDBConstruct 2–71； UniProt 85–154 Author chain EA； PDBConstruct 82–163； UniProt 3–84 Author chain EB； PDBConstruct 2–71； UniProt 85–154 Author chain EB； PDBConstruct 82–163； UniProt 3–84 Author chain F； PDBConstruct 2–71； UniProt 85–154 Author chain F； PDBConstruct 82–163； UniProt 3–84 Author chain FA； PDBConstruct 2–71； UniProt 85–154 Author chain FA； PDBConstruct 82–163； UniProt 3–84 Author chain FB； PDBConstruct 2–71； UniProt 85–154 Author chain FB； PDBConstruct 82–163； UniProt 3–84 Author chain G； PDBConstruct 2–71； UniProt 85–154 Author chain G； PDBConstruct 82–163； UniProt 3–84 Author chain GA； PDBConstruct 2–71； UniProt 85–154 Author chain GA； PDBConstruct 82–163； UniProt 3–84 Author chain GB； PDBConstruct 2–71； UniProt 85–154 Author chain GB； PDBConstruct 82–163； UniProt 3–84 Author chain H； PDBConstruct 2–71； UniProt 85–154 Author chain H； PDBConstruct 82–163； UniProt 3–84 Author chain HA； PDBConstruct 2–71； UniProt 85–154 Author chain HA； PDBConstruct 82–163； UniProt 3–84 Author chain HB； PDBConstruct 2–71； UniProt 85–154 Author chain HB； PDBConstruct 82–163； UniProt 3–84 Author chain I； PDBConstruct 2–71； UniProt 85–154 Author chain I； PDBConstruct 82–163； UniProt 3–84 Author chain IA； PDBConstruct 2–71； UniProt 85–154 Author chain IA； PDBConstruct 82–163； UniProt 3–84 Author chain J； PDBConstruct 2–71； UniProt 85–154 Author chain J； PDBConstruct 82–163； UniProt 3–84 Author chain JA； PDBConstruct 2–71； UniProt 85–154 Author chain JA； PDBConstruct 82–163； UniProt 3–84 Author chain K； PDBConstruct 2–71； UniProt 85–154 Author chain K； PDBConstruct 82–163； UniProt 3–84 Author chain KA； PDBConstruct 2–71； UniProt 85–154 Author chain KA； PDBConstruct 82–163； UniProt 3–84 Author chain L； PDBConstruct 2–71； UniProt 85–154 Author chain L； PDBConstruct 82–163； UniProt 3–84 Author chain LA； PDBConstruct 2–71； UniProt 85–154 Author chain LA； PDBConstruct 82–163； UniProt 3–84 Author chain M； PDBConstruct 2–71； UniProt 85–154 Author chain M； PDBConstruct 82–163； UniProt 3–84 Author chain MA； PDBConstruct 2–71； UniProt 85–154 Author chain MA； PDBConstruct 82–163； UniProt 3–84 Author chain N； PDBConstruct 2–71； UniProt 85–154 Author chain N； PDBConstruct 82–163； UniProt 3–84 Author chain NA； PDBConstruct 2–71； UniProt 85–154 Author chain NA； PDBConstruct 82–163； UniProt 3–84 Author chain O； PDBConstruct 2–71； UniProt 85–154 Author chain O； PDBConstruct 82–163； UniProt 3–84 Author chain OA； PDBConstruct 2–71； UniProt 85–154 Author chain OA； PDBConstruct 82–163； UniProt 3–84 Author chain P； PDBConstruct 2–71； UniProt 85–154 Author chain P； PDBConstruct 82–163； UniProt 3–84 Author chain PA； PDBConstruct 2–71； UniProt 85–154 Author chain PA； PDBConstruct 82–163； UniProt 3–84 Author chain Q； PDBConstruct 2–71； UniProt 85–154 Author chain Q； PDBConstruct 82–163； UniProt 3–84 Author chain QA； PDBConstruct 2–71； UniProt 85–154 Author chain QA； PDBConstruct 82–163； UniProt 3–84 Author chain R； PDBConstruct 2–71； UniProt 85–154 Author chain R； PDBConstruct 82–163； UniProt 3–84 Author chain RA； PDBConstruct 2–71； UniProt 85–154 Author chain RA； PDBConstruct 82–163； UniProt 3–84 Author chain S； PDBConstruct 2–71； UniProt 85–154 Author chain S； PDBConstruct 82–163； UniProt 3–84 Author chain SA； PDBConstruct 2–71； UniProt 85–154 Author chain SA； PDBConstruct 82–163； UniProt 3–84 Author chain T； PDBConstruct 2–71； UniProt 85–154 Author chain T； PDBConstruct 82–163； UniProt 3–84 Author chain TA； PDBConstruct 2–71； UniProt 85–154 Author chain TA； PDBConstruct 82–163； UniProt 3–84 Author chain U； PDBConstruct 2–71； UniProt 85–154 Author chain U； PDBConstruct 82–163； UniProt 3–84 Author chain UA； PDBConstruct 2–71； UniProt 85–154 Author chain UA； PDBConstruct 82–163； UniProt 3–84 Author chain V； PDBConstruct 2–71； UniProt 85–154 Author chain V； PDBConstruct 82–163； UniProt 3–84 Author chain VA； PDBConstruct 2–71； UniProt 85–154 Author chain VA； PDBConstruct 82–163； UniProt 3–84 Author chain W； PDBConstruct 2–71； UniProt 85–154 Author chain W； PDBConstruct 82–163； UniProt 3–84 Author chain WA； PDBConstruct 2–71； UniProt 85–154 Author chain WA； PDBConstruct 82–163； UniProt 3–84 Author chain X； PDBConstruct 2–71； UniProt 85–154 Author chain X； PDBConstruct 82–163； UniProt 3–84 Author chain XA； PDBConstruct 2–71； UniProt 85–154 Author chain XA； PDBConstruct 82–163； UniProt 3–84 Author chain Y； PDBConstruct 2–71； UniProt 85–154 Author chain Y； PDBConstruct 82–163； UniProt 3–84 Author chain YA； PDBConstruct 2–71； UniProt 85–154 Author chain YA； PDBConstruct 82–163； UniProt 3–84 Author chain Z； PDBConstruct 2–71； UniProt 85–154 Author chain Z； PDBConstruct 82–163； UniProt 3–84 Author chain ZA； PDBConstruct 2–71； UniProt 85–154 Author chain ZA； PDBConstruct 82–163； UniProt 3–84

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9g3p
Deposition date deposition_date2024-07-12
Structure title titleCircularly permuted lumazine synthase 12-pentamer spherical cage
Keywords keywords;protein cage, protein engineering, self-assembly, geometry, helical reconstruction, bionanotechnology, polymorphism, pentamer, DE NOVO PROTEIN ;; DE NOVO PROTEIN
Experimental Method methodELECTRON MICROSCOPY
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9g3p__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

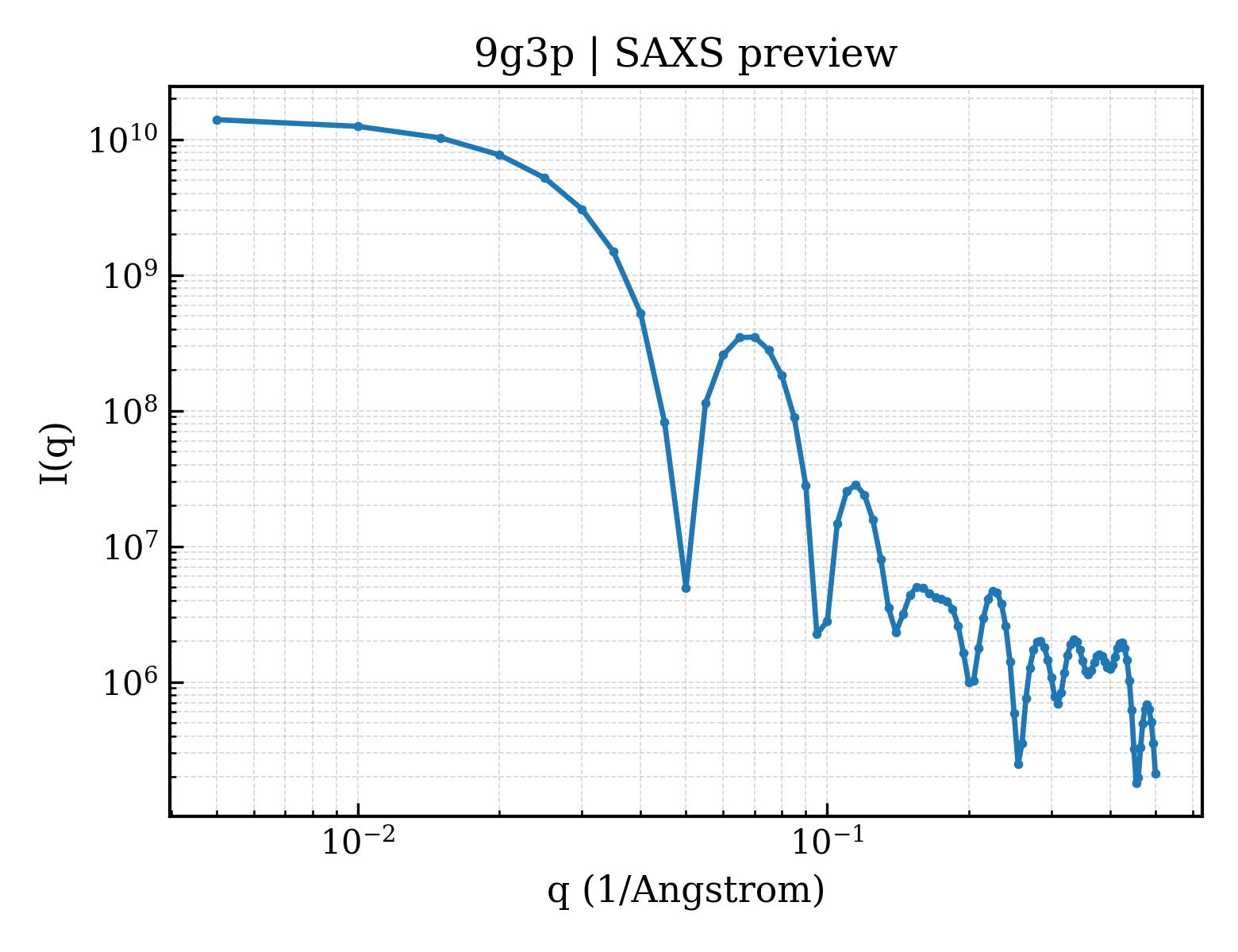

9g3p__assembly_1__model_1 | I(q)

10-2 10-1 106 107 108 109 1010 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

9g3p__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）67.56 Å
Rg (electron density)66.40 Å
Total Rg66.72 Å
Atom count72480
Residues9600
Excluded volume1291800 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 9g3p__assembly_1__model_1 60-meric （60） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▶

7. Citations (1)
