SAXSdb — 9ln6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Maltose/maltodextrin-binding periplasmic protein,NACHT, LRR and PYD domains-containing protein 14

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MALE_ECOLI
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 20–385； UniProt 27–392 Author chain B； PDBConstruct 24–389； UniProt 27–392

Maltose/maltodextrin-binding periplasmic protein,NACHT, LRR and PYD domains-containing protein 14

Homo sapiens

UniProt Q86W24

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Maltose/maltodextrin-binding periplasmic protein,E3 ubiquitin-protein ligase UHRF1 × 1 （P0AEX9,Q96T88）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NAL14_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 414–1506； UniProt 1–1093

Maltose/maltodextrin-binding periplasmic protein,E3 ubiquitin-protein ligase UHRF1

Homo sapiens

UniProt Q96T88

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Maltose/maltodextrin-binding periplasmic protein,NACHT, LRR and PYD domains-containing protein 14 × 1 （P0AEX9,Q86W24）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UHRF1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 418–495； UniProt 1–78

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ln6
Deposition date deposition_date	2025-01-20
Structure title title	Structure of human NLRP14-UHRF1 complex
Keywords keywords	maternal complex, UHRF1, NLRP14, ubiquitylation, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9ln6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9ln6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

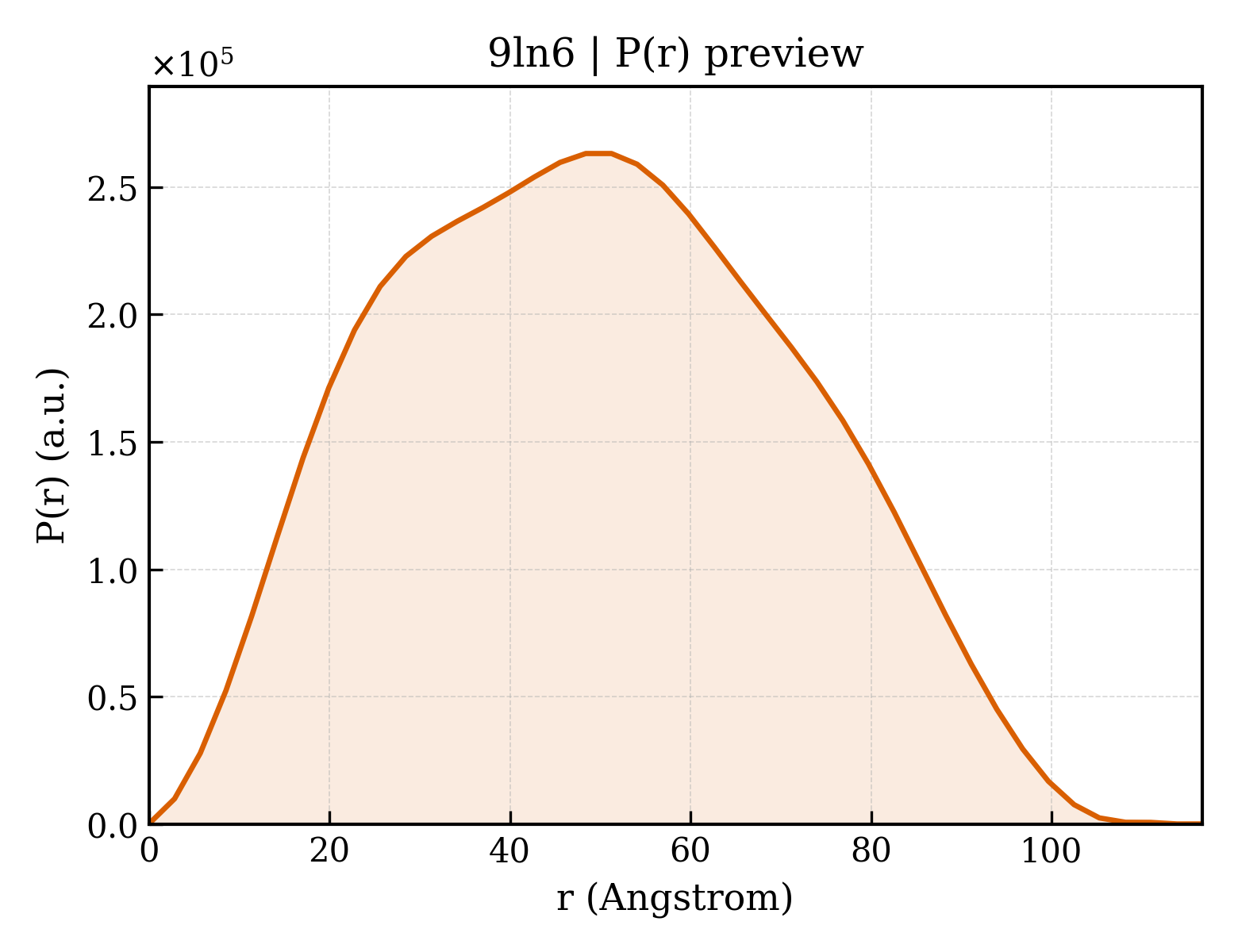

9ln6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.23 Å
Rg (electron density)	37.44 Å
Total Rg	37.88 Å
Atom count	8130
Residues	1012
Excluded volume	145590 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9ln6__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Maltose/maltodextrin-binding periplasmic protein,NACHT, LRR and PYD domains-containing protein 14
Molecular weight formula_weight	170249.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8130

MWSHPQFEKDEVDAGSGHMKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTNSSSNNNNNNNNNNLGIDLEVLFQGPGTMADSSSSSFFPDFGLLLYLEELNKEELNTFKLFLKETMEPEHGLTPWNEVKKARREDLANLMKKYYPGEKAWSVSLKIFGKMNLKDLCERAKEEINWSAQTIGPDDAKAGETQEDQEAVLGDGTEYRNRIKEKFCITWDKKSLAGKPEDFHHGIAEKDRKLLEHLFDVDVKTGAQPQIVVLQGAAGVGKTTLVRKAMLDWAEGSLYQQRFKYVFYLNGREINQLKERSFAQLISKDWPSTEGPIEEIMYQPSSLLFIIDSFDELNFAFEEPEFALCEDWTQEHPVSFLMSSLLRKVMLPEASLLVTTRLTTSKRLKQLLKNHHYVELLGMSEDAREEYIYQFFEDKRWAMKVFSSLKSNEMLFSMCQVPLVCWAACTCLKQQMEKGGDVTLTCQTTTALFTCYISSLFTPVDGGSPSLPNQAQLRRLCQVAAKGIWTMTYVFYRENLRRLGLTQSDVSSFMDSNIIQKDAEYENCYVFTHLHVQEFFAAMFYMLKGSWEAGNPSCQPFEDLKSLLQSTSYKDPHLTQMKCFLFGLLNEDRVKQLERTFNCKMSLKIKSKLLQCMEVLGNSDYSPSQLGFLELFHCLYETQDKAFISQAMRCFPKVAINICEKIHLLVSSFCLKHCRCLRTIRLSVTVVFEKKILKTSLPTNTWDGDRITHCWQDLCSVLHTNEHLRELDLYHSNLDKSAMNILHHELRHPNCKLQKLLLKFITFPDGCQDISTSLIHNKNLMHLDLKGSDIGDNGVKSLCEALKHPECKLQTLRLESCNLTVFCCLNISNALIRSQSLIFLNLSTNNLLDDGVQLLCEALRHPKCYLERLSLESCGLTEAGCEYLSLALISNKRLTHLCLADNVLGDGGVKLMSDALQHAQCTLKSLVLRRCHFTSLSSEYLSTSLLHNKSLTHLDLGSNWLQDNGVKLLCDVFRHPSCNLQDLELMGCVLTNACCLDLASVILNNPNLRSLDLGNNDLQDDGVKILCDALRYPNCNIQRLGLEYCGLTSLCCQDLSSALICNKRLIKMNLTQNTLGYEGIVKLYKVLKSPKCKLQVLGLCKEAFDEEAQKLLEAVGVSNPHLIIKPDCNYHNEEDVSWWWCF

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Maltose/maltodextrin-binding periplasmic protein,E3 ubiquitin-protein ligase UHRF1
Molecular weight formula_weight	55263.1 kDa
EC 编号 ec_number	2.3.2.27
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MHHHHHHHHHHSGDEVDAGSGHMKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTNSSSNNNNNNNNNNLGIDLEVLFQGPGTMWIQVRTMDGRQTHTVDSLSRLTKVEELRRKIQELFHVEPGLQRLFYRGKQMEDGHTLFDYEVRLNDTIQLLVRQSLV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.490 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.49 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	73160
