Cryo-EM structure of the S82C-S82C diabody complex (CitS-diabody #2-TLR3)

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Citrate/sodium symporter

Klebsiella pneumoniae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 5 其他Polymer 4	Diabody (CitS VH-TLR3 VL) × 1 Diabody (TLR3 VH-CitS VL) × 1 Toll-like receptor 3 × 1 （O15455） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 ;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 CITRIC ACID × 1 PALMITIC ACID × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CITN_KLEPN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–446； UniProt 1–446 Author chain B； PDBConstruct 1–446； UniProt 1–446

Toll-like receptor 3

Homo sapiens

UniProt O15455

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 5 其他Polymer 4	Citrate/sodium symporter × 2 （P31602） Diabody (CitS VH-TLR3 VL) × 1 Diabody (TLR3 VH-CitS VL) × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 ;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 CITRIC ACID × 1 PALMITIC ACID × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TLR3_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain E； PDBConstruct 1–904； UniProt 1–904

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9lsi
Deposition date deposition_date	2025-02-04
Structure title title	Cryo-EM structure of the S82C-S82C diabody complex (CitS-diabody #2-TLR3)
Keywords keywords	;Disulfide-bridged diabody, cryo-electron microscopy (cryo-EM), small protein imaging, structural marker, antibody engineering, protein nanotechnology, STRUCTURAL PROTEIN, STRUCTURAL PROTEIN-IMMUNE SYSTEM complex ;; STRUCTURAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9lsi__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9lsi__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

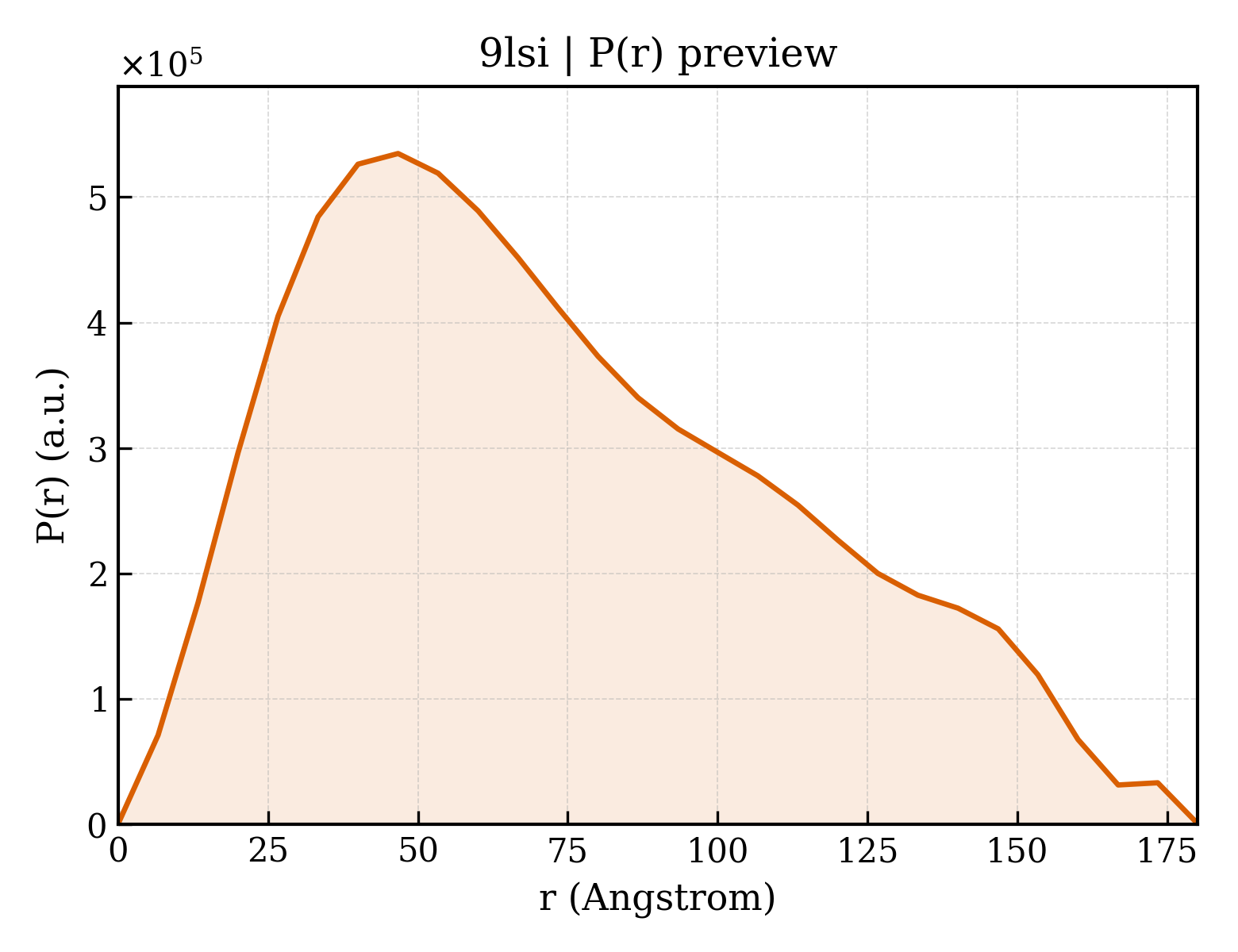

9lsi__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	57.66 Å
Rg (electron density)	58.87 Å
Total Rg	58.93 Å
Atom count	15433
Residues	1986
Excluded volume	278840 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9lsi__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Citrate/sodium symporter
Molecular weight formula_weight	47592.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	15433

MTNMSQPPATEKKGVSDLLGFKIFGMPLPLYAFALITLLLSHFYNALPTDIVGGFAIMFIIGAIFGEIGKRLPIFNKYIGGAPVMIFLVAAYFVYAGIFTQKEIDAISNVMDKSNFLNLFIAVLITGAILSVNRRLLLKSLLGYIPTILMGIVGASIFGIAIGLVFGIPVDRIMMLYVLPIMGGGNGAGAVPLSEIYHSVTGRSREEYYSTAIAILTIANIFAIVFAAVLDIIGKKHTWLSGEGELVRKASFKVEEDEKTGQITHRETAVGLVLSTTCFLLAYVVAKKILPSIGGVAIHYFAWMVLIVAALNASGLCSPEIKAGAKRLSDFFSKQLLWVLMVGVGVCYTDLQEIINAITFANVVIAAIIVIGAVLGAAIGGWLMGFFPIESAITAGLCMANRGGSGDLEVLSACNRMNLISYAQISSRLGGGIVLVIASIVFGMMI

Source Source

Source organism organism	Klebsiella pneumoniae
NCBI taxonomy ID ncbi_taxonomy_id	573
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Diabody (CitS VH-TLR3 VL)
Molecular weight formula_weight	27119.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

EVQLVESGGGLVQPGGSLRLSCAASGFTFRNSAMHWVRQAPGKGLEWVSSIWYSGSNTYYADSVKGRFTISRDNSKNTLYLQMNCLTAEDTAVYYCARFAGGWGAYDVWGQGTLVTVSSGGGGSDIQMTQSPSSLSASVGDRVTITARASQSIGLYLAWYQQKPGKAPKLLIYAASSLQSGVPSRFSGSGSGTDFTLTISSLQPEDFATYYCQQGNTLSYTFGQGTKVEIKPWLVPRGSHHHHHHSGGGGSGGGGS

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Diabody (TLR3 VH-CitS VL)
Molecular weight formula_weight	28452.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

GGGGSGGGGLVPRGSPGEVQLVQSGAEVKKPGESLKISCKGSGYSFTNYWVGWVRQMPGKGLEWMGFIDPSDSYTNYADSVKGRFTISADKSISTAYLQMNCLTASDTAMYYCARELYQGYMDTFDSWGQGTLVTVSSGGGGSDIVLTQSPATLSLSPGERATLSCRASQSVSSNYLAWYQQKPGQAPRLLIYDSSSRATGVPARFSGSGSGTDFTLTISSLEPEDFAVYYCHQYSDISPTFGQGTKVEIKSGRLVPRGSHHHHHH

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Trichoplusia ni

Entity 4 Entity 4 polymer

Description description	Toll-like receptor 3
Molecular weight formula_weight	103946.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MRQTLPCIYFWGGLLPFGMLCASSTTKCTVSHEVADCSHLKLTQVPDDLPTNITVLNLTHNQLRRLPAANFTRYSQLTSLDVGFNTISKLEPELCQKLPMLKVLNLQHNELSQLSDKTFAFCTNLTELHLMSNSIQKIKNNPFVKQKNLITLDLSHNGLSSTKLGTQVQLENLQELLLSNNKIQALKSEELDIFANSSLKKLELSSNQIKEFSPGCFHAIGRLFGLFLNNVQLGPSLTEKLCLELANTSIRNLSLSNSQLSTTSNTTFLGLKWTNLTMLDLSYNNLNVVGNDSFAWLPQLEYFFLEYNNIQHLFSHSLHGLFNVRYLNLKRSFTKQSISLASLPKIDDFSFQWLKCLEHLNMEDNDIPGIKSNMFTGLINLKYLSLSNSFTSLRTLTNETFVSLAHSPLHILNLTKNKISKIESDAFSWLGHLEVLDLGLNEIGQELTGQEWRGLENIFEIYLSYNKYLQLTRNSFALVPSLQRLMLRRVALKNVDSSPSPFQPLRNLTILDLSNNNIANINDDMLEGLEKLEILDLQHNNLARLWKHANPGGPIYFLKGLSHLHILNLESNGFDEIPVEVFKDLFELKIIDLGLNNLNTLPASVFNNQVSLKSLNLQKNLITSVEKKVFGPAFRNLTELDMRFNPFDCTCESIAWFVNWINETHTNIPELSSHYLCNTPPHYHGFPVRLFDTSSCKDSAPFELFFMINTSILLIFIFIVLLIHFEGWRISFYWNVSVHRVLGFKEIDRQTEQFEYAAYIIHAYKDKDWVWEHFSSMEKEDQSLKFCLEERDFEAGVFELEAIVNSIKRSRKIIFVITHHLLKDPLCKRFKVHHAVQQAIEQNLDSIILVFLEEIPDYKLNHALCLRRGMFKSHCILNWPVQKERIGAFRHKLQVALGSKNSVH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 5 Entity 5 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	3

Entity 6 Entity 6 branched

Description description	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	627.6 kDa
Source method src_method	man
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	CITRIC ACID
Molecular weight formula_weight	192.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	PALMITIC ACID
Molecular weight formula_weight	256.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	5

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.30 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	123394
