9lsj

Cryo-EM structure of the G15C-R66C and T83C-T83C diabody complex (CitS-diabody #7-TLR3)

Method: ELECTRON MICROSCOPY D_max: 172.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9lsj
沉积日期 deposition_date	2025-02-04
结构标题 title	Cryo-EM structure of the G15C-R66C and T83C-T83C diabody complex (CitS-diabody #7-TLR3)
关键词 keywords	;Disulfide-bridged diabody, cryo-electron microscopy (cryo-EM), small protein imaging, structural marker, antibody engineering, protein nanotechnology, STRUCTURAL PROTEIN, STRUCTURAL PROTEIN-IMMUNE SYSTEM complex ;; STRUCTURAL PROTEIN/IMMUNE SYSTEM
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	54.73 Å
回转半径 Rg (电子) rg_electron	55.74 Å
零角强度 I(0) i0	625050000.00
分子量 molecular_weight	219240.0 kDa
排除体积 excluded_volume	278800 Å³
包络体积 envelope_volume	397390 Å³
水化壳体积 shell_volume	62547 Å³
包络直径 envelope_diameter	182.4 Å
壳层 Rg shell_rg	53.17 Å
包络 Rg envelope_rg	54.98 Å
形状 Rg shape_rg	55.70 Å
总 Rg total_rg	55.81 Å
总原子数 total_atoms	15438
残基数 n_residues	1989
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

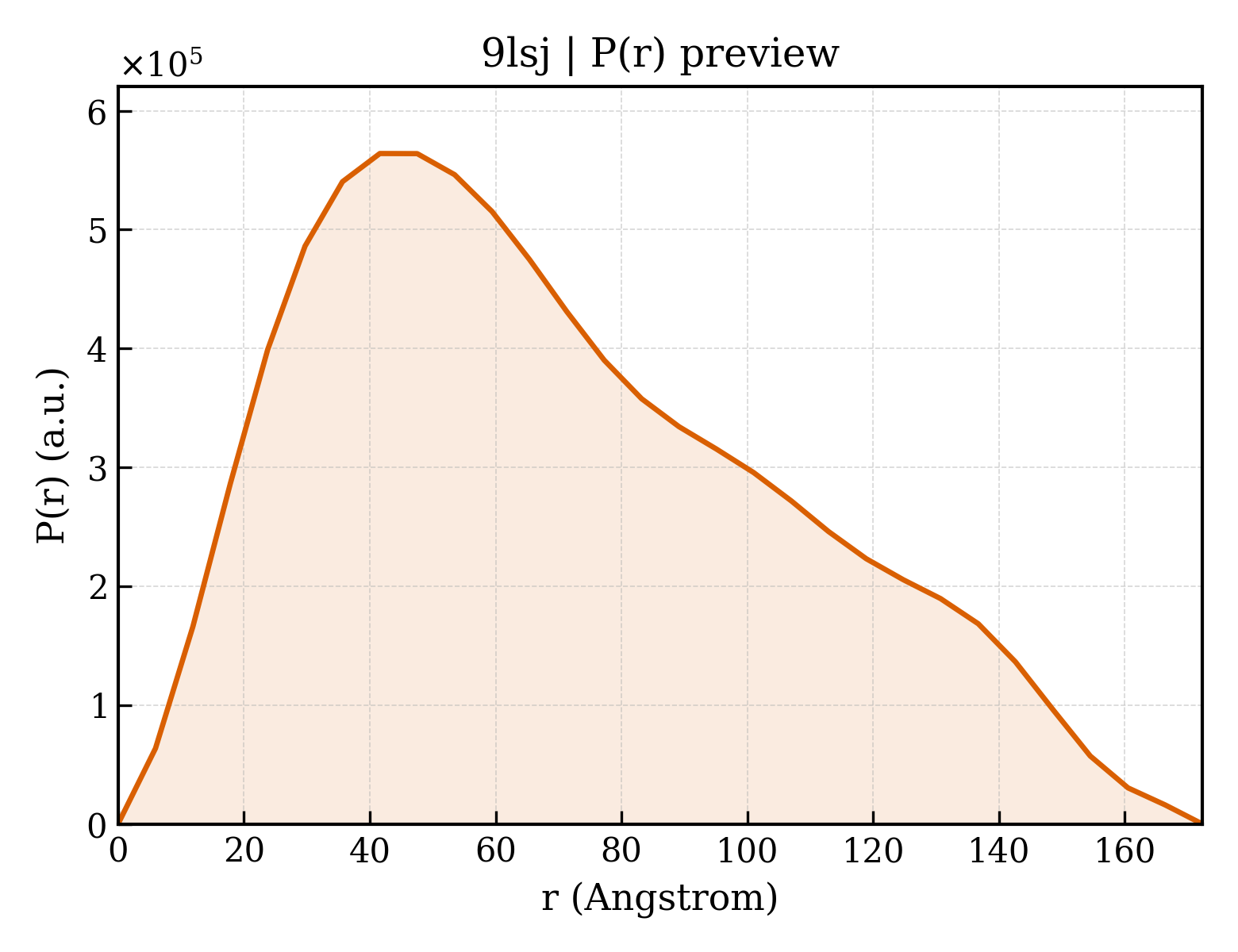

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	172.3 Å
Rg (实空间) rg_real	55.25 Å
Rg 误差 (实空间) rg_real_error	1.31 Å
I(0) (实空间) i0_real	6.2510e+08
I(0) 误差 (实空间) i0_real_error	1.1070e+07
Rg (倒空间) rg_reciprocal	54.26 Å
I(0) (倒空间) i0_reciprocal	624100000.0000
解质量估计 total_estimate	0.7990
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	41.6 Å
偏度 Skewness skewness	0.484
峰度 Kurtosis kurtosis	-0.624
角度范围 angular_range	— – 0.1450 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	30360000.0000
实空间数据点数 n_real_points	30
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.853; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.822; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	Citrate/sodium symporter
分子量 formula_weight	47592.5 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	15438

MTNMSQPPATEKKGVSDLLGFKIFGMPLPLYAFALITLLLSHFYNALPTDIVGGFAIMFIIGAIFGEIGKRLPIFNKYIGGAPVMIFLVAAYFVYAGIFTQKEIDAISNVMDKSNFLNLFIAVLITGAILSVNRRLLLKSLLGYIPTILMGIVGASIFGIAIGLVFGIPVDRIMMLYVLPIMGGGNGAGAVPLSEIYHSVTGRSREEYYSTAIAILTIANIFAIVFAAVLDIIGKKHTWLSGEGELVRKASFKVEEDEKTGQITHRETAVGLVLSTTCFLLAYVVAKKILPSIGGVAIHYFAWMVLIVAALNASGLCSPEIKAGAKRLSDFFSKQLLWVLMVGVGVCYTDLQEIINAITFANVVIAAIIVIGAVLGAAIGGWLMGFFPIESAITAGLCMANRGGSGDLEVLSACNRMNLISYAQISSRLGGGIVLVIASIVFGMMI

来源 Source

来源生物 organism	Klebsiella pneumoniae
NCBI 分类编号 ncbi_taxonomy_id	573
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Toll-like receptor 3
分子量 formula_weight	103946.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MRQTLPCIYFWGGLLPFGMLCASSTTKCTVSHEVADCSHLKLTQVPDDLPTNITVLNLTHNQLRRLPAANFTRYSQLTSLDVGFNTISKLEPELCQKLPMLKVLNLQHNELSQLSDKTFAFCTNLTELHLMSNSIQKIKNNPFVKQKNLITLDLSHNGLSSTKLGTQVQLENLQELLLSNNKIQALKSEELDIFANSSLKKLELSSNQIKEFSPGCFHAIGRLFGLFLNNVQLGPSLTEKLCLELANTSIRNLSLSNSQLSTTSNTTFLGLKWTNLTMLDLSYNNLNVVGNDSFAWLPQLEYFFLEYNNIQHLFSHSLHGLFNVRYLNLKRSFTKQSISLASLPKIDDFSFQWLKCLEHLNMEDNDIPGIKSNMFTGLINLKYLSLSNSFTSLRTLTNETFVSLAHSPLHILNLTKNKISKIESDAFSWLGHLEVLDLGLNEIGQELTGQEWRGLENIFEIYLSYNKYLQLTRNSFALVPSLQRLMLRRVALKNVDSSPSPFQPLRNLTILDLSNNNIANINDDMLEGLEKLEILDLQHNNLARLWKHANPGGPIYFLKGLSHLHILNLESNGFDEIPVEVFKDLFELKIIDLGLNNLNTLPASVFNNQVSLKSLNLQKNLITSVEKKVFGPAFRNLTELDMRFNPFDCTCESIAWFVNWINETHTNIPELSSHYLCNTPPHYHGFPVRLFDTSSCKDSAPFELFFMINTSILLIFIFIVLLIHFEGWRISFYWNVSVHRVLGFKEIDRQTEQFEYAAYIIHAYKDKDWVWEHFSSMEKEDQSLKFCLEERDFEAGVFELEAIVNSIKRSRKIIFVITHHLLKDPLCKRFKVHHAVQQAIEQNLDSIILVFLEEIPDYKLNHALCLRRGMFKSHCILNWPVQKERIGAFRHKLQVALGSKNSVH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 3 polymer

描述 description	Diabody (CitS VH-TLR3 VL)
分子量 formula_weight	27183.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

EVQLVESGGGLVQPCGSLRLSCAASGFTFRNSAMHWVRQAPGKGLEWVSSIWYSGSNTYYADSVKGRFTISRDNSKNTLYLQMNSLCAEDTAVYYCARFAGGWGAYDVWGQGTLVTVSSGGGGSDIQMTQSPSSLSASVGDRVTITCRASQSIGLYLAWYQQKPGKAPKLLIYAASSLQSGVPSRFSGSGSGTDFTLTISSLQPEDFATYYCQQGNTLSYTFGQGTKVEIKPWLVPRGSHHHHHHSGGGGSGGGGS

来源 Source

来源生物 organism	synthetic construct
NCBI 分类编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Trichoplusia ni

Entity 4 polymer

描述 description	Diabody (TLR3 VH-CitS VL)
分子量 formula_weight	28384.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

GGGGSGGGGLVPRGSPGEVQLVQSGAEVKKPGESLKISCKGSGYSFTNYWVGWVRQMPGKGLEWMGFIDPSDSYTNYADSVKGCFTISADKSISTAYLQMNSLCASDTAMYYCARELYQGYMDTFDSWGQGTLVTVSSGGGGSDIVLTQSPATLSLSPGERATLSCRASQSVSSNYLAWYQQKPGQAPRLLIYDSSSRATGVPARFSGSGSGTDFTLTISSLEPEDFAVYYCHQYSDISPTFGQGTKVEIKSGRLVPRGSHHHHHH

来源 Source

来源生物 organism	synthetic construct
NCBI 分类编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Trichoplusia ni

Entity 5 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 6 branched

描述 description	beta-D-mannopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 non-polymer

描述 description	CITRIC ACID
分子量 formula_weight	192.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 8 non-polymer

描述 description	PALMITIC ACID
分子量 formula_weight	256.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 9 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	4

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.10 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	259962

fit	/app/data/saxs_computation/ls/9lsj/9lsj.fit
pddf	/app/data/pr_computation/ls/9lsj/9lsj.pr.out
profile	/app/data/saxs_computation/ls/9lsj/9lsj.dat
