SAXSdb — 9lu8

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9lu8
沉积日期 deposition_date	2025-02-08
结构标题 title	Structure of yeast 1,3-beta-glucan synthase FKS2
关键词 keywords	FKS2, 1, 3-beta-glucan synthase, glycotransferase, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	40.05 Å
回转半径 Rg (电子) rg_electron	39.39 Å
零角强度 I(0) i0	377618000.00
分子量 molecular_weight	164330.0 kDa
排除体积 excluded_volume	207910 Å³
包络体积 envelope_volume	305730 Å³
水化壳体积 shell_volume	64190 Å³
包络直径 envelope_diameter	135.7 Å
壳层 Rg shell_rg	45.70 Å
包络 Rg envelope_rg	38.60 Å
形状 Rg shape_rg	39.37 Å
总 Rg total_rg	39.88 Å
总原子数 total_atoms	11631
残基数 n_residues	1524
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	131.1 Å
Rg (实空间) rg_real	39.99 Å
Rg 误差 (实空间) rg_real_error	0.80 Å
I(0) (实空间) i0_real	3.7760e+08
I(0) 误差 (实空间) i0_real_error	5.8120e+06
Rg (倒空间) rg_reciprocal	40.05 Å
I(0) (倒空间) i0_reciprocal	377600000.0000
解质量估计 total_estimate	0.8921
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	47.1 Å
偏度 Skewness skewness	0.268
峰度 Kurtosis kurtosis	-0.458
角度范围 angular_range	— – 0.1950 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	85840000.0000
实空间数据点数 n_real_points	40
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.900; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.893

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	1,3-beta-glucan synthase component GSC2
分子量 formula_weight	218211.9 kDa
EC 编号 ec_number	2.4.1.34
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	11631

MSYNDPNLNGQYYSNGDGTGDGNYPTYQVTQDQSAYDEYGQPIYTQNQLDDGYYDPNEQYVDGTQFPQGQDPSQDQGPYNNDASYYNQPPNMMNPSSQDGENFSDFSSYGPPSGTYPNDQYTPSQMSYPDQDGSSGASTPYGNGVVNGNGQYYDPNAIEMALPNDPYPAWTADPQSPLPIEQIEDIFIDLTNKFGFQRDSMRNMFDHFMTLLDSRSSRMSPEQALLSLHADYIGGDTANYKKWYFAAQLDMDDEIGFRNMKLGKLSRKARKAKKKNKKAMQEASPEDTEETLNQIEGDNSLEAADFRWKSKMNQLSPFEMVRQIALFLLCWGEANQVRFTPECLCFIYKCASDYLDSAQCQQRPDPLPEGDFLNRVITPLYRFIRSQVYEIVDGRYVKSEKDHNKVIGYDDVNQLFWYPEGIAKIVMEDGTRLIDLPAEERYLKLGEIPWDDVFFKTYKETRSWLHLVTNFNRIWIMHISVYWMYCAYNAPTFYTHNYQQLVDNQPLAAYKWATAALGGTVASLIQVAATLCEWSFVPRKWAGAQHLSRRFWFLCVIMGINLGPVIFVFAYDKDTVYSTAAHVVGAVMFFVAVATLVFFSVMPLGGLFTSYMKKSTRSYVASQTFTASFAPLHGLDRWMSYLVWVTVFAAKYAESYFFLILSLRDPIRILSTTSMRCTGEYWWGNKICKVQPKIVLGLMIATDFILFFLDTYLWYIVVNTVFSVGKSFYLGISILTPWRNIFTRLPKRIYSKILATTDMEIKYKPKVLISQIWNAIIISMYREHLLAIDHVQKLLYHQVPSEIEGKRTLRAPTFFVSQDDNNFETEFFPRDSEAERRISFFAQSLSTPIPEPLPVDNMPTFTVLTPHYAERILLSLREIIREDDQFSRVTLLEYLKQLHPVEWDCFVKDTKILAEETAAYENNEDEPEKEDALKSQIDDLPFYCIGFKSAAPEYTLRTRIWASLRSQTLYRTISGFMNYSRAIKLLYRVENPEIVQMFGGNADGLERELEKMARRKFKFLVSMQRLAKFKPHELENAEFLLRAYPDLQIAYLDEEPPLNEGEEPRIYSALIDGHCEILENGRRRPKFRVQLSGNPILGDGKSDNQNHALIFYRGEYIQLIDANQDNYLEECLKIRSVLAEFEELGIEQIHPYTPGLKYEDQSTNHPVAIVGAREYIFSENSGVLGDVAAGKEQTFGTLFARTLAQIGGKLHYGHPDFINATFMTTRGGVSKAQKGLHLNEDIYAGMNAVLRGGRIKHCEYYQCGKGRDLGFGTILNFTTKIGAGMGEQMLSREYYYLGTQLPIDRFLTFYYAHPGFHLNNLFIQLSLQMFMLTLVNLHALAHESILCVYDRDKPITDVLYPIGCYNFHPAIDWVRRYTLSIFIVFWIAFVPIVVQELIERGLWKATQRFFRHILSLSPMFEVFAGQIYSSALLSDIAVGGARYISTGRGFATSRIPFSILYSRFAGSAIYMGSRSMLMLLFGTVAHWQAPLLWFWASLSALIFAPFIFNPHQFAWEDFFLDYRDYIRWLSRGNNKYHRNSWIGYVRMSRSRVTGFKRKLVGDESEKSAGDASRAHRTNLIMAEIIPCAIYAAGCFIAFTFINAQTGVKTTDEDRVNSTLRIIICTLAPIVIDIGVLFFCMGLSCCSGPLLGMCCKKTGSVMAGIAHGIAVVVHIVFFIVMWVLEGFSFVRMLIGVVTCIQCQRLIFHCMTVLLLTREFKNDHANTAFWTGKWYSTGLGYMAWTQPTRELTAKVIELSEFAADFVLGHVILIFQLPVICIPKIDKFHSIMLFWLKPSRQIRPPIYSLKQARLRKRMVRRYCSLYFLVLIIFAGCIVGPAVASAHVPKDLGSGLTGTFHNLVQPRNVSNNDTGSQMSTYKSHYYTHTPSLKTWSTIKDYKDDDDK

来源 Source

来源生物 organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 2 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 3 branched

描述 description	alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose
分子量 formula_weight	504.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.990 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	2.99 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	450233

fit	/app/data/saxs_computation/lu/9lu8/9lu8.fit
pddf	/app/data/pr_computation/lu/9lu8/9lu8.pr.out
profile	/app/data/saxs_computation/lu/9lu8/9lu8.dat

Structure of yeast 1,3-beta-glucan synthase FKS2

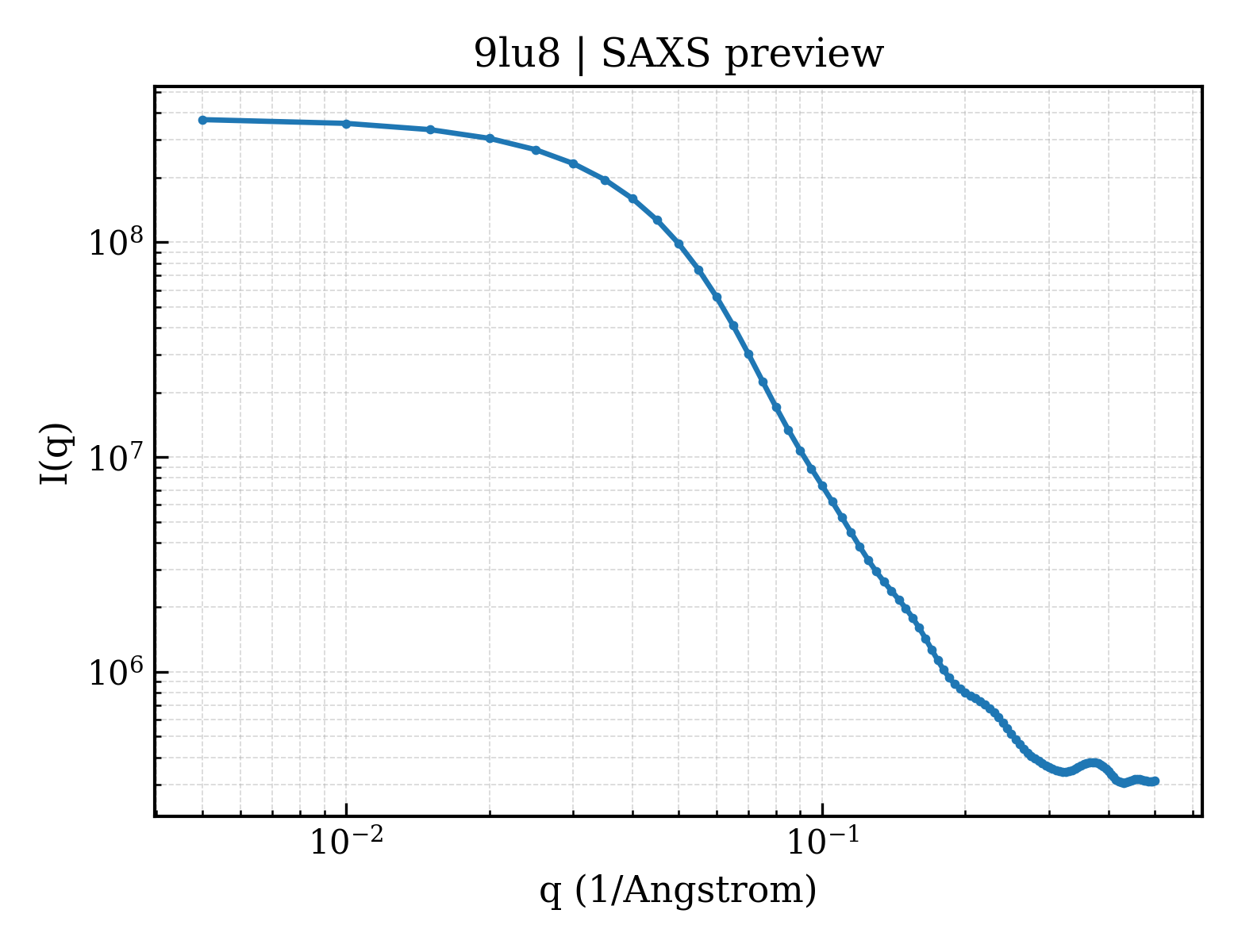

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

冷冻电镜 EM 3D
