1. Structure Basics

entry_id	9x04
deposition_date	2025-09-29
title	Cryo-EM structure of Fks2 with intact active site
keywords	enfumafungin, 1, 3-beta-glucan synthase component GSC2, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	38.95 Å
rg_electron	38.19 Å
i0	424301000.00
molecular_weight	187240.0 kDa
excluded_volume	241950 Å³
envelope_volume	320830 Å³
shell_volume	67633 Å³
envelope_diameter	137.1 Å
shell_rg	46.04 Å
envelope_rg	37.93 Å
shape_rg	38.21 Å
total_rg	38.62 Å
total_atoms	26639
n_residues	1542
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	125.7 Å
rg_real	38.85 Å
rg_real_error	0.78 Å
i0_real	4.2430e+08
i0_real_error	6.5690e+06
rg_reciprocal	38.92 Å
i0_reciprocal	424300000.0000
total_estimate	0.8926
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	46.0 Å
skewness	0.269
kurtosis	-0.438
angular_range	— – 0.2050 Å⁻¹
current_alpha	0.0001
highest_alpha	89070000.0000
n_real_points	42
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.909; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.878

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	1,3-beta-glucan synthase component GSC2
formula_weight	217214.9 kDa
ec_number	2.4.1.34
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	26639

MSYNDPNLNGQYYSNGDGTGDGNYPTYQVTQDQSAYDEYGQPIYTQNQLDDGYYDPNEQYVDGTQFPQGQDPSQDQGPYNNDASYYNQPPNMMNPSSQDGENFSDFSSYGPPSGTYPNDQYTPSQMSYPDQDGSSGASTPYGNGVVNGNGQYYDPNAIEMALPNDPYPAWTADPQSPLPIEQIEDIFIDLTNKFGFQRDSMRNMFDHFMTLLDSRSSRMSPEQALLSLHADYIGGDTANYKKWYFAAQLDMDDEIGFRNMKLGKLSRKARKAKKKNKKAMQEASPEDTEETLNQIEGDNSLEAADFRWKSKMNQLSPFEMVRQIALFLLCWGEANQVRFTPECLCFIYKCASDYLDSAQCQQRPDPLPEGDFLNRVITPLYRFIRSQVYEIVDGRYVKSEKDHNKVIGYDDVNQLFWYPEGIAKIVMEDGTRLIDLPAEERYLKLGEIPWDDVFFKTYKETRSWLHLVTNFNRIWIMHISVYWMYCAYNAPTFYTHNYQQLVDNQPLAAYKWATAALGGTVASLIQVAATLCEWSFVPRKWAGAQHLSRRFWFLCVIMGINLGPVIFVFAYDKDTVYSTAAHVVGAVMFFVAVATLVFFSVMPLGGLFTSYMKKSTRSYVASQTFTASFAPLHGLDRWMSYLVWVTVFAAKYAESYFFLILSLRDPIRILSTTSMRCTGEYWWGNKICKVQPKIVLGLMIATDFILFFLDTYLWYIVVNTVFSVGKSFYLGISILTPWRNIFTRLPKRIYSKILATTDMEIKYKPKVLISQIWNAIIISMYREHLLAIDHVQKLLYHQVPSEIEGKRTLRAPTFFVSQDDNNFETEFFPRDSEAERRISFFAQSLSTPIPEPLPVDNMPTFTVLTPHYAERILLSLREIIREDDQFSRVTLLEYLKQLHPVEWDCFVKDTKILAEETAAYENNEDEPEKEDALKSQIDDLPFYCIGFKSAAPEYTLRTRIWASLRSQTLYRTISGFMNYSRAIKLLYRVENPEIVQMFGGNADGLERELEKMARRKFKFLVSMQRLAKFKPHELENAEFLLRAYPDLQIAYLDEEPPLNEGEEPRIYSALIDGHCEILENGRRRPKFRVQLSGNPILGDGKSDNQNHALIFYRGEYIQLIDANQDNYLEECLKIRSVLAEFEELGIEQIHPYTPGLKYEDQSTNHPVAIVGAREYIFSENSGVLGDVAAGKEQTFGTLFARTLAQIGGKLHYGHPDFINATFMTTRGGVSKAQKGLHLNEDIYAGMNAVLRGGRIKHCEYYQCGKGRDLGFGTILNFTTKIGAGMGEQMLSREYYYLGTQLPIDRFLTFYYAHPGFHLNNLFIQLSLQMFMLTLVNLHALAHESILCVYDRDKPITDVLYPIGCYNFHPAIDWVRRYTLSIFIVFWIAFVPIVVQELIERGLWKATQRFFRHILSLSPMFEVFAGQIYSSALLSDIAVGGARYISTGRGFATSRIPFSILYSRFAGSAIYMGSRSMLMLLFGTVAHWQAPLLWFWASLSALIFAPFIFNPHQFAWEDFFLDYRDYIRWLSRGNNKYHRNSWIGYVRMSRSRVTGFKRKLVGDESEKSAGDASRAHRTNLIMAEIIPCAIYAAGCFIAFTFINAQTGVKTTDEDRVNSTLRIIICTLAPIVIDIGVLFFCMGLSCCSGPLLGMCCKKTGSVMAGIAHGIAVVVHIVFFIVMWVLEGFSFVRMLIGVVTCIQCQRLIFHCMTVLLLTREFKNDHANTAFWTGKWYSTGLGYMAWTQPTRELTAKVIELSEFAADFVLGHVILIFQLPVICIPKIDKFHSIMLFWLKPSRQIRPPIYSLKQARLRKRMVRRYCSLYFLVLIIFAGCIVGPAVASAHVPKDLGSGLTGTFHNLVQPRNVSNNDTGSQMSTYKSHYYTHTPSLKTWSTIK

Source

organism	Saccharomyces cerevisiae S288C
ncbi_taxonomy_id	559292
host_organism	Saccharomyces cerevisiae

Entity 2 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	man
entity_count	1

Entity 3 non-polymer

description	ERGOSTEROL
formula_weight	396.6 kDa
src_method	syn
entity_count	20

Entity 4 non-polymer

description	Enfumafungin
formula_weight	708.9 kDa
src_method	syn
entity_count	1

Entity 5 non-polymer

description	(2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate
formula_weight	760.1 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.41 Å
resolution_method	—
num_particles	34524

fit	/app/data/saxs_computation/x0/9x04/9x04.fit
pddf	/app/data/pr_computation/x0/9x04/9x04.pr.out
profile	/app/data/saxs_computation/x0/9x04/9x04.dat

Cryo-EM structure of Fks2 with intact active site

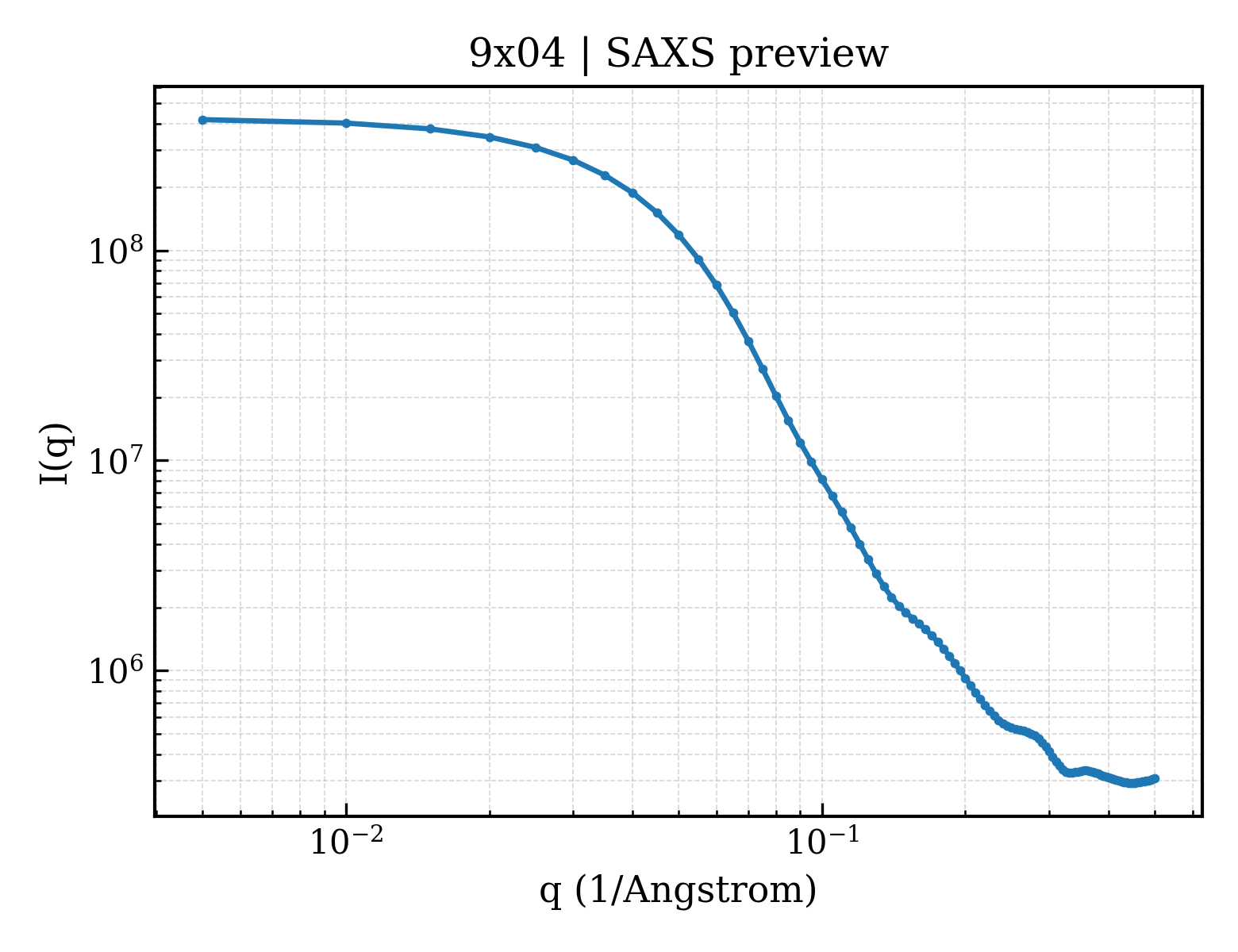

SAXS Profile

P(r) Distribution
