SAXSdb — 9ly9

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Major carboxysome shell protein CsoS1A

Halothiobacillus neapolitanus c2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 1080	Carboxysome shell vertex protein CsoS4A × 60 （O85043） Carboxysome assembly protein CsoS2B × 120 （O85041）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CSOSA_HALNC
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A0； PDBConstruct 1–98； UniProt 1–98 Author chain A1； PDBConstruct 1–98； UniProt 1–98 Author chain A2； PDBConstruct 1–98； UniProt 1–98 Author chain A3； PDBConstruct 1–98； UniProt 1–98 Author chain A4； PDBConstruct 1–98； UniProt 1–98 Author chain A5； PDBConstruct 1–98； UniProt 1–98 Author chain A6； PDBConstruct 1–98； UniProt 1–98 Author chain A7； PDBConstruct 1–98； UniProt 1–98 Author chain A8； PDBConstruct 1–98； UniProt 1–98 Author chain A9； PDBConstruct 1–98； UniProt 1–98 Author chain AA； PDBConstruct 1–98； UniProt 1–98 Author chain AB； PDBConstruct 1–98； UniProt 1–98 Author chain AC； PDBConstruct 1–98； UniProt 1–98 Author chain AD； PDBConstruct 1–98； UniProt 1–98 Author chain AE； PDBConstruct 1–98； UniProt 1–98 Author chain AF； PDBConstruct 1–98； UniProt 1–98 Author chain AG； PDBConstruct 1–98； UniProt 1–98 Author chain AH； PDBConstruct 1–98； UniProt 1–98 Author chain AI； PDBConstruct 1–98； UniProt 1–98 Author chain AJ； PDBConstruct 1–98； UniProt 1–98 Author chain AK； PDBConstruct 1–98； UniProt 1–98 Author chain AL； PDBConstruct 1–98； UniProt 1–98 Author chain AM； PDBConstruct 1–98； UniProt 1–98 Author chain AN； PDBConstruct 1–98； UniProt 1–98 Author chain AO； PDBConstruct 1–98； UniProt 1–98 Author chain AP； PDBConstruct 1–98； UniProt 1–98 Author chain AQ； PDBConstruct 1–98； UniProt 1–98 Author chain AR； PDBConstruct 1–98； UniProt 1–98 Author chain AS； PDBConstruct 1–98； UniProt 1–98 Author chain AT； PDBConstruct 1–98； UniProt 1–98 Author chain AU； PDBConstruct 1–98； UniProt 1–98 Author chain AV； PDBConstruct 1–98； UniProt 1–98 Author chain AW； PDBConstruct 1–98； UniProt 1–98 Author chain AX； PDBConstruct 1–98； UniProt 1–98 Author chain AY； PDBConstruct 1–98； UniProt 1–98 Author chain AZ； PDBConstruct 1–98； UniProt 1–98 Author chain Aa； PDBConstruct 1–98； UniProt 1–98 Author chain Ab； PDBConstruct 1–98； UniProt 1–98 Author chain Ac； PDBConstruct 1–98； UniProt 1–98 Author chain Ad； PDBConstruct 1–98； UniProt 1–98 Author chain Ae； PDBConstruct 1–98； UniProt 1–98 Author chain Af； PDBConstruct 1–98； UniProt 1–98 Author chain Ag； PDBConstruct 1–98； UniProt 1–98 Author chain Ah； PDBConstruct 1–98； UniProt 1–98 Author chain Ai； PDBConstruct 1–98； UniProt 1–98 Author chain Aj； PDBConstruct 1–98； UniProt 1–98 Author chain Ak； PDBConstruct 1–98； UniProt 1–98 Author chain Al； PDBConstruct 1–98； UniProt 1–98 Author chain Am； PDBConstruct 1–98； UniProt 1–98 Author chain An； PDBConstruct 1–98； UniProt 1–98 Author chain Ao； PDBConstruct 1–98； UniProt 1–98 Author chain Ap； PDBConstruct 1–98； UniProt 1–98 Author chain Aq； PDBConstruct 1–98； UniProt 1–98 Author chain Ar； PDBConstruct 1–98； UniProt 1–98 Author chain As； PDBConstruct 1–98； UniProt 1–98 Author chain At； PDBConstruct 1–98； UniProt 1–98 Author chain Au； PDBConstruct 1–98； UniProt 1–98 Author chain Av； PDBConstruct 1–98； UniProt 1–98 Author chain Aw； PDBConstruct 1–98； UniProt 1–98 Author chain Ax； PDBConstruct 1–98； UniProt 1–98 Author chain B0； PDBConstruct 1–98； UniProt 1–98 Author chain B1； PDBConstruct 1–98； UniProt 1–98 Author chain B2； PDBConstruct 1–98； UniProt 1–98 Author chain B3； PDBConstruct 1–98； UniProt 1–98 Author chain B4； PDBConstruct 1–98； UniProt 1–98 Author chain B5； PDBConstruct 1–98； UniProt 1–98 Author chain B6； PDBConstruct 1–98； UniProt 1–98 Author chain B7； PDBConstruct 1–98； UniProt 1–98 Author chain B8； PDBConstruct 1–98； UniProt 1–98 Author chain B9； PDBConstruct 1–98； UniProt 1–98 Author chain BA； PDBConstruct 1–98； UniProt 1–98 Author chain BB； PDBConstruct 1–98； UniProt 1–98 Author chain BC； PDBConstruct 1–98； UniProt 1–98 Author chain BD； PDBConstruct 1–98； UniProt 1–98 Author chain BE； PDBConstruct 1–98； UniProt 1–98 Author chain BF； PDBConstruct 1–98； UniProt 1–98 Author chain BG； PDBConstruct 1–98； UniProt 1–98 Author chain BH； PDBConstruct 1–98； UniProt 1–98 Author chain BI； PDBConstruct 1–98； UniProt 1–98 Author chain BJ； PDBConstruct 1–98； UniProt 1–98 Author chain BK； PDBConstruct 1–98； UniProt 1–98 Author chain BL； PDBConstruct 1–98； UniProt 1–98 Author chain BM； PDBConstruct 1–98； UniProt 1–98 Author chain BN； PDBConstruct 1–98； UniProt 1–98 Author chain BO； PDBConstruct 1–98； UniProt 1–98 Author chain BP； PDBConstruct 1–98； UniProt 1–98 Author chain BQ； PDBConstruct 1–98； UniProt 1–98 Author chain BR； PDBConstruct 1–98； UniProt 1–98 Author chain BS； PDBConstruct 1–98； UniProt 1–98 Author chain BT； PDBConstruct 1–98； UniProt 1–98 Author chain BU； PDBConstruct 1–98； UniProt 1–98 Author chain BV； PDBConstruct 1–98； UniProt 1–98 Author chain BW； PDBConstruct 1–98； UniProt 1–98 Author chain BX； PDBConstruct 1–98； UniProt 1–98 Author chain BY； PDBConstruct 1–98； UniProt 1–98 Author chain BZ； PDBConstruct 1–98； UniProt 1–98 Author chain Ba； PDBConstruct 1–98； UniProt 1–98 Author chain Bb； PDBConstruct 1–98； UniProt 1–98 Author chain Bc； PDBConstruct 1–98； UniProt 1–98 Author chain Bd； PDBConstruct 1–98； UniProt 1–98 Author chain Be； PDBConstruct 1–98； UniProt 1–98 Author chain Bf； PDBConstruct 1–98； UniProt 1–98 Author chain Bg； PDBConstruct 1–98； UniProt 1–98 Author chain Bh； PDBConstruct 1–98； UniProt 1–98 Author chain Bi； PDBConstruct 1–98； UniProt 1–98 Author chain Bj； PDBConstruct 1–98； UniProt 1–98 Author chain Bk； PDBConstruct 1–98； UniProt 1–98 Author chain Bl； PDBConstruct 1–98； UniProt 1–98 Author chain Bm； PDBConstruct 1–98； UniProt 1–98 Author chain Bn； PDBConstruct 1–98； UniProt 1–98 Author chain Bo； PDBConstruct 1–98； UniProt 1–98 Author chain Bp； PDBConstruct 1–98； UniProt 1–98 Author chain Bq； PDBConstruct 1–98； UniProt 1–98 Author chain Br； PDBConstruct 1–98； UniProt 1–98 Author chain Bs； PDBConstruct 1–98； UniProt 1–98 Author chain Bt； PDBConstruct 1–98； UniProt 1–98 Author chain Bu； PDBConstruct 1–98； UniProt 1–98 Author chain Bv； PDBConstruct 1–98； UniProt 1–98 Author chain Bw； PDBConstruct 1–98； UniProt 1–98 Author chain Bx； PDBConstruct 1–98； UniProt 1–98 Author chain C0； PDBConstruct 1–98； UniProt 1–98 Author chain C1； PDBConstruct 1–98； UniProt 1–98 Author chain C2； PDBConstruct 1–98； UniProt 1–98 Author chain C3； PDBConstruct 1–98； UniProt 1–98 Author chain C4； PDBConstruct 1–98； UniProt 1–98 Author chain C5； PDBConstruct 1–98； UniProt 1–98 Author chain C6； PDBConstruct 1–98； UniProt 1–98 Author chain C7； PDBConstruct 1–98； UniProt 1–98 Author chain C8； PDBConstruct 1–98； UniProt 1–98 Author chain C9； PDBConstruct 1–98； UniProt 1–98 Author chain CA； PDBConstruct 1–98； UniProt 1–98 Author chain CB； PDBConstruct 1–98； UniProt 1–98 Author chain CC； PDBConstruct 1–98； UniProt 1–98 Author chain CD； PDBConstruct 1–98； UniProt 1–98 Author chain CE； PDBConstruct 1–98； UniProt 1–98 Author chain CF； PDBConstruct 1–98； UniProt 1–98 Author chain CG； PDBConstruct 1–98； UniProt 1–98 Author chain CH； PDBConstruct 1–98； UniProt 1–98 Author chain CI； PDBConstruct 1–98； UniProt 1–98 Author chain CJ； PDBConstruct 1–98； UniProt 1–98 Author chain CK； PDBConstruct 1–98； UniProt 1–98 Author chain CL； PDBConstruct 1–98； UniProt 1–98 Author chain CM； PDBConstruct 1–98； UniProt 1–98 Author chain CN； PDBConstruct 1–98； UniProt 1–98 Author chain CO； PDBConstruct 1–98； UniProt 1–98 Author chain CP； PDBConstruct 1–98； UniProt 1–98 Author chain CQ； PDBConstruct 1–98； UniProt 1–98 Author chain CR； PDBConstruct 1–98； UniProt 1–98 Author chain CS； PDBConstruct 1–98； UniProt 1–98 Author chain CT； PDBConstruct 1–98； UniProt 1–98 Author chain CU； PDBConstruct 1–98； UniProt 1–98 Author chain CV； PDBConstruct 1–98； UniProt 1–98 Author chain CW； PDBConstruct 1–98； UniProt 1–98 Author chain CX； PDBConstruct 1–98； UniProt 1–98 Author chain CY； PDBConstruct 1–98； UniProt 1–98 Author chain CZ； PDBConstruct 1–98； UniProt 1–98 Author chain Ca； PDBConstruct 1–98； UniProt 1–98 Author chain Cb； PDBConstruct 1–98； UniProt 1–98 Author chain Cc； PDBConstruct 1–98； UniProt 1–98 Author chain Cd； PDBConstruct 1–98； UniProt 1–98 Author chain Ce； PDBConstruct 1–98； UniProt 1–98 Author chain Cf； PDBConstruct 1–98； UniProt 1–98 Author chain Cg； PDBConstruct 1–98； UniProt 1–98 Author chain Ch； PDBConstruct 1–98； UniProt 1–98 Author chain Ci； PDBConstruct 1–98； UniProt 1–98 Author chain Cj； PDBConstruct 1–98； UniProt 1–98 Author chain Ck； PDBConstruct 1–98； UniProt 1–98 Author chain Cl； PDBConstruct 1–98； UniProt 1–98 Author chain Cm； PDBConstruct 1–98； UniProt 1–98 Author chain Cn； PDBConstruct 1–98； UniProt 1–98 Author chain Co； PDBConstruct 1–98； UniProt 1–98 Author chain Cp； PDBConstruct 1–98； UniProt 1–98 Author chain Cq； PDBConstruct 1–98； UniProt 1–98 Author chain Cr； PDBConstruct 1–98； UniProt 1–98 Author chain Cs； PDBConstruct 1–98； UniProt 1–98 Author chain Ct； PDBConstruct 1–98； UniProt 1–98 Author chain Cu； PDBConstruct 1–98； UniProt 1–98 Author chain Cv； PDBConstruct 1–98； UniProt 1–98 Author chain Cw； PDBConstruct 1–98； UniProt 1–98 Author chain Cx； PDBConstruct 1–98； UniProt 1–98 Author chain D0； PDBConstruct 1–98； UniProt 1–98 Author chain D1； PDBConstruct 1–98； UniProt 1–98 Author chain D2； PDBConstruct 1–98； UniProt 1–98 Author chain D3； PDBConstruct 1–98； UniProt 1–98 Author chain D4； PDBConstruct 1–98； UniProt 1–98 Author chain D5； PDBConstruct 1–98； UniProt 1–98 Author chain D6； PDBConstruct 1–98； UniProt 1–98 Author chain D7； PDBConstruct 1–98； UniProt 1–98 Author chain D8； PDBConstruct 1–98； UniProt 1–98 Author chain D9； PDBConstruct 1–98； UniProt 1–98 Author chain DA； PDBConstruct 1–98； UniProt 1–98 Author chain DB； PDBConstruct 1–98； UniProt 1–98 Author chain DC； PDBConstruct 1–98； UniProt 1–98 Author chain DD； PDBConstruct 1–98； UniProt 1–98 Author chain DE； PDBConstruct 1–98； UniProt 1–98 Author chain DF； PDBConstruct 1–98； UniProt 1–98 Author chain DG； PDBConstruct 1–98； UniProt 1–98 Author chain DH； PDBConstruct 1–98； UniProt 1–98 Author chain DI； PDBConstruct 1–98； UniProt 1–98 Author chain DJ； PDBConstruct 1–98； UniProt 1–98 Author chain DK； PDBConstruct 1–98； UniProt 1–98 Author chain DL； PDBConstruct 1–98； UniProt 1–98 Author chain DM； PDBConstruct 1–98； UniProt 1–98 Author chain DN； PDBConstruct 1–98； UniProt 1–98 Author chain DO； PDBConstruct 1–98； UniProt 1–98 Author chain DP； PDBConstruct 1–98； UniProt 1–98 Author chain DQ； PDBConstruct 1–98； UniProt 1–98 Author chain DR； PDBConstruct 1–98； UniProt 1–98 Author chain DS； PDBConstruct 1–98； UniProt 1–98 Author chain DT； PDBConstruct 1–98； UniProt 1–98 Author chain DU； PDBConstruct 1–98； UniProt 1–98 Author chain DV； PDBConstruct 1–98； UniProt 1–98 Author chain DW； PDBConstruct 1–98； UniProt 1–98 Author chain DX； PDBConstruct 1–98； UniProt 1–98 Author chain DY； PDBConstruct 1–98； UniProt 1–98 Author chain DZ； PDBConstruct 1–98； UniProt 1–98 Author chain Da； PDBConstruct 1–98； UniProt 1–98 Author chain Db； PDBConstruct 1–98； UniProt 1–98 Author chain Dc； PDBConstruct 1–98； UniProt 1–98 Author chain Dd； PDBConstruct 1–98； UniProt 1–98 Author chain De； PDBConstruct 1–98； UniProt 1–98 Author chain Df； PDBConstruct 1–98； UniProt 1–98 Author chain Dg； PDBConstruct 1–98； UniProt 1–98 Author chain Dh； PDBConstruct 1–98； UniProt 1–98 Author chain Di； PDBConstruct 1–98； UniProt 1–98 Author chain Dj； PDBConstruct 1–98； UniProt 1–98 Author chain Dk； PDBConstruct 1–98； UniProt 1–98 Author chain Dl； PDBConstruct 1–98； UniProt 1–98 Author chain Dm； PDBConstruct 1–98； UniProt 1–98 Author chain Dn； PDBConstruct 1–98； UniProt 1–98 Author chain Do； PDBConstruct 1–98； UniProt 1–98 Author chain Dp； PDBConstruct 1–98； UniProt 1–98 Author chain Dq； PDBConstruct 1–98； UniProt 1–98 Author chain Dr； PDBConstruct 1–98； UniProt 1–98 Author chain Ds； PDBConstruct 1–98； UniProt 1–98 Author chain Dt； PDBConstruct 1–98； UniProt 1–98 Author chain Du； PDBConstruct 1–98； UniProt 1–98 Author chain Dv； PDBConstruct 1–98； UniProt 1–98 Author chain Dw； PDBConstruct 1–98； UniProt 1–98 Author chain Dx； PDBConstruct 1–98； UniProt 1–98 Author chain E0； PDBConstruct 1–98； UniProt 1–98 Author chain E1； PDBConstruct 1–98； UniProt 1–98 Author chain E2； PDBConstruct 1–98； UniProt 1–98 Author chain E3； PDBConstruct 1–98； UniProt 1–98 Author chain E4； PDBConstruct 1–98； UniProt 1–98 Author chain E5； PDBConstruct 1–98； UniProt 1–98 Author chain E6； PDBConstruct 1–98； UniProt 1–98 Author chain E7； PDBConstruct 1–98； UniProt 1–98 Author chain E8； PDBConstruct 1–98； UniProt 1–98 Author chain E9； PDBConstruct 1–98； UniProt 1–98 Author chain EA； PDBConstruct 1–98； UniProt 1–98 Author chain EB； PDBConstruct 1–98； UniProt 1–98 Author chain EC； PDBConstruct 1–98； UniProt 1–98 Author chain ED； PDBConstruct 1–98； UniProt 1–98 Author chain EE； PDBConstruct 1–98； UniProt 1–98 Author chain EF； PDBConstruct 1–98； UniProt 1–98 Author chain EG； PDBConstruct 1–98； UniProt 1–98 Author chain EH； PDBConstruct 1–98； UniProt 1–98 Author chain EI； PDBConstruct 1–98； UniProt 1–98 Author chain EJ； PDBConstruct 1–98； UniProt 1–98 Author chain EK； PDBConstruct 1–98； UniProt 1–98 Author chain EL； PDBConstruct 1–98； UniProt 1–98 Author chain EM； PDBConstruct 1–98； UniProt 1–98 Author chain EN； PDBConstruct 1–98； UniProt 1–98 Author chain EO； PDBConstruct 1–98； UniProt 1–98 Author chain EP； PDBConstruct 1–98； UniProt 1–98 Author chain EQ； PDBConstruct 1–98； UniProt 1–98 Author chain ER； PDBConstruct 1–98； UniProt 1–98 Author chain ES； PDBConstruct 1–98； UniProt 1–98 Author chain ET； PDBConstruct 1–98； UniProt 1–98 Author chain EU； PDBConstruct 1–98； UniProt 1–98 Author chain EV； PDBConstruct 1–98； UniProt 1–98 Author chain EW； PDBConstruct 1–98； UniProt 1–98 Author chain EX； PDBConstruct 1–98； UniProt 1–98 Author chain EY； PDBConstruct 1–98； UniProt 1–98 Author chain EZ； PDBConstruct 1–98； UniProt 1–98 Author chain Ea； PDBConstruct 1–98； UniProt 1–98 Author chain Eb； PDBConstruct 1–98； UniProt 1–98 Author chain Ec； PDBConstruct 1–98； UniProt 1–98 Author chain Ed； PDBConstruct 1–98； UniProt 1–98 Author chain Ee； PDBConstruct 1–98； UniProt 1–98 Author chain Ef； PDBConstruct 1–98； UniProt 1–98 Author chain Eg； PDBConstruct 1–98； UniProt 1–98 Author chain Eh； PDBConstruct 1–98； UniProt 1–98 Author chain Ei； PDBConstruct 1–98； UniProt 1–98 Author chain Ej； PDBConstruct 1–98； UniProt 1–98 Author chain Ek； PDBConstruct 1–98； UniProt 1–98 Author chain El； PDBConstruct 1–98； UniProt 1–98 Author chain Em； PDBConstruct 1–98； UniProt 1–98 Author chain En； PDBConstruct 1–98； UniProt 1–98 Author chain Eo； PDBConstruct 1–98； UniProt 1–98 Author chain Ep； PDBConstruct 1–98； UniProt 1–98 Author chain Eq； PDBConstruct 1–98； UniProt 1–98 Author chain Er； PDBConstruct 1–98； UniProt 1–98 Author chain Es； PDBConstruct 1–98； UniProt 1–98 Author chain Et； PDBConstruct 1–98； UniProt 1–98 Author chain Eu； PDBConstruct 1–98； UniProt 1–98 Author chain Ev； PDBConstruct 1–98； UniProt 1–98 Author chain Ew； PDBConstruct 1–98； UniProt 1–98 Author chain Ex； PDBConstruct 1–98； UniProt 1–98 Author chain F0； PDBConstruct 1–98； UniProt 1–98 Author chain F1； PDBConstruct 1–98； UniProt 1–98 Author chain F2； PDBConstruct 1–98； UniProt 1–98 Author chain F3； PDBConstruct 1–98； UniProt 1–98 Author chain F4； PDBConstruct 1–98； UniProt 1–98 Author chain F5； PDBConstruct 1–98； UniProt 1–98 Author chain F6； PDBConstruct 1–98； UniProt 1–98 Author chain F7； PDBConstruct 1–98； UniProt 1–98 Author chain F8； PDBConstruct 1–98； UniProt 1–98 Author chain F9； PDBConstruct 1–98； UniProt 1–98 Author chain FA； PDBConstruct 1–98； UniProt 1–98 Author chain FB； PDBConstruct 1–98； UniProt 1–98 Author chain FC； PDBConstruct 1–98； UniProt 1–98 Author chain FD； PDBConstruct 1–98； UniProt 1–98 Author chain FE； PDBConstruct 1–98； UniProt 1–98 Author chain FF； PDBConstruct 1–98； UniProt 1–98 Author chain FG； PDBConstruct 1–98； UniProt 1–98 Author chain FH； PDBConstruct 1–98； UniProt 1–98 Author chain FI； PDBConstruct 1–98； UniProt 1–98 Author chain FJ； PDBConstruct 1–98； UniProt 1–98 Author chain FK； PDBConstruct 1–98； UniProt 1–98 Author chain FL； PDBConstruct 1–98； UniProt 1–98 Author chain FM； PDBConstruct 1–98； UniProt 1–98 Author chain FN； PDBConstruct 1–98； UniProt 1–98 Author chain FO； PDBConstruct 1–98； UniProt 1–98 Author chain FP； PDBConstruct 1–98； UniProt 1–98 Author chain FQ； PDBConstruct 1–98； UniProt 1–98 Author chain FR； PDBConstruct 1–98； UniProt 1–98 Author chain FS； PDBConstruct 1–98； UniProt 1–98 Author chain FT； PDBConstruct 1–98； UniProt 1–98 Author chain FU； PDBConstruct 1–98； UniProt 1–98 Author chain FV； PDBConstruct 1–98； UniProt 1–98 Author chain FW； PDBConstruct 1–98； UniProt 1–98 Author chain FX； PDBConstruct 1–98； UniProt 1–98 Author chain FY； PDBConstruct 1–98； UniProt 1–98 Author chain FZ； PDBConstruct 1–98； UniProt 1–98 Author chain Fa； PDBConstruct 1–98； UniProt 1–98 Author chain Fb； PDBConstruct 1–98； UniProt 1–98 Author chain Fc； PDBConstruct 1–98； UniProt 1–98 Author chain Fd； PDBConstruct 1–98； UniProt 1–98 Author chain Fe； PDBConstruct 1–98； UniProt 1–98 Author chain Ff； PDBConstruct 1–98； UniProt 1–98 Author chain Fg； PDBConstruct 1–98； UniProt 1–98 Author chain Fh； PDBConstruct 1–98； UniProt 1–98 Author chain Fi； PDBConstruct 1–98； UniProt 1–98 Author chain Fj； PDBConstruct 1–98； UniProt 1–98 Author chain Fk； PDBConstruct 1–98； UniProt 1–98 Author chain Fl； PDBConstruct 1–98； UniProt 1–98 Author chain Fm； PDBConstruct 1–98； UniProt 1–98 Author chain Fn； PDBConstruct 1–98； UniProt 1–98 Author chain Fo； PDBConstruct 1–98； UniProt 1–98 Author chain Fp； PDBConstruct 1–98； UniProt 1–98 Author chain Fq； PDBConstruct 1–98； UniProt 1–98 Author chain Fr； PDBConstruct 1–98； UniProt 1–98 Author chain Fs； PDBConstruct 1–98； UniProt 1–98 Author chain Ft； PDBConstruct 1–98； UniProt 1–98 Author chain Fu； PDBConstruct 1–98； UniProt 1–98 Author chain Fv； PDBConstruct 1–98； UniProt 1–98 Author chain Fw； PDBConstruct 1–98； UniProt 1–98 Author chain Fx； PDBConstruct 1–98； UniProt 1–98 Author chain G0； PDBConstruct 1–98； UniProt 1–98 Author chain G1； PDBConstruct 1–98； UniProt 1–98 Author chain G2； PDBConstruct 1–98； UniProt 1–98 Author chain G3； PDBConstruct 1–98； UniProt 1–98 Author chain G4； PDBConstruct 1–98； UniProt 1–98 Author chain G5； PDBConstruct 1–98； UniProt 1–98 Author chain G6； PDBConstruct 1–98； UniProt 1–98 Author chain G7； PDBConstruct 1–98； UniProt 1–98 Author chain G8； PDBConstruct 1–98； UniProt 1–98 Author chain G9； PDBConstruct 1–98； UniProt 1–98 Author chain GA； PDBConstruct 1–98； UniProt 1–98 Author chain GB； PDBConstruct 1–98； UniProt 1–98 Author chain GC； PDBConstruct 1–98； UniProt 1–98 Author chain GD； PDBConstruct 1–98； UniProt 1–98 Author chain GE； PDBConstruct 1–98； UniProt 1–98 Author chain GF； PDBConstruct 1–98； UniProt 1–98 Author chain GG； PDBConstruct 1–98； UniProt 1–98 Author chain GH； PDBConstruct 1–98； UniProt 1–98 Author chain GI； PDBConstruct 1–98； UniProt 1–98 Author chain GJ； PDBConstruct 1–98； UniProt 1–98 Author chain GK； PDBConstruct 1–98； UniProt 1–98 Author chain GL； PDBConstruct 1–98； UniProt 1–98 Author chain GM； PDBConstruct 1–98； UniProt 1–98 Author chain GN； PDBConstruct 1–98； UniProt 1–98 Author chain GO； PDBConstruct 1–98； UniProt 1–98 Author chain GP； PDBConstruct 1–98； UniProt 1–98 Author chain GQ； PDBConstruct 1–98； UniProt 1–98 Author chain GR； PDBConstruct 1–98； UniProt 1–98 Author chain GS； PDBConstruct 1–98； UniProt 1–98 Author chain GT； PDBConstruct 1–98； UniProt 1–98 Author chain GU； PDBConstruct 1–98； UniProt 1–98 Author chain GV； PDBConstruct 1–98； UniProt 1–98 Author chain GW； PDBConstruct 1–98； UniProt 1–98 Author chain GX； PDBConstruct 1–98； UniProt 1–98 Author chain GY； PDBConstruct 1–98； UniProt 1–98 Author chain GZ； PDBConstruct 1–98； UniProt 1–98 Author chain Ga； PDBConstruct 1–98； UniProt 1–98 Author chain Gb； PDBConstruct 1–98； UniProt 1–98 Author chain Gc； PDBConstruct 1–98； UniProt 1–98 Author chain Gd； PDBConstruct 1–98； UniProt 1–98 Author chain Ge； PDBConstruct 1–98； UniProt 1–98 Author chain Gf； PDBConstruct 1–98； UniProt 1–98 Author chain Gg； PDBConstruct 1–98； UniProt 1–98 Author chain Gh； PDBConstruct 1–98； UniProt 1–98 Author chain Gi； PDBConstruct 1–98； UniProt 1–98 Author chain Gj； PDBConstruct 1–98； UniProt 1–98 Author chain Gk； PDBConstruct 1–98； UniProt 1–98 Author chain Gl； PDBConstruct 1–98； UniProt 1–98 Author chain Gm； PDBConstruct 1–98； UniProt 1–98 Author chain Gn； PDBConstruct 1–98； UniProt 1–98 Author chain Go； PDBConstruct 1–98； UniProt 1–98 Author chain Gp； PDBConstruct 1–98； UniProt 1–98 Author chain Gq； PDBConstruct 1–98； UniProt 1–98 Author chain Gr； PDBConstruct 1–98； UniProt 1–98 Author chain Gs； PDBConstruct 1–98； UniProt 1–98 Author chain Gt； PDBConstruct 1–98； UniProt 1–98 Author chain Gu； PDBConstruct 1–98； UniProt 1–98 Author chain Gv； PDBConstruct 1–98； UniProt 1–98 Author chain Gw； PDBConstruct 1–98； UniProt 1–98 Author chain Gx； PDBConstruct 1–98； UniProt 1–98 Author chain H0； PDBConstruct 1–98； UniProt 1–98 Author chain H1； PDBConstruct 1–98； UniProt 1–98 Author chain H2； PDBConstruct 1–98； UniProt 1–98 Author chain H3； PDBConstruct 1–98； UniProt 1–98 Author chain H4； PDBConstruct 1–98； UniProt 1–98 Author chain H5； PDBConstruct 1–98； UniProt 1–98 Author chain H6； PDBConstruct 1–98； UniProt 1–98 Author chain H7； PDBConstruct 1–98； UniProt 1–98 Author chain H8； PDBConstruct 1–98； UniProt 1–98 Author chain H9； PDBConstruct 1–98； UniProt 1–98 Author chain HA； PDBConstruct 1–98； UniProt 1–98 Author chain HB； PDBConstruct 1–98； UniProt 1–98 Author chain HC； PDBConstruct 1–98； UniProt 1–98 Author chain HD； PDBConstruct 1–98； UniProt 1–98 Author chain HE； PDBConstruct 1–98； UniProt 1–98 Author chain HF； PDBConstruct 1–98； UniProt 1–98 Author chain HG； PDBConstruct 1–98； UniProt 1–98 Author chain HH； PDBConstruct 1–98； UniProt 1–98 Author chain HI； PDBConstruct 1–98； UniProt 1–98 Author chain HJ； PDBConstruct 1–98； UniProt 1–98 Author chain HK； PDBConstruct 1–98； UniProt 1–98 Author chain HL； PDBConstruct 1–98； UniProt 1–98 Author chain HM； PDBConstruct 1–98； UniProt 1–98 Author chain HN； PDBConstruct 1–98； UniProt 1–98 Author chain HO； PDBConstruct 1–98； UniProt 1–98 Author chain HP； PDBConstruct 1–98； UniProt 1–98 Author chain HQ； PDBConstruct 1–98； UniProt 1–98 Author chain HR； PDBConstruct 1–98； UniProt 1–98 Author chain HS； PDBConstruct 1–98； UniProt 1–98 Author chain HT； PDBConstruct 1–98； UniProt 1–98 Author chain HU； PDBConstruct 1–98； UniProt 1–98 Author chain HV； PDBConstruct 1–98； UniProt 1–98 Author chain HW； PDBConstruct 1–98； UniProt 1–98 Author chain HX； PDBConstruct 1–98； UniProt 1–98 Author chain HY； PDBConstruct 1–98； UniProt 1–98 Author chain HZ； PDBConstruct 1–98； UniProt 1–98 Author chain Ha； PDBConstruct 1–98； UniProt 1–98 Author chain Hb； PDBConstruct 1–98； UniProt 1–98 Author chain Hc； PDBConstruct 1–98； UniProt 1–98 Author chain Hd； PDBConstruct 1–98； UniProt 1–98 Author chain He； PDBConstruct 1–98； UniProt 1–98 Author chain Hf； PDBConstruct 1–98； UniProt 1–98 Author chain Hg； PDBConstruct 1–98； UniProt 1–98 Author chain Hh； PDBConstruct 1–98； UniProt 1–98 Author chain Hi； PDBConstruct 1–98； UniProt 1–98 Author chain Hj； PDBConstruct 1–98； UniProt 1–98 Author chain Hk； PDBConstruct 1–98； UniProt 1–98 Author chain Hl； PDBConstruct 1–98； UniProt 1–98 Author chain Hm； PDBConstruct 1–98； UniProt 1–98 Author chain Hn； PDBConstruct 1–98； UniProt 1–98 Author chain Ho； PDBConstruct 1–98； UniProt 1–98 Author chain Hp； PDBConstruct 1–98； UniProt 1–98 Author chain Hq； PDBConstruct 1–98； UniProt 1–98 Author chain Hr； PDBConstruct 1–98； UniProt 1–98 Author chain Hs； PDBConstruct 1–98； UniProt 1–98 Author chain Ht； PDBConstruct 1–98； UniProt 1–98 Author chain Hu； PDBConstruct 1–98； UniProt 1–98 Author chain Hv； PDBConstruct 1–98； UniProt 1–98 Author chain Hw； PDBConstruct 1–98； UniProt 1–98 Author chain Hx； PDBConstruct 1–98； UniProt 1–98 Author chain I0； PDBConstruct 1–98； UniProt 1–98 Author chain I1； PDBConstruct 1–98； UniProt 1–98 Author chain I2； PDBConstruct 1–98； UniProt 1–98 Author chain I3； PDBConstruct 1–98； UniProt 1–98 Author chain I4； PDBConstruct 1–98； UniProt 1–98 Author chain I5； PDBConstruct 1–98； UniProt 1–98 Author chain I6； PDBConstruct 1–98； UniProt 1–98 Author chain I7； PDBConstruct 1–98； UniProt 1–98 Author chain I8； PDBConstruct 1–98； UniProt 1–98 Author chain I9； PDBConstruct 1–98； UniProt 1–98 Author chain IA； PDBConstruct 1–98； UniProt 1–98 Author chain IB； PDBConstruct 1–98； UniProt 1–98 Author chain IC； PDBConstruct 1–98； UniProt 1–98 Author chain ID； PDBConstruct 1–98； UniProt 1–98 Author chain IE； PDBConstruct 1–98； UniProt 1–98 Author chain IF； PDBConstruct 1–98； UniProt 1–98 Author chain IG； PDBConstruct 1–98； UniProt 1–98 Author chain IH； PDBConstruct 1–98； UniProt 1–98 Author chain II； PDBConstruct 1–98； UniProt 1–98 Author chain IJ； PDBConstruct 1–98； UniProt 1–98 Author chain IK； PDBConstruct 1–98； UniProt 1–98 Author chain IL； PDBConstruct 1–98； UniProt 1–98 Author chain IM； PDBConstruct 1–98； UniProt 1–98 Author chain IN； PDBConstruct 1–98； UniProt 1–98 Author chain IO； PDBConstruct 1–98； UniProt 1–98 Author chain IP； PDBConstruct 1–98； UniProt 1–98 Author chain IQ； PDBConstruct 1–98； UniProt 1–98 Author chain IR； PDBConstruct 1–98； UniProt 1–98 Author chain IS； PDBConstruct 1–98； UniProt 1–98 Author chain IT； PDBConstruct 1–98； UniProt 1–98 Author chain IU； PDBConstruct 1–98； UniProt 1–98 Author chain IV； PDBConstruct 1–98； UniProt 1–98 Author chain IW； PDBConstruct 1–98； UniProt 1–98 Author chain IX； PDBConstruct 1–98； UniProt 1–98 Author chain IY； PDBConstruct 1–98； UniProt 1–98 Author chain IZ； PDBConstruct 1–98； UniProt 1–98 Author chain Ia； PDBConstruct 1–98； UniProt 1–98 Author chain Ib； PDBConstruct 1–98； UniProt 1–98 Author chain Ic； PDBConstruct 1–98； UniProt 1–98 Author chain Id； PDBConstruct 1–98； UniProt 1–98 Author chain Ie； PDBConstruct 1–98； UniProt 1–98 Author chain If； PDBConstruct 1–98； UniProt 1–98 Author chain Ig； PDBConstruct 1–98； UniProt 1–98 Author chain Ih； PDBConstruct 1–98； UniProt 1–98 Author chain Ii； PDBConstruct 1–98； UniProt 1–98 Author chain Ij； PDBConstruct 1–98； UniProt 1–98 Author chain Ik； PDBConstruct 1–98； UniProt 1–98 Author chain Il； PDBConstruct 1–98； UniProt 1–98 Author chain Im； PDBConstruct 1–98； UniProt 1–98 Author chain In； PDBConstruct 1–98； UniProt 1–98 Author chain Io； PDBConstruct 1–98； UniProt 1–98 Author chain Ip； PDBConstruct 1–98； UniProt 1–98 Author chain Iq； PDBConstruct 1–98； UniProt 1–98 Author chain Ir； PDBConstruct 1–98； UniProt 1–98 Author chain Is； PDBConstruct 1–98； UniProt 1–98 Author chain It； PDBConstruct 1–98； UniProt 1–98 Author chain Iu； PDBConstruct 1–98； UniProt 1–98 Author chain Iv； PDBConstruct 1–98； UniProt 1–98 Author chain Iw； PDBConstruct 1–98； UniProt 1–98 Author chain Ix； PDBConstruct 1–98； UniProt 1–98 Author chain J0； PDBConstruct 1–98； UniProt 1–98 Author chain J1； PDBConstruct 1–98； UniProt 1–98 Author chain J2； PDBConstruct 1–98； UniProt 1–98 Author chain J3； PDBConstruct 1–98； UniProt 1–98 Author chain J4； PDBConstruct 1–98； UniProt 1–98 Author chain J5； PDBConstruct 1–98； UniProt 1–98 Author chain J6； PDBConstruct 1–98； UniProt 1–98 Author chain J7； PDBConstruct 1–98； UniProt 1–98 Author chain J8； PDBConstruct 1–98； UniProt 1–98 Author chain J9； PDBConstruct 1–98； UniProt 1–98 Author chain JA； PDBConstruct 1–98； UniProt 1–98 Author chain JB； PDBConstruct 1–98； UniProt 1–98 Author chain JC； PDBConstruct 1–98； UniProt 1–98 Author chain JD； PDBConstruct 1–98； UniProt 1–98 Author chain JE； PDBConstruct 1–98； UniProt 1–98 Author chain JF； PDBConstruct 1–98； UniProt 1–98 Author chain JG； PDBConstruct 1–98； UniProt 1–98 Author chain JH； PDBConstruct 1–98； UniProt 1–98 Author chain JI； PDBConstruct 1–98； UniProt 1–98 Author chain JJ； PDBConstruct 1–98； UniProt 1–98 Author chain JK； PDBConstruct 1–98； UniProt 1–98 Author chain JL； PDBConstruct 1–98； UniProt 1–98 Author chain JM； PDBConstruct 1–98； UniProt 1–98 Author chain JN； PDBConstruct 1–98； UniProt 1–98 Author chain JO； PDBConstruct 1–98； UniProt 1–98 Author chain JP； PDBConstruct 1–98； UniProt 1–98 Author chain JQ； PDBConstruct 1–98； UniProt 1–98 Author chain JR； PDBConstruct 1–98； UniProt 1–98 Author chain JS； PDBConstruct 1–98； UniProt 1–98 Author chain JT； PDBConstruct 1–98； UniProt 1–98 Author chain JU； PDBConstruct 1–98； UniProt 1–98 Author chain JV； PDBConstruct 1–98； UniProt 1–98 Author chain JW； PDBConstruct 1–98； UniProt 1–98 Author chain JX； PDBConstruct 1–98； UniProt 1–98 Author chain JY； PDBConstruct 1–98； UniProt 1–98 Author chain JZ； PDBConstruct 1–98； UniProt 1–98 Author chain Ja； PDBConstruct 1–98； UniProt 1–98 Author chain Jb； PDBConstruct 1–98； UniProt 1–98 Author chain Jc； PDBConstruct 1–98； UniProt 1–98 Author chain Jd； PDBConstruct 1–98； UniProt 1–98 Author chain Je； PDBConstruct 1–98； UniProt 1–98 Author chain Jf； PDBConstruct 1–98； UniProt 1–98 Author chain Jg； PDBConstruct 1–98； UniProt 1–98 Author chain Jh； PDBConstruct 1–98； UniProt 1–98 Author chain Ji； PDBConstruct 1–98； UniProt 1–98 Author chain Jj； PDBConstruct 1–98； UniProt 1–98 Author chain Jk； PDBConstruct 1–98； UniProt 1–98 Author chain Jl； PDBConstruct 1–98； UniProt 1–98 Author chain Jm； PDBConstruct 1–98； UniProt 1–98 Author chain Jn； PDBConstruct 1–98； UniProt 1–98 Author chain Jo； PDBConstruct 1–98； UniProt 1–98 Author chain Jp； PDBConstruct 1–98； UniProt 1–98 Author chain Jq； PDBConstruct 1–98； UniProt 1–98 Author chain Jr； PDBConstruct 1–98； UniProt 1–98 Author chain Js； PDBConstruct 1–98； UniProt 1–98 Author chain Jt； PDBConstruct 1–98； UniProt 1–98 Author chain Ju； PDBConstruct 1–98； UniProt 1–98 Author chain Jv； PDBConstruct 1–98； UniProt 1–98 Author chain Jw； PDBConstruct 1–98； UniProt 1–98 Author chain Jx； PDBConstruct 1–98； UniProt 1–98 Author chain K0； PDBConstruct 1–98； UniProt 1–98 Author chain K1； PDBConstruct 1–98； UniProt 1–98 Author chain K2； PDBConstruct 1–98； UniProt 1–98 Author chain K3； PDBConstruct 1–98； UniProt 1–98 Author chain K4； PDBConstruct 1–98； UniProt 1–98 Author chain K5； PDBConstruct 1–98； UniProt 1–98 Author chain K6； PDBConstruct 1–98； UniProt 1–98 Author chain K7； PDBConstruct 1–98； UniProt 1–98 Author chain K8； PDBConstruct 1–98； UniProt 1–98 Author chain K9； PDBConstruct 1–98； UniProt 1–98 Author chain KA； PDBConstruct 1–98； UniProt 1–98 Author chain KB； PDBConstruct 1–98； UniProt 1–98 Author chain KC； PDBConstruct 1–98； UniProt 1–98 Author chain KD； PDBConstruct 1–98； UniProt 1–98 Author chain KE； PDBConstruct 1–98； UniProt 1–98 Author chain KF； PDBConstruct 1–98； UniProt 1–98 Author chain KG； PDBConstruct 1–98； UniProt 1–98 Author chain KH； PDBConstruct 1–98； UniProt 1–98 Author chain KI； PDBConstruct 1–98； UniProt 1–98 Author chain KJ； PDBConstruct 1–98； UniProt 1–98 Author chain KK； PDBConstruct 1–98； UniProt 1–98 Author chain KL； PDBConstruct 1–98； UniProt 1–98 Author chain KM； PDBConstruct 1–98； UniProt 1–98 Author chain KN； PDBConstruct 1–98； UniProt 1–98 Author chain KO； PDBConstruct 1–98； UniProt 1–98 Author chain KP； PDBConstruct 1–98； UniProt 1–98 Author chain KQ； PDBConstruct 1–98； UniProt 1–98 Author chain KR； PDBConstruct 1–98； UniProt 1–98 Author chain KS； PDBConstruct 1–98； UniProt 1–98 Author chain KT； PDBConstruct 1–98； UniProt 1–98 Author chain KU； PDBConstruct 1–98； UniProt 1–98 Author chain KV； PDBConstruct 1–98； UniProt 1–98 Author chain KW； PDBConstruct 1–98； UniProt 1–98 Author chain KX； PDBConstruct 1–98； UniProt 1–98 Author chain KY； PDBConstruct 1–98； UniProt 1–98 Author chain KZ； PDBConstruct 1–98； UniProt 1–98 Author chain Ka； PDBConstruct 1–98； UniProt 1–98 Author chain Kb； PDBConstruct 1–98； UniProt 1–98 Author chain Kc； PDBConstruct 1–98； UniProt 1–98 Author chain Kd； PDBConstruct 1–98； UniProt 1–98 Author chain Ke； PDBConstruct 1–98； UniProt 1–98 Author chain Kf； PDBConstruct 1–98； UniProt 1–98 Author chain Kg； PDBConstruct 1–98； UniProt 1–98 Author chain Kh； PDBConstruct 1–98； UniProt 1–98 Author chain Ki； PDBConstruct 1–98； UniProt 1–98 Author chain Kj； PDBConstruct 1–98； UniProt 1–98 Author chain Kk； PDBConstruct 1–98； UniProt 1–98 Author chain Kl； PDBConstruct 1–98； UniProt 1–98 Author chain Km； PDBConstruct 1–98； UniProt 1–98 Author chain Kn； PDBConstruct 1–98； UniProt 1–98 Author chain Ko； PDBConstruct 1–98； UniProt 1–98 Author chain Kp； PDBConstruct 1–98； UniProt 1–98 Author chain Kq； PDBConstruct 1–98； UniProt 1–98 Author chain Kr； PDBConstruct 1–98； UniProt 1–98 Author chain Ks； PDBConstruct 1–98； UniProt 1–98 Author chain Kt； PDBConstruct 1–98； UniProt 1–98 Author chain Ku； PDBConstruct 1–98； UniProt 1–98 Author chain Kv； PDBConstruct 1–98； UniProt 1–98 Author chain Kw； PDBConstruct 1–98； UniProt 1–98 Author chain Kx； PDBConstruct 1–98； UniProt 1–98 Author chain L0； PDBConstruct 1–98； UniProt 1–98 Author chain L1； PDBConstruct 1–98； UniProt 1–98 Author chain L2； PDBConstruct 1–98； UniProt 1–98 Author chain L3； PDBConstruct 1–98； UniProt 1–98 Author chain L4； PDBConstruct 1–98； UniProt 1–98 Author chain L5； PDBConstruct 1–98； UniProt 1–98 Author chain L6； PDBConstruct 1–98； UniProt 1–98 Author chain L7； PDBConstruct 1–98； UniProt 1–98 Author chain L8； PDBConstruct 1–98； UniProt 1–98 Author chain L9； PDBConstruct 1–98； UniProt 1–98 Author chain LA； PDBConstruct 1–98； UniProt 1–98 Author chain LB； PDBConstruct 1–98； UniProt 1–98 Author chain LC； PDBConstruct 1–98； UniProt 1–98 Author chain LD； PDBConstruct 1–98； UniProt 1–98 Author chain LE； PDBConstruct 1–98； UniProt 1–98 Author chain LF； PDBConstruct 1–98； UniProt 1–98 Author chain LG； PDBConstruct 1–98； UniProt 1–98 Author chain LH； PDBConstruct 1–98； UniProt 1–98 Author chain LI； PDBConstruct 1–98； UniProt 1–98 Author chain LJ； PDBConstruct 1–98； UniProt 1–98 Author chain LK； PDBConstruct 1–98； UniProt 1–98 Author chain LL； PDBConstruct 1–98； UniProt 1–98 Author chain LM； PDBConstruct 1–98； UniProt 1–98 Author chain LN； PDBConstruct 1–98； UniProt 1–98 Author chain LO； PDBConstruct 1–98； UniProt 1–98 Author chain LP； PDBConstruct 1–98； UniProt 1–98 Author chain LQ； PDBConstruct 1–98； UniProt 1–98 Author chain LR； PDBConstruct 1–98； UniProt 1–98 Author chain LS； PDBConstruct 1–98； UniProt 1–98 Author chain LT； PDBConstruct 1–98； UniProt 1–98 Author chain LU； PDBConstruct 1–98； UniProt 1–98 Author chain LV； PDBConstruct 1–98； UniProt 1–98 Author chain LW； PDBConstruct 1–98； UniProt 1–98 Author chain LX； PDBConstruct 1–98； UniProt 1–98 Author chain LY； PDBConstruct 1–98； UniProt 1–98 Author chain LZ； PDBConstruct 1–98； UniProt 1–98 Author chain La； PDBConstruct 1–98； UniProt 1–98 Author chain Lb； PDBConstruct 1–98； UniProt 1–98 Author chain Lc； PDBConstruct 1–98； UniProt 1–98 Author chain Ld； PDBConstruct 1–98； UniProt 1–98 Author chain Le； PDBConstruct 1–98； UniProt 1–98 Author chain Lf； PDBConstruct 1–98； UniProt 1–98 Author chain Lg； PDBConstruct 1–98； UniProt 1–98 Author chain Lh； PDBConstruct 1–98； UniProt 1–98 Author chain Li； PDBConstruct 1–98； UniProt 1–98 Author chain Lj； PDBConstruct 1–98； UniProt 1–98 Author chain Lk； PDBConstruct 1–98； UniProt 1–98 Author chain Ll； PDBConstruct 1–98； UniProt 1–98 Author chain Lm； PDBConstruct 1–98； UniProt 1–98 Author chain Ln； PDBConstruct 1–98； UniProt 1–98 Author chain Lo； PDBConstruct 1–98； UniProt 1–98 Author chain Lp； PDBConstruct 1–98； UniProt 1–98 Author chain Lq； PDBConstruct 1–98； UniProt 1–98 Author chain Lr； PDBConstruct 1–98； UniProt 1–98 Author chain Ls； PDBConstruct 1–98； UniProt 1–98 Author chain Lt； PDBConstruct 1–98； UniProt 1–98 Author chain Lu； PDBConstruct 1–98； UniProt 1–98 Author chain Lv； PDBConstruct 1–98； UniProt 1–98 Author chain Lw； PDBConstruct 1–98； UniProt 1–98 Author chain Lx； PDBConstruct 1–98； UniProt 1–98 Author chain M0； PDBConstruct 1–98； UniProt 1–98 Author chain M1； PDBConstruct 1–98； UniProt 1–98 Author chain M2； PDBConstruct 1–98； UniProt 1–98 Author chain M3； PDBConstruct 1–98； UniProt 1–98 Author chain M4； PDBConstruct 1–98； UniProt 1–98 Author chain M5； PDBConstruct 1–98； UniProt 1–98 Author chain M6； PDBConstruct 1–98； UniProt 1–98 Author chain M7； PDBConstruct 1–98； UniProt 1–98 Author chain M8； PDBConstruct 1–98； UniProt 1–98 Author chain M9； PDBConstruct 1–98； UniProt 1–98 Author chain MA； PDBConstruct 1–98； UniProt 1–98 Author chain MB； PDBConstruct 1–98； UniProt 1–98 Author chain MC； PDBConstruct 1–98； UniProt 1–98 Author chain MD； PDBConstruct 1–98； UniProt 1–98 Author chain ME； PDBConstruct 1–98； UniProt 1–98 Author chain MF； PDBConstruct 1–98； UniProt 1–98 Author chain MG； PDBConstruct 1–98； UniProt 1–98 Author chain MH； PDBConstruct 1–98； UniProt 1–98 Author chain MI； PDBConstruct 1–98； UniProt 1–98 Author chain MJ； PDBConstruct 1–98； UniProt 1–98 Author chain MK； PDBConstruct 1–98； UniProt 1–98 Author chain ML； PDBConstruct 1–98； UniProt 1–98 Author chain MM； PDBConstruct 1–98； UniProt 1–98 Author chain MN； PDBConstruct 1–98； UniProt 1–98 Author chain MO； PDBConstruct 1–98； UniProt 1–98 Author chain MP； PDBConstruct 1–98； UniProt 1–98 Author chain MQ； PDBConstruct 1–98； UniProt 1–98 Author chain MR； PDBConstruct 1–98； UniProt 1–98 Author chain MS； PDBConstruct 1–98； UniProt 1–98 Author chain MT； PDBConstruct 1–98； UniProt 1–98 Author chain MU； PDBConstruct 1–98； UniProt 1–98 Author chain MV； PDBConstruct 1–98； UniProt 1–98 Author chain MW； PDBConstruct 1–98； UniProt 1–98 Author chain MX； PDBConstruct 1–98； UniProt 1–98 Author chain MY； PDBConstruct 1–98； UniProt 1–98 Author chain MZ； PDBConstruct 1–98； UniProt 1–98 Author chain Ma； PDBConstruct 1–98； UniProt 1–98 Author chain Mb； PDBConstruct 1–98； UniProt 1–98 Author chain Mc； PDBConstruct 1–98； UniProt 1–98 Author chain Md； PDBConstruct 1–98； UniProt 1–98 Author chain Me； PDBConstruct 1–98； UniProt 1–98 Author chain Mf； PDBConstruct 1–98； UniProt 1–98 Author chain Mg； PDBConstruct 1–98； UniProt 1–98 Author chain Mh； PDBConstruct 1–98； UniProt 1–98 Author chain Mi； PDBConstruct 1–98； UniProt 1–98 Author chain Mj； PDBConstruct 1–98； UniProt 1–98 Author chain Mk； PDBConstruct 1–98； UniProt 1–98 Author chain Ml； PDBConstruct 1–98； UniProt 1–98 Author chain Mm； PDBConstruct 1–98； UniProt 1–98 Author chain Mn； PDBConstruct 1–98； UniProt 1–98 Author chain Mo； PDBConstruct 1–98； UniProt 1–98 Author chain Mp； PDBConstruct 1–98； UniProt 1–98 Author chain Mq； PDBConstruct 1–98； UniProt 1–98 Author chain Mr； PDBConstruct 1–98； UniProt 1–98 Author chain Ms； PDBConstruct 1–98； UniProt 1–98 Author chain Mt； PDBConstruct 1–98； UniProt 1–98 Author chain Mu； PDBConstruct 1–98； UniProt 1–98 Author chain Mv； PDBConstruct 1–98； UniProt 1–98 Author chain Mw； PDBConstruct 1–98； UniProt 1–98 Author chain Mx； PDBConstruct 1–98； UniProt 1–98 Author chain N0； PDBConstruct 1–98； UniProt 1–98 Author chain N1； PDBConstruct 1–98； UniProt 1–98 Author chain N2； PDBConstruct 1–98； UniProt 1–98 Author chain N3； PDBConstruct 1–98； UniProt 1–98 Author chain N4； PDBConstruct 1–98； UniProt 1–98 Author chain N5； PDBConstruct 1–98； UniProt 1–98 Author chain N6； PDBConstruct 1–98； UniProt 1–98 Author chain N7； PDBConstruct 1–98； UniProt 1–98 Author chain N8； PDBConstruct 1–98； UniProt 1–98 Author chain N9； PDBConstruct 1–98； UniProt 1–98 Author chain NA； PDBConstruct 1–98； UniProt 1–98 Author chain NB； PDBConstruct 1–98； UniProt 1–98 Author chain NC； PDBConstruct 1–98； UniProt 1–98 Author chain ND； PDBConstruct 1–98； UniProt 1–98 Author chain NE； PDBConstruct 1–98； UniProt 1–98 Author chain NF； PDBConstruct 1–98； UniProt 1–98 Author chain NG； PDBConstruct 1–98； UniProt 1–98 Author chain NH； PDBConstruct 1–98； UniProt 1–98 Author chain NI； PDBConstruct 1–98； UniProt 1–98 Author chain NJ； PDBConstruct 1–98； UniProt 1–98 Author chain NK； PDBConstruct 1–98； UniProt 1–98 Author chain NL； PDBConstruct 1–98； UniProt 1–98 Author chain NM； PDBConstruct 1–98； UniProt 1–98 Author chain NN； PDBConstruct 1–98； UniProt 1–98 Author chain NO； PDBConstruct 1–98； UniProt 1–98 Author chain NP； PDBConstruct 1–98； UniProt 1–98 Author chain NQ； PDBConstruct 1–98； UniProt 1–98 Author chain NR； PDBConstruct 1–98； UniProt 1–98 Author chain NS； PDBConstruct 1–98； UniProt 1–98 Author chain NT； PDBConstruct 1–98； UniProt 1–98 Author chain NU； PDBConstruct 1–98； UniProt 1–98 Author chain NV； PDBConstruct 1–98； UniProt 1–98 Author chain NW； PDBConstruct 1–98； UniProt 1–98 Author chain NX； PDBConstruct 1–98； UniProt 1–98 Author chain NY； PDBConstruct 1–98； UniProt 1–98 Author chain NZ； PDBConstruct 1–98； UniProt 1–98 Author chain Na； PDBConstruct 1–98； UniProt 1–98 Author chain Nb； PDBConstruct 1–98； UniProt 1–98 Author chain Nc； PDBConstruct 1–98； UniProt 1–98 Author chain Nd； PDBConstruct 1–98； UniProt 1–98 Author chain Ne； PDBConstruct 1–98； UniProt 1–98 Author chain Nf； PDBConstruct 1–98； UniProt 1–98 Author chain Ng； PDBConstruct 1–98； UniProt 1–98 Author chain Nh； PDBConstruct 1–98； UniProt 1–98 Author chain Ni； PDBConstruct 1–98； UniProt 1–98 Author chain Nj； PDBConstruct 1–98； UniProt 1–98 Author chain Nk； PDBConstruct 1–98； UniProt 1–98 Author chain Nl； PDBConstruct 1–98； UniProt 1–98 Author chain Nm； PDBConstruct 1–98； UniProt 1–98 Author chain Nn； PDBConstruct 1–98； UniProt 1–98 Author chain No； PDBConstruct 1–98； UniProt 1–98 Author chain Np； PDBConstruct 1–98； UniProt 1–98 Author chain Nq； PDBConstruct 1–98； UniProt 1–98 Author chain Nr； PDBConstruct 1–98； UniProt 1–98 Author chain Ns； PDBConstruct 1–98； UniProt 1–98 Author chain Nt； PDBConstruct 1–98； UniProt 1–98 Author chain Nu； PDBConstruct 1–98； UniProt 1–98 Author chain Nv； PDBConstruct 1–98； UniProt 1–98 Author chain Nw； PDBConstruct 1–98； UniProt 1–98 Author chain Nx； PDBConstruct 1–98； UniProt 1–98 Author chain O0； PDBConstruct 1–98； UniProt 1–98 Author chain O1； PDBConstruct 1–98； UniProt 1–98 Author chain O2； PDBConstruct 1–98； UniProt 1–98 Author chain O3； PDBConstruct 1–98； UniProt 1–98 Author chain O4； PDBConstruct 1–98； UniProt 1–98 Author chain O5； PDBConstruct 1–98； UniProt 1–98 Author chain O6； PDBConstruct 1–98； UniProt 1–98 Author chain O7； PDBConstruct 1–98； UniProt 1–98 Author chain O8； PDBConstruct 1–98； UniProt 1–98 Author chain O9； PDBConstruct 1–98； UniProt 1–98 Author chain OA； PDBConstruct 1–98； UniProt 1–98 Author chain OB； PDBConstruct 1–98； UniProt 1–98 Author chain OC； PDBConstruct 1–98； UniProt 1–98 Author chain OD； PDBConstruct 1–98； UniProt 1–98 Author chain OE； PDBConstruct 1–98； UniProt 1–98 Author chain OF； PDBConstruct 1–98； UniProt 1–98 Author chain OG； PDBConstruct 1–98； UniProt 1–98 Author chain OH； PDBConstruct 1–98； UniProt 1–98 Author chain OI； PDBConstruct 1–98； UniProt 1–98 Author chain OJ； PDBConstruct 1–98； UniProt 1–98 Author chain OK； PDBConstruct 1–98； UniProt 1–98 Author chain OL； PDBConstruct 1–98； UniProt 1–98 Author chain OM； PDBConstruct 1–98； UniProt 1–98 Author chain ON； PDBConstruct 1–98； UniProt 1–98 Author chain OO； PDBConstruct 1–98； UniProt 1–98 Author chain OP； PDBConstruct 1–98； UniProt 1–98 Author chain OQ； PDBConstruct 1–98； UniProt 1–98 Author chain OR； PDBConstruct 1–98； UniProt 1–98 Author chain OS； PDBConstruct 1–98； UniProt 1–98 Author chain OT； PDBConstruct 1–98； UniProt 1–98 Author chain OU； PDBConstruct 1–98； UniProt 1–98 Author chain OV； PDBConstruct 1–98； UniProt 1–98 Author chain OW； PDBConstruct 1–98； UniProt 1–98 Author chain OX； PDBConstruct 1–98； UniProt 1–98 Author chain OY； PDBConstruct 1–98； UniProt 1–98 Author chain OZ； PDBConstruct 1–98； UniProt 1–98 Author chain Oa； PDBConstruct 1–98； UniProt 1–98 Author chain Ob； PDBConstruct 1–98； UniProt 1–98 Author chain Oc； PDBConstruct 1–98； UniProt 1–98 Author chain Od； PDBConstruct 1–98； UniProt 1–98 Author chain Oe； PDBConstruct 1–98； UniProt 1–98 Author chain Of； PDBConstruct 1–98； UniProt 1–98 Author chain Og； PDBConstruct 1–98； UniProt 1–98 Author chain Oh； PDBConstruct 1–98； UniProt 1–98 Author chain Oi； PDBConstruct 1–98； UniProt 1–98 Author chain Oj； PDBConstruct 1–98； UniProt 1–98 Author chain Ok； PDBConstruct 1–98； UniProt 1–98 Author chain Ol； PDBConstruct 1–98； UniProt 1–98 Author chain Om； PDBConstruct 1–98； UniProt 1–98 Author chain On； PDBConstruct 1–98； UniProt 1–98 Author chain Oo； PDBConstruct 1–98； UniProt 1–98 Author chain Op； PDBConstruct 1–98； UniProt 1–98 Author chain Oq； PDBConstruct 1–98； UniProt 1–98 Author chain Or； PDBConstruct 1–98； UniProt 1–98 Author chain Os； PDBConstruct 1–98； UniProt 1–98 Author chain Ot； PDBConstruct 1–98； UniProt 1–98 Author chain Ou； PDBConstruct 1–98； UniProt 1–98 Author chain Ov； PDBConstruct 1–98； UniProt 1–98 Author chain Ow； PDBConstruct 1–98； UniProt 1–98 Author chain Ox； PDBConstruct 1–98； UniProt 1–98

Carboxysome shell vertex protein CsoS4A

Halothiobacillus neapolitanus c2

UniProt O85043

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 1080	Major carboxysome shell protein CsoS1A × 900 （P45689） Carboxysome assembly protein CsoS2B × 120 （O85041）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CSS4A_HALNC
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain P0； PDBConstruct 1–83； UniProt 1–83 Author chain P1； PDBConstruct 1–83； UniProt 1–83 Author chain P2； PDBConstruct 1–83； UniProt 1–83 Author chain P3； PDBConstruct 1–83； UniProt 1–83 Author chain P4； PDBConstruct 1–83； UniProt 1–83 Author chain P5； PDBConstruct 1–83； UniProt 1–83 Author chain P6； PDBConstruct 1–83； UniProt 1–83 Author chain P7； PDBConstruct 1–83； UniProt 1–83 Author chain P8； PDBConstruct 1–83； UniProt 1–83 Author chain P9； PDBConstruct 1–83； UniProt 1–83 Author chain PA； PDBConstruct 1–83； UniProt 1–83 Author chain PB； PDBConstruct 1–83； UniProt 1–83 Author chain PC； PDBConstruct 1–83； UniProt 1–83 Author chain PD； PDBConstruct 1–83； UniProt 1–83 Author chain PE； PDBConstruct 1–83； UniProt 1–83 Author chain PF； PDBConstruct 1–83； UniProt 1–83 Author chain PG； PDBConstruct 1–83； UniProt 1–83 Author chain PH； PDBConstruct 1–83； UniProt 1–83 Author chain PI； PDBConstruct 1–83； UniProt 1–83 Author chain PJ； PDBConstruct 1–83； UniProt 1–83 Author chain PK； PDBConstruct 1–83； UniProt 1–83 Author chain PL； PDBConstruct 1–83； UniProt 1–83 Author chain PM； PDBConstruct 1–83； UniProt 1–83 Author chain PN； PDBConstruct 1–83； UniProt 1–83 Author chain PO； PDBConstruct 1–83； UniProt 1–83 Author chain PP； PDBConstruct 1–83； UniProt 1–83 Author chain PQ； PDBConstruct 1–83； UniProt 1–83 Author chain PR； PDBConstruct 1–83； UniProt 1–83 Author chain PS； PDBConstruct 1–83； UniProt 1–83 Author chain PT； PDBConstruct 1–83； UniProt 1–83 Author chain PU； PDBConstruct 1–83； UniProt 1–83 Author chain PV； PDBConstruct 1–83； UniProt 1–83 Author chain PW； PDBConstruct 1–83； UniProt 1–83 Author chain PX； PDBConstruct 1–83； UniProt 1–83 Author chain PY； PDBConstruct 1–83； UniProt 1–83 Author chain PZ； PDBConstruct 1–83； UniProt 1–83 Author chain Pa； PDBConstruct 1–83； UniProt 1–83 Author chain Pb； PDBConstruct 1–83； UniProt 1–83 Author chain Pc； PDBConstruct 1–83； UniProt 1–83 Author chain Pd； PDBConstruct 1–83； UniProt 1–83 Author chain Pe； PDBConstruct 1–83； UniProt 1–83 Author chain Pf； PDBConstruct 1–83； UniProt 1–83 Author chain Pg； PDBConstruct 1–83； UniProt 1–83 Author chain Ph； PDBConstruct 1–83； UniProt 1–83 Author chain Pi； PDBConstruct 1–83； UniProt 1–83 Author chain Pj； PDBConstruct 1–83； UniProt 1–83 Author chain Pk； PDBConstruct 1–83； UniProt 1–83 Author chain Pl； PDBConstruct 1–83； UniProt 1–83 Author chain Pm； PDBConstruct 1–83； UniProt 1–83 Author chain Pn； PDBConstruct 1–83； UniProt 1–83 Author chain Po； PDBConstruct 1–83； UniProt 1–83 Author chain Pp； PDBConstruct 1–83； UniProt 1–83 Author chain Pq； PDBConstruct 1–83； UniProt 1–83 Author chain Pr； PDBConstruct 1–83； UniProt 1–83 Author chain Ps； PDBConstruct 1–83； UniProt 1–83 Author chain Pt； PDBConstruct 1–83； UniProt 1–83 Author chain Pu； PDBConstruct 1–83； UniProt 1–83 Author chain Pv； PDBConstruct 1–83； UniProt 1–83 Author chain Pw； PDBConstruct 1–83； UniProt 1–83 Author chain Px； PDBConstruct 1–83； UniProt 1–83

Carboxysome assembly protein CsoS2B

Halothiobacillus neapolitanus c2

UniProt O85041

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 1080	Major carboxysome shell protein CsoS1A × 900 （P45689） Carboxysome shell vertex protein CsoS4A × 60 （O85043）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CSOS2_HALNC
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain X0； PDBConstruct 1–869； UniProt 1–869 Author chain X1； PDBConstruct 1–869； UniProt 1–869 Author chain X2； PDBConstruct 1–869； UniProt 1–869 Author chain X3； PDBConstruct 1–869； UniProt 1–869 Author chain X4； PDBConstruct 1–869； UniProt 1–869 Author chain X5； PDBConstruct 1–869； UniProt 1–869 Author chain X6； PDBConstruct 1–869； UniProt 1–869 Author chain X7； PDBConstruct 1–869； UniProt 1–869 Author chain X8； PDBConstruct 1–869； UniProt 1–869 Author chain X9； PDBConstruct 1–869； UniProt 1–869 Author chain XA； PDBConstruct 1–869； UniProt 1–869 Author chain XB； PDBConstruct 1–869； UniProt 1–869 Author chain XC； PDBConstruct 1–869； UniProt 1–869 Author chain XD； PDBConstruct 1–869； UniProt 1–869 Author chain XE； PDBConstruct 1–869； UniProt 1–869 Author chain XF； PDBConstruct 1–869； UniProt 1–869 Author chain XG； PDBConstruct 1–869； UniProt 1–869 Author chain XH； PDBConstruct 1–869； UniProt 1–869 Author chain XI； PDBConstruct 1–869； UniProt 1–869 Author chain XJ； PDBConstruct 1–869； UniProt 1–869 Author chain XK； PDBConstruct 1–869； UniProt 1–869 Author chain XL； PDBConstruct 1–869； UniProt 1–869 Author chain XM； PDBConstruct 1–869； UniProt 1–869 Author chain XN； PDBConstruct 1–869； UniProt 1–869 Author chain XO； PDBConstruct 1–869； UniProt 1–869 Author chain XP； PDBConstruct 1–869； UniProt 1–869 Author chain XQ； PDBConstruct 1–869； UniProt 1–869 Author chain XR； PDBConstruct 1–869； UniProt 1–869 Author chain XS； PDBConstruct 1–869； UniProt 1–869 Author chain XT； PDBConstruct 1–869； UniProt 1–869 Author chain XU； PDBConstruct 1–869； UniProt 1–869 Author chain XV； PDBConstruct 1–869； UniProt 1–869 Author chain XW； PDBConstruct 1–869； UniProt 1–869 Author chain XX； PDBConstruct 1–869； UniProt 1–869 Author chain XY； PDBConstruct 1–869； UniProt 1–869 Author chain XZ； PDBConstruct 1–869； UniProt 1–869 Author chain Xa； PDBConstruct 1–869； UniProt 1–869 Author chain Xb； PDBConstruct 1–869； UniProt 1–869 Author chain Xc； PDBConstruct 1–869； UniProt 1–869 Author chain Xd； PDBConstruct 1–869； UniProt 1–869 Author chain Xe； PDBConstruct 1–869； UniProt 1–869 Author chain Xf； PDBConstruct 1–869； UniProt 1–869 Author chain Xg； PDBConstruct 1–869； UniProt 1–869 Author chain Xh； PDBConstruct 1–869； UniProt 1–869 Author chain Xi； PDBConstruct 1–869； UniProt 1–869 Author chain Xj； PDBConstruct 1–869； UniProt 1–869 Author chain Xk； PDBConstruct 1–869； UniProt 1–869 Author chain Xl； PDBConstruct 1–869； UniProt 1–869 Author chain Xm； PDBConstruct 1–869； UniProt 1–869 Author chain Xn； PDBConstruct 1–869； UniProt 1–869 Author chain Xo； PDBConstruct 1–869； UniProt 1–869 Author chain Xp； PDBConstruct 1–869； UniProt 1–869 Author chain Xq； PDBConstruct 1–869； UniProt 1–869 Author chain Xr； PDBConstruct 1–869； UniProt 1–869 Author chain Xs； PDBConstruct 1–869； UniProt 1–869 Author chain Xt； PDBConstruct 1–869； UniProt 1–869 Author chain Xu； PDBConstruct 1–869； UniProt 1–869 Author chain Xv； PDBConstruct 1–869； UniProt 1–869 Author chain Xw； PDBConstruct 1–869； UniProt 1–869 Author chain Xx； PDBConstruct 1–869； UniProt 1–869 Author chain Y0； PDBConstruct 1–869； UniProt 1–869 Author chain Y1； PDBConstruct 1–869； UniProt 1–869 Author chain Y2； PDBConstruct 1–869； UniProt 1–869 Author chain Y3； PDBConstruct 1–869； UniProt 1–869 Author chain Y4； PDBConstruct 1–869； UniProt 1–869 Author chain Y5； PDBConstruct 1–869； UniProt 1–869 Author chain Y6； PDBConstruct 1–869； UniProt 1–869 Author chain Y7； PDBConstruct 1–869； UniProt 1–869 Author chain Y8； PDBConstruct 1–869； UniProt 1–869 Author chain Y9； PDBConstruct 1–869； UniProt 1–869 Author chain YA； PDBConstruct 1–869； UniProt 1–869 Author chain YB； PDBConstruct 1–869； UniProt 1–869 Author chain YC； PDBConstruct 1–869； UniProt 1–869 Author chain YD； PDBConstruct 1–869； UniProt 1–869 Author chain YE； PDBConstruct 1–869； UniProt 1–869 Author chain YF； PDBConstruct 1–869； UniProt 1–869 Author chain YG； PDBConstruct 1–869； UniProt 1–869 Author chain YH； PDBConstruct 1–869； UniProt 1–869 Author chain YI； PDBConstruct 1–869； UniProt 1–869 Author chain YJ； PDBConstruct 1–869； UniProt 1–869 Author chain YK； PDBConstruct 1–869； UniProt 1–869 Author chain YL； PDBConstruct 1–869； UniProt 1–869 Author chain YM； PDBConstruct 1–869； UniProt 1–869 Author chain YN； PDBConstruct 1–869； UniProt 1–869 Author chain YO； PDBConstruct 1–869； UniProt 1–869 Author chain YP； PDBConstruct 1–869； UniProt 1–869 Author chain YQ； PDBConstruct 1–869； UniProt 1–869 Author chain YR； PDBConstruct 1–869； UniProt 1–869 Author chain YS； PDBConstruct 1–869； UniProt 1–869 Author chain YT； PDBConstruct 1–869； UniProt 1–869 Author chain YU； PDBConstruct 1–869； UniProt 1–869 Author chain YV； PDBConstruct 1–869； UniProt 1–869 Author chain YW； PDBConstruct 1–869； UniProt 1–869 Author chain YX； PDBConstruct 1–869； UniProt 1–869 Author chain YY； PDBConstruct 1–869； UniProt 1–869 Author chain YZ； PDBConstruct 1–869； UniProt 1–869 Author chain Ya； PDBConstruct 1–869； UniProt 1–869 Author chain Yb； PDBConstruct 1–869； UniProt 1–869 Author chain Yc； PDBConstruct 1–869； UniProt 1–869 Author chain Yd； PDBConstruct 1–869； UniProt 1–869 Author chain Ye； PDBConstruct 1–869； UniProt 1–869 Author chain Yf； PDBConstruct 1–869； UniProt 1–869 Author chain Yg； PDBConstruct 1–869； UniProt 1–869 Author chain Yh； PDBConstruct 1–869； UniProt 1–869 Author chain Yi； PDBConstruct 1–869； UniProt 1–869 Author chain Yj； PDBConstruct 1–869； UniProt 1–869 Author chain Yk； PDBConstruct 1–869； UniProt 1–869 Author chain Yl； PDBConstruct 1–869； UniProt 1–869 Author chain Ym； PDBConstruct 1–869； UniProt 1–869 Author chain Yn； PDBConstruct 1–869； UniProt 1–869 Author chain Yo； PDBConstruct 1–869； UniProt 1–869 Author chain Yp； PDBConstruct 1–869； UniProt 1–869 Author chain Yq； PDBConstruct 1–869； UniProt 1–869 Author chain Yr； PDBConstruct 1–869； UniProt 1–869 Author chain Ys； PDBConstruct 1–869； UniProt 1–869 Author chain Yt； PDBConstruct 1–869； UniProt 1–869 Author chain Yu； PDBConstruct 1–869； UniProt 1–869 Author chain Yv； PDBConstruct 1–869； UniProt 1–869 Author chain Yw； PDBConstruct 1–869； UniProt 1–869 Author chain Yx； PDBConstruct 1–869； UniProt 1–869

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ly9
Deposition date deposition_date	2025-02-19
Last revision last_revision	2025-12-31
Structure title title	Cryo-EM structure of carboxysomal mid-shell: T = 16 shell under C1 symmetry.
Keywords keywords	Carboxysome, shell, icosahedron, structural protein; STRUCTURAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9ly9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

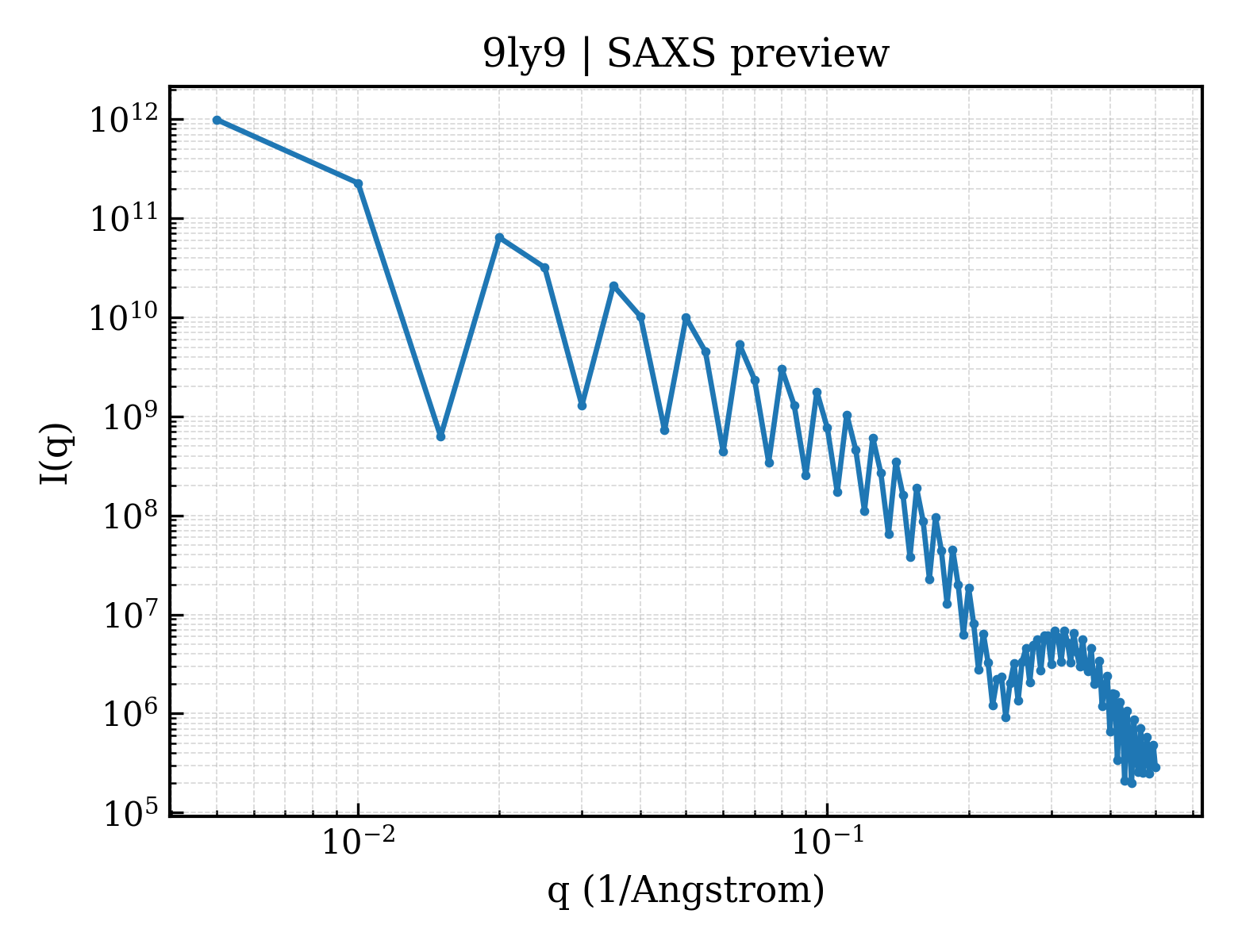

9ly9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

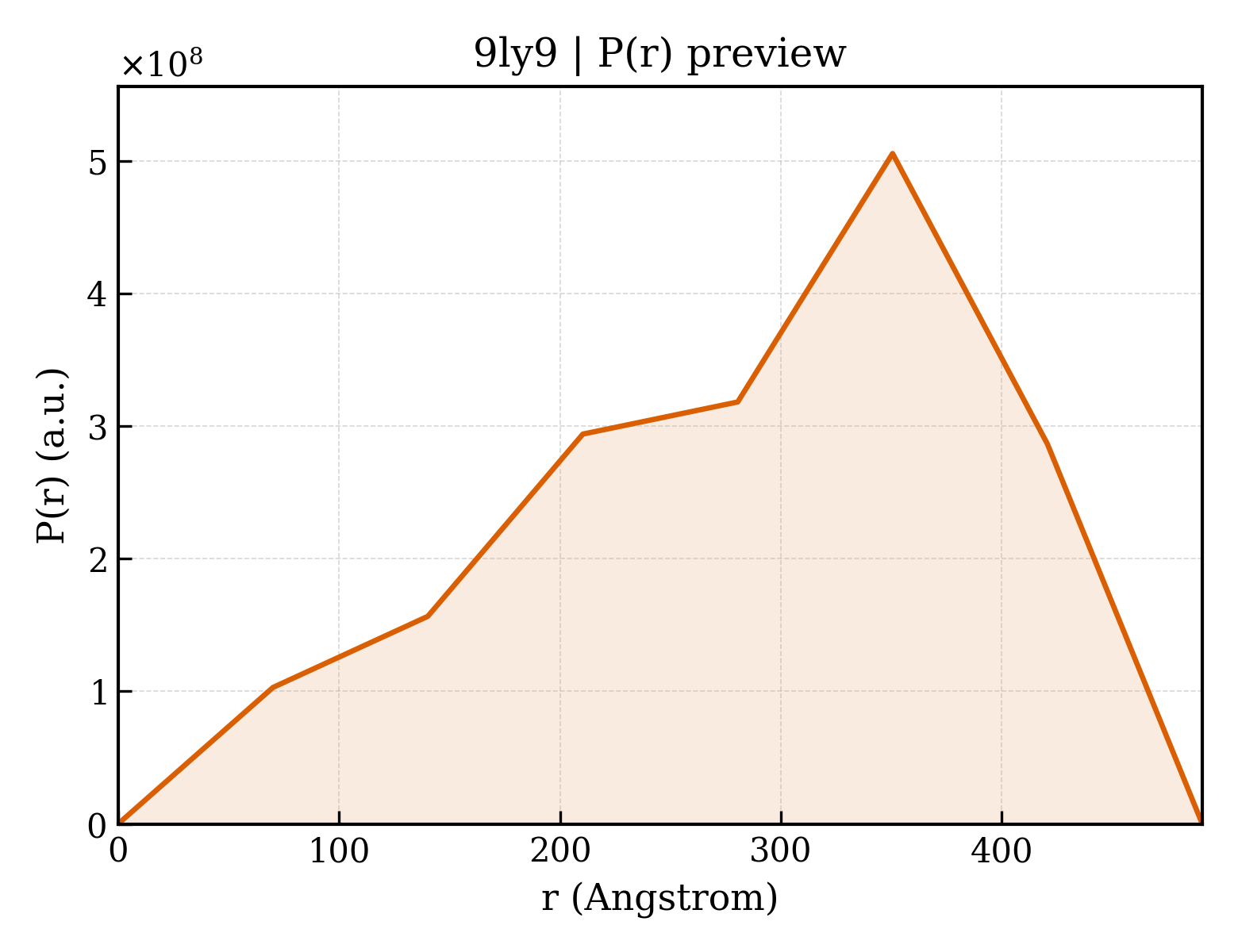

9ly9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	0.00 Å
Rg (electron density)	214.90 Å
Total Rg	215.00 Å
Atom count	716166
Residues	99978
Excluded volume	12742000 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9ly9__assembly_1__model_1`	1080-meric （1080）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Major carboxysome shell protein CsoS1A
Molecular weight formula_weight	9973.5 kDa
Source method src_method	man
Copy count entity_count	900

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	;AA,AB,AC,AD,AE,BA,BB,BC,BD,BE,CA,CB,CC,CD,CE,DA,DB,DC,DE,EA,EB,EC,ED,EE,FA,FB,FC,FD,FE,GA,GB,GC,GD,GE,HA,HB,HC,HD,HE,IA,IB,IC,ID,IE,JA,JB,JD,JE,KA,KB,KC,KD,KE,LA,LB,LC,LD,LE,MA,MB,MC,MD,ME,NA,NB,NC,ND,NE,OA,OB,OC,OD,OE,A1,A2,A3,A4,A5,B1,B2,B3,B4,B5,C1,C2,C3,C4,C5,D1,D2,D3,D5,E1,E2,E4,E5,F1,F2,F3,F4,F5,G1,G2,G3,G4,G5,H1,H2,H3,H4,H5,I1,I2,I3,I4,I5,J1,J2,J4,J5,K1,K2,K3,K4,K5,L1,L2,L4,L5,M1,M2,M3,M4,M5,N1,N2,N3,N4,N5,O1,O2,O3,O4,O5,A0,A6,A7,A8,A9,B0,B6,B7,B8,B9,C0,C6,C7,C8,C9,D0,D8,D9,E0,E6,E7,E8,E9,F0,F6,F7,F8,F9,G0,G6,G7,G8,G9,H0,H6,H7,H8,H9,I0,I6,I7,I8,I9,J0,J7,J8,J9,K0,K6,K7,K8,K9,L0,L6,L7,L8,L9,M0,M6,M7,M8,M9,N0,N6,N7,N8,N9,O0,O6,O7,O8,O9,AP,AQ,AR,AS,AT,BP,BQ,BR,BS,BT,CP,CQ,CR,CS,CT,DP,DQ,DT,EP,EQ,ER,ES,ET,FP,FQ,FR,FS,FT,GP,GQ,GR,GS,GT,HP,HQ,HR,HS,HT,IP,IQ,IR,IS,IT,JP,JQ,JR,JS,JT,KP,KQ,KR,KS,KT,LP,LQ,LR,LS,LT,MP,MQ,MR,MS,MT,NP,NQ,NR,NS,NT,OP,OQ,OR,OS,OT,AG,AH,AI,AJ,AK,BG,BH,BI,BJ,BK,CG,CH,CI,CJ,CK,DG,DK,EG,EH,EJ,EK,FG,FH,FI,FJ,FK,GG,GH,GI,GJ,GK,HG,HH,HI,HJ,HK,IG,IH,II,IJ,IK,JG,JH,JJ,JK,KG,KH,KJ,KK,LG,LH,LJ,LK,MG,MH,MJ,NG,NH,NJ,NK,OG,OH,OJ,OK,AF,AL,AM,AN,AO,BF,BL,BM,BN,BO,CF,CL,CM,CN,CO,DL,DN,DO,EM,EN,EO,FM,FN,FO,GF,GL,GM,GN,GO,HF,HL,HM,HN,HO,IF,IL,IM,IN,IO,JL,JM,JN,JO,KF,KL,KM,KN,KO,LF,LL,LO,ML,MM,MN,MO,NF,NM,NN,NO,OF,OL,OM,ON,OO,Ae,Af,Ag,Ah,Ai,Be,Bf,Bg,Bh,Bi,Ce,Cf,Cg,Ch,Ci,De,Dg,Di,Ee,Ef,Eg,Eh,Ei,Fe,Ff,Fg,Fi,Ge,Gf,Gg,Gh,Gi,He,Hf,Hg,Hh,Hi,Ie,If,Ig,Ih,Ii,Je,Jf,Jg,Jh,Ji,Ke,Kf,Kg,Kh,Ki,Le,Lf,Lg,Lh,Li,Me,Mf,Mg,Mh,Mi,Ne,Nf,Ng,Nh,Ni,Oe,Of,Og,Oh,Oi,AV,AW,AX,AY,AZ,BV,BW,BX,BY,BZ,CV,CW,CX,CY,CZ,DV,DW,DX,DZ,EV,EW,EX,EY,EZ,FV,FW,FX,FZ,GV,GW,GX,GY,GZ,HV,HW,HX,HY,HZ,IV,IW,IX,IY,IZ,JV,JW,JX,JZ,KV,KW,KX,KY,KZ,LV,LW,LX,LY,LZ,MV,MW,MX,MY,MZ,NV,NW,NX,NY,NZ,OV,OW,OX,OY,OZ,AU,Aa,Ab,Ac,Ad,BU,Ba,Bb,Bc,Bd,CU,Ca,Cb,Cc,Cd,Da,Dc,Dd,EU,Ea,Eb,Ec,Ed,FU,Fa,Fb,Fc,Fd,GU,Ga,Gb,Gc,Gd,HU,Ha,Hb,Hc,Hd,IU,Ia,Ib,Ic,Id,Ja,Jb,Jc,Jd,KU,Ka,Kb,Kc,Kd,LU,La,Lb,Lc,Ld,MU,Ma,Mb,Mc,Md,NU,Na,Nb,Nc,Nd,OU,Oa,Ob,Oc,Od,At,Au,Av,Aw,Ax,Bt,Bu,Bv,Bw,Bx,Ct,Cu,Cv,Cw,Cx,Dt,Du,Dv,Dx,Et,Eu,Ev,Ew,Ex,Ft,Fu,Fv,Fw,Fx,Gt,Gu,Gv,Gw,Gx,Ht,Hu,Hv,Hw,Hx,It,Iu,Iv,Iw,Ix,Jt,Ju,Jw,Jx,Kt,Ku,Kv,Kw,Kx,Lt,Lu,Lv,Lw,Lx,Mt,Mu,Mv,Mw,Mx,Nt,Nu,Nv,Nw,Nx,Ot,Ou,Ov,Ow,Ox,Ak,Al,Am,An,Ao,Bk,Bl,Bm,Bn,Bo,Ck,Cl,Cm,Cn,Co,Dk,Dm,Do,Ek,En,Eo,Fk,Fm,Fn,Fo,Gk,Gl,Gm,Gn,Go,Hk,Hl,Hm,Hn,Ho,Ik,Il,Im,In,Io,Jk,Jl,Jn,Jo,Kk,Kl,Kn,Ko,Lk,Ll,Ln,Lo,Mk,Ml,Mn,Mo,Nk,Nl,Nn,No,Ok,Ol,On,Oo,Aj,Ap,Aq,Ar,As,Bj,Bp,Bq,Br,Bs,Cj,Cp,Cq,Cr,Cs,Dp,Dr,Ds,Ej,Ep,Eq,Er,Es,Fj,Fp,Fr,Fs,Gj,Gp,Gq,Gr,Gs,Hj,Hp,Hq,Hr,Hs,Ij,Ip,Iq,Ir,Is,Jj,Jp,Jq,Jr,Js,Kj,Kp,Kq,Kr,Ks,Lj,Lp,Lq,Lr,Ls,Mj,Mp,Mq,Mr,Ms,Nj,Np,Nq,Nr,Ns,Oj,Op,Oq,Or,Os,DD,JC,D4,J3,D7,J6,DS,EI,DM,Dw,Jv,Dn,DR,FL,LM,LN,NL,Fh,FY,JY,Dj,Fq,EL,Dh,DY,Db,Dq,L3,Em,DJ,E3,DH,DI,D6,Df,JI,KI,LI,MI,NI,OI,FF,JU,El,Fl,Km,Nm,Om,DU,Dl,EF,DF,MK,JF,Jm,Lm,MF,Mm ;
Atom count atom_count	716166

MADVTGIALGMIETRGLVPAIEAADAMTKAAEVRLVGRQFVGGGYVTVLVRGETGAVNAAVRAGADACERVGDGLVAAHIIARVHSEVENILPKAPQA

Source Source

Source organism organism	Halothiobacillus neapolitanus c2
NCBI taxonomy ID ncbi_taxonomy_id	555778
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Carboxysome shell vertex protein CsoS4A
Molecular weight formula_weight	8900.3 kDa
Source method src_method	man
Copy count entity_count	60

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	;PA,PB,PC,PD,PE,P1,P2,P3,P4,P5,P6,P7,P8,P9,P0,PP,PQ,PR,PS,PT,PG,PH,PI,PJ,PK,PL,PM,PN,PO,PF,Pe,Pf,Pg,Ph,Pi,PV,PW,PX,PY,PZ,Pa,Pb,Pc,Pd,PU,Pt,Pu,Pv,Pw,Px,Pk,Pl,Pm,Pn,Po,Pp,Pq,Pr,Ps,Pj ;

MKIMQVEKTLVSTNRIADMGHKPLLVVWEKPGAPRQVAVDAIGCIPGDWVLCVGSSAAREAAGSKSYPSDLTIIGIIDQWNGE

Source Source

Source organism organism	Halothiobacillus neapolitanus c2
NCBI taxonomy ID ncbi_taxonomy_id	555778
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Carboxysome assembly protein CsoS2B
Molecular weight formula_weight	92048.6 kDa
Source method src_method	man
Copy count entity_count	120

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	;XA,XB,XC,XE,YA,YB,YC,YD,YE,X1,X2,Y1,Y2,Y4,Y5,X6,X9,X0,Y6,Y7,Y8,Y9,Y0,XP,XQ,XR,XT,YP,YQ,YR,YS,YT,XG,XH,XK,YG,YH,YI,YJ,YK,XL,XO,XF,YL,YM,YN,YO,YF,Xe,Xf,Xg,Xi,Ye,Yf,Yg,Yh,Yi,XV,XW,XZ,YV,YW,YX,YY,YZ,Xd,XU,Ya,Yb,Yc,Yd,YU,Xt,Xu,Xv,Xx,Yt,Yu,Yv,Yw,Yx,Xk,Xl,Xo,Yk,Yl,Ym,Yn,Yo,Xp,Xs,Xj,Yp,Yq,Yr,Ys,Yj,XD,X4,X7,X8,XS,Xh,XY,Xb,Xc,Xw,Xn,Xq,Xr,X5,XX,XJ,XM,Y3,Xa,XN,X3,XI,Xm ;

MPSQSGMNPADLSGLSGKELARARRAALSKQGKAAVSNKTASVNRSTKQAASSINTNQVRSSVNEVPTDYQMADQLCSTIDHADFGTESNRVRDLCRQRREALSTIGKKAAKTTGKPSGRVRPQQSVVHNDAMIENAGDTNQSSSTSLNNELSEICSIADDMPERFGSQAKTVRDICRARRQALSERGTRAVPPKPQSQGGPGRNGYQIDGYLDTALHGRDAAKRHREMLCQYGRGTAPSCKPTGRVKNSVQSGNAAPKKVETGHTLSGGSVTGTQVDRKSHVTGNEPGTCRAVTGTEYVGTEQFTSFCNTSPKPNATKVNVTTTARGRPVSGTEVSRTEKVTGNESGVCRNVTGTEYMSNEAHFSLCGTAAKPSQADKVMFGATARTHQVVSGSDEFRPSSVTGNESGAKRTITGSQYADEGLARLTINGAPAKVARTHTFAGSDVTGTEIGRSTRVTGDESGSCRSISGTEYLSNEQFQSFCDTKPQRSPFKVGQDRTNKGQSVTGNLVDRSELVTGNEPGSCSRVTGSQYGQSKICGGGVGKVRSMRTLRGTSVSGQQLDHAPKMSGDERGGCMPVTGNEYYGREHFEPFCTSTPEPEAQSTEQSLTCEGQIISGTSVDASDLVTGNEIGEQQLISGDAYVGAQQTGCLPTSPRFNQTGNVQSMGFKNTNQPEQNFAPGEVMPTDFSIQTPARSAQNRITGNDIAPSGRITGPGMLATGLITGTPEFRHAARELVGSPQPMAMAMANRNKAAQAPVVQPEVVATQEKPELVCAPRSDQMDRVSGEGKERCHITGDDWSVNKHITGTAGQWASGRNPSMRGNARVVETSAFANRNVPKPEKPGSKITGSSGNDTQGSLITYSGGARG

Source Source

Source organism organism	Halothiobacillus neapolitanus c2
NCBI taxonomy ID ncbi_taxonomy_id	555778
Host organism host_organism	Escherichia coli

▶

Resolution resolution	3.71 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	12775

Cryo-EM structure of carboxysomal mid-shell: T = 16 shell under C1 symmetry.
