SAXSdb — 9mq1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hemagglutinin HA1

Influenza A virus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	20D10 Heavy Chain Fab × 1 20D10 Light Chain Fab × 1 Hemagglutinin HA2 × 3 （A0AAX6NNL9） 2-acetamido-2-deoxy-beta-D-glucopyranose × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A8E4ZAK5_9INFA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–345； UniProt 1–345 Author chain B； PDBConstruct 1–345； UniProt 1–345 Author chain C； PDBConstruct 1–345； UniProt 1–345

Hemagglutinin HA2

Influenza A virus

UniProt A0AAX6NNL9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	20D10 Heavy Chain Fab × 1 20D10 Light Chain Fab × 1 Hemagglutinin HA1 × 3 （A0A8E4ZAK5） 2-acetamido-2-deoxy-beta-D-glucopyranose × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0AAX6NNL9_9INFA
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain a； PDBConstruct 1–176； UniProt 346–521 Author chain b； PDBConstruct 1–176； UniProt 346–521 Author chain c； PDBConstruct 1–176； UniProt 346–521

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9mq1
Deposition date deposition_date	2025-01-01
Structure title title	Cryo-EM map of H5 HA (A/Jiangsu/NJ210/2023) in complex with monoclonal fab 20D10
Keywords keywords	influenza, hemaglutinin, antibody-antigen complex, VIRAL PROTEIN, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9mq1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9mq1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

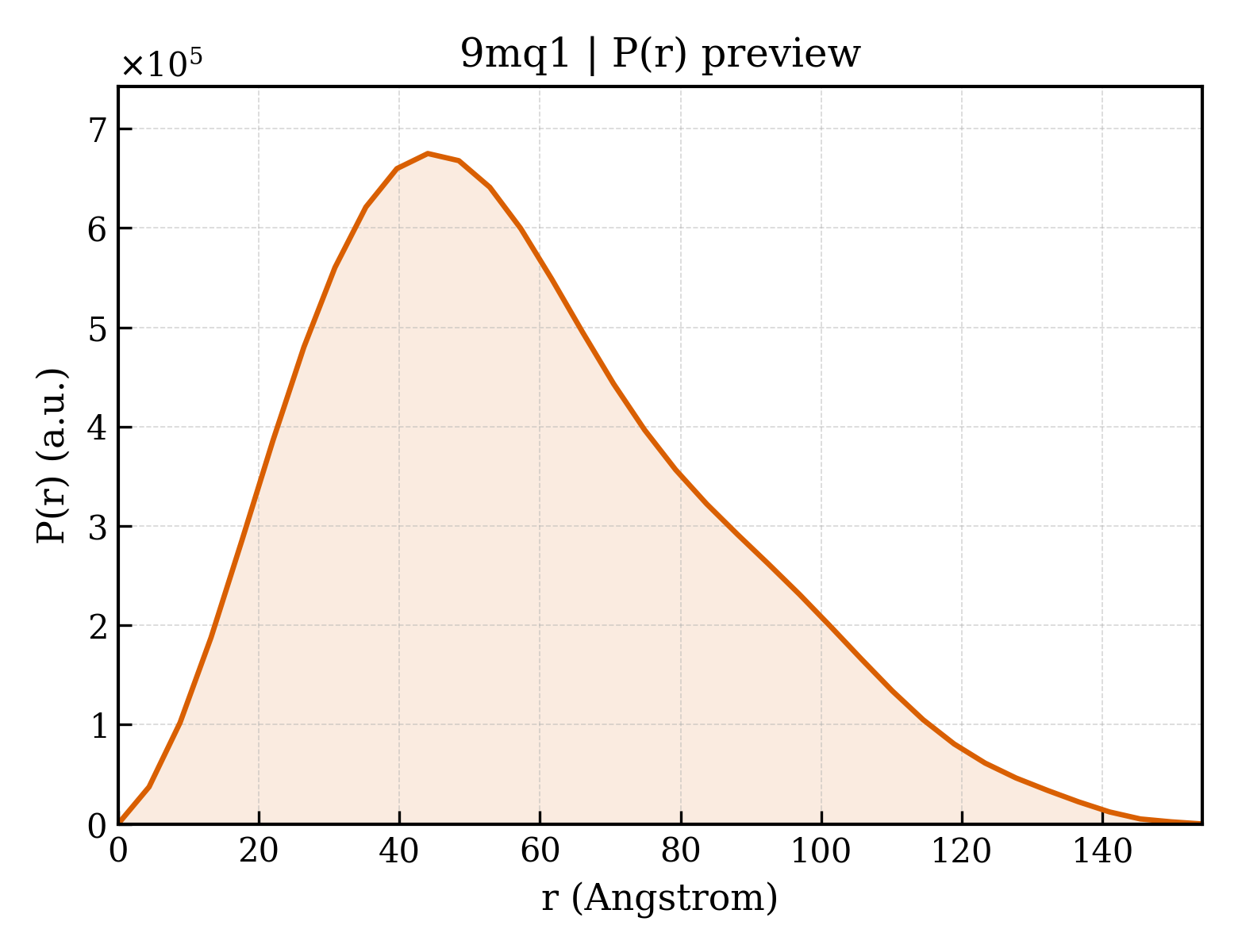

9mq1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.48 Å
Rg (electron density)	44.34 Å
Total Rg	44.39 Å
Atom count	26522
Residues	1677
Excluded volume	238840 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9mq1__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	20D10 Heavy Chain Fab
Molecular weight formula_weight	13253.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H
Atom count atom_count	26522

VQLQESGPGLVKPSETLSLTCTVSGGSISSYYWSWIRQPPGKGLEWIGSIYYSGSTNYNPSLKSLSIISVDTSKNQFSLKLNSVTAADTAVYYCARELASTGPLYYYYGMDVWGQGTTVTVS

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	20D10 Light Chain Fab
Molecular weight formula_weight	12232.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DIVMTQSPLSLPVTPGEPASISCRSSQSLLHSIGYTYLDWYLQKPGQSPKLLIYLGTDRAPGVPDRFSGSGSGTDFTLKISRVEAEDVGVYYCMQALQTPYTFGQGTKLEIK

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Hemagglutinin HA1
Molecular weight formula_weight	39088.6 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,A,C

MENIVLLLAIVNLVKSDQICIGYHANNSTEQVDTIMEKNVTVTHAQDILEKTHNGKLCDLNGVKPLILKDCSVAGWLLGNPMCDEFIRVPEWSYIVERDNPANDLCYPGSLNDYEELKHLLSRINHFEKILIIPKSSWPNHETSLGVSAACPYQGAPSFFRNVVWLIKKDDAYPTIKISYNNTNREDLLILWGIHHSNNAEEQTNLYKNPTTYISVGTSTLNQRLVPKIATRSQVNGQRGRMDFFWTILKPDDAIHFESNGNFIAPEYAYKIVKKGDSTIMKSGVEYGHCNTKCQTPVGAINSSMPFHNIHPLTIGECPKYVKSNKLVLATGLRNSPPREKRRKR

Source Source

Source organism organism	Influenza A virus
NCBI taxonomy ID ncbi_taxonomy_id	11320
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Hemagglutinin HA2
Molecular weight formula_weight	25352.9 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	b,a,c

GLFGAIAGFIEGGWQGMVDGWYGYHHSNEQGSGYAADKESTQKAIDGVTNKVNSIIDKMNTQFEAVGREFNNLERRIENLNKKMEDGFLDVWTYNAELLVLMENERTLDFHDSNVKNLYDKVRLQLRDNAKELGNGCFEFYHKCDNECMESVRNGTYYYPQYSEEARLKREEISGVGYIPEAPRDGQAYVRKDGEWVLLSTFLGSENLYFQGGSHHHHHH

Source Source

Source organism organism	Influenza A virus
NCBI taxonomy ID ncbi_taxonomy_id	11320
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	12

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.370 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.37 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	44504
