SAXSdb — 9n39

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA gyrase subunit B fusion with DNA gyrase subunit A

Staphylococcus aureus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 2 DNA 2	;DNA (5'-D(PAPGPCPCPGPTPAPGPGPGPCPCPCPTPAPCPGPGPCPT)-3') ; × 2 MANGANESE (II) ION × 2 N-{(2r,5r)-2-[2-(6-methoxyquinolin-4-yl)ethyl]-1,3-dioxan-5-yl}-3-oxo-3,4-dihydro-2H-1,4-benzoxazine-6-carboxamide × 1 water × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GYRB_STAAU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–203； UniProt 410–644 Author chain B； PDBConstruct 3–203； UniProt 410–644

DNA gyrase subunit B fusion with DNA gyrase subunit A

Staphylococcus aureus

UniProt P20831

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 2 DNA 2	;DNA (5'-D(PAPGPCPCPGPTPAPGPGPGPCPCPCPTPAPCPGPGPCPT)-3') ; × 2 MANGANESE (II) ION × 2 N-{(2r,5r)-2-[2-(6-methoxyquinolin-4-yl)ethyl]-1,3-dioxan-5-yl}-3-oxo-3,4-dihydro-2H-1,4-benzoxazine-6-carboxamide × 1 water × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GYRA_STAAU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 204–693； UniProt 2–491 Author chain B； PDBConstruct 204–693； UniProt 2–491

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9n39
Deposition date deposition_date	2025-01-30
Structure title title	DNA gyrase complexed with uncleaved DNA and Compound 185 to 2.25 A resolution
Keywords keywords	Bacterial DNA Gyrase, Inhibitor, NBTI, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9n39__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9n39__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

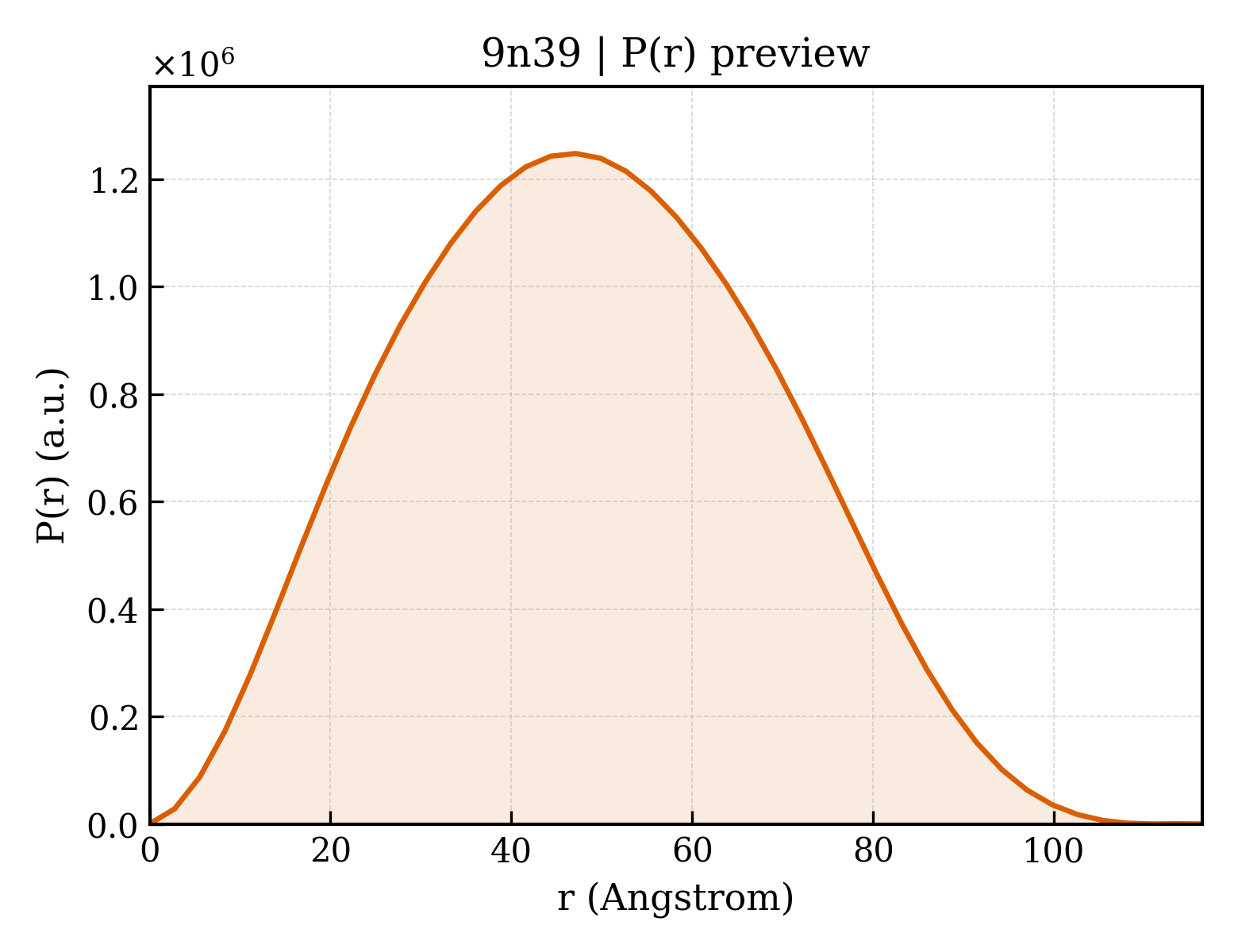

9n39__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.11 Å
Rg (electron density)	36.93 Å
Total Rg	37.31 Å
Atom count	11471
Residues	1385
Excluded volume	200840 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9n39__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	DNA gyrase subunit B fusion with DNA gyrase subunit A
Molecular weight formula_weight	78166.1 kDa
EC 编号 ec_number	5.6.2.2
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	11795

GMDVASLPGKLADCSSKSPEECEIFLVEGDSAGGSTKSGRDSRTQAILPLRGKILNVEKARLDRILNNNEIRQMITAFGTGIGGDFDLAKARYHKIVIMTDADVDGAHIRTLLLTFFYRFMRPLIEAGYVYIAQPPTGYKGLGEMNADQLWETTMNPEHRALLQVKLEDAIEADQTFEMLMGDVVENRRQFIEDNAVYANLDFAELPQSRINERNITSEMRESFLDYAMSVIVARALPDVRDGLKPVHRRILYGLNEQGMTPDKSYKKSARIVGDVMGKYHPHGDSSIYEAMVRMAQDFSYRYPLVDGQGNFGSMDGDGAAAMRFTEARMTKITLELLRDINKDTIDFIDNYDGNEREPSVLPARFPNLLANGASGIAVGMATNIPPHNLTELINGVLSLSKNPDISIAELMEDIEGPDFPTAGLILGKSGIRRAYETGRGSIQMRSRAVIEERGGGRQRIVVTEIPFQVNKARMIEKIAELVRDKKIDGITDLRDETSLRTGVRVVIDVRKDANASVILNNLYKQTPLQTSFGVNMIALVNGRPKLINLKEALVHYLEHQKTVVRRRTQYNLRKAKDRAHILEGLRIALDHIDEIISTIRESDTDKVAMESLQQRFKLSEKQAQAILDMRLRRLTGLERDKIEAEYNELLNYISELETILADEEVLLQLVRDELTEIRDRFGDDRRTEIQLG

Source Source

Source organism organism	Staphylococcus aureus
NCBI taxonomy ID ncbi_taxonomy_id	1280
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(PAPGPCPCPGPTPAPGPGPGPCPCPCPTPAPCPGPGPCPT)-3') ;
Molecular weight formula_weight	6136.0 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C,D

AGCCGTAGGGCCCTACGGCT

Entity 3 Entity 3 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	N-{(2r,5r)-2-[2-(6-methoxyquinolin-4-yl)ethyl]-1,3-dioxan-5-yl}-3-oxo-3,4-dihydro-2H-1,4-benzoxazine-6-carboxamide
Molecular weight formula_weight	463.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	290

▶

Unit-cell length a length_a	93.479 Å
Unit-cell length b length_b	93.479 Å
Unit-cell length c length_c	410.378 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 61
Space-group number int_tables_number	169
Crystal system crystal_system	—

Resolution resolution	2.255 Å
Low-resolution limit resolution_low	23.890 Å
R factor r_factor	—
R_work r_work	0.2017
R_free r_free	0.2558

DNA gyrase complexed with uncleaved DNA and Compound 185 to 2.25 A resolution
