Cryo-EM structure of the SAH domain of human INCENP bound to the paclitaxel-stabilized microtubule

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tubulin alpha-1B chain

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Tubulin beta chain × 1 （P02554） Inner centromere protein × 1 （Q9NQS7） GUANOSINE-5'-TRIPHOSPHATE × 2 ZINC ION × 2 MAGNESIUM ION × 3 GUANOSINE-5'-DIPHOSPHATE × 1 TAXOL × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TBA1B_PIG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–451； UniProt 1–451 Author chain C； PDBConstruct 1–451； UniProt 1–451

Tubulin beta chain

OrganismNot specified

UniProt P02554

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Tubulin alpha-1B chain × 2 （Q2XVP4） Inner centromere protein × 1 （Q9NQS7） GUANOSINE-5'-TRIPHOSPHATE × 2 ZINC ION × 2 MAGNESIUM ION × 3 GUANOSINE-5'-DIPHOSPHATE × 1 TAXOL × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TBB_PIG
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–445； UniProt 1–445

Inner centromere protein

Homo sapiens

UniProt Q9NQS7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Tubulin alpha-1B chain × 2 （Q2XVP4） Tubulin beta chain × 1 （P02554） GUANOSINE-5'-TRIPHOSPHATE × 2 ZINC ION × 2 MAGNESIUM ION × 3 GUANOSINE-5'-DIPHOSPHATE × 1 TAXOL × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	INCE_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain S； PDBConstruct 1–918； UniProt 1–918

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9n9f
Deposition date deposition_date	2025-02-10
Structure title title	Cryo-EM structure of the SAH domain of human INCENP bound to the paclitaxel-stabilized microtubule
Keywords keywords	microtubule, CPC, chromosomal passenger complex, INCENP, mitosis, cell cycle; CELL CYCLE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9n9f__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9n9f__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

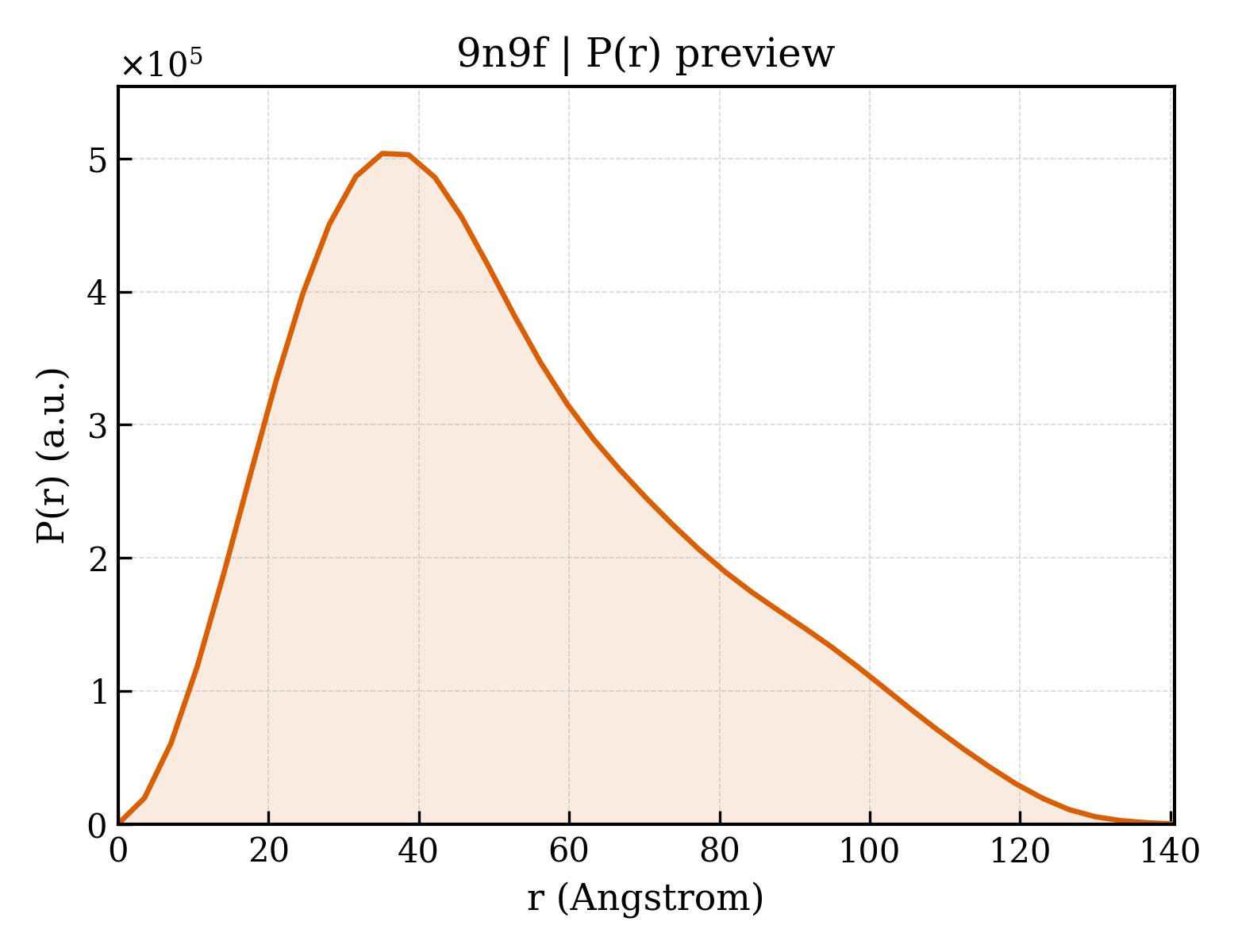

9n9f__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.98 Å
Rg (electron density)	40.44 Å
Total Rg	40.56 Å
Atom count	10718
Residues	1340
Excluded volume	189340 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9n9f__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Tubulin alpha-1B chain
Molecular weight formula_weight	50204.4 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	10723

MRECISIHVGQAGVQIGNACWELYCLEHGIQPDGQMPSDKTIGGGDDSFNTFFSETGAGKHVPRAVFVDLEPTVIDEVRTGTYRQLFHPEQLITGKEDAANNYARGHYTIGKEIIDLVLDRIRKLADQCTGLQGFLVFHSFGGGTGSGFTSLLMERLSVDYGKKSKLEFSIYPAPQVSTAVVEPYNSILTTHTTLEHSDCAFMVDNEAIYDICRRNLDIERPTYTNLNRLISQIVSSITASLRFDGALNVDLTEFQTNLVPYPRIHFPLATYAPVISAEKAYHEQLSVAEITNACFEPANQMVKCDPRHGKYMACCLLYRGDVVPKDVNAAIATIKTKRSIQFVDWCPTGFKVGINYQPPTVVPGGDLAKVQRAVCMLSNTTAIAEAWARLDHKFDLMYAKRAFVHWYVGEGMEEGEFSEAREDMAALEKDYEEVGVDSVEGEGEEEGEEY

Entity 2 Entity 2 polymer

Description description	Tubulin beta chain
Molecular weight formula_weight	49907.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MREIVHIQAGQCGNQIGAKFWEVISDEHGIDPTGSYHGDSDLQLERINVYYNEAAGNKYVPRAILVDLEPGTMDSVRSGPFGQIFRPDNFVFGQSGAGNNWAKGHYTEGAELVDSVLDVVRKESESCDCLQGFQLTHSLGGGTGSGMGTLLISKIREEYPDRIMNTFSVVPSPKVSDTVVEPYNATLSVHQLVENTDETYCIDNEALYDICFRTLKLTTPTYGDLNHLVSATMSGVTTCLRFPGQLNADLRKLAVNMVPFPRLHFFMPGFAPLTSRGSQQYRALTVPELTQQMFDAKNMMAACDPRHGRYLTVAAVFRGRMSMKEVDEQMLNVQNKNSSYFVEWIPNNVKTAVCDIPPRGLKMSATFIGNSTAIQELFKRISEQFTAMFRRKAFLHWYTGEGMDEMEFTEAESNMNDLVSEYQQYQDATADEQGEFEEEGEEDEA

Entity 3 Entity 3 polymer

Description description	Inner centromere protein
Molecular weight formula_weight	108394.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

MGTTAPGPIHLLELCDQKLMEFLCNMDNKDLVWLEEIQEEAERMFTREFSKEPELMPKTPSQKNRRKKRRISYVQDENRDPIRRRLSRRKSRSSQLSSRRLRSKDSVEKLATVVGENGSVLRRVTRAAAAAAAATMALAAPSSPTPESPTMLTKKPEDNHTQCQLVPVVEIGISERQNAEQHVTQLMSTEPLPRTLSPTPASATAPTSQGIPTSDEESTPKKSKARILESITVSSLMATPQDPKGQGVGTGRSASKLRIAQVSPGPRDSPAFPDSPWRERVLAPILPDNFSTPTGSRTDSQSVRHSPIAPSSPSPQVLAQKYSLVAKQESVVRRASRRLAKKTAEEPAASGRIICHSYLERLLNVEVPQKVGSEQKEPPEEAEPVAAAEPEVPENNGNNSWPHNDTEIANSTPNPKPAASSPETPSAGQQEAKTDQADGPREPPQSARRKRSYKQAVSELDEEQHLEDEELQPPRSKTPSSPCPASKVVRPLRTFLHTVQRNQMLMTPTSAPRSVMKSFIKRNTPLRMDPKCSFVEKERQRLENLRRKEEAEQLRRQKVEEDKRRRLEEVKLKREERLRKVLQARERVEQMKEEKKKQIEQKFAQIDEKTEKAKEERLAEEKAKKKAAAKKMEEVEARRKQEEDARRLRWLQQEEEERRHQELLQKKKEEEQERLRKAAEAKRLAEQREQERREQERREQERREQERREQERREQERQLAEQERRREQERLQAERELQEREKALRLQKEQLQRELEEKKKKEEQQRLAERQLQEEQEKKAKEAAGASKALNVTVDVQSPACTSYQMTPQGHRAPPKINPDNYGMDLNSDDSTDDEAHPRKPIPTWARGTPLSQAIIHQYYHPPNLLELFGTILPLDLEDIFKKSKPRYHKRTSSAVWNSPPLQGARVPSSLAYSLKKHPSRLEEELRRRLTESNSLEVLFQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 7 Entity 7 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	TAXOL
Molecular weight formula_weight	853.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	5

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.91 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	254477
