SAXSdb — 9nba

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AUGMIN subunit 2

Arabidopsis thaliana

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	AUGMIN subunit 3 × 1 （Q0WQE7） AUGMIN subunit 5 × 1 （Q9FMB4） AUGMIN subunit 6 × 1 （Q94BP7） AUGMIN subunit 7 × 1 （Q0WTP1） AUGMIN subunit 8 × 1 （Q9SUH5）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AUG2_ARATH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–296； UniProt 1–296

AUGMIN subunit 3

Arabidopsis thaliana

UniProt Q0WQE7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	AUGMIN subunit 2 × 1 （O48767） AUGMIN subunit 5 × 1 （Q9FMB4） AUGMIN subunit 6 × 1 （Q94BP7） AUGMIN subunit 7 × 1 （Q0WTP1） AUGMIN subunit 8 × 1 （Q9SUH5）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AUG3_ARATH
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–617； UniProt 1–617

AUGMIN subunit 5

Arabidopsis thaliana

UniProt Q9FMB4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	AUGMIN subunit 2 × 1 （O48767） AUGMIN subunit 3 × 1 （Q0WQE7） AUGMIN subunit 6 × 1 （Q94BP7） AUGMIN subunit 7 × 1 （Q0WTP1） AUGMIN subunit 8 × 1 （Q9SUH5）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AUG5_ARATH
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–747； UniProt 1–796

AUGMIN subunit 6

Arabidopsis thaliana

UniProt Q94BP7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	AUGMIN subunit 2 × 1 （O48767） AUGMIN subunit 3 × 1 （Q0WQE7） AUGMIN subunit 5 × 1 （Q9FMB4） AUGMIN subunit 7 × 1 （Q0WTP1） AUGMIN subunit 8 × 1 （Q9SUH5）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AUG6_ARATH
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain F； PDBConstruct 1–387； UniProt 1–387

AUGMIN subunit 7

Arabidopsis thaliana

UniProt Q0WTP1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	AUGMIN subunit 2 × 1 （O48767） AUGMIN subunit 3 × 1 （Q0WQE7） AUGMIN subunit 5 × 1 （Q9FMB4） AUGMIN subunit 6 × 1 （Q94BP7） AUGMIN subunit 8 × 1 （Q9SUH5）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AUG7_ARATH
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain G； PDBConstruct 1–329； UniProt 1–329

AUGMIN subunit 8

Arabidopsis thaliana

UniProt Q9SUH5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	AUGMIN subunit 2 × 1 （O48767） AUGMIN subunit 3 × 1 （Q0WQE7） AUGMIN subunit 5 × 1 （Q9FMB4） AUGMIN subunit 6 × 1 （Q94BP7） AUGMIN subunit 7 × 1 （Q0WTP1）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AUG8_ARATH
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain H； PDBConstruct 20–281； UniProt 383–644

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9nba
Deposition date deposition_date	2025-02-13
Structure title title	Augmin/V junction(open)
Keywords keywords	Augmin complex, PLANT PROTEIN; PLANT PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9nba__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

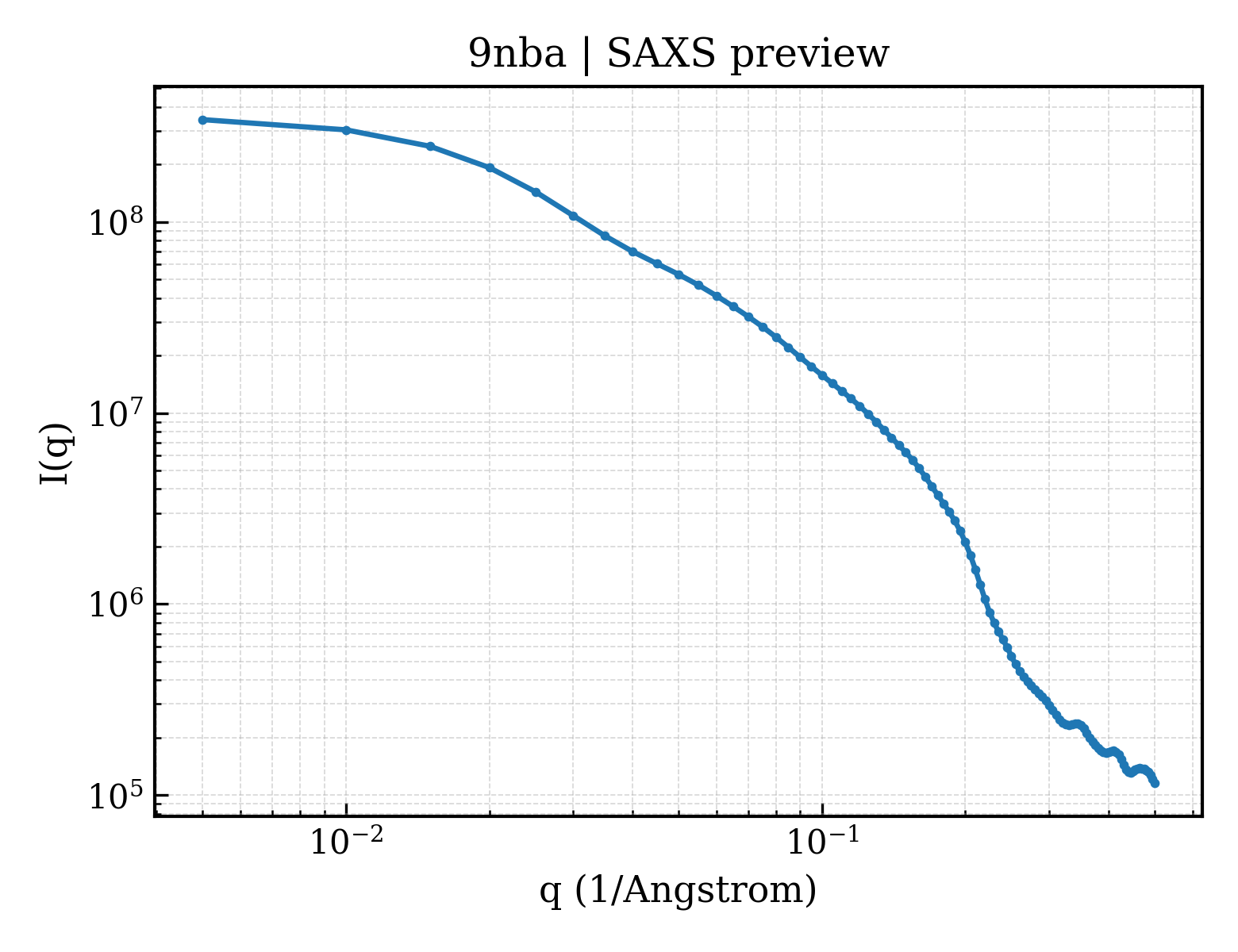

9nba__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

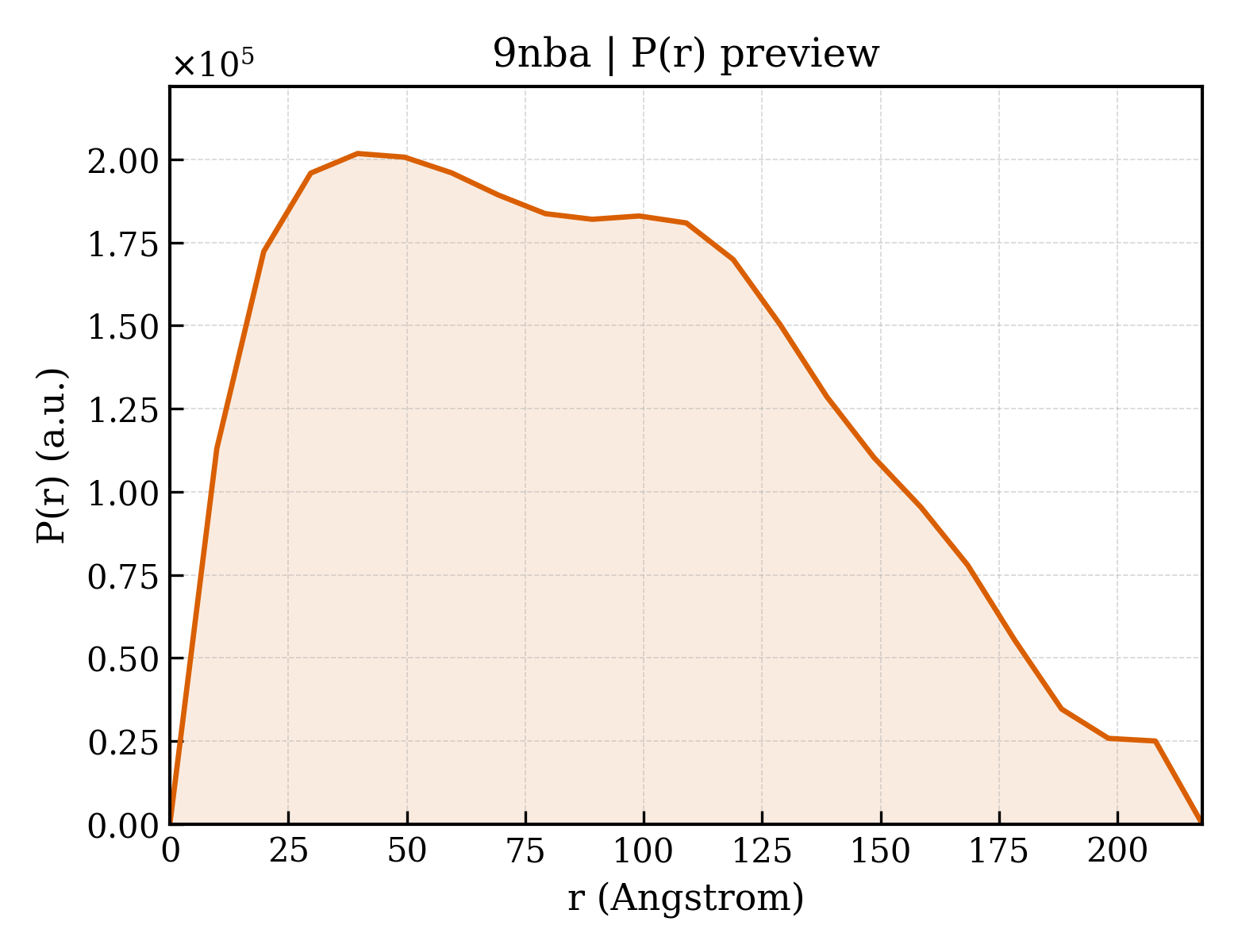

9nba__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	70.27 Å
Rg (electron density)	71.34 Å
Total Rg	70.90 Å
Atom count	10973
Residues	1375
Excluded volume	194490 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9nba__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	AUGMIN subunit 2
Molecular weight formula_weight	33057.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	10973

MSMGGDTTWVGKKPIRRIGGLSDALSIASDLGFAVAPPPSQEELQSFASSNGERGDDLIRVLRELSVVQRKIADLQVELQGRKDDKNVAHLTHVGEMQKKIETLSRITQILKDVIQNKDRIIARLQQPYSLDCIPVEAEYQKQFSELLMKAASDYGALTASVSDFQWSQNFKEPPSVWGEMLRPIPVALASCTRFFEAMSAMRESFATLQELRVGNSAVSLPTTPGGNEMTHRDSDCVTPPQGRIESSFDDLAVHKTRRQNNDQNEEEEEEEEEEDGNNNGNRRLSWPPSVKKSSV

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	AUGMIN subunit 3
Molecular weight formula_weight	69809.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MSSARLCSLVAELGYEGAGKLDPDSFEWPFQYDDARPILDWICSSLRPSNVLSLAELSLYEQFQRDGKLLEGDDLDQAYDSISAFSSRRNNQEAVFGAEESIKEVRDATLAHKAEALELQRQLRRLQTQYDLLTGQSSALIQGRRARVAATSAVSGQITAIEDSLSARNLQMNGVLGRLASTSQELAHYHSGEEDGIYLAYSDFHAYLAGDSACTKELNQWFAKQLDTGPYRLVAEEGKSKCSWVSLDDTSNMLRDLEKSQHQRVAELQRLRSIFGTSERQWIEAQVENAKQQAILLTLKSQVTSVEAHIHFDLHSLRRKHADLVEEISTLYQKEEKLLSETIPELCWELAQLQDTYILQGDYDLKVMRQELYISKQKVFINHLVNQLARHQFLKLACQLEKKNMLGAFSLLKVIESELQGYLSATRSRVGRCSALIQAASDVQEQGAVDDRDSFLHGVRDLLSIHSNTQAGLSTYVSAPAIIQQIVALQSDLSSLQSDLENSLPDDRNRCINELCTHIQNLQQLLFASSTTAQPILTPWPLMKELDEMGKINSKLSTAVEEVTLEHRNKREIVKHHAKDVELQRRVFVDFFCNPERLRNQVRELNALVRARQASSS

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	AUGMIN subunit 5
Molecular weight formula_weight	84325.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MQSLSSSAPTPEAILEWLQKEMGYRQLGPYNGSSKSHVPSIDAIRKICRGNMIPIWNFLINRVKSEKTVERIRRNITVHGGSSNASIGSSVNPGKEESKSKGRRKDKTVTGESSSYAEDREAALQERELAAKEVERLRNIVRRQRKDLKARMLEVSREEAERKRMLDERANYRHKQALLEAYDQQCDEATRIFAEYHKRLQVYVNQANDAQRSVNSSNEVLSSLSANSEREAVYSTVKGTKSADDVILMETTRERNIRIVCDLLASRMIERIRNSFPAYEGNGICSLPELETAKLGFEYDGEITDEMKTVIVNSLRGPPLLLQAIAAYTLRIKTLISREMEKIDVRADAEMLRYKFENNRVTDNSSSDVSSPSNNQLLERQKAHVQQFLATEDALNKAAEARDLCHKFINRLHGSADTATHSFVGGTTQSGSNLRQFELDVWGKEREAAGLRASLNTLLSEIQRLNKLCAERKEAEDSLKKKWKKIEEFDARRSELETIYTTLLKANMDAVAFWNQQPLAAREYASATVIPASEVVVDISNSAKDFIEKEVSAFFQSPDNSLYMLPATPQGLARDPSAIPSICRISAALQYPAGLEGSDASLASVLESLEFCLRVRGSEACVLEDLAKAIDLVHIRQDLVESGHSLLDHAFRAQQKYERTTNYCLDLASEQENTISDQWLPELRTAVQNAQASSEHCKYVRGLLDEWWEQPASTVVDWVTVDGQSVAAWQNHVKQLLAFYDKESLRT

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	AUGMIN subunit 6
Molecular weight formula_weight	43303.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MTMDREKERELELESAMYTNCLLLGLDPNVIGLGASNGTPRVGLFRHSNPKLGEQLLYFILSSLRGPAQSSKDFDKVWPIFDSAQSRDFRKVVQAIISELESQGALPRSNSRVSSLATCCGPRFVELLWQLSLHALREVHRRTFPADVASNPLPSSLTDVSFSHAATLLPVTKARIVLERRRFLKNAETAVQRQAMWSNLAHEMTAEFRGLCAEEAYLQQELEKLNDLRNKVKQEGEVWDDLVSSSSQNSHLVSKATRLWDSIMARKGQHEVLASGPIEDLIAHREHRYRISGSALLAAMDQSSQVPRAELLSAHSDDSASLADDKELSDGSYTNMHDHSLVDSFETASSQASDETLSRVDDRGGKINQTVDVAEVIRRWTHALQRI

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	AUGMIN subunit 7
Molecular weight formula_weight	37047.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MAAKQMEEIQKKLRLLSYPRANAPAQSLLFAGMERYALLEWLFFKLLGDKSPFSQQNLQGDAGVRDEETVRIQYLAEIAKFLGITPTVDIEAIQGHGTYEDRMEMLRNIVDLVEASLFSDNQEWSIDEQVAKDIQLIDAIAERQSLIFSEECKLFPADVQIQSIYPLPDVSELETKLSEQAKILSNLQQKVDDLAAKHAYNPDEEYTEVESQLRARLESFLETARAFNTIYTKEIRPWTHMMEVPQLHGFGPAANRLLEAYNMLLKFLGNLKNLRDSHAALSIGSSGTVAGEPSSVTRIVSDCEAALTVLNRDLGILSASIAREQGERL

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	AUGMIN subunit 8
Molecular weight formula_weight	31372.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MKSSEDQVDPRLIDGKGSGRPSTPPSRGISPSRIRQTTTSTQSSTTTSVLSFITDVKKGKKASYIEDVHQLRLLHNRYLQWRFAIARAESVMYIQRLTSEETLFNVWHAISELQDHVTRQRIGLQQLKLEIKLNSLLNDQMVSLEDWATLERDHVSSLVGAISDLEANTLRLPATGGTKADTESLKAAMSSALDVMQAMGSSIWSLLSKVEEMNIMVTELAVVVTKESSMQGKCEDLLASTAIMQIEECSLRTHLIQTRREEGEDAETPPPLLPLSKFPWP

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Escherichia coli

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	8.60 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	37048
