9nh0

In situ cryo-EM structure of PR and DotA-IcmX of the Legionella Dot/Icm T4SS machine at C1 symmetry

Method: ELECTRON MICROSCOPY D_max: 280.4 Å Quality: GOOD

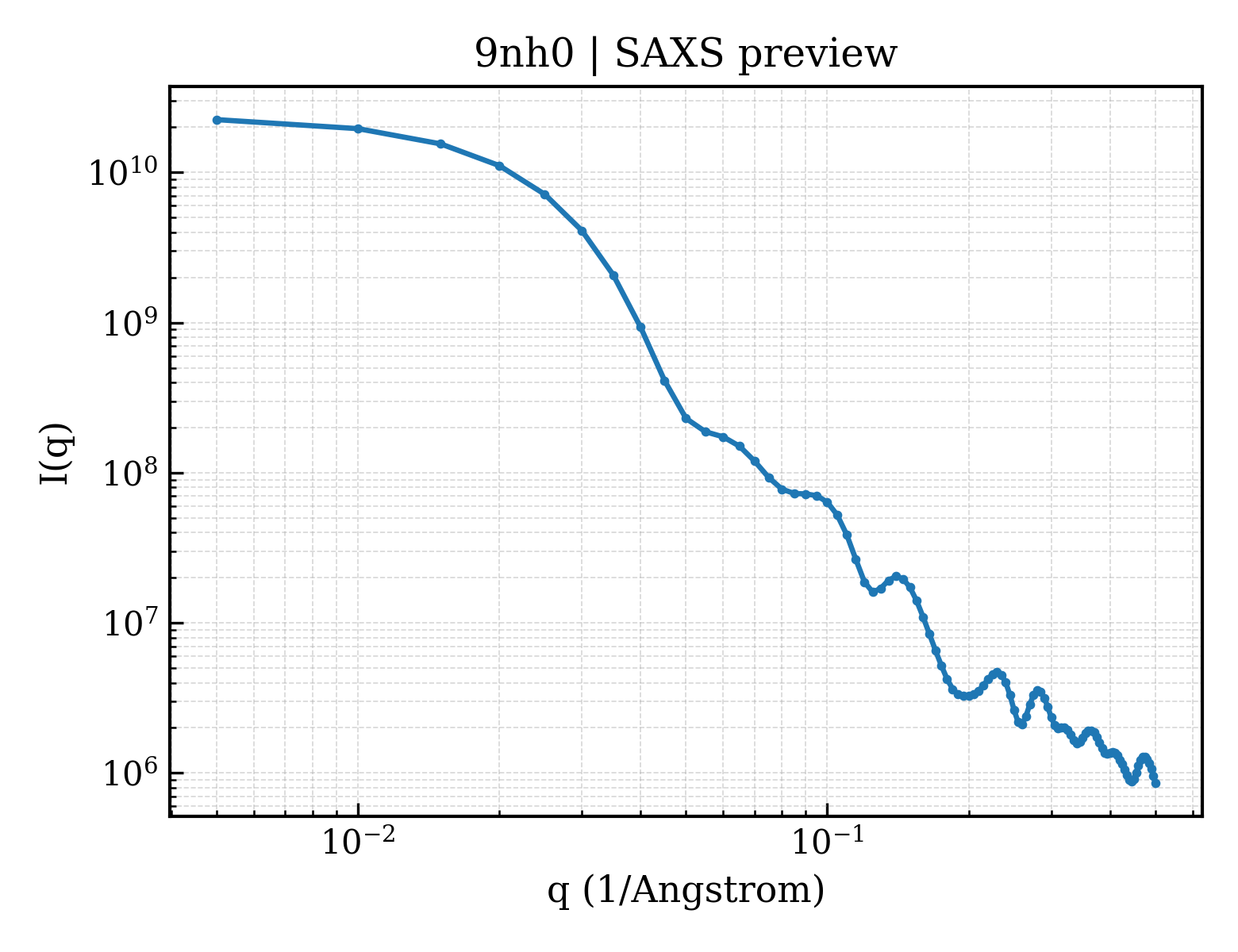

SAXS 散射曲线 SAXS Profile

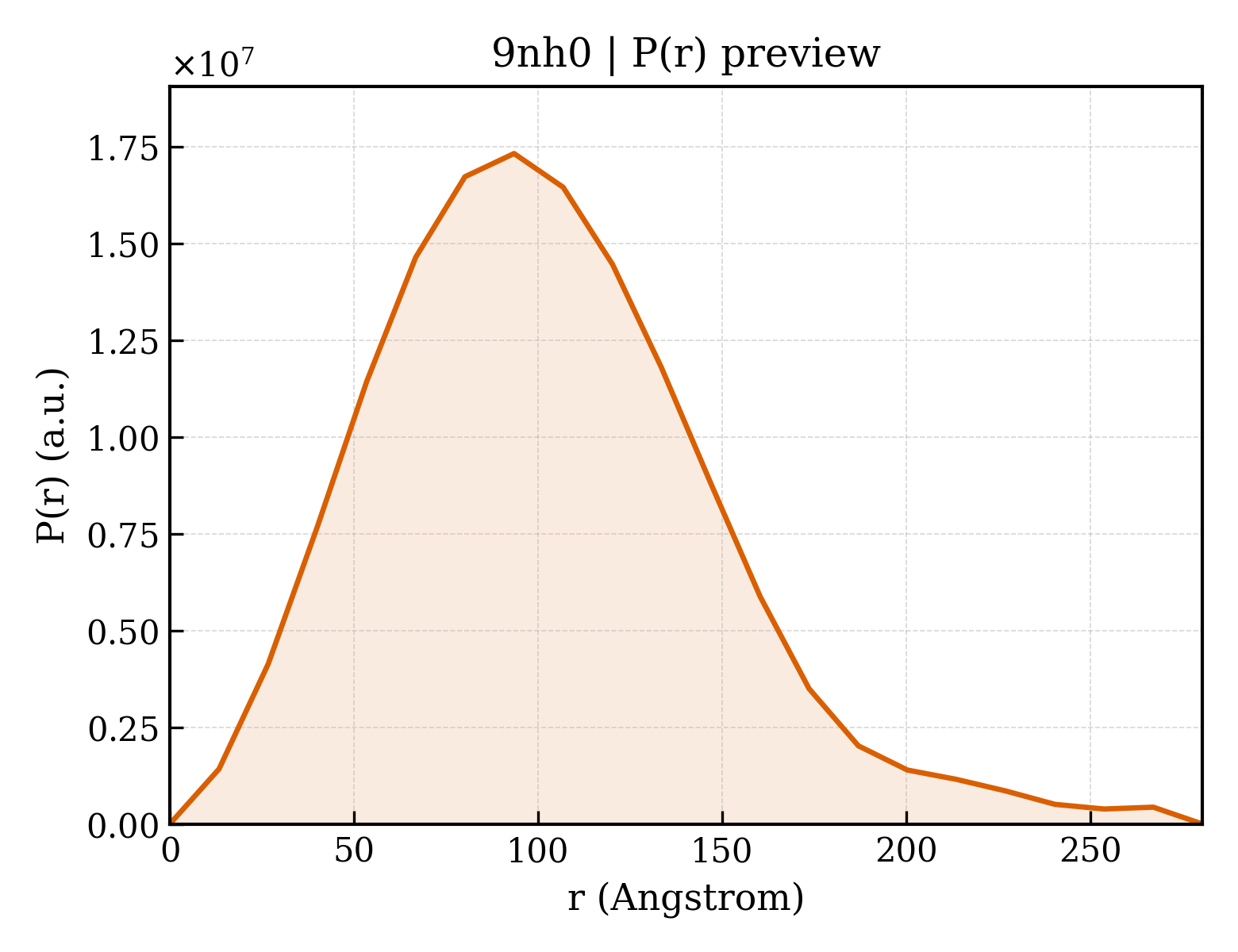

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9nh0
沉积日期 deposition_date	2025-02-23
结构标题 title	In situ cryo-EM structure of PR and DotA-IcmX of the Legionella Dot/Icm T4SS machine at C1 symmetry
关键词 keywords	Type IVB Dot/Icm Secretion Machine, PROTEIN TRANSPORT; PROTEIN TRANSPORT
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	74.31 Å
回转半径 Rg (电子) rg_electron	74.25 Å
零角强度 I(0) i0	23534200000.00
分子量 molecular_weight	1336400.0 kDa
排除体积 excluded_volume	1684000 Å³
包络体积 envelope_volume	2422200 Å³
水化壳体积 shell_volume	257510 Å³
包络直径 envelope_diameter	284.7 Å
壳层 Rg shell_rg	83.61 Å
包络 Rg envelope_rg	73.14 Å
形状 Rg shape_rg	74.23 Å
总 Rg total_rg	74.40 Å
总原子数 total_atoms	94015
残基数 n_residues	12213
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	280.4 Å
Rg (实空间) rg_real	78.41 Å
Rg 误差 (实空间) rg_real_error	1.88 Å
I(0) (实空间) i0_real	2.3650e+10
I(0) 误差 (实空间) i0_real_error	4.7260e+08
Rg (倒空间) rg_reciprocal	75.02 Å
I(0) (倒空间) i0_reciprocal	23580000000.0000
解质量估计 total_estimate	0.8690
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	93.5 Å
偏度 Skewness skewness	0.631
峰度 Kurtosis kurtosis	0.632
角度范围 angular_range	— – 0.1050 Å⁻¹
当前正则化参数 α current_alpha	0.9569
最高正则化参数 α highest_alpha	2538000000.0000
实空间数据点数 n_real_points	22
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.632; Stabil: 0.861; Sysdev: 1.000; Positv: 1.000; Valcen: 0.954; Smooth: 0.863

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	unknown peptide E
分子量 formula_weight	1679.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Aa,Ag,Am,As,Ay,Be,Bk,Bq,Bw,Cc,Ci,Co,Cu,Da,Dg,Dm,Ds,Dy
原子数 atom_count	94015

CTDAALAALEYHKSNA

Entity 2 polymer

描述 description	unknown peptide F
分子量 formula_weight	910.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Ab,Ah,An,At,Az,Bf,Bl,Br,Bx,Cd,Cj,Cp,Cv,Db,Dh,Dn,Dt,Dz

CVSMIGGSR

Entity 3 polymer

描述 description	unknown peptide G
分子量 formula_weight	1776.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Ac,Ai,Ao,Au,Ba,Bg,Bm,Bs,By,Ce,Ck,Cq,Cw,Dc,Di,Do,Du,Ea

RVSIGGTVYTAKKYDD

Entity 4 polymer

描述 description	unknown peptide H
分子量 formula_weight	505.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Ad,Aj,Ap,Av,Bb,Bh,Bn,Bt,Bz,Cf,Cl,Cr,Cx,Dd,Dj,Dp,Dv,Eb

PFGAD

Entity 5 polymer

描述 description	IcmG (DotF)
分子量 formula_weight	29730.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Ae,Ak,Aq,Aw,Bc,Bi,Bo,Bu,Ca,Cg,Cm,Cs,Cy,De,Dk,Dq,Dw,Ec

MMAEHDQNNDEYKFAELDSYDMDQAGESDLDSEASYQSGKEGLTKKKDIKRNALIAIGAVVFIMVMYKIIGWMFFSDKSSQVTSKPAIPPVTQVATPQPVQTIPTTTPIQQVQPTTIIEDDPDLKKKVSAIEMTQQSLRSEVNALSEQINAVNNNIKNLNAQIVNLNQIIGNMSNQIARQSEVINVLMARTTPKKVVKVSRPIVQARIIYYIQAVIPGRAWLIGSNGSTLTVREGSKIPGYGMVKLIDSLQGRILTSSGQVIKFSQEDS

Entity 6 polymer

描述 description	IcmK (DotH)
分子量 formula_weight	38958.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Af,Al,Ar,Ax,Bd,Bj,Bp,Bv,Cb,Ch,Cn,Ct,Cz,Df,Dl,Dr,Dx,Ed

MMKKYDQLCKYCLVIGLTFSMSCSIYAADQSDDAQQALQQLRMLQQKLSQNPSPDAQSGAGDGGDNAASDSTQQPNQSGQANAPAANQTATAGGDGQIISQDDAEVIDKKAFKDMTRNLYPLNPEQVVKLKQIYETSEYAKAATPGTPPKPTATSQFVNLSPGSTPPVIRLSQGFVSSLVFLDSTGAPWPIAAYDLGDPSSFNIQWDKTSNTLMIQATKLYNYGNLAVRLRGLNTPVMLTLIPGQKAVDYRVDLRVQGYGPNAKSMPTEEGIPPSANDLLLHVLEGVPPPGSRRLVVSGGDARAWLSNEKMYVRTNLTILSPGWLASMTSADGTHAYEMQKSPVLLVSWHGKVMQLKVEGL

Entity 7 polymer

描述 description	IcmE (DotG)
分子量 formula_weight	107911.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	23

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Ee,Ef,Eg,Eh,Ei,Ej,Ek,El,Em,En,Eo,Ep,Eq,Er,Es,Et,Eu,Ev,Fg,Fh,Fi,Fj,Fk

MASKKENLKSLFSNTRTRVIIIFTAALLIIAVVIGFFKIRGATTGSIAAAEVSTVPGGIQSIPGVLDPTAQYAKLQEEQNITQAQVAEKTGGSAIPTIIRTQALGEGVGVIGSQSGVGFAALAQEELGGPQRSLWIQELQDGSCSKSVITKVVNQGAQLTDLKAACSCVQLKDSGYGLQELEQVCECKELKSAGYNARQLKEAGYSAGRLRNCGFDACELRNAGFTAQEMKDGGFSDGELKGAGFSDAEIAKASGLPDGITADDVRKAGCGAAALAKLRQAGVSASAIRKISGCTAEQLKAAGYTAKELKDAGFSAADLRRAGFSAAELKDAGFTARDLLNAGFTPADLAKAGFSDAQIKAAQAELPPGITPQDVKNAGCDVEALKKEREAGVSAALIRQYAGCSAQALKAAGFTDADLANAGFTPAQISAATPLSDAEIKAAGCDPDKLKKLFSAGVSAKRIKELNGCSAEALKAAGYDAQSLLAAGFTPQELLAAGFTPKQLEDAGLNPVSIIADGRVADCSVESLKKARAAGVSALTIKQTLGCSAAALKAAGYTAKELKDAGFTAAELKAAGFSAKELKDAGFTAKELRDAGFSAQELKDVGFSAKDLKDAGFSAAELKAAGFTAAQLKAAGFSAKDLKDAGFSAAELKAAGFSAKELKDAGFSASDLKNAGFSAKELKDAGFSASDLKSAGFSASELKNAGYSADELKKAGYTSAELRNAGFSPQESAVAGLQGPDLQQLDSSITGIPSIPGATPRPTTSDAASSAEQLQAILQKQNEQLAEQKYQQEIQQRTSDMLTAATQLVQDWKQVETQVYTEGTEETKTSGGESAVPGTGTGTGSNNQPVDQGAVSAQNQAIIKTGDIMFAVLDTSVNSDEPGPILATIVTGKLKGSKLIGSFNLPSNADKMVITFNTMSIPGAEKTISISAYAIDPNTARTALASRTNHHYLMRYGSLFASSFLQGFGNAFQSANTTITIGGTGGGNNITVANGVGRSTLENAVIGLATVGKAWSQQAQQLFNTPTTVEVYSGTGLGILFTQDVTTI

Entity 8 polymer

描述 description	IcmX (IcmY)
分子量 formula_weight	50712.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Ew,Ex,Ey,Ez,Fa

MKVLPKLALANLVCFTTLSVFAQPADPSGQQTSTNTSNLVTYLTNLGKYLGYDITQSSKAPNPPYSQLFNSNVVQLVQNYAYNTFLGAIPVDAMSQSLMNFVTDKVQGNSLINNLANTTFKYQNFSAPSSGADGKITANGLIDQSTASAQTPTTPGIFSAPQITTSGTYLNDPVSQAVFNILGTPDYSFCMDNEQKNWLPNCNLMYQNLVMQNVIGTLPPAQTSGSTPAFYSYKYNQPLISQLNSNSLIAPLLMDTSASQSGQDSGLTAKSQAQQALNFIRYASAQVTPPSLPKLSAYSELWNQATAKPNSAGYNEVQQKQAAATLSSYFNNLRVYAAQTSVGVSNLYYILSKRLPQNMSADQSNANITSQALNEFNMATRRLFDPTASNTPGQPNQQWIKQINDASPATVQKEIAILLAEINYQMYLDRQIQERILLTNSIMLLQNLKAAQPTADFSSQGSPSEQ

Entity 9 polymer

描述 description	DotA
分子量 formula_weight	113235.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Fb,Fc,Fd,Fe,Ff

MNKLAITVLLCFFPALALAENGALSFAPPASDLSVVFLGNLFGVVDGVLHGTGSQIMGNMFGVFNSAVLALGGIIIMYTLMVSTMNTAHEGQMLGQKWSSIWIPLRSTFGLALLIPKASGYCMMQVFFMWVIVQGVGAADKIWEAALSYLNRGGVIIQAQADPTKSLQAAGSSSSGVAKGALTILGGQICMLGLQKQLQAQRDLYLSQSKSPPCGGNPTPEMNTFCRTAIPDFISTVNFVKKQNDDTPKDLTANQPASFELDMPNFDKSSPFYFLNGICGTVKWNNISALNSTNQSDNKGLVTVGGAGSNSSMGANSLNITSSQLQTARLSRAIAIQQMYVTLSTVAQVMVNNDPAFSTTTSTGNSKNDFSAIAKQQFGVPYKSSGEVCTEYQQVCQTWGSVPSSTGSTTGVLFNGTEFLGAINDYNGIMMPTLNLIRQATSKEFDKKSRDFIAEANAKGWIMAGSYFFDLVKLNGSATEFADQFDTGTGLDKSSFDPTQLTKPFGKTCQDPYSLLCTWFQNKSDKLIQIQSLIDGVPALGQDGVKQPDLSDNPQRQSVSGPLSSTVYGFVNNSMMVQLPGQPGIKPLTFANLINFKVDTSLYYMKHQDFDCGRVKILFFSFCLGRMMGDLFYNYVFRYVYNFFLAIFGEMINSIVMAFLMIPLQGMKDIFIVGVQTLTQPGINPIVALANMGTMYINFSGTLWLTLLNMAVVSSLIPLFGIFIFALIMMAMPLLMAWIGTMVSIGFVTAYYIPVLPYMIFTFGSFAWLIAVIEAMVAAPIVALGVTHPEGNEAFGKGEFAIMILVNVFLRPSLMIIGYIAAIALSYVGVWILNAGFDHAISYIQSDQGIETWEKGTSSNDAKRFFQSAGNWTGAKMDTSQWDNFKDKLTGDYQSTALEGGYTGWAGVYAFFFSILIYTSMYLIIVQKAFTLIAHLPDKVLRWIGGSPESFGQETMQWGEEAKGRVEKAGEATYGAEKAIGDKLGAKGQEMLGKLGPQAKKISENAGDVSGKGKNSGGSQTGPSSKPDTGQQLGGSDSGTPTSTPPPE

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	4.63 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	37503

fit	/app/data/saxs_computation/nh/9nh0/9nh0.fit
pddf	/app/data/pr_computation/nh/9nh0/9nh0.pr.out
profile	/app/data/saxs_computation/nh/9nh0/9nh0.dat
