9nm5

Crystal structure of human glutamine synthetase in complex with ADP and phosphinothricin phosphate

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glutamine synthetase

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 10	ADENOSINE-5'-DIPHOSPHATE × 10 MANGANESE (II) ION × 30 (2S)-2-AMINO-4-[METHYL(PHOSPHONOOXY)PHOSPHORYL]BUTANOIC ACID × 10 (4S)-2-METHYL-2,4-PENTANEDIOL × 21 CHLORIDE ION × 10 water × 10	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GLNA_HUMAN
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–373； UniProt 1–373 Author chain B； PDBConstruct 1–373； UniProt 1–373 Author chain C； PDBConstruct 1–373； UniProt 1–373 Author chain H； PDBConstruct 1–373； UniProt 1–373 Author chain I； PDBConstruct 1–373； UniProt 1–373 Author chain D； PDBConstruct 1–373； UniProt 1–373 Author chain E； PDBConstruct 1–373； UniProt 1–373 Author chain F； PDBConstruct 1–373； UniProt 1–373 Author chain G； PDBConstruct 1–373； UniProt 1–373 Author chain J； PDBConstruct 1–373； UniProt 1–373

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9nm5
Deposition date deposition_date	2025-03-04
Last revision last_revision	2026-03-11
Structure title title	Crystal structure of human glutamine synthetase in complex with ADP and phosphinothricin phosphate
Keywords keywords	Ligase, glutamine synthetase, glufosinate, ADP; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9nm5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9nm5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

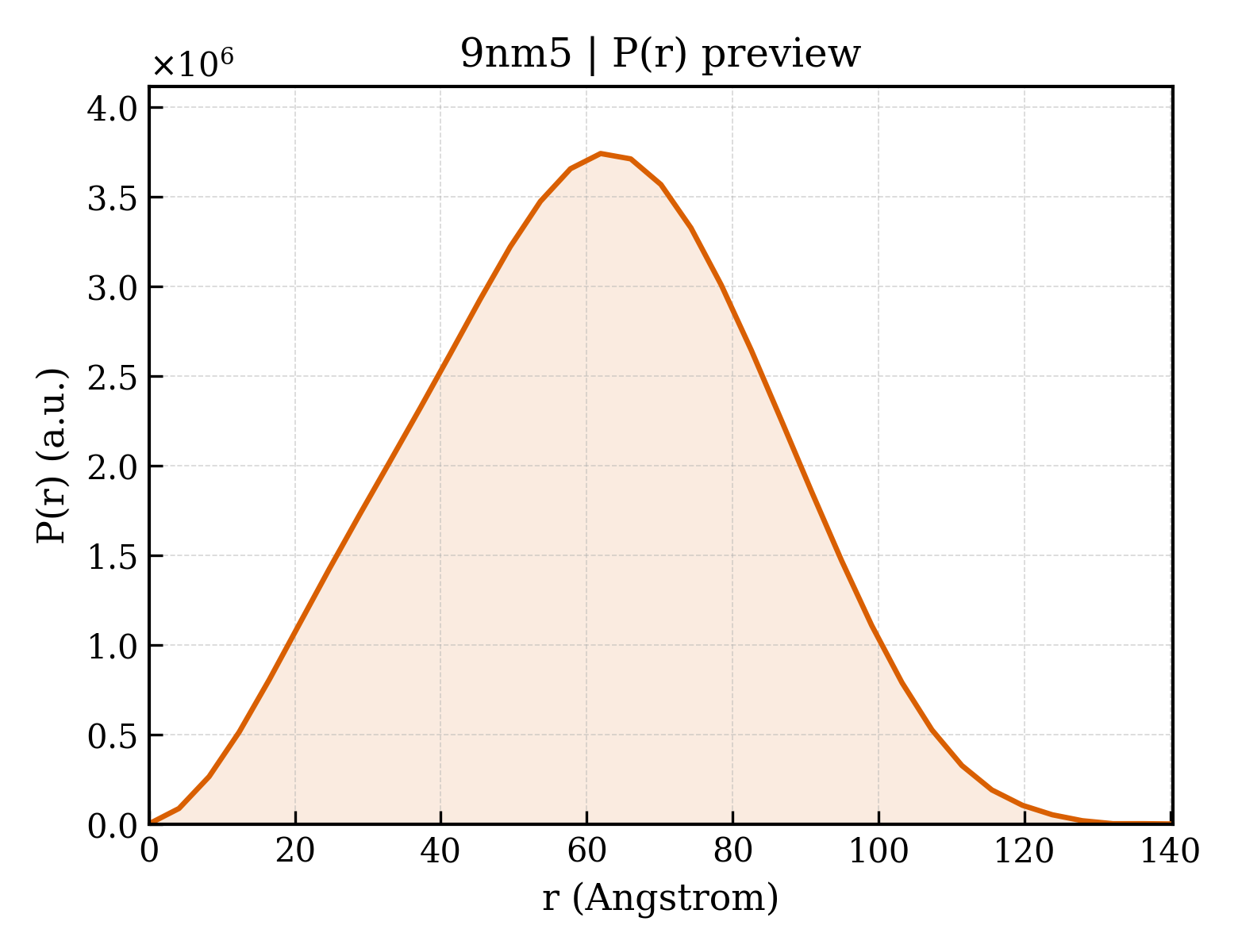

9nm5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	46.40 Å
Rg (electron density)	45.73 Å
Total Rg	46.04 Å
Atom count	29672
Residues	3700
Excluded volume	520960 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9nm5__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Glutamine synthetase
Molecular weight formula_weight	42134.4 kDa
EC 编号 ec_number	6.3.1.2,2.3.1.225
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,H,I
Atom count atom_count	33375

MTTSASSHLNKGIKQVYMSLPQGEKVQAMYIWIDGTGEGLRCKTRTLDSEPKCVEELPEWNFDGSSTLQSEGSNSDMYLVPAAMFRDPFRKDPNKLVLCEVFKYNRRPAETNLRHTCKRIMDMVSNQHPWFGMEQEYTLMGTDGHPFGWPSNGFPGPQGPYYCGVGADRAYGRDIVEAHYRACLYAGVKIAGTNAEVMPAQWEFQIGPCEGISMGDHLWVARFILHRVCEDFGVIATFDPKPIPGNWNGAGCHTNFSTKAMREENGLKYIEEAIEKLSKRHQYHIRAYDPKGGLDNARRLTGFHETSNINDFSAGVANRSASIRIPRTVGQEKKGYFEDRRPSANCDPFSVTEALIRTCLLNETGDEPFQYKN

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Glutamine synthetase
Molecular weight formula_weight	42118.4 kDa
EC 编号 ec_number	6.3.1.2,2.3.1.225
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F,G,J

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 4 Entity 4 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	30

Entity 5 Entity 5 non-polymer

Description description	(2S)-2-AMINO-4-[METHYL(PHOSPHONOOXY)PHOSPHORYL]BUTANOIC ACID
Molecular weight formula_weight	261.1 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 6 Entity 6 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	21

Entity 7 Entity 7 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	3560

▶

Unit-cell length a length_a	183.398 Å
Unit-cell length b length_b	130.981 Å
Unit-cell length c length_c	191.624 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	101.41 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	20

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.850 Å
Low-resolution limit resolution_low	37.540 Å
R factor r_factor	0.1322
R_work r_work	0.1307
R_free r_free	0.1594
