1. Protein Identity and Related Structures Protein Identity & Related Structures

Pannexin-1,RNA-directed RNA polymerase L chimera

Human respiratory syncytial virus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 7	2-acetamido-2-deoxy-beta-D-glucopyranose × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A5P9VSM8_HRSV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 438–678； UniProt 1740–1980 Author chain B； PDBConstruct 438–678； UniProt 1740–1980 Author chain C； PDBConstruct 438–678； UniProt 1740–1980 Author chain D； PDBConstruct 438–678； UniProt 1740–1980 Author chain E； PDBConstruct 438–678； UniProt 1740–1980 Author chain F； PDBConstruct 438–678； UniProt 1740–1980 Author chain G； PDBConstruct 438–678； UniProt 1740–1980

Pannexin-1,RNA-directed RNA polymerase L chimera

Human respiratory syncytial virus

UniProt Q96RD7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 7	2-acetamido-2-deoxy-beta-D-glucopyranose × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PANX1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–426； UniProt 1–426 Author chain B； PDBConstruct 1–426； UniProt 1–426 Author chain C； PDBConstruct 1–426； UniProt 1–426 Author chain D； PDBConstruct 1–426； UniProt 1–426 Author chain E； PDBConstruct 1–426； UniProt 1–426 Author chain F； PDBConstruct 1–426； UniProt 1–426 Author chain G； PDBConstruct 1–426； UniProt 1–426

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9oqq
Deposition date deposition_date	2025-05-21
Structure title title	Human pannexin 1 channel W74A mutant with 10mM ATP
Keywords keywords	PANX1, Pannexin, Large pore channel, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9oqq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

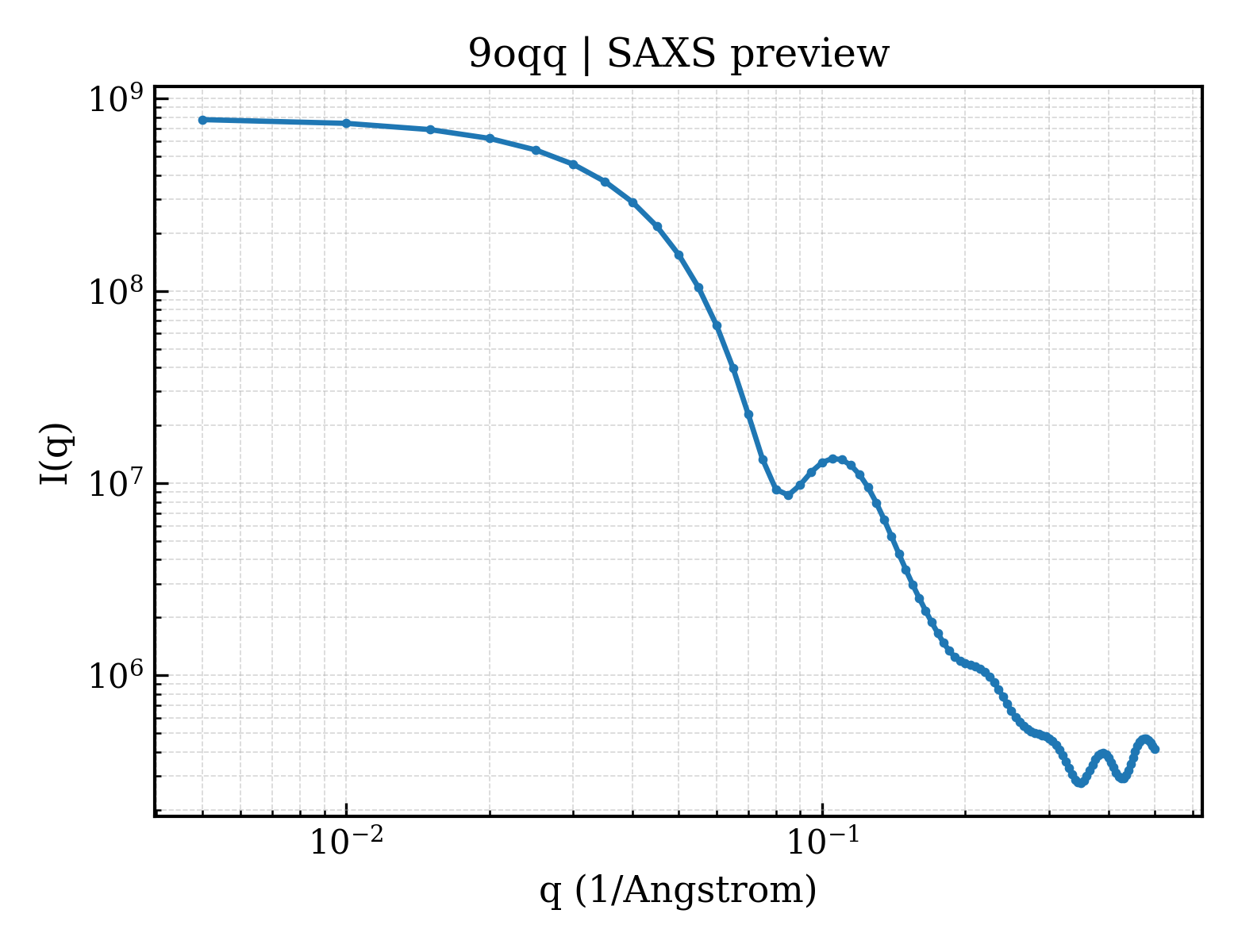

9oqq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

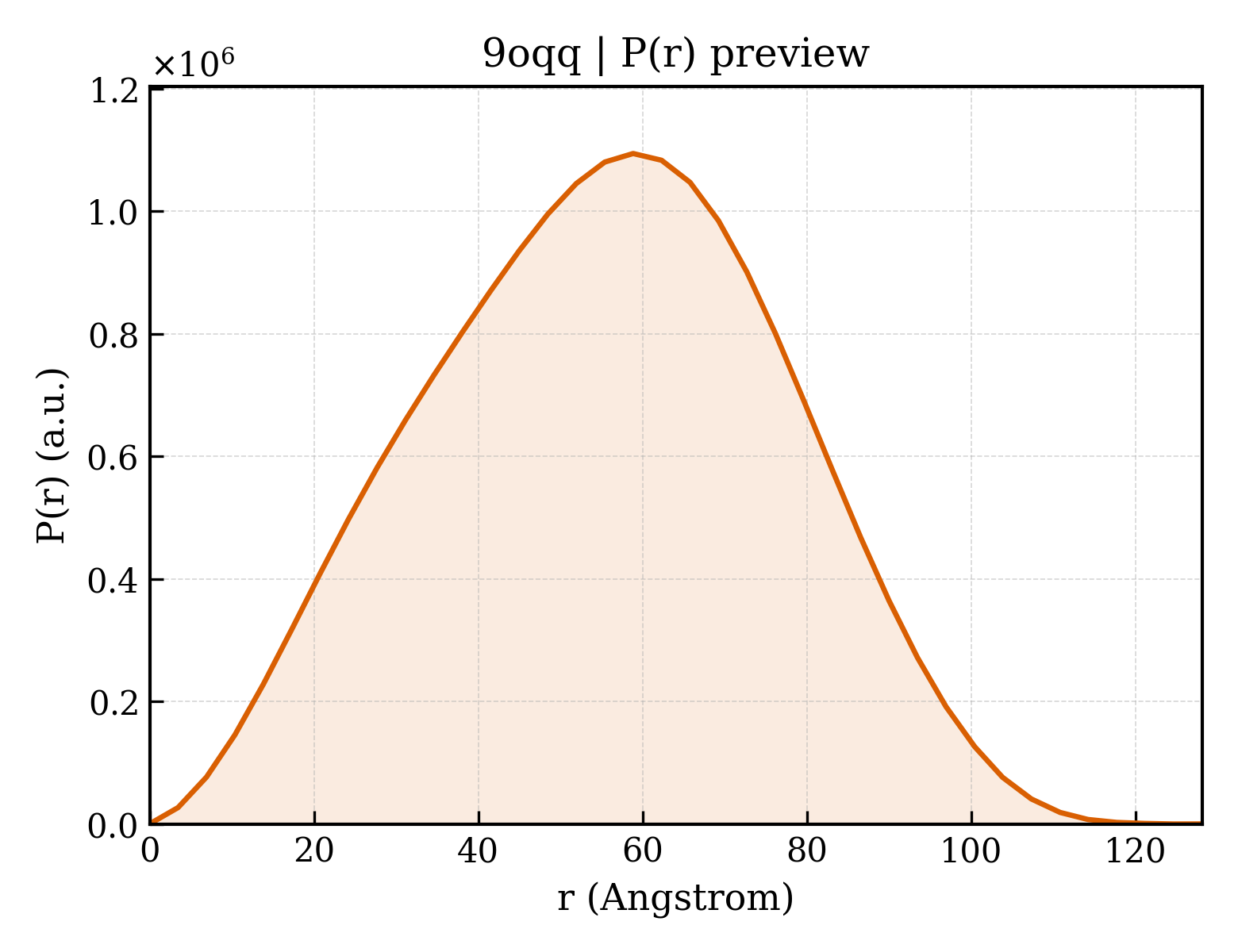

9oqq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.35 Å
Rg (electron density)	40.88 Å
Total Rg	41.29 Å
Atom count	18221
Residues	2408
Excluded volume	332950 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9oqq__assembly_1__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Pannexin-1,RNA-directed RNA polymerase L chimera
Molecular weight formula_weight	77886.4 kDa
EC 编号 ec_number	2.1.1.375,2.7.7.48,2.7.7.88
Mutation mutation	W74A
Source method src_method	man
Copy count entity_count	7

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G
Atom count atom_count	18221

MAIAQLATEYVFSDFLLKEPTEPKFKGLRLELAVDKMVTCIAVGLPLLLISLAFAQEISIGTQISCFSPSSFSARQAAFVDSYCWAAVQQKNSLQSESGNLPLWLHKFFPYILLLFAILLYLPPLFWRFAAAPHICSDLKFIMEELDKVYNRAIKAAKSARDLDMRDGACSVPGVTENLGQSLWEVSESHFKYPIVEQYLKTKKNSNNLIIKYISCRLLTLIIILLACIYLGYYFSLSSLSDEFVCSIKSGILRNDSTVPDQFQCKLIAVGIFQLLSVINLVVYVLLAPVVVYTLFVPFRQKTDVLKVYEILPTFDVLHFKSEGYNDLSLYNLFLEENISEVKSYKCLKVLENIKSSGQGIDPMLLLTNLGMIKMDVVDGKTPMSAEMREEQGNQTAELQGMNIDSETKANNGEKNARQRLLDSSCFESRLVPRGSAAAAVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLLEFVTAAGITLGMDELYKSGLRSHHHHHHHH

Source Source

Source organism organism	Human respiratory syncytial virus
NCBI taxonomy ID ncbi_taxonomy_id	11250
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	7

▶

Resolution resolution	3.25 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	584553

Human pannexin 1 channel W74A mutant with 10mM ATP
