9p3u

Zebrafish TRPM5 E337A mutant with 5mM calcium and 0.5mM CBTA

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RNA-directed RNA polymerase L,Transient receptor potential cation channel subfamily M member 5

Danio rerio

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 4	2-acetamido-2-deoxy-beta-D-glucopyranose × 4 CALCIUM ION × 4 Tigogenin × 4 5-chloro-N-[(5-chloro-1,3-thiazol-2-yl)methyl]-1,2-benzothiazol-6-amine × 4 ;(2R)-2-(hydroxymethyl)-4-{[(10xi,13xi,22xi,25R)-5beta,14beta,17beta-spirostan-3beta-yl]oxy}butyl 4-O-alpha-D-glucopyranosyl-beta-D-glucopyranoside ; × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A5P9VSM8_HRSV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 54–291； UniProt 1743–1980 Author chain B； PDBConstruct 54–291； UniProt 1743–1980 Author chain C； PDBConstruct 54–291； UniProt 1743–1980 Author chain D； PDBConstruct 54–291； UniProt 1743–1980

RNA-directed RNA polymerase L,Transient receptor potential cation channel subfamily M member 5

Danio rerio

UniProt S5UH55

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 4	2-acetamido-2-deoxy-beta-D-glucopyranose × 4 CALCIUM ION × 4 Tigogenin × 4 5-chloro-N-[(5-chloro-1,3-thiazol-2-yl)methyl]-1,2-benzothiazol-6-amine × 4 ;(2R)-2-(hydroxymethyl)-4-{[(10xi,13xi,22xi,25R)-5beta,14beta,17beta-spirostan-3beta-yl]oxy}butyl 4-O-alpha-D-glucopyranosyl-beta-D-glucopyranoside ; × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRPM5_DANRE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 309–1473； UniProt 1–1165 Author chain B； PDBConstruct 309–1473； UniProt 1–1165 Author chain C； PDBConstruct 309–1473； UniProt 1–1165 Author chain D； PDBConstruct 309–1473； UniProt 1–1165

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9p3u
Deposition date deposition_date	2025-06-14
Structure title title	Zebrafish TRPM5 E337A mutant with 5mM calcium and 0.5mM CBTA
Keywords keywords	TRPM5 channel, ion channel, cation channel, sodium channel, TRANSPORT PROTEIN, TRANSFERASE; TRANSFERASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9p3u__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9p3u__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

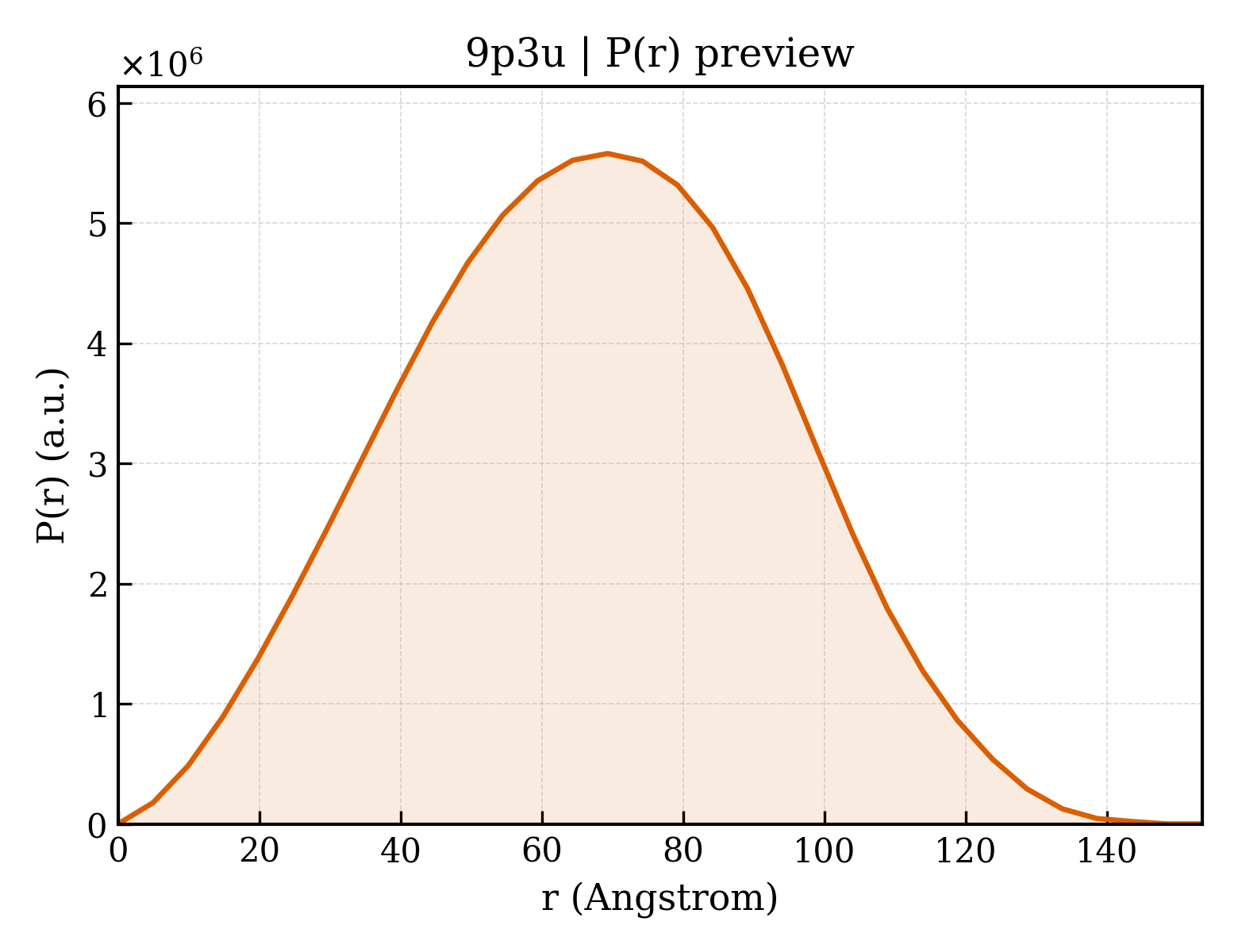

9p3u__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	51.26 Å
Rg (electron density)	50.67 Å
Total Rg	50.86 Å
Atom count	30652
Residues	3984
Excluded volume	553170 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9p3u__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	RNA-directed RNA polymerase L,Transient receptor potential cation channel subfamily M member 5
Molecular weight formula_weight	166757.6 kDa
EC 编号 ec_number	2.1.1.375,2.7.7.48,2.7.7.88
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,A,B,D
Atom count atom_count	30660

MHHHHHHHHAAASAWSHPQFEKGGGSGGGSGGSAWSHPQFEKGGGSGGGSGGMVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLLEFVTAAGITLGMDELYKSGLRSGLVPRGSGGRATMVEKSSERFDKQMAGRLGDIDFTGVSRTRGKFVRVTSSTDPAEIYQILTKQWGLAPPHLVVALMGGDEVAQLKPWLRDTLRKGLVKAAQSTGAWILTSGLRFGITKNLGQAVRDHSLASTSPKVRVVAIGIAPWNMIQNRDLLLSAKPDHPATYPTEDLPYGAVYSLDCNHSHFILVDEDPKRPGATGEMRVKMLKHISLQRTGYGGTGSIEIPVLCLLVHGEPRILQKMYKNIQNSIPWLILAGSGGVADILVTLMDRGCWDADIVQELLINTFPDGLHSTEITSWTKLIQRILDHGHLLTVHDPEQDSELDTVILKALVKACKSQSQEAQDFLDALKLAVAWNRVDIAKSEIFSGDVQWSAQDLEEVMMEALVNDKPDFVRLFVDNGVNIKQFLTYGRLQELYCSVSEKNLLHTLLLKKNQERQAQLARKRMSGNPNNELGDRKFRFTFHEVSKVLKDFLDDTCKGFYQKLPAERMGKGRLFHSQKNLPDMDRRCEHPWRDLFLWAILQNRQEMANYFWAMGPEAVAAALVGCKIMKEMAHLATEAESARSMKNAKYEQFAMDLFSECYSNSEDRAYSLLVRKTCCWSKATVLNIATLAEAKCFFAHDGVQALLTKVWWGAMRTDTSISRLVLTFFIPPLVWTSLIKFNPEEQVSKDEGEPFAELDSLETEQALLLTDGDPVAGEGSAETAARSCSATFIRVVLRRWNRFWSAPVTVFMGNVIMYFAFLILFSYVLLLDFRPPPPYGPSAAEIILYFWVFTLVLEEIRQSFFTDEDMSILKKMKLYVEDNWNKCDMVAISLFVVGLSCRMAMSTYEAGRTVLALDFMVFTLRLIHIFAIHKQLGPKIIIVERMIKDVFFFLFFLSVWLIAYGVTTQALLHPNDPRIDWVFRRALYRPYLHIFGQIPLEEIDAAKMPDDNCTTDVQEIILGTLPPCPNIYANWLVILLLVIYLLVTNVLLLNLLIAMFSYTFQVVQENADIFWKFQRYNLIVEYHSRPALAPPFIIISHITQALLSFIKKTENTQDLLERELPSGLDQKLMTWETVQKENYLAKLEHEHRESSGERLRYTSSKVQTLLRMVGGFKDQEKRMATVETEVRYCGEVLSWIAECFHKSTLKCDRDAPKAPRSIAGSSRDQQPQGAKRQQPGGHPAYGTDKKLPFIDHFE

Source Source

Source organism organism	Danio rerio
Common name common_name	zebrafish
NCBI taxonomy ID ncbi_taxonomy_id	7955
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	Tigogenin
Molecular weight formula_weight	416.6 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	5-chloro-N-[(5-chloro-1,3-thiazol-2-yl)methyl]-1,2-benzothiazol-6-amine
Molecular weight formula_weight	316.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	;(2R)-2-(hydroxymethyl)-4-{[(10xi,13xi,22xi,25R)-5beta,14beta,17beta-spirostan-3beta-yl]oxy}butyl 4-O-alpha-D-glucopyranosyl-beta-D-glucopyranoside ;
Molecular weight formula_weight	843.0 kDa
Source method src_method	nat
Copy count entity_count	4

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	8

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.75 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	192713
