SAXSdb — 9puv

▼

1. Structure Basics

entry_id	9puv
deposition_date	2025-07-31
title	Insulin receptor bound to S961
keywords	Antagonist, receptor tyrosine kinase, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	51.31 Å
rg_electron	50.75 Å
i0	533647000.00
molecular_weight	189650.0 kDa
excluded_volume	236280 Å³
envelope_volume	378650 Å³
shell_volume	63221 Å³
envelope_diameter	160.5 Å
shell_rg	55.64 Å
envelope_rg	47.82 Å
shape_rg	50.74 Å
total_rg	50.96 Å
total_atoms	26242
n_residues	1654
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	146.3 Å
rg_real	51.24 Å
rg_real_error	1.12 Å
i0_real	5.3360e+08
i0_real_error	1.1070e+07
rg_reciprocal	51.34 Å
i0_reciprocal	533700000.0000
total_estimate	0.8442
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	84.9 Å
skewness	0.063
kurtosis	-0.881
angular_range	— – 0.1550 Å⁻¹
current_alpha	0.0000
highest_alpha	23970000.0000
n_real_points	32
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.995; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Isoform Long of Insulin receptor
formula_weight	156081.5 kDa
ec_number	2.7.10.1
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,C
atom_count	26242

HLYPGEVCPGMDIRNNLTRLHELENCSVIEGHLQILLMFKTRPEDFRDLSFPKLIMITDYLLLFRVYGLESLKDLFPNLTVIRGSRLFFNYALVIFEMVHLKELGLYNLMNITRGSVRIEKNNELCYLATIDWSRILDSVEDNYIVLNKDDNEECGDICPGTAKGKTNCPATVINGQFVERCWTHSHCQKVCPTICKSHGCTAEGLCCHSECLGNCSQPDDPTKCVACRNFYLDGRCVETCPPPYYHFQDWRCVNFSFCQDLHHKCKNSRRQGCHQYVIHNNKCIPECPSGYTMNSSNLLCTPCLGPCPKVCHLLEGEKTIDSVTSAQELRGCTVINGSLIINIRGGNNLAAELEANLGLIEEISGYLKIRRSYALVSLSFFRKLRLIRGETLEIGNYSFYALDNQNLRQLWDWSKHNLTITQGKLFFHYNPKLCLSEIHKMEEVSGTKGRQERNDIALKTNGDQASCENELLKFSYIRTSFDKILLRWEPYWPPDFRDLLGFMLFYKEAPYQNVTEFDGQDACGSNSWTVVDIDPPLRSNDPKSQSHPGWLMRGLKPWTQYAIFVKTLVTFSDERRTYGAKSDIIYVQTDATNPSVPLDPISVSNSSSQIILKWKPPSDPNGNITHYLVFWERQAEDSELFELDYCLKGLKLPSRTWSPPFESEDSQKHNQSEYEDSAGECCSCPKTDSQILKELEESSFRKTFEDYLHNVVFVPRKTSSGTGAEDPRPSRKRRSLGDVGNVTVAVPTVAAFPNTSSTSVPTSPEEHRPFEKVVNKESLVISGLRHFTGYRIELQACNQDTPEERCSVAAYVSARTMPEAKADDIVGPVTHEIFENNVVHLMWQEPKEPNGLIVLYEVSYRRYGDEELHLCVSRKHFALERGCRLRGLSPGNYSVRIRATSLAGNGSWTEPTYFYVTDYLDVPSNIAKIIIGPLIFVFLFSVVIGSIYLFLRKRQPDGPLGPLYASSNPEYLSASDVFPCSVYVPDEWEVSREKITLLRELGQGSFGMVYEGNARDIIKGEAETRVAVKTVNESASLRERIEFLNEASVMKGFTCHHVVRLLGVVSKGQPTLVVMELMAHGDLKSYLRSLRPEAENNPGRPPPTLQEMIQMAAEIADGMAYLNAKKFVHRDLAARNCMVAHDFTVKIGDFGMTRDIYETDYYRKGGKGLLPVRWMAPESLKDGVFTTSSDMWSFGVVLWEITSLAEQPYQGLSNEQVLKFVMDGGYLDQPDNCPERVTDLMRMCWQFNPKMRPTFLEIVNLLKDDLHPSFPEVSFFHSEENKAPESEELEMEFEDMENVPLDRSSHCQREEAGGRDGGSSLGFKRSYEEHIPYTHMNGGKKNGRILTLPRSNPSDYKDDDDKDYKDDDDK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	S961 Insulin receptor antagonist
formula_weight	4806.1 kDa
src_method	syn
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,D

GSLDESFYDWFERQLGGGSGGSSLEEEWAQIQCEVWGRGCPSY

▶

6. Citations (1)

▶

resolution	3.68 Å
resolution_method	—
num_particles	378182

fit	/app/data/saxs_computation/pu/9puv/9puv.fit
pddf	/app/data/pr_computation/pu/9puv/9puv.pr.out
profile	/app/data/saxs_computation/pu/9puv/9puv.dat

Insulin receptor bound to S961

SAXS Profile

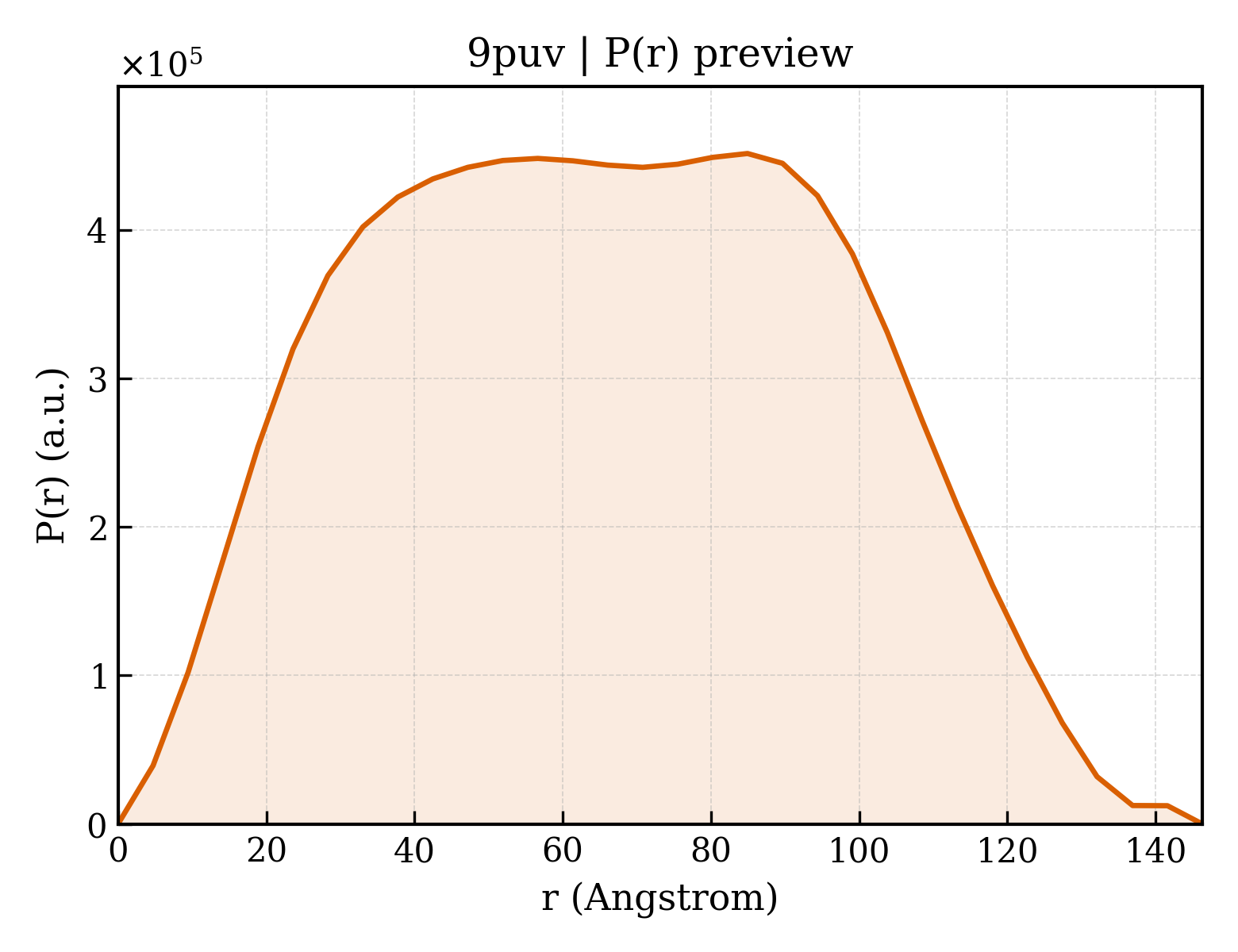

P(r) Distribution
