9q90

CryoEM structure of bacterial transcription intermediate complex mediated by activator PspF

Method: ELECTRON MICROSCOPY D_max: 240.1 Å Quality: GOOD

SAXS Profile

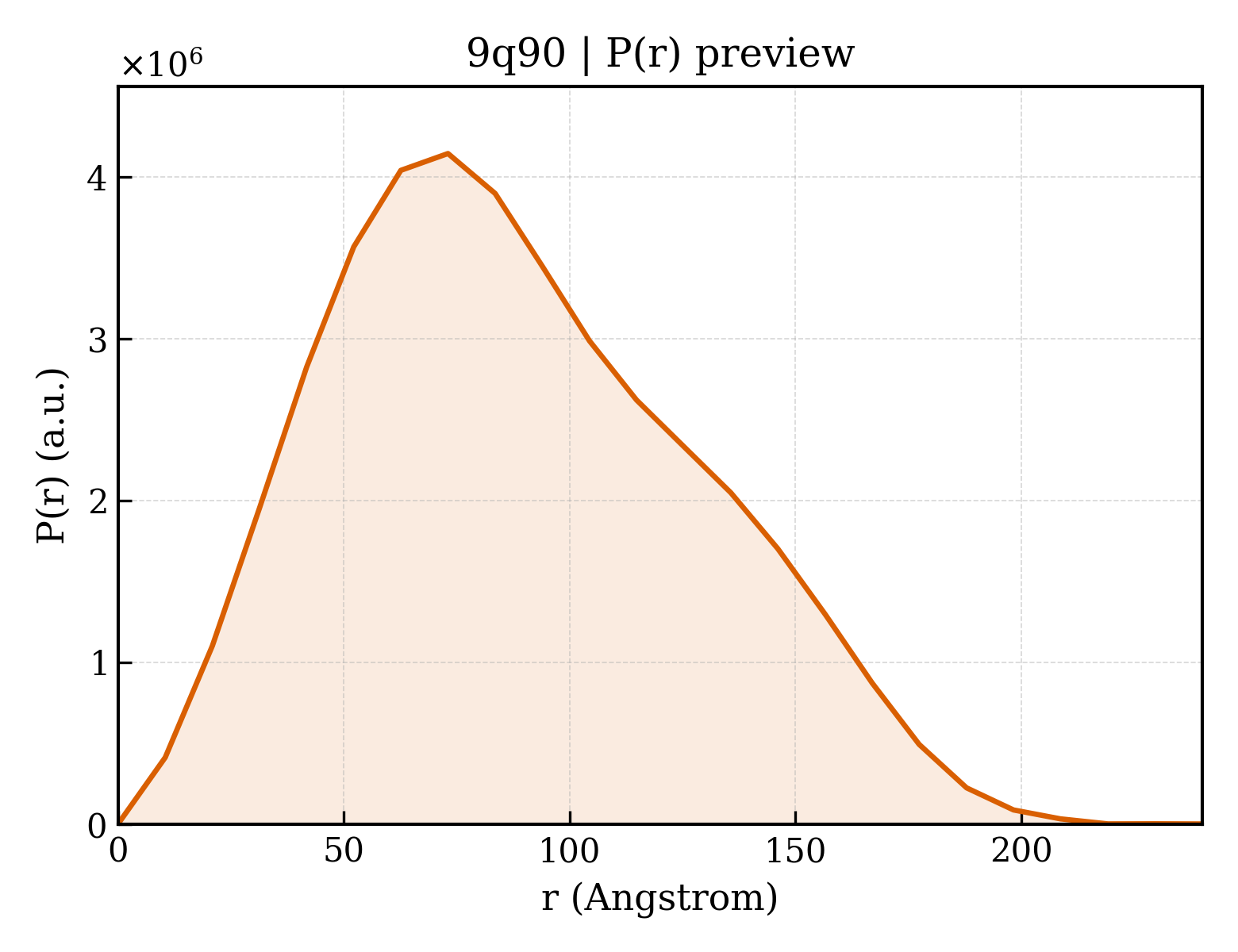

P(r) Distribution

▼

1. Structure Basics

entry_id	9q90
deposition_date	2025-02-26
title	CryoEM structure of bacterial transcription intermediate complex mediated by activator PspF
keywords	sigma factor, AAA+, DNA-binding protein, polymerase, TRANSCRIPTION; TRANSCRIPTION
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	68.30 Å
rg_electron	68.66 Å
i0	5258530000.00
molecular_weight	591360.0 kDa
excluded_volume	731940 Å³
envelope_volume	1214500 Å³
shell_volume	148660 Å³
envelope_diameter	231.8 Å
shell_rg	67.34 Å
envelope_rg	66.66 Å
shape_rg	68.69 Å
total_rg	68.55 Å
total_atoms	41495
n_residues	5317
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	240.1 Å
rg_real	68.36 Å
rg_real_error	2.82 Å
i0_real	5.2590e+09
i0_real_error	1.0860e+08
rg_reciprocal	67.96 Å
i0_reciprocal	5254000000.0000
total_estimate	0.8509
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	73.1 Å
skewness	0.361
kurtosis	-0.523
angular_range	— – 0.1150 Å⁻¹
current_alpha	0.0000
highest_alpha	564000000.0000
n_real_points	24
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.758; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.786

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (11)

Entity 1 polymer

description	Psp operon transcriptional activator
formula_weight	31016.4 kDa
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	1,2,3,4,5,6
atom_count	41495

MAEYKDNLLGEANSFLEVLEQVSHLAPLDKPVLIIGERGTGKELIASRLHYLSSRWQGPFISLNCAALNENLLDSELFGHEAGAFTGAQKRHPGRFERADGGTLFLDELATAPMMVQEKLLRVIEYGELERVGGSQPLQVNVRLVCATNADLPAMVNEGTFRADLLDRLAFDVVQLPPLRERESDIMLMAEYFAIQMCREIKLPLFPGFTERARETLLNYRWPGNIRELKNVVERSVYRHGTSDYPLDDIIIDPFKRRPPEDAIAVSETTSLPTL

Source

organism	Escherichia coli K-12
ncbi_taxonomy_id	83333
host_organism	Escherichia coli K-12

Entity 2 polymer

description	DNA-directed RNA polymerase subunit alpha
formula_weight	36558.7 kDa
ec_number	2.7.7.6
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B

MQGSVTEFLKPRLVDIEQVSSTHAKVTLEPLERGFGHTLGNALRRILLSSMPGCAVTEVEIDGVLHEYSTKEGVQEDILEILLNLKGLAVRVQGKDEVILTLNKSGIGPVTAADITHDGDVEIVKPQHVICHLTDENASISMRIKVQRGRGYVPASTRIHSEEDERPIGRLLVDACYSPVERIAYNVEAARVEQRTDLDKLVIEMETNGTIDPEEAIRRAATILAEQLEAFVDLRDVRQPEVKEEKPEFDPILLRPVDDLELTVRSANCLKAEAIHYIGDLVQRTEVELLKTPNLGKKSLTEIKDVLASRGLSLGMRLENWPPASIADE

Source

organism	Escherichia coli K-12
ncbi_taxonomy_id	83333
host_organism	Escherichia coli K-12

Entity 3 polymer

description	DNA-directed RNA polymerase subunit beta
formula_weight	150820.9 kDa
ec_number	2.7.7.6
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MVYSYTEKKRIRKDFGKRPQVLDVPYLLSIQLDSFQKFIEQDPEGQYGLEAAFRSVFPIQSYSGNSELQYVSYRLGEPVFDVQECQIRGVTYSAPLRVKLRLVIYEREAPEGTVKDIKEQEVYMGEIPLMTDNGTFVINGTERVIVSQLHRSPGVFFDSDKGKTHSSGKVLYNARIIPYRGSWLDFEFDPKDNLFVRIDRRRKLPATIILRALNYTTEQILDLFFEKVIFEIRDNKLQMELVPERLRGETASFDIEANGKVYVEKGRRITARHIRQLEKDDVKLIEVPVEYIAGKVVAKDYIDESTGELICAANMELSLDLLAKLSQSGHKRIETLFTNDLDHGPYISETLRVDPTNDRLSALVEIYRMMRPGEPPTREAAESLFENLFFSEDRYDLSAVGRMKFNRSLLREEIEGSGILSKDDIIDVMKKLIDIRNGKGEVDDIDHLGNRRIRSVGEMAENQFRVGLVRVERAVKERLSLGDLDTLMPQDMINAKPISAAVKEFFGSSQLSQFMDQNNPLSEITHKRRISALGPGGLTRERAGFEVRDVHPTHYGRVCPIETPEGPNIGLINSLSVYAQTNEYGFLETPYRKVTDGVVTDEIHYLSAIEEGNYVIAQANSNLDEEGHFVEDLVTCRSKGESSLFSRDQVDYMDVSTQQVVSVGASLIPFLEHDDANRALMGANMQRQAVPTLRADKPLVGTGMERAVAVDSGVTAVAKRGGVVQYVDASRIVIKVNEDEMYPGEAGIDIYNLTKYTRSNQNTCINQMPCVSLGEPVERGDVLADGPSTDLGELALGQNMRVAFMPWNGYNFEDSILVSERVVQEDRFTTIHIQELACVSRDTKLGPEEITADIPNVGEAALSKLDESGIVYIGAEVTGGDILVGKVTPKGETQLTPEEKLLRAIFGEKASDVKDSSLRVPNGVSGTVIDVQVFTRDGVEKDKRALEIEEMQLKQAKKDLSEELQILEAGLFSRIRAVLVAGGVEAEKLDKLPRDRWLELGLTDEEKQNQLEQLAEQYDELKHEFEKKLEAKRRKITQGDDLAPGVLKIVKVYLAVKRRIQPGDKMAGRHGNKGVISKINPIEDMPYDENGTPVDIVLNPLGVPSRMNIGQILETHLGMAAKGIGDKINAMLKQQQEVAKLREFIQRAYDLGADVRQKVDLSTFSDEEVMRLAENLRKGMPIATPVFDGAKEAEIKELLKLGDLPTSGQIRLYDGRTGEQFERPVTVGYMYMLKLNHLVDDKMHARSTGSYSLVTQQPLGGKAQFGGQRFGEMEVWALEAYGAAYTLQEMLTVKSDDVNGRTKMYKNIVDGNHQMEPGMPESFNVLLKEIRSLGINIELEDE

Source

organism	Escherichia coli K-12
ncbi_taxonomy_id	83333
host_organism	Escherichia coli K-12

Entity 4 polymer

description	;DNA-directed RNA polymerase subunit beta' ;
formula_weight	155366.8 kDa
ec_number	2.7.7.6
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

MKDLLKFLKAQTKTEEFDAIKIALASPDMIRSWSFGEVKKPETINYRTFKPERDGLFCARIFGPVKDYECLCGKYKRLKHRGVICEKCGVEVTQTKVRRERMGHIELASPTAHIWFLKSLPSRIGLLLDMPLRDIERVLYFESYVVIEGGMTNLERQQILTEEQYLDALEEFGDEFDAKMGAEAIQALLKSMDLEQECEQLREELNETNSETKRKKLTKRIKLLEAFVQSGNKPEWMILTVLPVLPPDLRPLVPLDGGRFATSDLNDLYRRVINRNNRLKRLLDLAAPDIIVRNEKRMLQEAVDALLDNGRRGRAITGSNKRPLKSLADMIKGKQGRFRQNLLGKRVDYSGRSVITVGPYLRLHQCGLPKKMALELFKPFIYGKLELRGLATTIKAAKKMVEREEAVVWDILDEVIREHPVLLNRAPTLHRLGIQAFEPVLIEGKAIQLHPLVCAAYNADFDGDQMAVHVPLTLEAQLEARALMMSTNNILSPANGEPIIVPSQDVVLGLYYMTRDCVNAKGEGMVLTGPKEAERLYRSGLASLHARVKVRITEYEKDANGELVAKTSLKDTTVGRAILWMIVPKGLPYSIVNQALGKKAISKMLNTCYRILGLKPTVIFADQIMYTGFAYAARSGASVGIDDMVIPEKKHEIISEAEAEVAEIQEQFQSGLVTAGERYNKVIDIWAAANDRVSKAMMDNLQTETVINRDGQEEKQVSFNSIYMMADSGARGSAAQIRQLAGMRGLMAKPDGSIIETPITANFREGLNVLQYFISTHGARKGLADTALKTANSGYLTRRLVDVAQDLVVTEDDCGTHEGIMMTPVIEGGDVKEPLRDRVLGRVTAEDVLKPGTADILVPRNTLLHEQWCDLLEENSVDAVKVRSVVSCDTDFGVCAHCYGRDLARGHIINKGEAIGVIAAQSIGEPGTQLTMRTFHIGGAASRAAAESSIQVKNKGSIKLSNVKSVVNSSGKLVITSRNTELKLIDEFGRTKESYKVPYGAVLAKGDGEQVAGGETVANWDPHTMPVITEVSGFVRFTDMIDGQTITRQTDELTGLSSLVVLDSAERTAGGKDLRPALKIVDAQGNDVLIPGTDMPAQYFLPGKAIVQLEDGVQISSGDTLARIPQESGGTKDITGGLPRVADLFEARRPKEPAILAEISGIVSFGKETKGKRRLVITPVDGSDPYEEMIPKWRQLNVFEGERVERGDVISDGPEAPHDILRLRGVHAVTRYIVNEVQDVYRLQGVKINDKHIEVIVRQMLRKATIVNAGSSDFLEGEQVEYSRVKIANRELEANGKVGATYSRDLLGITKASLATESFISAASFQETTRVLTEAAVAGKRDELRGLKENVIVGRLIPAGTGYAYHQDRMRRRAAGEAPAAPQVTAEDASASLAELLNAGLGGSDNE

Source

organism	Escherichia coli K-12
ncbi_taxonomy_id	83333
host_organism	Escherichia coli K-12

Entity 5 polymer

description	DNA-directed RNA polymerase subunit omega
formula_weight	10249.5 kDa
ec_number	2.7.7.6
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

MARVTVQDAVEKIGNRFDLVLVAARRARQMQVGGKDPLVPEENDKTTVIALREIEEGLINNQILDVRERQEQQEQEAAELQAVTAIAEGRR

Source

organism	Escherichia coli K-12
ncbi_taxonomy_id	83333
host_organism	Escherichia coli K-12

Entity 6 polymer

description	RNA polymerase sigma-54 factor
formula_weight	56150.0 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	M

MGSSHHHHHHSSGLVPRGSHMKQGLQLRLSQQLAMTPQLQQAIRLLQLSTLELQQELQQALESNPLLEQTDLHDEVEAKEVEDRESLDTVDALEQKEMPDELPLDASWDEIYTAGTPSGNGVDYQDDELPVYQGETTQTLQDYLMWQVELTPFTDTDRAIATSIVDAVDDTGYLTIQIEDIVDSIGDDEIGLEEVEAVLKRIQRFDPVGVAAKDLRDCLLIQLSQFAKETPWLEEARLIISDHLDLLANHDFRTLMRVTRLKEEVLKEAVNLIQSLDPRPGQSIQTSEPEYVIPDVLVRKVSGRWTVELNADSIPRLKINQQYAAMGNSARNDADGQFIRSNLQEARWLIKSLESRNDTLLRVSRCIVEQQQAFFEQGEEYMKPMVLADIAQAVEMHESTISRVTTQKYLHSPRGIFELKYFFSSHVNTEGGGEASSTAIRALVKKLIAAENPAKPLSDSKLTSMLSEQGIMVARRTVAKYRESLSIPPSNQRKQLV

Source

organism	Klebsiella pneumoniae
ncbi_taxonomy_id	573
host_organism	Escherichia coli K-12

Entity 7 polymer

description	DNA (36-MER)
formula_weight	11079.1 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	N

AGACGGCTGGCACGACTTTTGCCAGATCAGCCCTGG

Entity 8 polymer

description	DNA (36-MER)
formula_weight	11079.1 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	T

CCAGGGCTGATCGTGCAAAAGTCGTGCCAGCCGTCT

Entity 9 non-polymer

description	ADENOSINE-5'-DIPHOSPHATE
formula_weight	427.2 kDa
src_method	syn
entity_count	5

Entity 10 non-polymer

description	ALUMINUM FLUORIDE
formula_weight	84.0 kDa
src_method	syn
entity_count	4

Entity 11 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	4

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.500 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.50 Å
resolution_method	—
num_particles	23354
