9qfs

Structure of CHIP E3 ubiquitin ligase TPR domain in complex with compound 8.

Method: X-RAY DIFFRACTION D_max: 63.5 Å Quality: REASONABLE

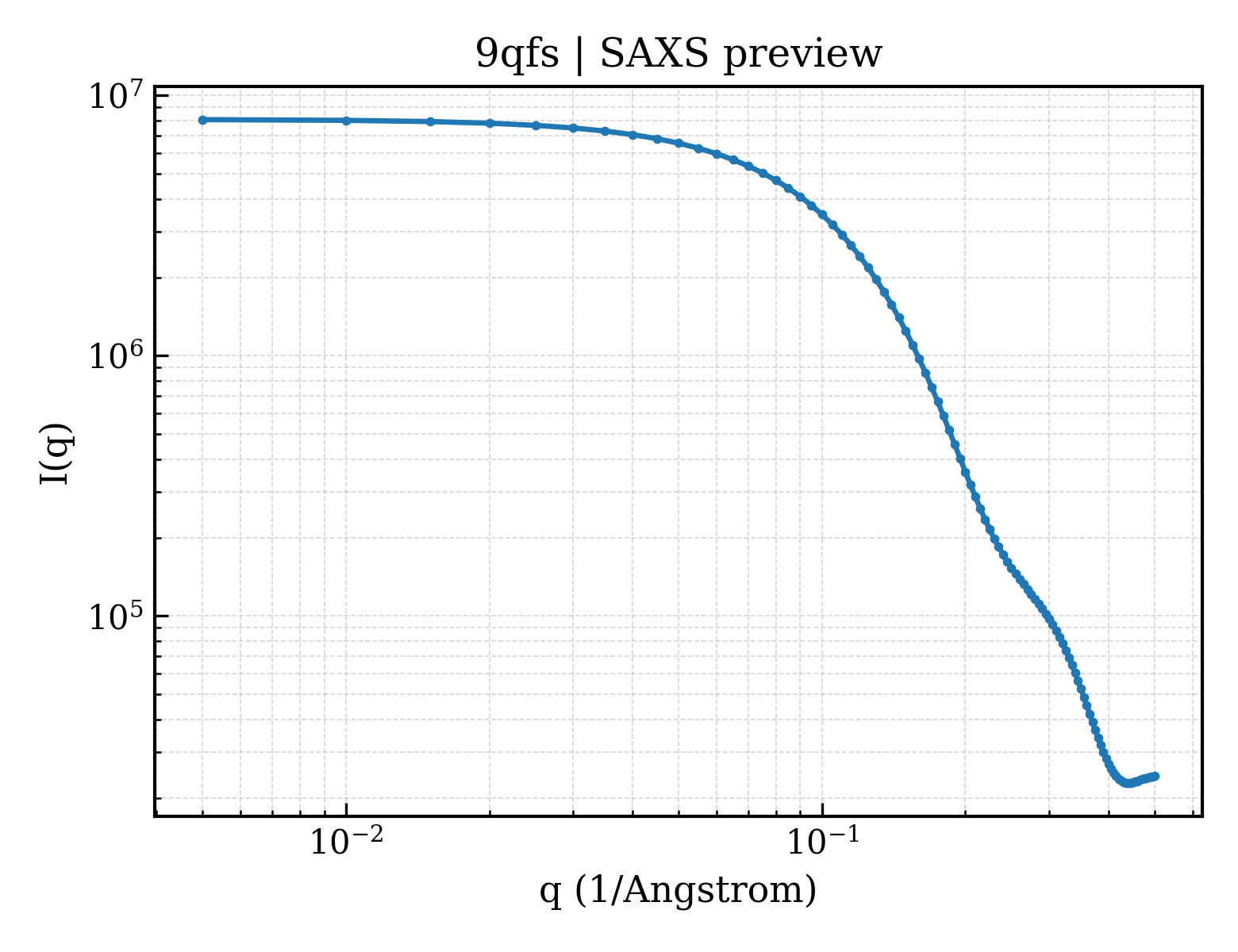

SAXS Profile

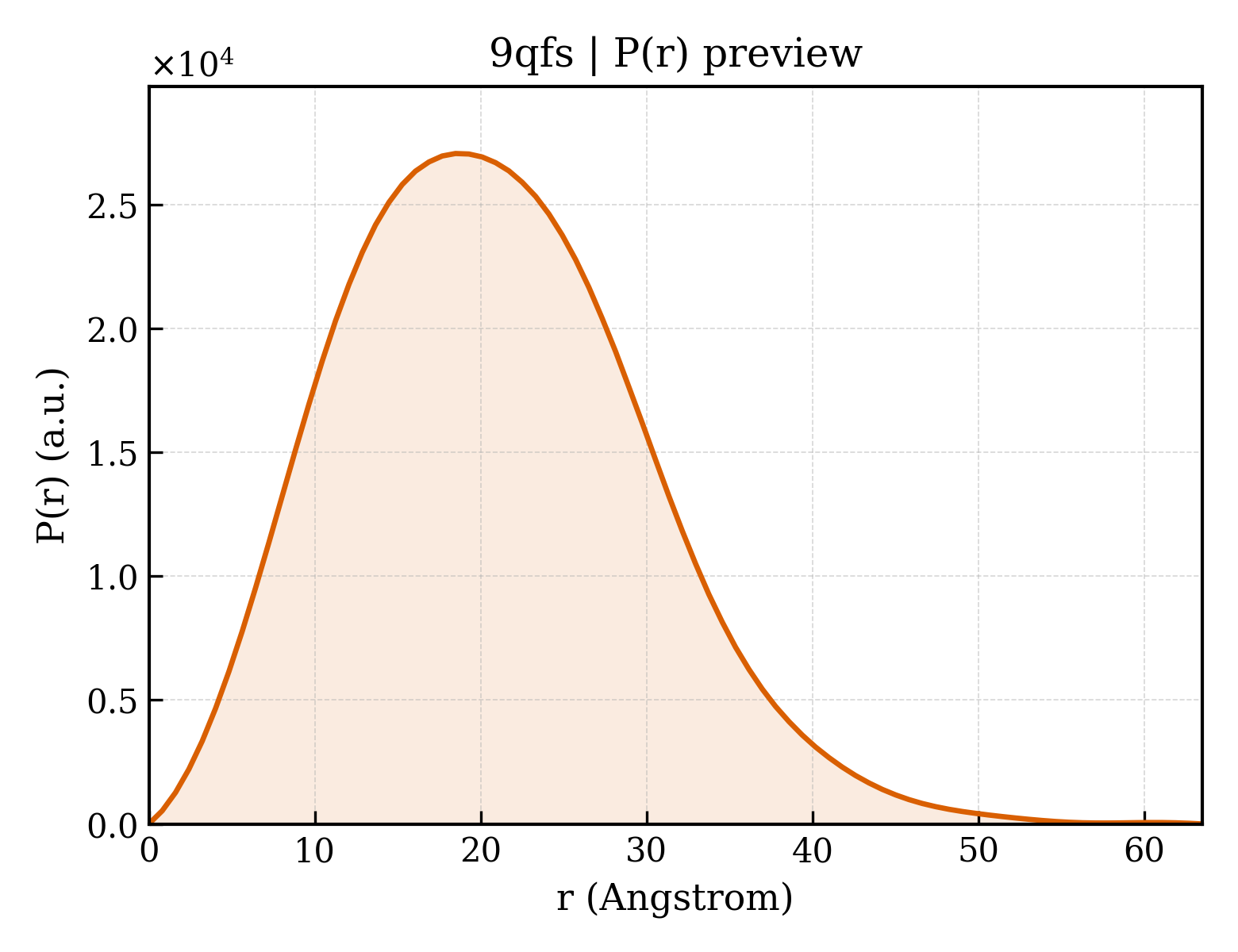

P(r) Distribution

▼

1. Structure Basics

entry_id	9qfs
deposition_date	2025-03-12
last_revision	2025-08-27
title	Structure of CHIP E3 ubiquitin ligase TPR domain in complex with compound 8.
keywords	E3 ubiquitin ligase, LIGASE; LIGASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	15.89 Å
rg_electron	15.03 Å
i0	8083360.00
molecular_weight	13737.0 kDa
excluded_volume	13110 Å³
envelope_volume	20497 Å³
shell_volume	11962 Å³
envelope_diameter	59.4 Å
shell_rg	20.30 Å
envelope_rg	15.45 Å
shape_rg	15.03 Å
total_rg	15.80 Å
total_atoms	1037
n_residues	128
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	63.5 Å
rg_real	15.96 Å
rg_real_error	0.38 Å
i0_real	8.0910e+06
i0_real_error	1.0570e+05
rg_reciprocal	15.89 Å
i0_reciprocal	8083000.0000
total_estimate	0.5458
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	18.5 Å
skewness	0.424
kurtosis	0.061
angular_range	— – 0.5000 Å⁻¹
current_alpha	0.2222
highest_alpha	2875000.0000
n_real_points	80
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.493; Stabil: 0.999; Sysdev: 0.000; Positv: 1.000; Valcen: 0.621; Smooth: 0.991

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	E3 ubiquitin-protein ligase CHIP
formula_weight	15635.8 kDa
ec_number	2.3.2.27
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1138

GSHMSPSAQELKEQGNRLFVGRKYPEAAACYGRAITRNPLVAVYYTNRALCYLKMQQHEQALADCRRALELDGQSVKAHFFLGQCQLEMESYDEAIANLQRAYSLAKEQRLNFGDDIPSALRIAKKKRWNSIEERR

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 non-polymer

description	~{N}-[(4~{R})-4-cyclohexyl-2,5-bis(oxidanylidene)imidazolidin-1-yl]-4,5,6,7-tetrakis(fluoranyl)-1~{H}-indole-3-carboxamide
formula_weight	412.3 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	1,2-ETHANEDIOL
formula_weight	62.1 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	90

▶

6. Citations (1)

▶

length_a	47.286 Å
length_b	71.937 Å
length_c	76.403 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

resolution	1.329 Å
resolution_low	39.510 Å
r_factor	0.2004
r_work	0.1998
r_free	0.2130
