9qfy

Structure of CHIP E3 ubiquitin ligase TPR domain in complex with compound 9.

Method: X-RAY DIFFRACTION D_max: 60.0 Å Quality: GOOD

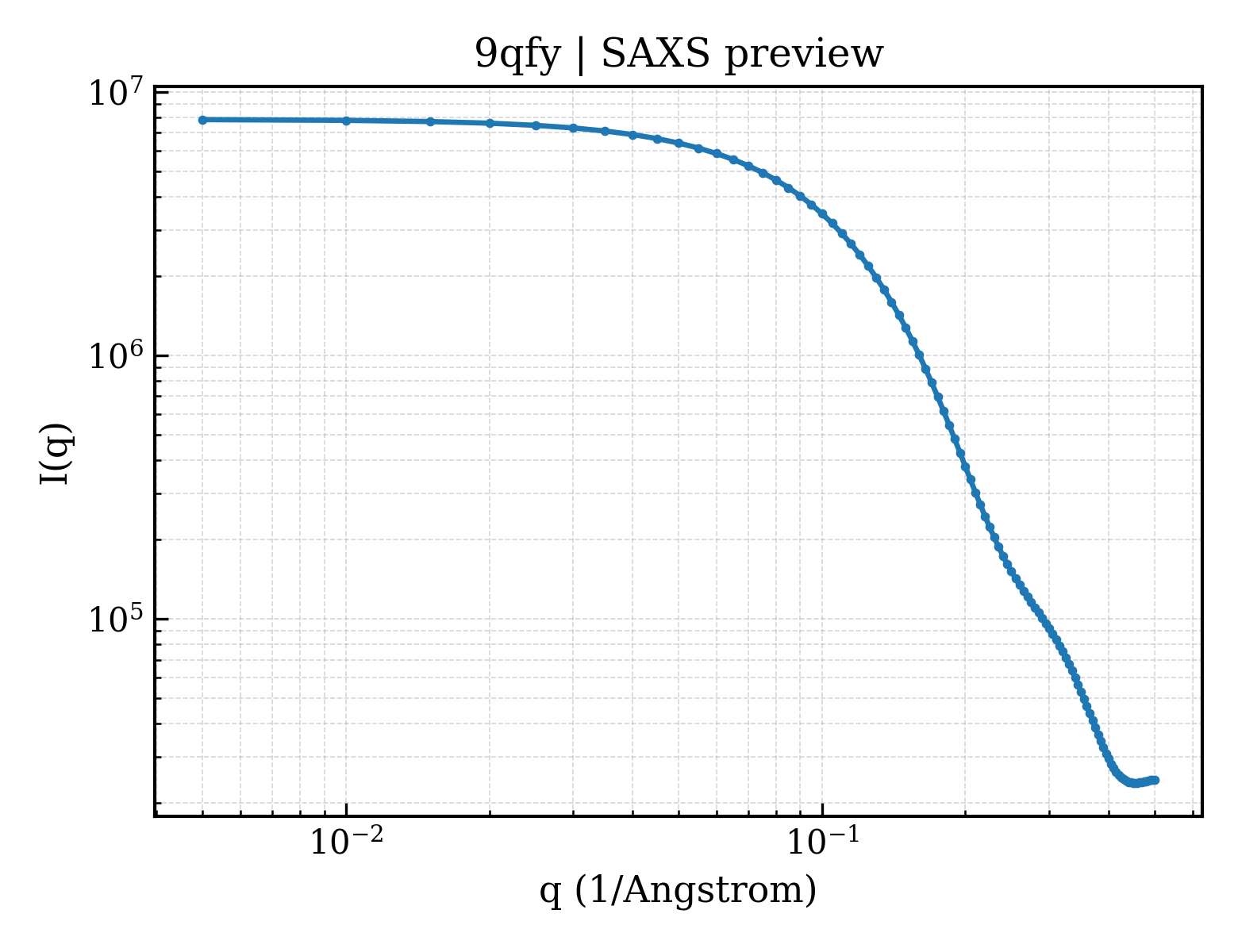

SAXS Profile

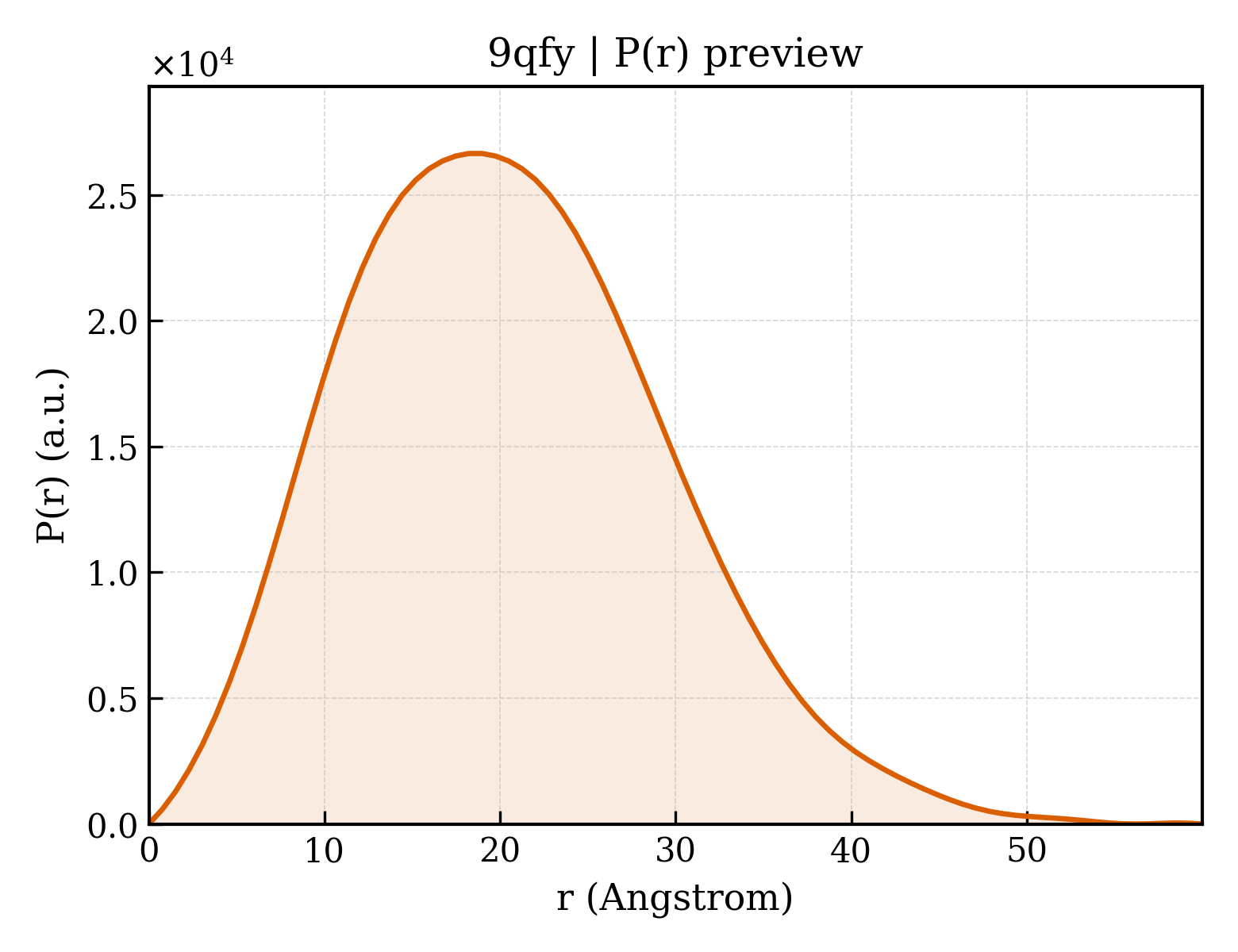

P(r) Distribution

▼

1. Structure Basics

entry_id	9qfy
deposition_date	2025-03-12
last_revision	2025-08-27
title	Structure of CHIP E3 ubiquitin ligase TPR domain in complex with compound 9.
keywords	E3 ubiquitin ligase, LIGASE; LIGASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	15.75 Å
rg_electron	14.98 Å
i0	7867590.00
molecular_weight	13621.0 kDa
excluded_volume	13024 Å³
envelope_volume	20077 Å³
shell_volume	11824 Å³
envelope_diameter	60.1 Å
shell_rg	20.20 Å
envelope_rg	15.40 Å
shape_rg	14.97 Å
total_rg	15.74 Å
total_atoms	1025
n_residues	128
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	60.0 Å
rg_real	15.76 Å
rg_real_error	0.57 Å
i0_real	7.8680e+06
i0_real_error	1.0540e+05
rg_reciprocal	15.76 Å
i0_reciprocal	7868000.0000
total_estimate	0.8083
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	58.5 Å
skewness	0.408
kurtosis	-0.057
angular_range	— – 0.5000 Å⁻¹
current_alpha	0.0000
highest_alpha	2383000.0000
n_real_points	80
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.591; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.732; Smooth: 0.998

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	E3 ubiquitin-protein ligase CHIP
formula_weight	15635.8 kDa
ec_number	2.3.2.27
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1205

GSHMSPSAQELKEQGNRLFVGRKYPEAAACYGRAITRNPLVAVYYTNRALCYLKMQQHEQALADCRRALELDGQSVKAHFFLGQCQLEMESYDEAIANLQRAYSLAKEQRLNFGDDIPSALRIAKKKRWNSIEERR

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 non-polymer

description	~{N},~{N}-dimethyl-1-[(3~{S})-1-[[4,5,6,7-tetrakis(fluoranyl)-1~{H}-indol-3-yl]carbonyl]piperidin-3-yl]methanesulfonamide
formula_weight	421.4 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	SULFATE ION
formula_weight	96.1 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	165

▶

6. Citations (1)

▶

length_a	47.067 Å
length_b	72.570 Å
length_c	76.925 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

resolution	1.064 Å
resolution_low	39.490 Å
r_factor	0.1962
r_work	0.1957
r_free	0.2058
