9qlv

Cryo-EM structure of Arabidopsis TIR-NLR WRR4A tetramer in complex with effector CCG40

Method: ELECTRON MICROSCOPY D_max: 183.4 Å Quality: GOOD

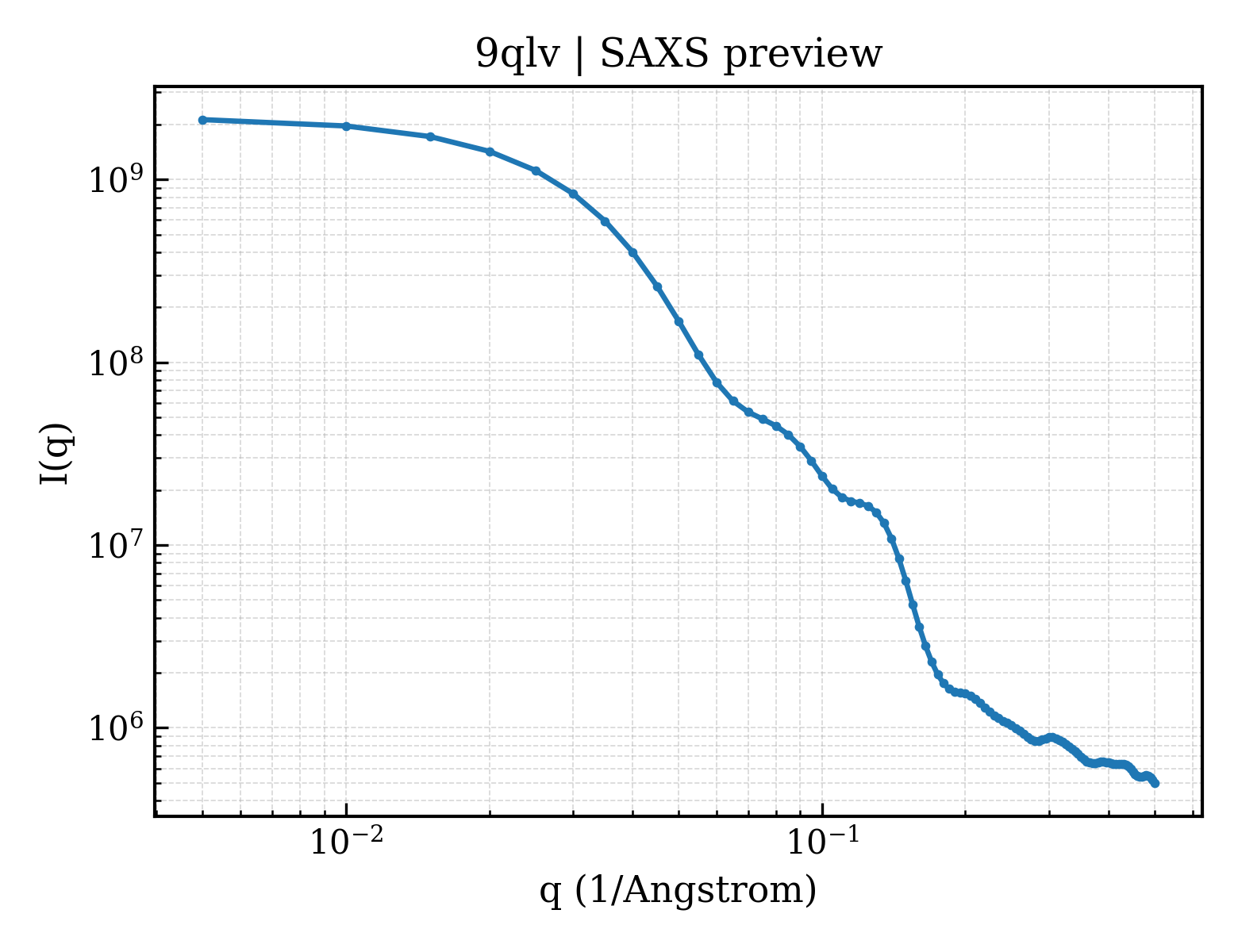

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9qlv
deposition_date	2025-03-21
title	Cryo-EM structure of Arabidopsis TIR-NLR WRR4A tetramer in complex with effector CCG40
keywords	TIR NLR, Arabidopsis, Resistosome, Effector, Oomycete, PLANT PROTEIN; PLANT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	56.47 Å
rg_electron	56.39 Å
i0	2185880000.00
molecular_weight	395450.0 kDa
excluded_volume	497190 Å³
envelope_volume	721080 Å³
shell_volume	109280 Å³
envelope_diameter	194.3 Å
shell_rg	56.78 Å
envelope_rg	55.36 Å
shape_rg	56.41 Å
total_rg	56.32 Å
total_atoms	27748
n_residues	3504
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	183.4 Å
rg_real	56.42 Å
rg_real_error	1.87 Å
i0_real	2.1860e+09
i0_real_error	4.4350e+07
rg_reciprocal	56.50 Å
i0_reciprocal	2186000000.0000
total_estimate	0.8580
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	65.5 Å
skewness	0.313
kurtosis	-0.182
angular_range	— – 0.1400 Å⁻¹
current_alpha	0.0000
highest_alpha	96300000.0000
n_real_points	29
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.883; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.512

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	CCG40
formula_weight	24496.6 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	P,Q,R,S
atom_count	27748

MAYRLFLTLWVYQIYHVVGVLKSGELRIKKTDSRNSLSLCQACVLNKLGASRMKLINDDEEVATYKITGSDFVFANLKVDCSGVNECNIDKIIPLSWPSMMPNEIALSARSPQLYVSASESSSSVLCMDCLQENAAARFISKFRVNKLKVVRIVYMIYGALLNTQHLKCTDYCPGLTILEEMDNSKQLVQIFRSEEHLPLSRIRHHVIQCNALSHK

Source

organism	Albugo candida
ncbi_taxonomy_id	65357
host_organism	Nicotiana benthamiana

Entity 2 polymer

description	Disease resistance protein ADR2
formula_weight	114119.0 kDa
ec_number	3.2.2.6
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,B,C,D

MASSSSSPRNWRYNVFTSFHGPDVRIKFLSHLRQQFVYNGITMFDDNGIERSQIIAPALKKAIGESRVAIVLLSKNYASSSWCLDELLEILKCKEYIGQIVMTVFYEVDPSHVRKQTGDFGIAFKETCAHKTEEERSKWSQALTYVGNIAGEDFIHWKDEAKMIEKIARDVSTKINVTPCRDFDDMVGLERHLKEMVSLLDLDKEGVKMVGISGPAGIGKSTIAKALHSRHSSTFQHNCFVDNLWENYKICTGEHGVKLRLHEQFVSKILKQNGLELTHLSVIKDRLQDKKVLIILDDVESLAQLETLADMTWFGPGSRVIVTTENKEILQQHGIGDIYQVGYPSESEALTIFCLSAFKQASPPDGFMDLADEVVRICDKLPLALCVLGSSLLRKSQTDWEDELPRLRNCLDGIESVLKVGFESLNEKDQALFLYITVFFNYECADHVTLMLAKSNLNVRLGLKNLANRYLIHIDHDQKKRVVVHRLLRVMAIQVCTKQKPWKSQILVDAEKIAYVLEEATGNRSIKGVSFDTAEIDELMISPKAFEKMCNLLFLKVYDAGWHTGKRKLDIPEDIKFPRTIRLFHWDAYSGKRLPSSFFAENLVEVNMQDSELQKLWEGTQCLANLKKIDLSRSSCLTELPDLSNATNLEDLYVGSCTALVELPSSIGNLHKLAHIMMYSCESLEVIPSLINLTSLTFLNMNKCSRLRRFPDIPTSIEDVQVTGTTLEELPASLTHCSGLQTIKISGSVNLKIFYTELPVSVSHINISNSGIEWITEDCIKGLHNLHDLCLSGCKRLVSLPELPRSLKILQADDCDSLESLNGHLNTPNAELYFANCFKLDAEARRAIIQQSFVSGWALLPGLEVPPEFGHRARGNSLIIPYSASNRFKVCVVMSLNHHQPFELVPRNLLYRWTVIGDSVSSDEKTFHLSHMFNADSVNSKLQKPHLFIFHSCLPFIFHSCLPFIFDISNIMLEFSSEYKDFDILECGVQILTDETDERNIWGSLVF

Source

organism	Arabidopsis thaliana
common_name	thale cress
ncbi_taxonomy_id	3702
host_organism	Nicotiana benthamiana

Entity 3 non-polymer

description	ADENOSINE-5'-DIPHOSPHATE
formula_weight	427.2 kDa
src_method	syn
entity_count	4

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.50 Å
resolution_method	—
num_particles	117347

fit	/app/data/saxs_computation/ql/9qlv/9qlv.fit
pddf	/app/data/pr_computation/ql/9qlv/9qlv.pr.out
profile	/app/data/saxs_computation/ql/9qlv/9qlv.dat
