SAXSdb — 9qqs

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Modulator of smoothened protein

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Isoform 2 of Multiple epidermal growth factor-like domains protein 8 × 1 （Q7Z7M0） Nanobody 270 × 1 PALMITIC ACID × 1 ;(1~{S},2~{S},4~{S},5'~{R},6~{R},7~{S},8~{R},9~{S},12~{S},13~{R},16~{S})-16-methoxy-5',7,9,13-tetramethyl-spiro[5-oxapentacyclo[10.8.0.0^{2,9}.0^{4,8}.0^{13,18}]icos-18-ene-6,2'-oxane] ; × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MOSMO_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–167； UniProt 1–167

Isoform 2 of Multiple epidermal growth factor-like domains protein 8

Homo sapiens

UniProt Q7Z7M0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Modulator of smoothened protein × 1 （Q8NHV5） Nanobody 270 × 1 PALMITIC ACID × 1 ;(1~{S},2~{S},4~{S},5'~{R},6~{R},7~{S},8~{R},9~{S},12~{S},13~{R},16~{S})-16-methoxy-5',7,9,13-tetramethyl-spiro[5-oxapentacyclo[10.8.0.0^{2,9}.0^{4,8}.0^{13,18}]icos-18-ene-6,2'-oxane] ; × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MEGF8_HUMAN
Isoform	Q7Z7M0-2
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–467； UniProt 2312–2778

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9qqs
Deposition date deposition_date	2025-04-02
Structure title title	Structure of the MEGF8-MOSMO complex with nanobody 270 (Focused refinement)
Keywords keywords	;E3 Ubiquitin Ligase, Hedgehog Signaling, Single-pass Membrane Protein, Membrane Protein Complex, Smoothened, Tetraspanin, Cell Surface Receptor, Primary Cilium, Morphogen, Signal Transduction, Human, Carpenter Syndrome, Cancer, Nanobody, Palmitoylation, GDN, MEMBRANE PROTEIN ;; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9qqs__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9qqs__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

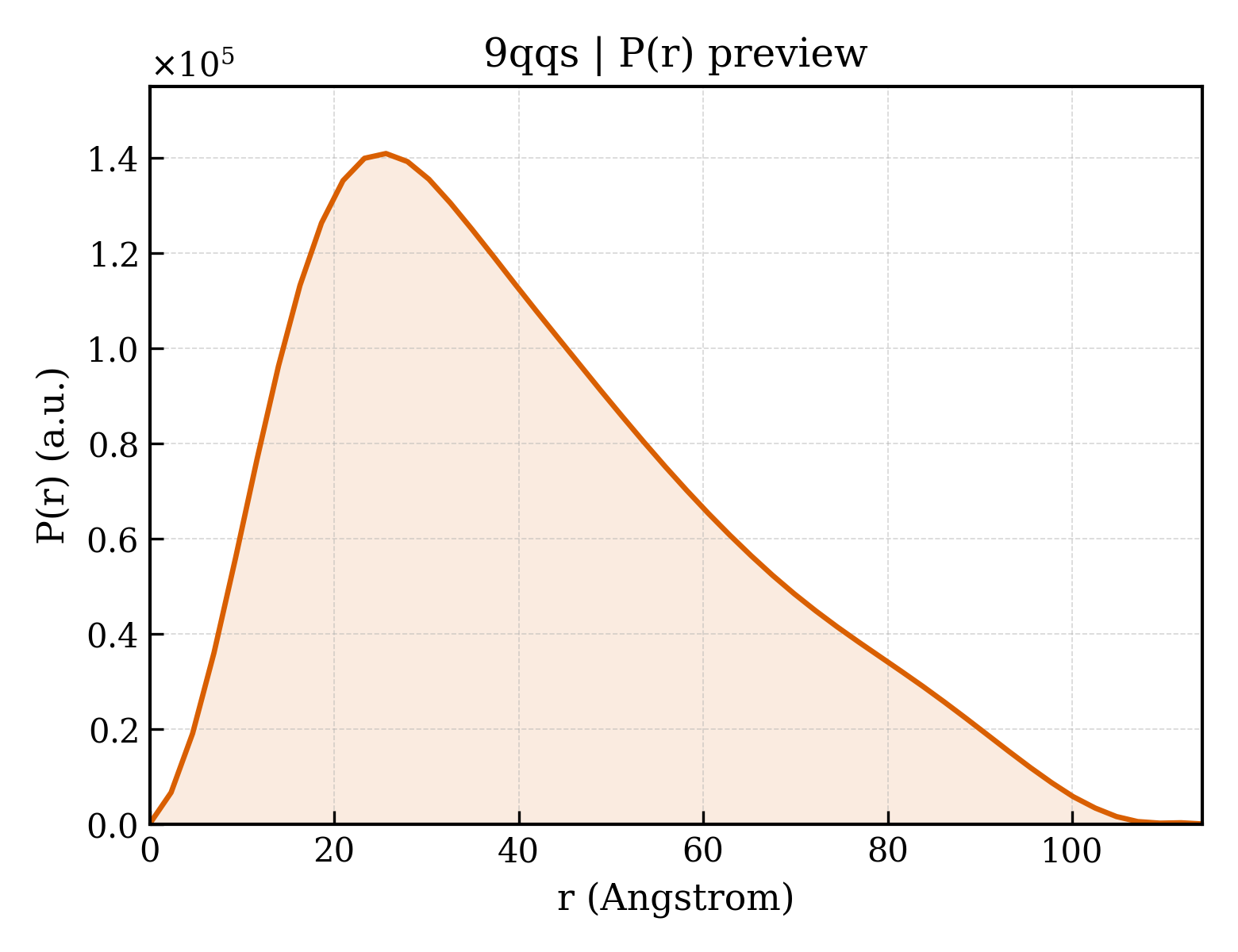

9qqs__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.90 Å
Rg (electron density)	32.43 Å
Total Rg	32.80 Å
Atom count	3891
Residues	491
Excluded volume	69893 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9qqs__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Modulator of smoothened protein
Molecular weight formula_weight	22594.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3923

MDKLTIISGCLFLAADIFAIASIANPDWINTGESAGALTVGLVRQCQTIHGRDRTCIPPRLPPEWVTTLFFIIMGIISLTVTCGLLVASHWRREATKYARWIAFTGMILFCMAALIFPIGFYINEVGGQPYKLPNNTVVGSSYVLFVLSIFFTIVGLLFAGKVCLPGGTLEVLFQGPGGSGSAWSHPQFEKGGGSGGGSGGSAWSHPQFEK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Isoform 2 of Multiple epidermal growth factor-like domains protein 8
Molecular weight formula_weight	50353.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

KCQCNGHADTCNEQDGTGCPCQNNTETGTCQGSSPSDRRDCYKYQCAKCRESFHGSPLGGQQCYRLISVEQECCLDPTSQTNCFHEPKRRALGPGRTVLFGVQPKFTNVDIRLTLDVTFGAVDLYVSTSYDTFVVRVAPDTGVHTVHIQPPPAPPPPPPPADGGPRGAGDPGGAGASSGPGAPAEPRVREVWPRGLITYVTVTEPSAVLVVRGVRDRLVITYPHEHHALKSSRFYLLLLGVGDPSGPGANGSADSQGLLFFRQDQAHIDLFVFFSVFFSCFFLFLSLCVLLWKAKQALDQRQEQRRHLQEMTKMASRPFAKVTVCFPPDPTAPASAWKPAGLPPPAFRRSEPFLAPLLLTGAGGPWGPMGGGCCPPAIPATTAGLRAGPITLEPTEDGMAGVATLLLQLPGGPHAPNGACLGSALVTLRHRLHEYCGGGGGAGGSGHGTGAGRKGLLSQDNLTSMSLGTETSQVAPA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Nanobody 270
Molecular weight formula_weight	14378.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

QVQLVESGGGLVQAGGSLRLSCAASGSIFSYDDMGWYRQAPGKQRELVATFTNVGSTNYVDSVKGRFTISRDNAKNTVYLQMNSLKPEDTAVYYCHAYTVRRFQGMEYWGKGTQVTVSSHHHHHHEPEA

Source Source

Source organism organism	Lama glama
NCBI taxonomy ID ncbi_taxonomy_id	9844
Host organism host_organism	Escherichia coli K-12

Entity 4 Entity 4 non-polymer

Description description	PALMITIC ACID
Molecular weight formula_weight	256.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	;(1~{S},2~{S},4~{S},5'~{R},6~{R},7~{S},8~{R},9~{S},12~{S},13~{R},16~{S})-16-methoxy-5',7,9,13-tetramethyl-spiro[5-oxapentacyclo[10.8.0.0^{2,9}.0^{4,8}.0^{13,18}]icos-18-ene-6,2'-oxane] ;
Molecular weight formula_weight	428.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	32

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	2.65 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	142461
