SAXSdb — 9qty

▼

1. Structure Basics

entry_id	9qty
deposition_date	2025-04-09
title	Cryo-EM structure of the binary MEGF8-MOSMO complex with nanobody 270
keywords	;E3 Ubiquitin Ligase, Hedgehog Signaling, Single-pass Membrane Protein, Membrane Protein Complex, Smoothened, Tetraspanin, Cell Surface Receptor, Primary Cilium, Morphogen, Signal Transduction, Human, Carpenter Syndrome, Cancer, Nanobody, Palmitoylation, GDN, MEMBRANE PROTEIN ;; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	31.51 Å
rg_electron	31.95 Å
i0	86467900.00
molecular_weight	50565.0 kDa
excluded_volume	49566 Å³
envelope_volume	89638 Å³
shell_volume	25794 Å³
envelope_diameter	113.0 Å
shell_rg	34.87 Å
envelope_rg	32.61 Å
shape_rg	31.93 Å
total_rg	32.18 Å
total_atoms	3844
n_residues	486
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	112.5 Å
rg_real	32.02 Å
rg_real_error	1.35 Å
i0_real	8.6470e+07
i0_real_error	1.5820e+06
rg_reciprocal	31.80 Å
i0_reciprocal	86450000.0000
total_estimate	0.7736
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	24.8 Å
skewness	0.603
kurtosis	-0.331
angular_range	— – 0.2500 Å⁻¹
current_alpha	0.0000
highest_alpha	7970000.0000
n_real_points	51
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.588; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.464; Smooth: 0.826

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Modulator of smoothened protein
formula_weight	22594.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	3854

MDKLTIISGCLFLAADIFAIASIANPDWINTGESAGALTVGLVRQCQTIHGRDRTCIPPRLPPEWVTTLFFIIMGIISLTVTCGLLVASHWRREATKYARWIAFTGMILFCMAALIFPIGFYINEVGGQPYKLPNNTVVGSSYVLFVLSIFFTIVGLLFAGKVCLPGGTLEVLFQGPGGSGSAWSHPQFEKGGGSGGGSGGSAWSHPQFEK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Nanobody 270
formula_weight	14378.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

QVQLVESGGGLVQAGGSLRLSCAASGSIFSYDDMGWYRQAPGKQRELVATFTNVGSTNYVDSVKGRFTISRDNAKNTVYLQMNSLKPEDTAVYYCHAYTVRRFQGMEYWGKGTQVTVSSHHHHHHEPEA

Source

organism	Lama glama
ncbi_taxonomy_id	9844
host_organism	Escherichia coli K-12

Entity 3 polymer

description	Isoform 2 of Multiple epidermal growth factor-like domains protein 8
formula_weight	37349.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

KCQCNGHADTCNEQDGTGCPCQNNTETGTCQGSSPSDRRDCYKYQCAKCRESFHGSPLGGQQCYRLISVEQECCLDPTSQTNCFHEPKRRALGPGRTVLFGVQPKFTNVDIRLTLDVTFGAVDLYVSTSYDTFVVRVAPDTGVHTVHIQPPPAPPPPPPPADGGPRGAGDPGGAGASSGPGAPAEPRVREVWPRGLITYVTVTEPSAVLVVRGVRDRLVITYPHEHHALKSSRFYLLLLGVGDPSGPGANGSADSQGLLFFRQDQAHIDLFVFFSVFFSCFFLFLSLCVLLWKAKQALDQRQEQRRHLQEMTKMASRPFAKVTVCFPPDPTAPAGTETSQVAPA

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 4 non-polymer

description	PALMITIC ACID
formula_weight	256.4 kDa
src_method	man
entity_count	1

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 5 non-polymer

description	;(1~{S},2~{S},4~{S},5'~{R},6~{R},7~{S},8~{R},9~{S},12~{S},13~{R},16~{S})-16-methoxy-5',7,9,13-tetramethyl-spiro[5-oxapentacyclo[10.8.0.0^{2,9}.0^{4,8}.0^{13,18}]icos-18-ene-6,2'-oxane] ;
formula_weight	428.6 kDa
src_method	syn
entity_count	1

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	10

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	2.98 Å
resolution_method	—
num_particles	228513

fit	/app/data/saxs_computation/qt/9qty/9qty.fit
pddf	/app/data/pr_computation/qt/9qty/9qty.pr.out
profile	/app/data/saxs_computation/qt/9qty/9qty.dat

Cryo-EM structure of the binary MEGF8-MOSMO complex with nanobody 270

SAXS Profile

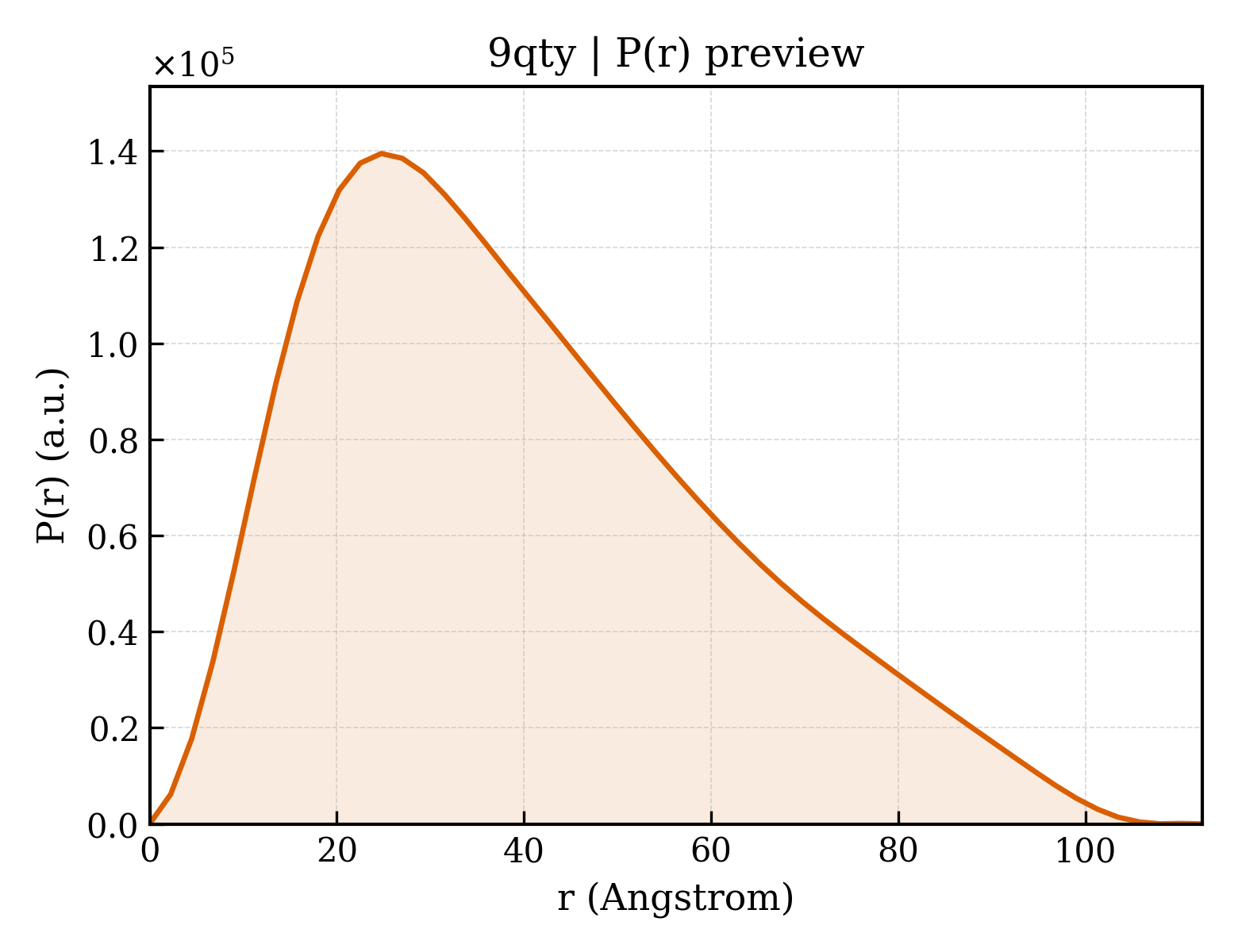

P(r) Distribution
