9qvt

Crystal structure of STING CTD in complex with potent agonist D5

Method: X-RAY DIFFRACTION D_max: 58.9 Å Quality: GOOD

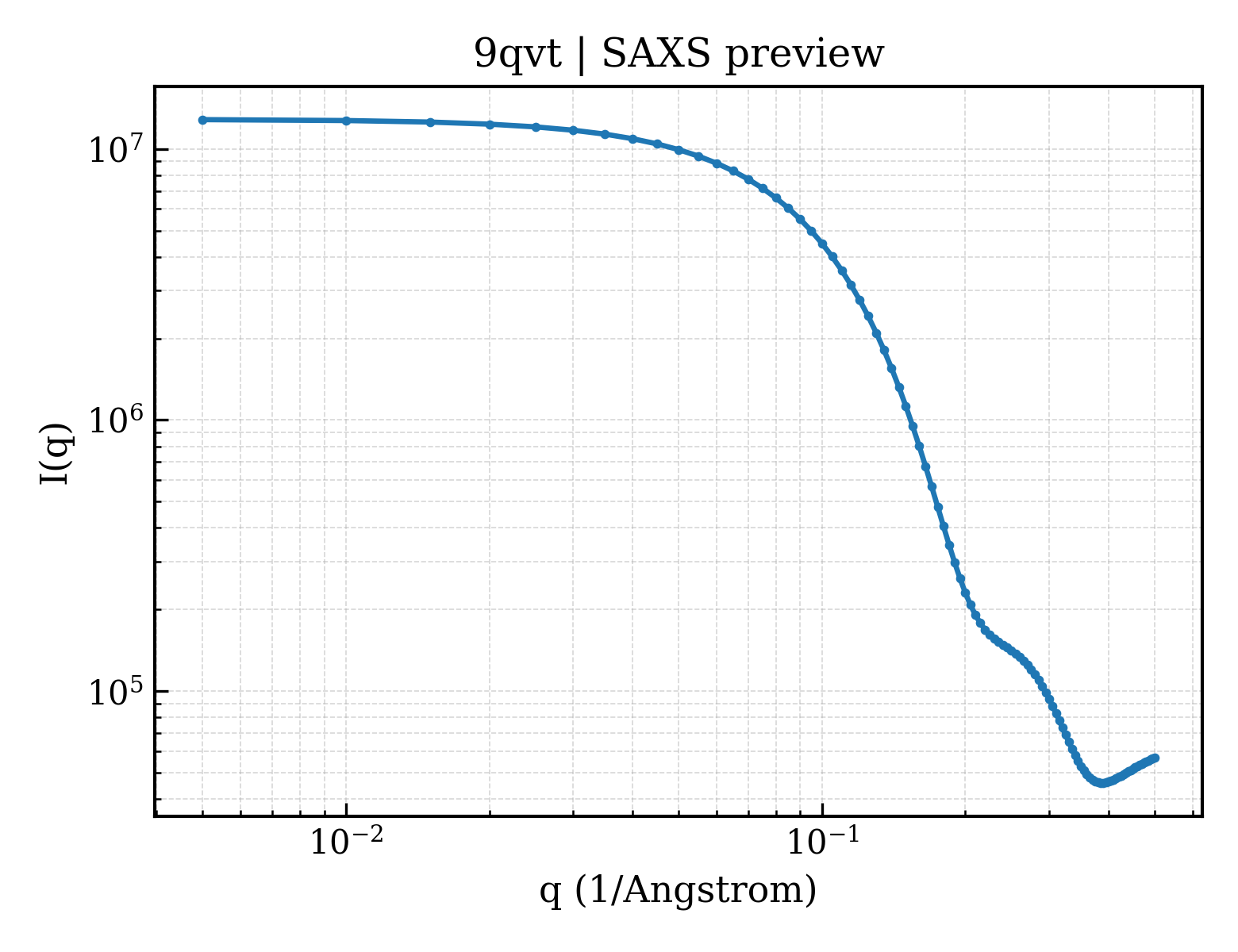

SAXS Profile

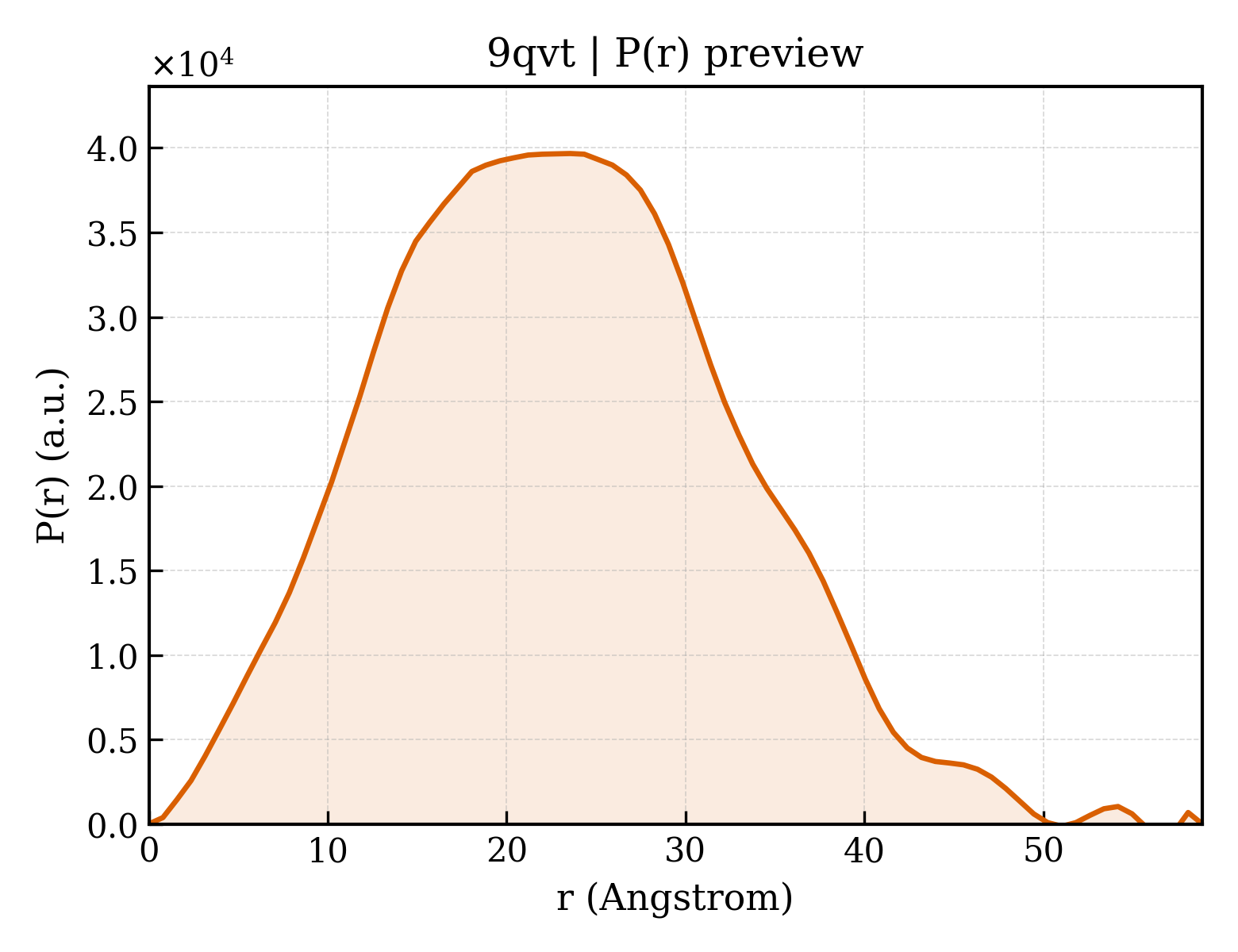

P(r) Distribution

▼

1. Structure Basics

entry_id	9qvt
deposition_date	2025-04-11
title	Crystal structure of STING CTD in complex with potent agonist D5
keywords	STING, Immune System, cGAS, agonist, interferon, signalling, SIGNALING PROTEIN; SIGNALING PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	17.59 Å
rg_electron	16.58 Å
i0	12848200.00
molecular_weight	17529.0 kDa
excluded_volume	16736 Å³
envelope_volume	28777 Å³
shell_volume	14894 Å³
envelope_diameter	58.8 Å
shell_rg	22.12 Å
envelope_rg	16.84 Å
shape_rg	16.56 Å
total_rg	17.34 Å
total_atoms	1322
n_residues	182
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	58.9 Å
rg_real	17.51 Å
rg_real_error	0.37 Å
i0_real	1.2850e+07
i0_real_error	1.4400e+05
rg_reciprocal	17.52 Å
i0_reciprocal	12850000.0000
total_estimate	0.7817
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	23.6 Å
skewness	0.228
kurtosis	-0.320
angular_range	— – 0.4500 Å⁻¹
current_alpha	0.0000
highest_alpha	2535000.0000
n_real_points	76
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.738; Stabil: 0.983; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Stimulator of interferon genes protein
formula_weight	27154.6 kDa
mutation	L139S,H232R
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1349

GSAPAEISAVCEKGNFNVAHGLAWSYYIGYLRLILPELQARIRTYNQHYNNLLRGAVSQRLYILLPLDCGVPDNLSMADPNIRFLDKLPQQTGDRAGIKDRVYSNSIYELLENGQRAGTCVLEYATPLQTLFAMSQYSQAGFSREDRLEQAKLFCRTLEDILADAPESQNNCRLIAYQEPADDSSFSLSQEVLRHLRQEEKEEVTVGSLKTSAVPSTSTMSQEPELLISGMEKPLPLRTDFS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	;4-[6-methoxy-5-[[6-methoxy-2-(4-oxidanyl-4-oxidanylidene-butanoyl)-1-benzothiophen-5-yl]sulfanylmethylsulfanyl]-1-benzothiophen-2-yl]-4-oxidanylidene-butanoic acid ;
formula_weight	604.7 kDa
src_method	syn
entity_count	1

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	27

▶

6. Citations (1)

▶

length_a	89.681 Å
length_b	75.595 Å
length_c	34.138 Å
angle_alpha	90.00 °
angle_beta	97.75 °
angle_gamma	90.00 °
z_pdb	4

space_group	C 1 2 1
int_tables_number	5
crystal_system	—

resolution	2.305 Å
resolution_low	57.579 Å
r_factor	—
r_work	0.3422
r_free	0.3881

fit	/app/data/saxs_computation/qv/9qvt/9qvt.fit
pddf	/app/data/pr_computation/qv/9qvt/9qvt.pr.out
profile	/app/data/saxs_computation/qv/9qvt/9qvt.dat
