1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 ubiquitin-protein ligase UBR4

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–5183 Chain B； UniProt 1–5183	Not recorded	No other associated polymer	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9QWX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8J9Q Crystal structure of UBR box of UBR4 apo Deposited 2023-05-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1660–1729（70 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1 M DL-malic acid (pH7.0) and 18% (w/v) polyethylene glycol 3350 (PEG3350)	Resolution 2.18 Å R-free 0.269
8J9Q Crystal structure of UBR box of UBR4 apo Deposited 2023-05-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1660–1729（70 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1 M DL-malic acid (pH7.0) and 18% (w/v) polyethylene glycol 3350 (PEG3350)	Resolution 2.18 Å R-free 0.269
8J9Q Crystal structure of UBR box of UBR4 apo Deposited 2023-05-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1660–1729（70 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1 M DL-malic acid (pH7.0) and 18% (w/v) polyethylene glycol 3350 (PEG3350)	Resolution 2.18 Å R-free 0.269
8J9R Crystal structure of UBR box of YIFS-UBR4 Deposited 2023-05-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1660–1729（70 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291.15 K；0.1 M Bis-Tris (pH5.6), 29% (w/v) polyethylene glycol 3350 (PEG3350), 0.2 M lithium sulfate monohydrate	Resolution 1.65 Å R-free 0.287
9D9Z Structure of human UBR4-KCMF1-CaM E3 ligase complex (Silencing Factor of the Integrated stress response, SiFI) Deposited 2024-08-21	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 2–5183（5182 aa） Chain B 2–5183（5182 aa）	Not recorded	ZN ZINC ION × 20 CA CALCIUM ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9HXW Cryo-EM structure of the human UBR4/KCMF1/CALM1 complex (composite map) Deposited 2025-01-08	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–4781（4781 aa） Chain B 1–4781（4781 aa）	Not recorded	ZN ZINC ION × 20	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9NWD Human E3 ligase UBR4-KCMF1-calmodulin complex (N-terminal) Deposited 2025-03-22	Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–5183（5183 aa） Chain B 1–5183（5183 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9NWE E3 ligase UBR4-KCMF1-calmodulin complex Deposited 2025-03-22	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 2–5183（5182 aa） Chain B 2–5183（5182 aa）	Not recorded	ZN ZINC ION × 6 CA CALCIUM ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9QWS Cryo-EM structure of the human UBR4/KCMF1/CALM1 complex (C-term dimer interface focused refinement) Deposited 2025-04-15	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–5183（5183 aa） Chain B 1–5183（5183 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9QWU Cryo-EM structure of the human UBR4/KCMF1/CALM1 complex (CALM1 focused refinement) Deposited 2025-04-15	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–5183（5183 aa） Chain B 1–5183（5183 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9QWZ Cryo-EM structure of the human UBR4/KCMF1/CALM1 complex (BP focused refinement) Deposited 2025-04-15	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–5183（5183 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.80 Å
9QX0 Cryo-EM structure of the human UBR4/KCMF1/CALM1 complex (C-term focused refinement) Deposited 2025-04-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–5183（5183 aa） Chain B 1–5183（5183 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å

10 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	UBR4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–5183； UniProt 1–5183 Author chain B； PDBConstruct 1–5183； UniProt 1–5183

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9qwx
Deposition date deposition_date	2025-04-15
Structure title title	Cryo-EM structure of the human UBR4/KCMF1/CALM1 complex (N-term focused refinement)
Keywords keywords	Ubiquitin ligase, protein quality control, LIGASE; LIGASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	72.77 Å
Radius of gyration Rg (electron density) rg_electron	71.79 Å
Forward intensity I(0) i0	1135910000.00
Molecular weight molecular_weight	285530.0 kDa
Excluded volume excluded_volume	357960 Å³
Envelope volume envelope_volume	668300 Å³
Hydration-shell volume shell_volume	82652 Å³
Envelope diameter envelope_diameter	236.7 Å
Shell Rg shell_rg	66.84 Å
Envelope Rg envelope_rg	69.79 Å
Shape Rg shape_rg	71.95 Å
Total Rg total_rg	71.14 Å
Total atoms total_atoms	20114
Residues n_residues	2702
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

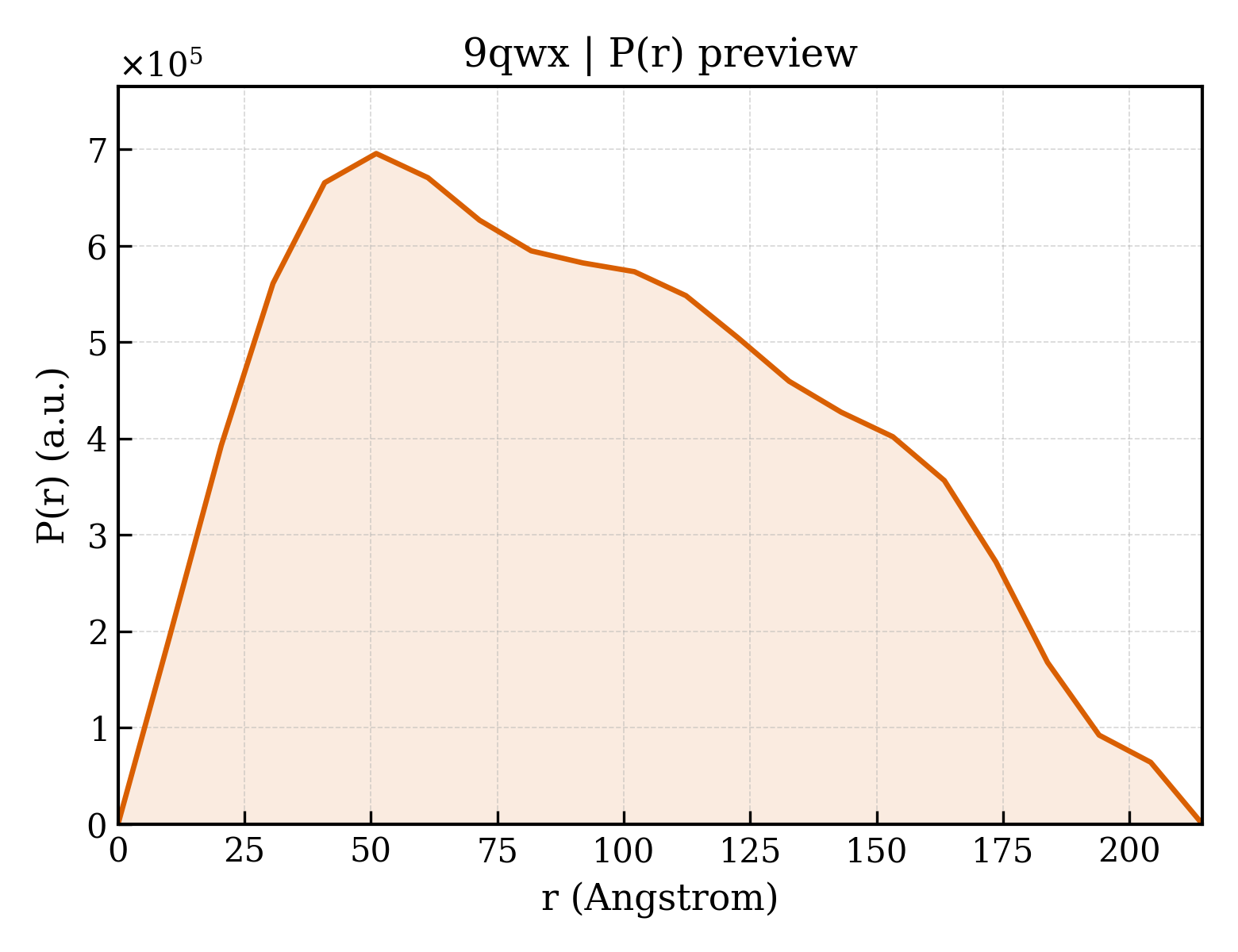

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	214.4 Å
Rg (real space) rg_real	73.05 Å
Rg uncertainty (real space) rg_real_error	1.64 Å
I(0) (real space) i0_real	1.1350e+09
I(0) uncertainty (real space) i0_real_error	2.5040e+07
Rg (reciprocal space) rg_reciprocal	71.20 Å
I(0) (reciprocal space) i0_reciprocal	1131000000.0000
Solution quality estimate total_estimate	0.8217
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	51.0 Å
Skewness Skewness skewness	0.286
Kurtosis Kurtosis kurtosis	-0.875
Angular range angular_range	— – 0.1050 Å⁻¹
Current regularization parameter α current_alpha	0.0008
Highest regularization parameter α highest_alpha	30640000.0000
Real-space data points n_real_points	22
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.953; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.822; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Description description	E3 ubiquitin-protein ligase UBR4
Molecular weight formula_weight	575844.0 kDa
EC 编号 ec_number	2.3.2.27
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	20114

MATSGGEEAAAAAPAPGTPATGADTTPGWEVAVRPLLSASYSAFEMKELPQLVASVIESESEILHHEKQYEPFYSSFVALSTHYITTVCSLIPRNQLQSVAAACKVLIEFSLLRLENPDEACAVSQKHLILLIKGLCTGCSRLDRTEIITFTAMMKSAKLPQTVKTLSDVEDQKELASPVSPELRQKEVQMNFLNQLTSVFNPRTVASQPISTQTLVEGENDEQSSTDQASAIKTKNVFIAQNVASLQELGGSEKLLRVCLNLPYFLRYINRFQDAVLANSFFIMPATVADATAVRNGFHSLVIDVTMALDTLSLPVLEPLNPSRLQDVTVLSLSCLYAGVSVATCMAILHVGSAQQVRTGSTSSKEDDYESDAATIVQKCLEIYDMIGQAISSSRRAGGEHYQNFQLLGAWCLLNSLFLILNLSPTALADKGKEKDPLAALRVRDILSRTKEGVGSPKLGPGKGHQGFGVLSVILANHAIKLLTSLFQDLQVEALHKGWETDGPPAALSIMAQSTSIQRIQRLIDSVPLMNLLLTLLSTSYRKACVLQRQRKGSMSSDASASTDSNTYYEDDFSSTEEDSSQDDDSEPILGQWFEETISPSKEKAAPPPPPPPPPLESSPRVKSPSKQAPGEKGNILASRKDPELFLGLASNILNFITSSMLNSRNNFIRNYLSVSLSEHHMATLASIIKEVDKDGLKGSSDEEFAAALYHFNHSLVTSDLQSPNLQNTLLQQLGVAPFSEGPWPLYIHPQSLSVLSRLLLIWQHKASAQGDPDVPECLKVWDRFLSTMKQNALQGVVPSETEDLNVEHLQMLLLIFHNFTETGRRAILSLFVQIIQELSVNMDAQMRFVPLILARLLLIFDYLLHQYSKAPVYLFEQVQHNLLSPPFGWASGSQDSNSRRATTPLYHGFKEVEENWSKHFSSDAVPHPRFYCVLSPEASEDDLNRLDSVACDVLFSKLVKYDELYAALTALLAAGSQLDTVRRKENKNVTALEACALQYYFLILWRILGILPPSKTYINQLSMNSPEMSECDILHTLRWSSRLRISSYVNWIKDHLIKQGMKAEHASSLLELASTTKCSSVKYDVEIVEEYFARQISSFCSIDCTTILQLHEIPSLQSIYTLDAAISKVQVSLDEHFSKMAAETDPHKSSEITKNLLPATLQLIDTYASFTRAYLLQNFNEEGTTEKPSKEKLQGFAAVLAIGSSRCKANTLGPTLVQNLPSSVQTVCESWNNINTNEFPNIGSWRNAFANDTIPSESYISAVQAAHLGTLCSQSLPLAASLKHTLLSLVRLTGDLIVWSDEMNPPQVIRTLLPLLLESSTESVAEISSNSLERILGPAESDEFLARVYEKLITGCYNILANHADPNSGLDESILEECLQYLEKQLESSQARKAMEEFFSDSGELVQIMMATANENLSAKFCNRVLKFFTKLFQLTEKSPNPSLLHLCGSLAQLACVEPVRLQAWLTRMTTSPPKDSDQLDVIQENRQLLQLLTTYIVRENSQVGEGVCAVLLGTLTPMATEMLANGDGTGFPELMVVMATLASAGQGAGHLQLHNAAVDWLSRCKKYLSQKNVVEKLNANVMHGKHVMILECTCHIMSYLADVTNALSQSNGQGPSHLSVDGEERAIEVDSDWVEELAVEEEDSQAEDSDEDSLCNKLCTFTITQKEFMNQHWYHCHTCKMVDGVGVCTVCAKVCHKDHEISYAKYGSFFCDCGAKEDGSCLALVKRTPSSGMSSTMKESAFQSEPRISESLVRHASTSSPADKAKVTISDGKVADEEKPKKSSLCRTVEGCREELQNQANFSFAPLVLDMLNFLMDAIQTNFQQASAVGSSSRAQQALSELHTVEKAVEMTDQLMVPTLGSQEGAFENVRMNYSGDQGQTIRQLISAHVLRRVAMCVLSSPHGRRQHLAVSHEKGKITVLQLSALLKQADSSKRKLTLTRLASAPVPFTVLSLTGNPCKEDYLAVCGLKDCHVLTFSSSGSVSDHLVLHPQLATGNFIIKAVWLPGSQTELAIVTADFVKIYDLCVDALSPTFYFLLPSSKIRDVTFLFNEEGKNIIVIMSSAGYIYTQLMEEASSAQQGPFYVTNVLEINHEDLKDSNSQVAGGGVSVYYSHVLQMLFFSYCQGKSFAATISRTTLEVLQLFPINIKSSNGGSKTSPALCQWSEVMNHPGLVCCVQQTTGVPLVVMVKPDTFLIQEIKTLPAKAKIQDMVAIRHTACNEQQRTTMILLCEDGSLRIYMANVENTSYWLQPSLQPSSVISIMKPVRKRKTATITTRTSSQVTFPIDFFEHNQQLTDVEFGGNDLLQVYNAQQIKHRLNSTGMYVANTKPGGFTIEISNNNSTMVMTGMRIQIGTQAIERAPSYIEIFGRTMQLNLSRSRWFDFPFTREEALQADKKLNLFIGASVDPAGVTMIDAVKIYGKTKEQFGWPDEPPEEFPSASVSNICPSNLNQSNGTGDSDSAAPTTTSGTVLERLVVSSLEALESCFAVGPIIEKERNKNAAQELATLLLSLPAPASVQQQSKSLLASLHTSRSAYHSHKDQALLSKAVQCLNTSSKEGKDLDPEVFQRLVITARSIAIMRPNNLVHFTESKLPQMETEGMDEGKEPQKQLEGDCCSFITQLVNHFWKLHASKPKNAFLAPACLPGLTHIEATVNALVDIIHGYCTCELDCINTASKIYMQMLLCPDPAVSFSCKQALIRVLRPRNKRRHVTLPSSPRSNTPMGDKDDDDDDDADEKMQSSGIPNGGHIRQESQEQSEVDHGDFEMVSESMVLETAENVNNGNPSPLEALLAGAEGFPPMLDIPPDADDETMVELAIALSLQQDQQGSSSSALGLQSLGLSGQAPSSSSLDAGTLSDTTASAPASDDEGSTAATDGSTLRTSPADHGGSVGSESGGSAVDSVAGEHSVSGRSSAYGDATAEGHPAGPGSVSSSTGAISTTTGHQEGDGSEGEGEGETEGDVHTSNRLHMVRLMLLERLLQTLPQLRNVGGVRAIPYMQVILMLTTDLDGEDEKDKGALDNLLSQLIAELGMDKKDVSKKNERSALNEVHLVVMRLLSVFMSRTKSGSKSSICESSSLISSATAAALLSSGAVDYCLHVLKSLLEYWKSQQNDEEPVATSQLLKPHTTSSPPDMSPFFLRQYVKGHAADVFEAYTQLLTEMVLRLPYQIKKITDTNSRIPPPVFDHSWFYFLSEYLMIQQTPFVRRQVRKLLLFICGSKEKYRQLRDLHTLDSHVRGIKKLLEEQGIFLRASVVTASSGSALQYDTLISLMEHLKACAEIAAQRTINWQKFCIKDDSVLYFLLQVSFLVDEGVSPVLLQLLSCALCGSKVLAALAASSGSSSASSSSAPVAASSGQATTQSKSSTKKSKKEEKEKEKDGETSGSQEDQLCTALVNQLNKFADKETLIQFLRCFLLESNSSSVRWQAHCLTLHIYRNSSKSQQELLLDLMWSIWPELPAYGRKAAQFVDLLGYFSLKTPQTEKKLKEYSQKAVEILRTQNHILTNHPNSNIYNTLSGLVEFDGYYLESDPCLVCNNPEVPFCYIKLSSIKVDTRYTTTQQVVKLIGSHTISKVTVKIGDLKRTKMVRTINLYYNNRTVQAIVELKNKPARWHKAKKVQLTPGQTEVKIDLPLPIVASNLMIEFADFYENYQASTETLQCPRCSASVPANPGVCGNCGENVYQCHKCRSINYDEKDPFLCNACGFCKYARFDFMLYAKPCCAVDPIENEEDRKKAVSNINTLLDKADRVYHQLMGHRPQLENLLCKVNEAAPEKPQDDSGTAGGISSTSASVNRYILQLAQEYCGDCKNSFDELSKIIQKVFASRKELLEYDLQQREAATKSSRTSVQPTFTASQYRALSVLGCGHTSSTKCYGCASAVTEHCITLLRALATNPALRHILVSQGLIRELFDYNLRRGAAAMREEVRQLMCLLTRDNPEATQQMNDLIIGKVSTALKGHWANPDLASSLQYEMLLLTDSISKEDSCWELRLRCALSLFLMAVNIKTPVVVENITLMCLRILQKLIKPPAPTSKKNKDVPVEALTTVKPYCNEIHAQAQLWLKRDPKASYDAWKKCLPIRGIDGNGKAPSKSELRHLYLTEKYVWRWKQFLSRRGKRTSPLDLKLGHNNWLRQVLFTPATQAARQAACTIVEALATIPSRKQQVLDLLTSYLDELSIAGECAAEYLALYQKLITSAHWKVYLAARGVLPYVGNLITKEIARLLALEEATLSTDLQQGYALKSLTGLLSSFVEVESIKRHFKSRLVGTVLNGYLCLRKLVVQRTKLIDETQDMLLEMLEDMTTGTESETKAFMAVCIETAKRYNLDDYRTPVFIFERLCSIIYPEENEVTEFFVTLEKDPQQEDFLQGRMPGNPYSSNEPGIGPLMRDIKNKICQDCDLVALLEDDSGMELLVNNKIISLDLPVAEVYKKVWCTTNEGEPMRIVYRMRGLLGDATEEFIESLDSTTDEEEDEEEVYKMAGVMAQCGGLECMLNRLAGIRDFKQGRHLLTVLLKLFSYCVKVKVNRQQLVKLEMNTLNVMLGTLNLALVAEQESKDSGGAAVAEQVLSIMEIILDESNAEPLSEDKGNLLLTGDKDQLVMLLDQINSTFVRSNPSVLQGLLRIIPYLSFGEVEKMQILVERFKPYCNFDKYDEDHSGDDKVFLDCFCKIAAGIKNNSNGHQLKDLILQKGITQNALDYMKKHIPSAKNLDADIWKKFLSRPALPFILRLLRGLAIQHPGTQVLIGTDSIPNLHKLEQVSSDEGIGTLAENLLEALREHPDVNKKIDAARRETRAEKKRMAMAMRQKALGTLGMTTNEKGQVVTKTALLKQMEELIEEPGLTCCICREGYKFQPTKVLGIYTFTKRVALEEMENKPRKQQGYSTVSHFNIVHYDCHLAAVRLARGREEWESAALQNANTKCNGLLPVWGPHVPESAFATCLARHNTYLQECTGQREPTYQLNIHDIKLLFLRFAMEQSFSADTGGGGRESNIHLIPYIIHTVLYVLNTTRATSREEKNLQGFLEQPKEKWVESAFEVDGPYYFTVLALHILPPEQWRATRVEILRRLLVTSQARAVAPGGATRLTDKAVKDYSAYRSSLLFWALVDLIYNMFKKVPTSNTEGGWSCSLAEYIRHNDMPIYEAADKALKTFQEEFMPVETFSEFLDVAGLLSEITDPESFLKDLLNSVPHHHHHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.600 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.60 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	75153

fit	/app/data/saxs_computation/qw/9qwx/9qwx.fit
pddf	/app/data/pr_computation/qw/9qwx/9qwx.pr.out
profile	/app/data/saxs_computation/qw/9qwx/9qwx.dat
