SAXSdb — 9d9z

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

;UBR4 (endogenously FLAG-tagged at the N-terminus),E3 ubiquitin-protein ligase UBR4,E3 ubiquitin-protein ligase UBR4,E3 ubiquitin-protein ligase UBR4 ;

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Calmodulin-1 × 2 （P0DP23） E3 ubiquitin-protein ligase KCMF1 × 2 （Q9P0J7） ZINC ION × 20 CALCIUM ION × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBR4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 24–5205； UniProt 2–5183 Author chain B； PDBConstruct 24–5205； UniProt 2–5183

Calmodulin-1

OrganismNot specified

UniProt P0DP23

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	;UBR4 (endogenously FLAG-tagged at the N-terminus),E3 ubiquitin-protein ligase UBR4,E3 ubiquitin-protein ligase UBR4,E3 ubiquitin-protein ligase UBR4 ; × 2 （Q5T4S7） E3 ubiquitin-protein ligase KCMF1 × 2 （Q9P0J7） ZINC ION × 20 CALCIUM ION × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CALM1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–149； UniProt 1–149 Author chain D； PDBConstruct 1–149； UniProt 1–149

E3 ubiquitin-protein ligase KCMF1

OrganismNot specified

UniProt Q9P0J7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	;UBR4 (endogenously FLAG-tagged at the N-terminus),E3 ubiquitin-protein ligase UBR4,E3 ubiquitin-protein ligase UBR4,E3 ubiquitin-protein ligase UBR4 ; × 2 （Q5T4S7） Calmodulin-1 × 2 （P0DP23） ZINC ION × 20 CALCIUM ION × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KCMF1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–381； UniProt 1–381 Author chain F； PDBConstruct 1–381； UniProt 1–381

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9d9z
Deposition date deposition_date	2024-08-21
Structure title title	Structure of human UBR4-KCMF1-CaM E3 ligase complex (Silencing Factor of the Integrated stress response, SiFI)
Keywords keywords	E3 liase, UBR4, SIFI, LIGASE; LIGASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9d9z__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

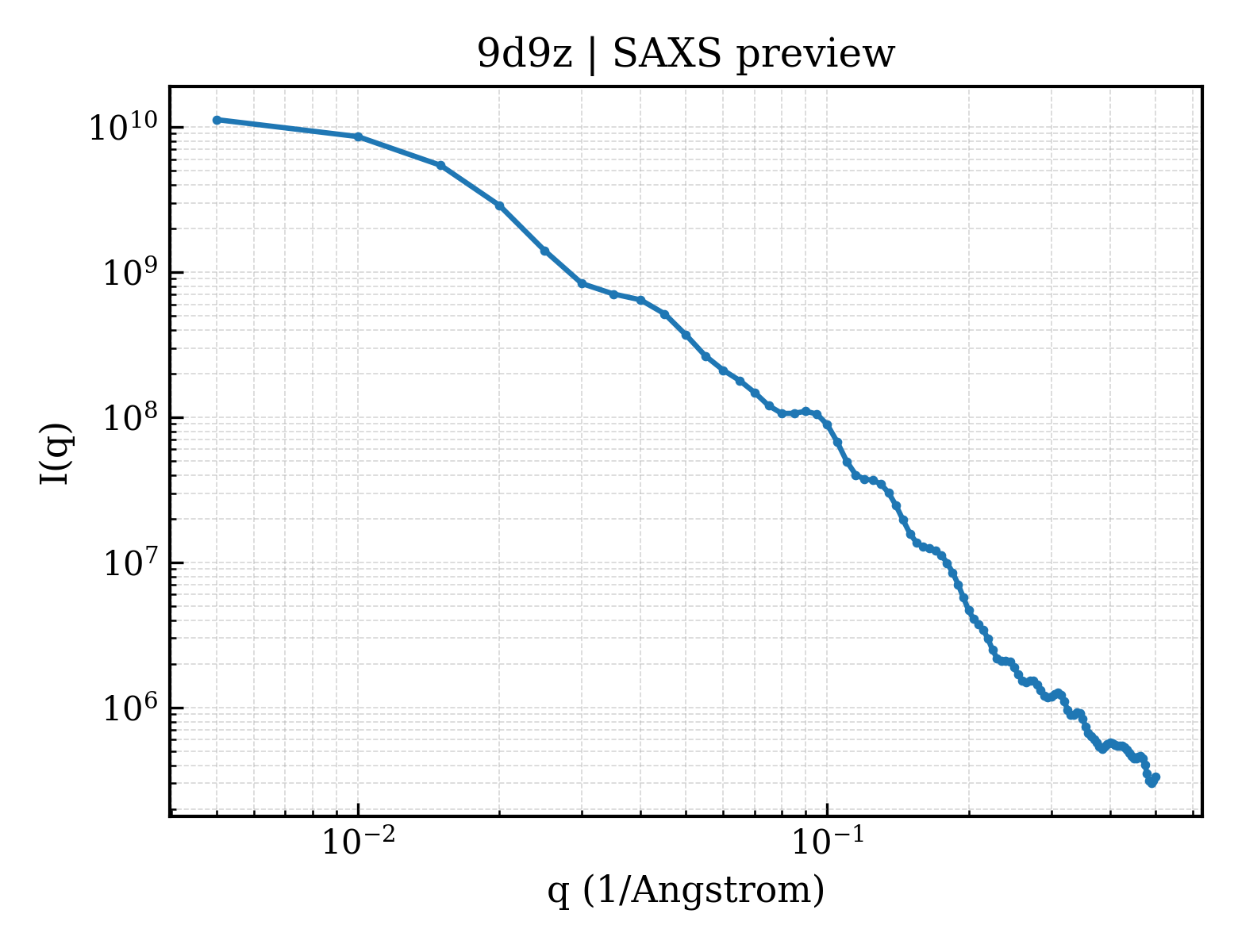

9d9z__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

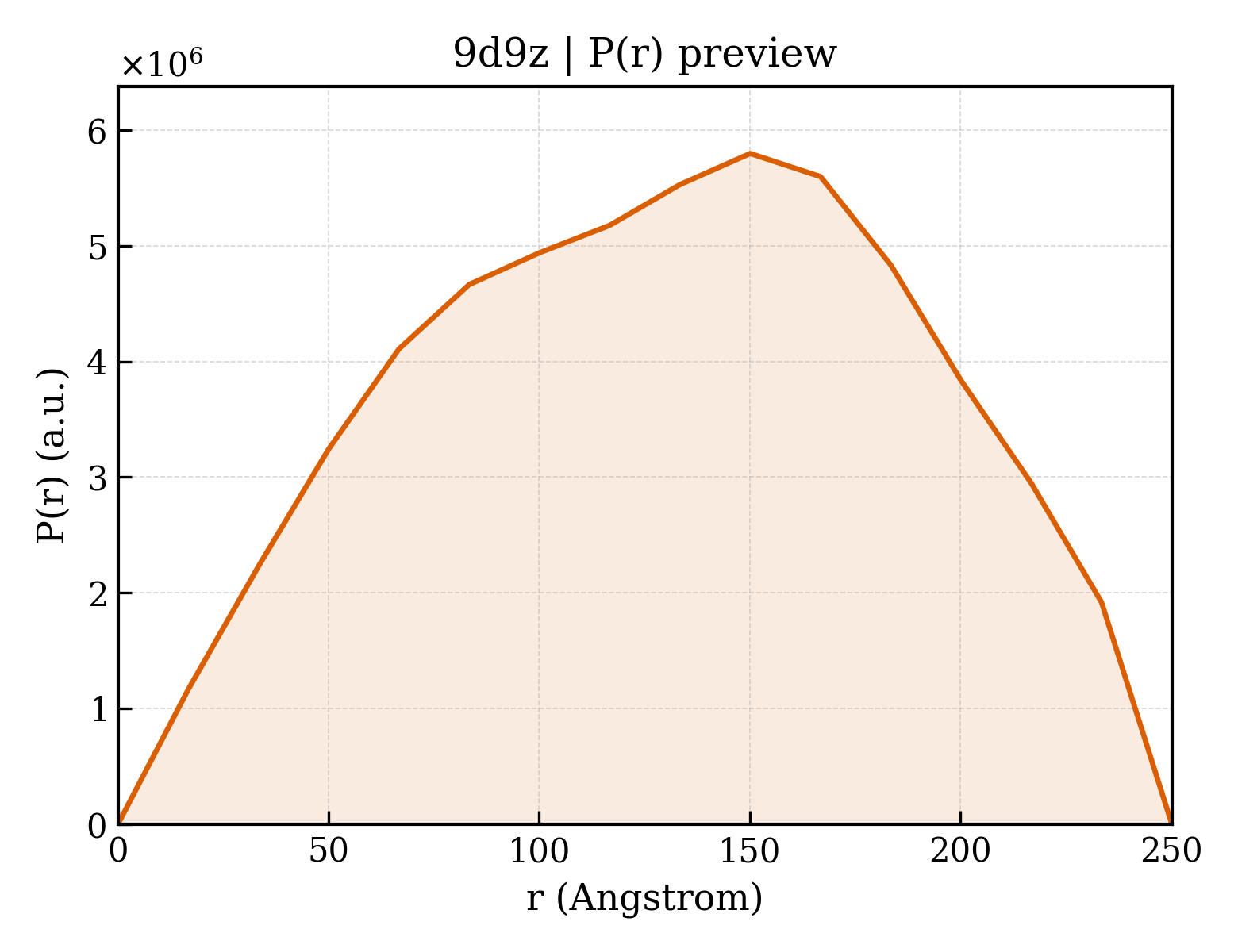

9d9z__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	0.00 Å
Rg (electron density)	103.50 Å
Total Rg	103.30 Å
Atom count	66746
Residues	8514
Excluded volume	1196100 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9d9z__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	;UBR4 (endogenously FLAG-tagged at the N-terminus),E3 ubiquitin-protein ligase UBR4,E3 ubiquitin-protein ligase UBR4,E3 ubiquitin-protein ligase UBR4 ;
Molecular weight formula_weight	577180.9 kDa
EC 编号 ec_number	2.3.2.27
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	66746

MDYKDHDGDYKDHDIDYKDDDDKATSGGEEAAAAAPAPGTPATGADTTPGWEVAVRPLLSASYSAFEMKELPQLVASVIESESEILHHEKQYEPFYSSFVALSTHYITTVCSLIPRNQLQSVAAACKVLIEFSLLRLENPDEACAVSQKHLILLIKGLCTGCSRLDRTEIITFTAMMKSAKLPQTVKTLSDVEDQKELASPVSPELRQKEVQMNFLNQLTSVFNPRTVASQPISTQTLVEGENDEQSSTDQASAIKTKNVFIAQNVASLQELGGSEKLLRVCLNLPYFLRYINRFQDAVLANSFFIMPATVADATAVRNGFHSLVIDVTMALDTLSLPVLEPLNPSRLQDVTVLSLSCLYAGVSVATCMAILHVGSAQQVRTGSTSSKEDDYESDAATIVQKCLEIYDMIGQAISSSRRAGGEHYQNFQLLGAWCLLNSLFLILNLSPTALADKGKEKDPLAALRVRDILSRTKEGVGSPKLGPGKGHQGFGVLSVILANHAIKLLTSLFQDLQVEALHKGWETDGPPAALSIMAQSTSIQRIQRLIDSVPLMNLLLTLLSTSYRKACVLQRQRKGSMSSDASASTDSNTYYEDDFSSTEEDSSQDDDSEPILGQWFEETISPSKEKAAPPPPPPPPPLESSPRVKSPSKQAPGEKGNILASRKDPELFLGLASNILNFITSSMLNSRNNFIRNYLSVSLSEHHMATLASIIKEVDKDGLKGSSDEEFAAALYHFNHSLVTSDLQSPNLQNTLLQQLGVAPFSEGPWPLYIHPQSLSVLSRLLLIWQHKASAQGDPDVPECLKVWDRFLSTMKQNALQGVVPSETEDLNVEHLQMLLLIFHNFTETGRRAILSLFVQIIQELSVNMDAQMRFVPLILARLLLIFDYLLHQYSKAPVYLFEQVQHNLLSPPFGWASGSQDSNSRRATTPLYHGFKEVEENWSKHFSSDAVPHPRFYCVLSPEASEDDLNRLDSVACDVLFSKLVKYDELYAALTALLAAGSQLDTVRRKENKNVTALEACALQYYFLILWRILGILPPSKTYINQLSMNSPEMSECDILHTLRWSSRLRISSYVNWIKDHLIKQGMKAEHASSLLELASTTKCSSVKYDVEIVEEYFARQISSFCSIDCTTILQLHEIPSLQSIYTLDAAISKVQVSLDEHFSKMAAETDPHKSSEITKNLLPATLQLIDTYASFTRAYLLQNFNEEGTTEKPSKEKLQGFAAVLAIGSSRCKANTLGPTLVQNLPSSVQTVCESWNNINTNEFPNIGSWRNAFANDTIPSESYISAVQAAHLGTLCSQSLPLAASLKHTLLSLVRLTGDLIVWSDEMNPPQVIRTLLPLLLESSTESVAEISSNSLERILGPAESDEFLARVYEKLITGCYNILANHADPNSGLDESILEECLQYLEKQLESSQARKAMEEFFSDSGELVQIMMATANENLSAKFCNRVLKFFTKLFQLTEKSPNPSLLHLCGSLAQLACVEPVRLQAWLTRMTTSPPKDSDQLDVIQENRQLLQLLTTYIVRENSQVGEGVCAVLLGTLTPMATEMLANGDGTGFPELMVVMATLASAGQGAGHLQLHNAAVDWLSRCKKYLSQKNVVEKLNANVMHGKHVMILECTCHIMSYLADVTNALSQSNGQGPSHLSVDGEERAIEVDSDWVEELAVEEEDSQAEDSDEDSLCNKLCTFTITQKEFMNQHWYHCHTCKMVDGVGVCTVCAKVCHKDHEISYAKYGSFFCDCGAKEDGSCLALVKRTPSSGMSSTMKESAFQSEPRISESLVRHASTSSPADKAKVTISDGKVADEEKPKKSSLCRTVEGCREELQNQANFSFAPLVLDMLNFLMDAIQTNFQQASAVGSSSRAQQALSELHTVEKAVEMTDQLMVPTLGSQEGAFENVRMNYSGDQGQTIRQLISAHVLRRVAMCVLSSPHGRRQHLAVSHEKGKITVLQLSALLKQADSSKRKLTLTRLASAPVPFTVLSLTGNPCKEDYLAVCGLKDCHVLTFSSSGSVSDHLVLHPQLATGNFIIKAVWLPGSQTELAIVTADFVKIYDLCVDALSPTFYFLLPSSKIRDVTFLFNEEGKNIIVIMSSAGYIYTQLMEEASSAQQGPFYVTNVLEINHEDLKDSNSQVAGGGVSVYYSHVLQMLFFSYCQGKSFAATISRTTLEVLQLFPINIKSSNGGSKTSPALCQWSEVMNHPGLVCCVQQTTGVPLVVMVKPDTFLIQEIKTLPAKAKIQDMVAIRHTACNEQQRTTMILLCEDGSLRIYMANVENTSYWLQPSLQPSSVISIMKPVRKRKTATITTRTSSQVTFPIDFFEHNQQLTDVEFGGNDLLQVYNAQQIKHRLNSTGMYVANTKPGGFTIEISNNNSTMVMTGMRIQIGTQAIERAPSYIEIFGRTMQLNLSRSRWFDFPFTREEALQADKKLNLFIGASVDPAGVTMIDAVKIYGKTKEQFGWPDEPPEEFPSASVSNICPSNLNQSNGTGDSDSAAPTTTSGTVLERLVVSSLEALESCFAVGPIIEKERNKNAAQELATLLLSLPAPASVQQQSKSLLASLHTSRSAYHSHKDQALLSKAVQCLNTSSKEGKDLDPEVFQRLVITARSIAIMRPNNLVHFTESKLPQMETEGMDEGKEPQKQLEGDCCSFITQLVNHFWKLHASKPKNAFLAPACLPGLTHIEATVNALVDIIHGYCTCELDCINTASKIYMQMLLCPDPAVSFSCKQALIRVLRPRNKRRHVTLPSSPRSNTPMGDKDDDDDDDADEKMQSSGIPNGGHIRQESQEQSEVDHGDFEMVSESMVLETAENVNNGNPSPLEALLAGAEGFPPMLDIPPDADDETMVELAIALSLQQDQQGSSSSALGLQSLGLSGQAPSSSSLDAGTLSDTTASAPASDDEGSTAATDGSTLRTSPADHGGSVGSESGGSAVDSVAGEHSVSGRSSAYGDATAEGHPAGPGSVSSSTGAISTTTGHQEGDGSEGEGEGETEGDVHTSNRLHMVRLMLLERLLQTLPQLRNVGGVRAIPYMQVILMLTTDLDGEDEKDKGALDNLLSQLIAELGMDKKDVSKKNERSALNEVHLVVMRLLSVFMSRTKSGSKSSICESSSLISSATAAALLSSGAVDYCLHVLKSLLEYWKSQQNDEEPVATSQLLKPHTTSSPPDMSPFFLRQYVKGHAADVFEAYTQLLTEMVLRLPYQIKKITDTNSRIPPPVFDHSWFYFLSEYLMIQQTPFVRRQVRKLLLFICGSKEKYRQLRDLHTLDSHVRGIKKLLEEQGIFLRASVVTASSGSALQYDTLISLMEHLKACAEIAAQRTINWQKFCIKDDSVLYFLLQVSFLVDEGVSPVLLQLLSCALCGSKVLAALAASSGSSSASSSSAPVAASSGQATTQSKSSTKKSKKEEKEKEKDGETSGSQEDQLCTALVNQLNKFADKETLIQFLRCFLLESNSSSVRWQAHCLTLHIYRNSSKSQQELLLDLMWSIWPELPAYGRKAAQFVDLLGYFSLKTPQTEKKLKEYSQKAVEILRTQNHILTNHPNSNIYNTLSGLVEFDGYYLESDPCLVCNNPEVPFCYIKLSSIKVDTRYTTTQQVVKLIGSHTISKVTVKIGDLKRTKMVRTINLYYNNRTVQAIVELKNKPARWHKAKKVQLTPGQTEVKIDLPLPIVASNLMIEFADFYENYQASTETLQCPRCSASVPANPGVCGNCGENVYQCHKCRSINYDEKDPFLCNACGFCKYARFDFMLYAKPCCAVDPIENEEDRKKAVSNINTLLDKADRVYHQLMGHRPQLENLLCKVNEAAPEKPQDDSGTAGGISSTSASVNRYILQLAQEYCGDCKNSFDELSKIIQKVFASRKELLEYDLQQREAATKSSRTSVQPTFTASQYRALSVLGCGHTSSTKCYGCASAVTEHCITLLRALATNPALRHILVSQGLIRELFDYNLRRGAAAMREEVRQLMCLLTRDNPEATQQMNDLIIGKVSTALKGHWANPDLASSLQYEMLLLTDSISKEDSCWELRLRCALSLFLMAVNIKTPVVVENITLMCLRILQKLIKPPAPTSKKNKDVPVEALTTVKPYCNEIHAQAQLWLKRDPKASYDAWKKCLPIRGIDGNGKAPSKSELRHLYLTEKYVWRWKQFLSRRGKRTSPLDLKLGHNNWLRQVLFTPATQAARQAACTIVEALATIPSRKQQVLDLLTSYLDELSIAGECAAEYLALYQKLITSAHWKVYLAARGVLPYVGNLITKEIARLLALEEATLSTDLQQGYALKSLTGLLSSFVEVESIKRHFKSRLVGTVLNGYLCLRKLVVQRTKLIDETQDMLLEMLEDMTTGTESETKAFMAVCIETAKRYNLDDYRTPVFIFERLCSIIYPEENEVTEFFVTLEKDPQQEDFLQGRMPGNPYSSNEPGIGPLMRDIKNKICQDCDLVALLEDDSGMELLVNNKIISLDLPVAEVYKKVWCTTNEGEPMRIVYRMRGLLGDATEEFIESLDSTTDEEEDEEEVYKMAGVMAQCGGLECMLNRLAGIRDFKQGRHLLTVLLKLFSYCVKVKVNRQQLVKLEMNTLNVMLGTLNLALVAEQESKDSGGAAVAEQVLSIMEIILDESNAEPLSEDKGNLLLTGDKDQLVMLLDQINSTFVRSNPSVLQGLLRIIPYLSFGEVEKMQILVERFKPYCNFDKYDEDHSGDDKVFLDCFCKIAAGIKNNSNGHQLKDLILQKGITQNALDYMKKHIPSAKNLDADIWKKFLSRPALPFILRLLRGLAIQHPGTQVLIGTDSIPNLHKLEQVSSDEGIGTLAENLLEALREHPDVNKKIDAARRETRAEKKRMAMAMRQKALGTLGMTTNEKGQVVTKTALLKQMEELIEEPGLTCCICREGYKFQPTKVLGIYTFTKRVALEEMENKPRKQQGYSTVSHFNIVHYDCHLAAVRLARGREEWESAALQNANTKCNGLLPVWGPHVPESAFATCLARHNTYLQECTGQREPTYQLNIHDIKLLFLRFAMEQSFSADTGGGGRESNIHLIPYIIHTVLYVLNTTRATSREEKNLQGFLEQPKEKWVESAFEVDGPYYFTVLALHILPPEQWRATRVEILRRLLVTSQARAVAPGGATRLTDKAVKDYSAYRSSLLFWALVDLIYNMFKKVPTSNTEGGWSCSLAEYIRHNDMPIYEAADKALKTFQEEFMPVETFSEFLDVAGLLSEITDPESFLKDLLNSVP

Entity 2 Entity 2 polymer

Description description	Calmodulin-1
Molecular weight formula_weight	16852.5 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

MADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVQMMTAK

Entity 3 Entity 3 polymer

Description description	E3 ubiquitin-protein ligase KCMF1
Molecular weight formula_weight	41992.3 kDa
EC 编号 ec_number	2.3.2.27
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F

MSRHEGVSCDACLKGNFRGRRYKCLICYDYDLCASCYESGATTTRHTTDHPMQCILTRVDFDLYYGGEAFSVEQPQSFTCPYCGKMGYTETSLQEHVTSEHAETSTEVICPICAALPGGDPNHVTDDFAAHLTLEHRAPRDLDESSGVRHVRRMFHPGRGLGGPRARRSNMHFTSSSTGGLSSSQSSYSPSNREAMDPIAELLSQLSGVRRSAGGQLNSSGPSASQLQQLQMQLQLERQHAQAARQQLETARNATRRTNTSSVTTTITQSTATTNIANTESSQQTLQNSQFLLTRLNDPKMSETERQSMESERADRSLFVQELLLSTLVREESSSSDEDDRGEMADFGAMGCVDIMPLDVALENLNLKESNKGNEPPPPPL

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	20

Entity 5 Entity 5 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	4

▶

Resolution resolution	3.40 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	126380
