9r44
Crystal structure of human caspase-9 CARD

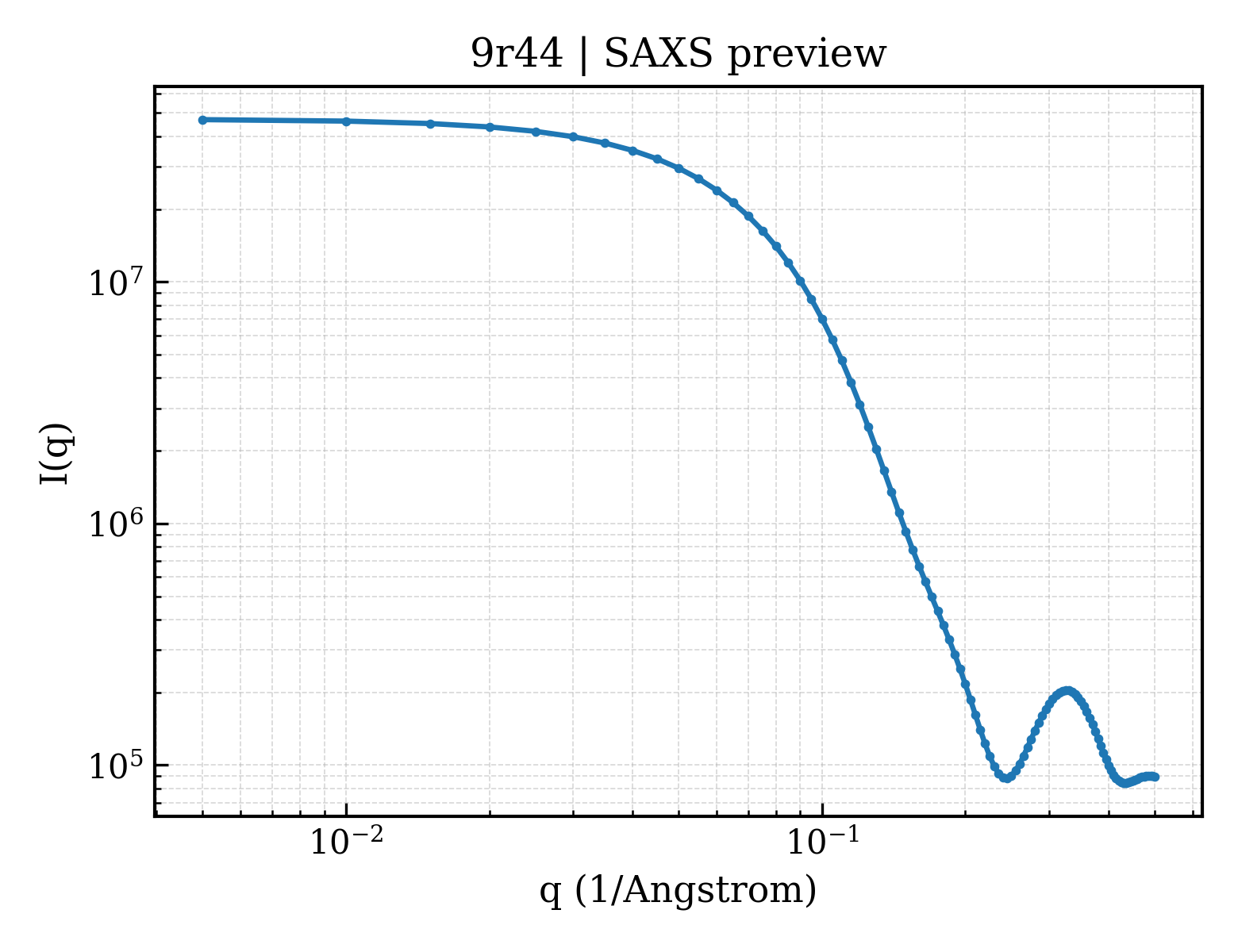

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9r44 |
| deposition_date | 2025-05-07 |
| last_revision | 2026-05-20 |
| title | Crystal structure of human caspase-9 CARD |
| keywords | Caspase-9, cell death, CARD, human, APOPTOSIS; APOPTOSIS |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 23.64 Å |
| rg_electron | 22.66 Å |
| i0 | 47130200.00 |
| molecular_weight | 47588.0 kDa |
| excluded_volume | 57401 ų |
| envelope_volume | 71561 ų |
| shell_volume | 26086 ų |
| envelope_diameter | 79.4 Å |
| shell_rg | 29.94 Å |
| envelope_rg | 22.77 Å |
| shape_rg | 22.70 Å |
| total_rg | 23.34 Å |
| total_atoms | 3295 |
| n_residues | 395 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 76.8 Å |
| rg_real | 23.56 Å |
| rg_real_error | 0.51 Å |
| i0_real | 4.7130e+07 |
| i0_real_error | 6.1190e+05 |
| rg_reciprocal | 23.58 Å |
| i0_reciprocal | 47130000.0000 |
| total_estimate | 0.8109 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 26.4 Å |
| skewness | 0.280 |
| kurtosis | -0.366 |
| angular_range | — – 0.3350 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 17730000.0000 |
| n_real_points | 65 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.847; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
