1. Protein Identity and Related Structures Protein Identity & Related Structures

APOPTOTIC PROTEASE ACTIVATING FACTOR 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–95	Fragment：CASPASE RECRUITMENT DOMAIN (CARD)	PROCASPASE 9 × 1 （P55211）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；pH 7.5	Resolution 2.50 Å R-free 0.299

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3YGS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1C15 SOLUTION STRUCTURE OF APAF-1 CARD Deposited 1999-07-20	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–97（97 aa） Fragment：CASPASE RECRUITMENT DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；300 K；Ionic strength (raw mmCIF value) 1；Pressure AMBIENT NMR sample composition 1MM 15N LABELED APAF-1 CARD, 20 MM PHOSPHATE BUFFER, 50 MM NACL NMR sample composition 1MM 13C LABELED APAF-1 CARD, 20 MM PHOSPHATE BUFFER, 50 MM NACL NMR sample composition 1MM NON-LABELED APAF-1 CARD, 20 MM PHOSPHATE BUFFER, 50 MM NACL NMR sample composition 1MM 13C,15N LABELED, 80%DEUTERATED APAF-1 CARD, 20 MM PHOSPHATE BUFFER, 50 MM NACL	Resolution not provided
1CWW SOLUTION STRUCTURE OF THE CASPASE RECRUITMENT DOMAIN (CARD) FROM APAF-1 Deposited 1999-08-26	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–97（97 aa） Fragment：CASPASE RECRUITMENT DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.7；30 K NMR measurement conditions pH 6.7；30 K NMR measurement conditions pH 6.7；30 K NMR sample composition UNLABELLED 1.5MM APAF-1 CARD 20MM SODIUM PHOSPHATE PH 6.7 75MM NACL 2MM DITHIOTHREITOL NMR sample composition U-15N 1.5MM APAF-1 CARD 20MM SODIUM PHOSPHATE PH 6.7 75MM NACL 2MM DITHIOTHREITOL NMR sample composition U-15N; U-13C 1.5MM APAF-1 CARD 20MM SODIUM PHOSPHATE PH 6.7 75MM NACL 2MM DITHIOTHREITOL	Resolution not provided
1CY5 CRYSTAL STRUCTURE OF THE APAF-1 CARD Deposited 1999-08-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–97（97 aa） Fragment：CASPASE RECRUITMENT DOMAIN	Not recorded	ZN ZINC ION × 5 BME BETA-MERCAPTOETHANOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；290 K；HANGING DROP VAPOR DIFFUSION WITH EQUAL VOLUMES OF PROTEIN AND RESERVOIR SOLUTIONS. PROTEIN SOLUTION: 5-20 MG/ML PROTEIN IN 0.02 MOLAR TRIS (PH 8.0-8.5) , 0.1-0.2 MOLAR SODIUM CHLORIDE. 0.005 MOLAR 2-MERCAPTOETHANOL RESERVOIR SOLUTION: 8-20% (W/V) PEG 8000, 0.2 MOLAR TRIS (PH 7.5-8.0), 0.05-0.2 MOLAR ZINC ACETATE., VAPOR DIFFUSION, HANGING DROP, temperature 17K	Resolution 1.30 Å R-free 0.199
1Z6T Structure of the apoptotic protease-activating factor 1 bound to ADP Deposited 2005-03-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–591（591 aa） Fragment：Apaf-1, residues 1-591	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.1；276 K；HEPES, ammonium acetate, PEG-3350, pH 7.1, VAPOR DIFFUSION, SITTING DROP, temperature 276K, pH 7.10	Resolution 2.21 Å R-free 0.244
1Z6T Structure of the apoptotic protease-activating factor 1 bound to ADP Deposited 2005-03-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–591（591 aa） Fragment：Apaf-1, residues 1-591	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.1；276 K；HEPES, ammonium acetate, PEG-3350, pH 7.1, VAPOR DIFFUSION, SITTING DROP, temperature 276K, pH 7.10	Resolution 2.21 Å R-free 0.244
1Z6T Structure of the apoptotic protease-activating factor 1 bound to ADP Deposited 2005-03-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–591（591 aa） Fragment：Apaf-1, residues 1-591	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.1；276 K；HEPES, ammonium acetate, PEG-3350, pH 7.1, VAPOR DIFFUSION, SITTING DROP, temperature 276K, pH 7.10	Resolution 2.21 Å R-free 0.244
1Z6T Structure of the apoptotic protease-activating factor 1 bound to ADP Deposited 2005-03-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–591（591 aa） Fragment：Apaf-1, residues 1-591	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.1；276 K；HEPES, ammonium acetate, PEG-3350, pH 7.1, VAPOR DIFFUSION, SITTING DROP, temperature 276K, pH 7.10	Resolution 2.21 Å R-free 0.244
2P1H Rapid Folding and Unfolding of Apaf-1 CARD Deposited 2007-03-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–92（92 aa） Fragment：CARD domain (Residues 1-92)	Not recorded	ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.1；291 K；200 mM Tris-HCl, pH 6.1, 200 mM zinc acetate, 17% PEG 6000, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.59 Å R-free 0.297
2YGS CARD DOMAIN FROM APAF-1 Deposited 1999-05-08	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–92（92 aa） Fragment：CASPASE RECRUITMENT DOMAIN (CARD)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 1.60 Å R-free 0.236
3J2T An improved model of the human apoptosome Deposited 2012-12-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric	Chain A 1–1248（1248 aa） Chain B 1–1248（1248 aa） Chain C 1–1248（1248 aa） Chain D 1–1248（1248 aa） Chain E 1–1248（1248 aa） Chain F 1–1248（1248 aa） Chain G 1–1248（1248 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 7 HEM PROTOPORPHYRIN IX CONTAINING FE × 7	ELECTRON MICROSCOPY cryo-EM buffer low salt HEPES buffer；pH 7.5；20mM HEPES, 10mM KCl, 1.5mM MgCl2, 1mM EDTA, 1mM EGTA, 1mM DTT cryo-EM vitrification conditions Blot for 2 seconds before plunging；77 K；Cryogen ETHANE；Blot for 2 seconds before plunging (FEI VITROBOT MARK III)	Resolution 9.50 Å
3JBT Atomic structure of the Apaf-1 apoptosome Deposited 2015-10-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric	Chain A 1–1248（1248 aa） Chain C 1–1248（1248 aa） Chain E 1–1248（1248 aa） Chain G 1–1248（1248 aa） Chain I 1–1248（1248 aa） Chain K 1–1248（1248 aa） Chain M 1–1248（1248 aa）	Not recorded	DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 7 MG MAGNESIUM ION × 7 HEM PROTOPORPHYRIN IX CONTAINING FE × 7	ELECTRON MICROSCOPY cryo-EM buffer 20 mM HEPES (pH 7.5), 10 mM KCl, 1.5 mM MgCl2, 1 mM EDTA, 1 mM DTT；pH 7.5；20 mM HEPES (pH 7.5), 10 mM KCl, 1.5 mM MgCl2, 1 mM EDTA, 1 mM DTT cryo-EM vitrification conditions Blot for 2.5 seconds before plunging；Cryogen ETHANE	Resolution 3.80 Å
4RHW Crystal structure of Apaf-1 CARD and caspase-9 CARD complex Deposited 2014-10-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–97（97 aa） Fragment：card domain Chain B 1–97（97 aa） Fragment：card domain Chain C 1–97（97 aa） Fragment：card domain Chain D 1–97（97 aa） Fragment：card domain	Not recorded	SO4 SULFATE ION × 7 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；13% PEG 3000, 0.2M ammonium sulfate, 0.1M MES (pH5.5), VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.10 Å R-free 0.226
5JUY Active human apoptosome with procaspase-9 Deposited 2016-05-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric	Chain A 1–1248（1248 aa） Chain B 1–1248（1248 aa） Chain C 1–1248（1248 aa） Chain D 1–1248（1248 aa） Chain E 1–1248（1248 aa） Chain F 1–1248（1248 aa） Chain G 1–1248（1248 aa）	Not recorded	DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 7 HEC HEME C × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Buffer A cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
5WVC Structure of the CARD-CARD disk Deposited 2016-12-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–95（95 aa） Fragment：UNP RESIDUES 1-95 Chain C 1–95（95 aa） Fragment：UNP RESIDUES 1-95 Chain E 1–95（95 aa） Fragment：UNP RESIDUES 1-95	Not recorded	IOD IODIDE ION × 11	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.2 M NH4I, 20% PEG 3350	Resolution 2.99 Å R-free 0.228
5WVE Apaf-1-Caspase-9 holoenzyme Deposited 2016-12-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 25 PDB declaration: 25-meric	Chain A 1–1248（1248 aa） Chain C 1–1248（1248 aa） Chain E 1–1248（1248 aa） Chain G 1–1248（1248 aa） Chain I 1–1248（1248 aa） Chain K 1–1248（1248 aa） Chain M 1–1248（1248 aa） Chain O 1–102（102 aa） Fragment：CARD domain, UNP residues 1-102 Chain P 1–102（102 aa） Fragment：CARD domain, UNP residues 1-102 Chain Q 1–102（102 aa） Fragment：CARD domain, UNP residues 1-102 Chain R 1–102（102 aa） Fragment：CARD domain, UNP residues 1-102 Chain W 1–102（102 aa） Fragment：CARD domain, UNP residues 1-102 Chain X 1–102（102 aa） Fragment：CARD domain, UNP residues 1-102	Not recorded	DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 7 MG MAGNESIUM ION × 7 HEM PROTOPORPHYRIN IX CONTAINING FE × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
8XQK The Crystal Structure of Apaf from Biortus. Deposited 2024-01-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–97（97 aa）	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.6M Na/KPO4 pH6.5	Resolution 2.85 Å R-free 0.283
8XQK The Crystal Structure of Apaf from Biortus. Deposited 2024-01-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–97（97 aa）	Not recorded	PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.6M Na/KPO4 pH6.5	Resolution 2.85 Å R-free 0.283
8XQK The Crystal Structure of Apaf from Biortus. Deposited 2024-01-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–97（97 aa）	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.6M Na/KPO4 pH6.5	Resolution 2.85 Å R-free 0.283
8XQK The Crystal Structure of Apaf from Biortus. Deposited 2024-01-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–97（97 aa）	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.6M Na/KPO4 pH6.5	Resolution 2.85 Å R-free 0.283

13 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	APAF_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 1–95； UniProt 1–95

PROCASPASE 9

Homo sapiens

UniProt P55211

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain P； UniProt 1–96	Fragment：PRODOMAIN	APOPTOTIC PROTEASE ACTIVATING FACTOR 1 × 1 （O14727）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；pH 7.5	Resolution 2.50 Å R-free 0.299

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3YGS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1NW9 STRUCTURE OF CASPASE-9 IN AN INHIBITORY COMPLEX WITH XIAP-BIR3 Deposited 2003-02-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 140–416（277 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；Tris, potassium phosphate, pH 8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.235
2AR9 Crystal structure of a dimeric caspase-9 Deposited 2005-08-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 140–416（277 aa） Fragment：residues 140-416 Chain B 140–416（277 aa） Fragment：residues 140-416	Mutation：C287S, G402C, C403I, F404V, N405S, F406M Mutation：C287S, G402C, C403I, F404V, N405S, F406M	MLT D-MALATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；PEG5000 monomethylether, MES, tacsimate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K	Resolution 2.80 Å R-free 0.288
2AR9 Crystal structure of a dimeric caspase-9 Deposited 2005-08-19	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 140–416（277 aa） Fragment：residues 140-416 Chain D 140–416（277 aa） Fragment：residues 140-416	Mutation：C287S, G402C, C403I, F404V, N405S, F406M Mutation：C287S, G402C, C403I, F404V, N405S, F406M	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；PEG5000 monomethylether, MES, tacsimate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K	Resolution 2.80 Å R-free 0.288
3D9T CIAP1-BIR3 in complex with N-terminal peptide from Caspase-9 (ATPFQE) Deposited 2008-05-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 316–321（6 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；3.1M NA FORMATE,10% GLYCEROL,1.5MM PEPTIDE, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.50 Å R-free 0.205
3D9T CIAP1-BIR3 in complex with N-terminal peptide from Caspase-9 (ATPFQE) Deposited 2008-05-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 316–321（6 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；3.1M NA FORMATE,10% GLYCEROL,1.5MM PEPTIDE, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.50 Å R-free 0.205
3V3K Human caspase 9 in complex with bacterial effector protein Deposited 2011-12-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 141–416（276 aa） Fragment：UNP Residues 141-416	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
3V3K Human caspase 9 in complex with bacterial effector protein Deposited 2011-12-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 141–416（276 aa） Fragment：UNP Residues 141-416	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
3V3K Human caspase 9 in complex with bacterial effector protein Deposited 2011-12-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 141–416（276 aa） Fragment：UNP Residues 141-416	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
3V3K Human caspase 9 in complex with bacterial effector protein Deposited 2011-12-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 141–416（276 aa） Fragment：UNP Residues 141-416	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
3V3K Human caspase 9 in complex with bacterial effector protein Deposited 2011-12-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 141–416（276 aa） Fragment：UNP Residues 141-416	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
3V3K Human caspase 9 in complex with bacterial effector protein Deposited 2011-12-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 141–416（276 aa） Fragment：UNP Residues 141-416	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
3V3K Human caspase 9 in complex with bacterial effector protein Deposited 2011-12-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 141–416（276 aa） Fragment：UNP Residues 141-416	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
3V3K Human caspase 9 in complex with bacterial effector protein Deposited 2011-12-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain O 141–416（276 aa） Fragment：UNP Residues 141-416	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
4RHW Crystal structure of Apaf-1 CARD and caspase-9 CARD complex Deposited 2014-10-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 1–100（100 aa） Fragment：card domain Chain F 1–100（100 aa） Fragment：card domain	Not recorded	SO4 SULFATE ION × 7 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；13% PEG 3000, 0.2M ammonium sulfate, 0.1M MES (pH5.5), VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.10 Å R-free 0.226
5JUY Active human apoptosome with procaspase-9 Deposited 2016-05-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric	Chain O 1–95（95 aa） Fragment：N-terminal caspase recognition domain Chain P 1–95（95 aa） Fragment：N-terminal caspase recognition domain Chain Q 1–95（95 aa） Fragment：N-terminal caspase recognition domain Chain R 1–95（95 aa） Fragment：N-terminal caspase recognition domain	Not recorded	DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 7 HEC HEME C × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Buffer A cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
9R44 Crystal structure of human caspase-9 CARD Deposited 2025-05-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–99（99 aa） Chain E 1–99（99 aa） Chain H 1–99（99 aa） Chain L 1–99（99 aa）	Not recorded	SO4 SULFATE ION × 18 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.5 M Lithium sulfate, 0.1 M Sodium HEPES, and pH 7.5 Protein concentration: 15 mg/ml Buffer in: 20 mM Hepes, 50 mM NaCl, 2 mM TCEP, and pH 7.5	Resolution 2.46 Å R-free 0.265

7 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CASP9_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain P； PDBConstruct 2–97； UniProt 1–96

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3ygs
Deposition date deposition_date	1999-05-08
Structure title title	APAF-1 CARD IN COMPLEX WITH PRODOMAIN OF PROCASPASE-9
Keywords keywords	APOPTOSIS, CASPASE ACTIVATION, CASPASE RECRUITMENT, RECOGNITION COMPLEX; APOPTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.64 Å
Radius of gyration Rg (electron density) rg_electron	17.77 Å
Forward intensity I(0) i0	9543450.00
Molecular weight molecular_weight	22202.0 kDa
Excluded volume excluded_volume	27515 Å³
Envelope volume envelope_volume	31433 Å³
Hydration-shell volume shell_volume	15357 Å³
Envelope diameter envelope_diameter	59.8 Å
Shell Rg shell_rg	23.00 Å
Envelope Rg envelope_rg	17.98 Å
Shape Rg shape_rg	17.77 Å
Total Rg total_rg	18.55 Å
Total atoms total_atoms	1553
Residues n_residues	192
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	61.6 Å
Rg (real space) rg_real	18.64 Å
Rg uncertainty (real space) rg_real_error	0.36 Å
I(0) (real space) i0_real	9.5430e+06
I(0) uncertainty (real space) i0_real_error	1.1640e+05
Rg (reciprocal space) rg_reciprocal	18.64 Å
I(0) (reciprocal space) i0_reciprocal	9543000.0000
Solution quality estimate total_estimate	0.8749
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.1 Å
Skewness Skewness skewness	0.364
Kurtosis Kurtosis kurtosis	-0.356
Angular range angular_range	— – 0.4250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2326000.0000
Real-space data points n_real_points	74
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.795; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.992

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	APOPTOTIC PROTEASE ACTIVATING FACTOR 1
Molecular weight formula_weight	10925.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	1726

MDAKARNCLLQHREALEKDIKTSYIMDHMISDGFLTISEEEKVRNEPTQQQRAAMLIKMILKKDNDSYVSFYNALLHEGYKDLAALLHDGIPVVS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	PROCASPASE 9
Molecular weight formula_weight	11312.9 kDa
EC 编号 ec_number	3.4.22.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

SMDEADRRLLRRCRLRLVEELQVDQLWDVLLSRELFRPHMIEDIQRAGSGSRRDQARQLIIDLETRGSQALPLFISCLEDTGQDMLASFLRTNRQAG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	173

▼

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d3ygsc_
Class class	a — All alpha proteins
Fold Fold fold	a.77 — DEATH domain
Superfamily Superfamily superfamily	a.77.1 — DEATH domain
Family Family family	a.77.1.3 — Caspase recruitment domain, CARD

Domain ID domain_id	d3ygsp1
Class class	a — All alpha proteins
Fold Fold fold	a.77 — DEATH domain
Superfamily Superfamily superfamily	a.77.1 — DEATH domain
Family Family family	a.77.1.3 — Caspase recruitment domain, CARD

Domain ID domain_id	d3ygsp2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	3ygsC00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	533 — Death Domain, Fas
Homologous superfamily homologous superfamily	10 — Death Domain, Fas

Domain ID domain_id	3ygsP00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	533 — Death Domain, Fas
Homologous superfamily homologous superfamily	10 — Death Domain, Fas

▶

8. Citations (1)

▶

Unit-cell length a length_a	92.500 Å
Unit-cell length b length_b	92.500 Å
Unit-cell length c length_c	136.800 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 62 2 2
Space-group number int_tables_number	180
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	—
R_work r_work	0.2240
R_free r_free	0.2990

fit	/app/data/saxs_computation/yg/3ygs/3ygs.fit
pddf	/app/data/pr_computation/yg/3ygs/3ygs.pr.out
profile	/app/data/saxs_computation/yg/3ygs/3ygs.dat

APAF-1 CARD IN COMPLEX WITH PRODOMAIN OF PROCASPASE-9

1. Protein Identity and Related Structures Protein Identity & Related Structures

APOPTOTIC PROTEASE ACTIVATING FACTOR 1

State in the Current Structure

Other States of the Same Protein in the Database

PROCASPASE 9

State in the Current Structure

Other States of the Same Protein in the Database

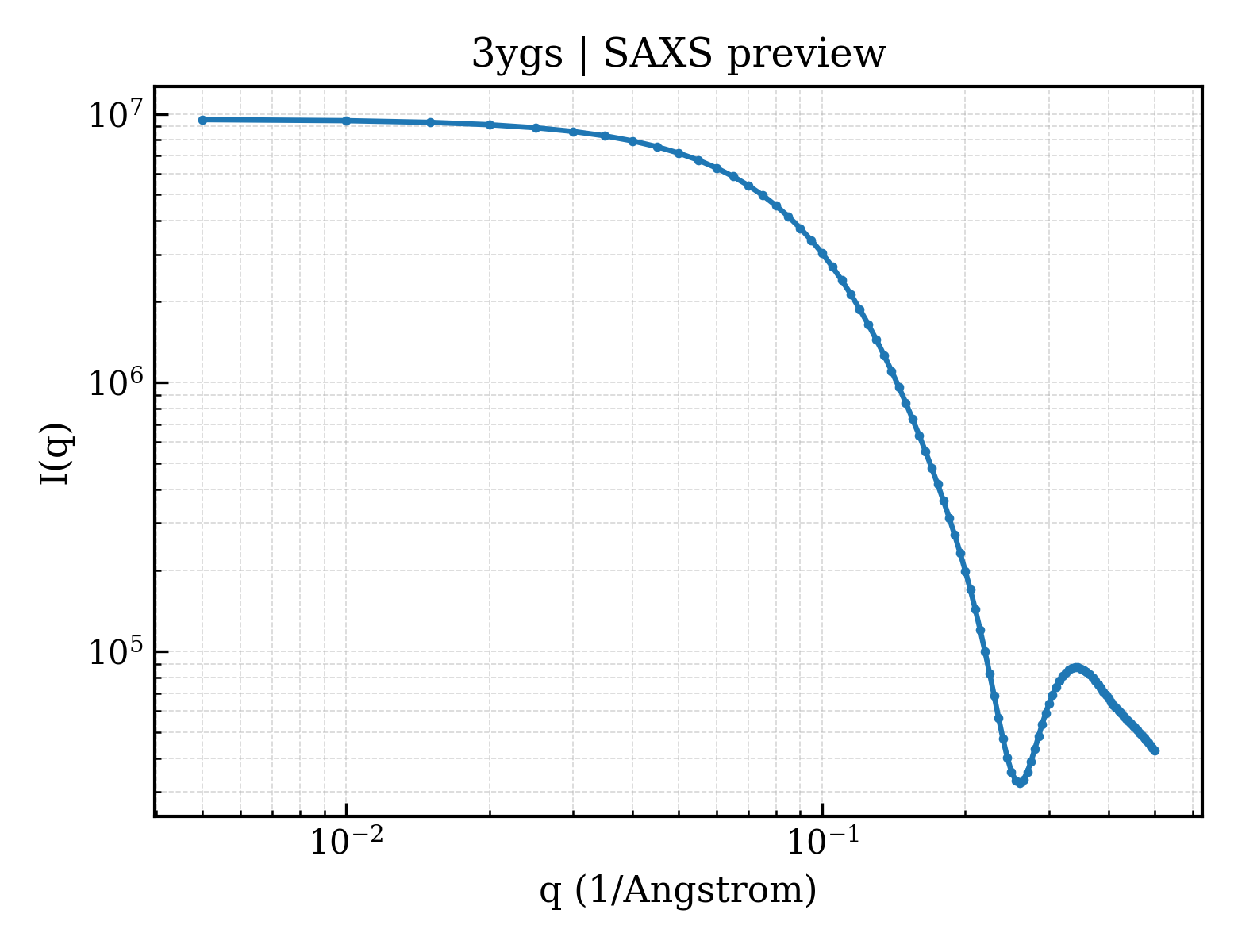

SAXS scattering curve SAXS Profile

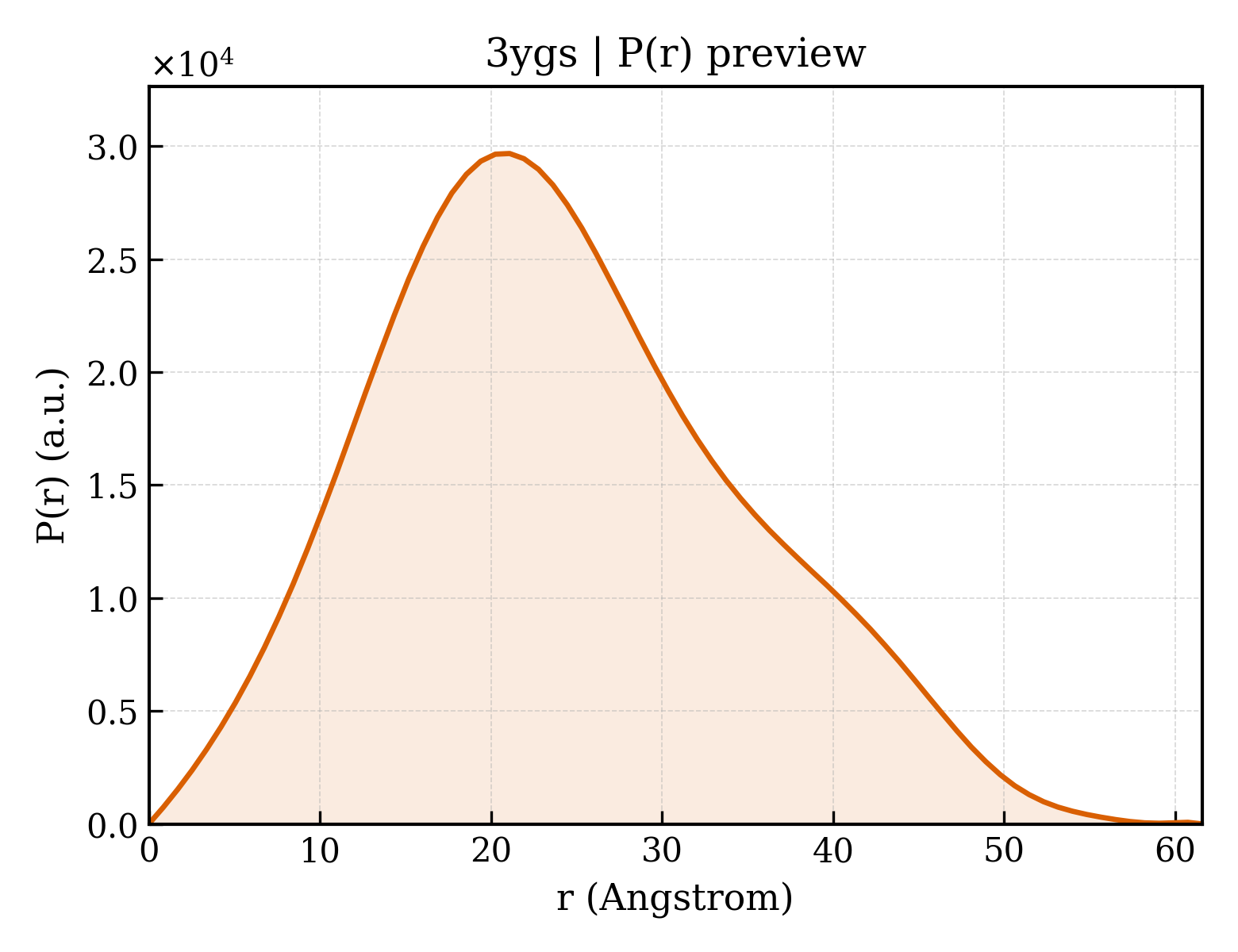

P(r) Distance Distribution P(r) Distribution
