SAXSdb — 3v3k

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Caspase-9

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 141–416	Fragment：UNP Residues 141-416	Putative uncharacterized protein ECs1815 × 1 （Q8XAL7）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 141–416	Fragment：UNP Residues 141-416	Putative uncharacterized protein ECs1815 × 1 （Q8XAL7）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain E； UniProt 141–416	Fragment：UNP Residues 141-416	Putative uncharacterized protein ECs1815 × 1 （Q8XAL7）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
4	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain G； UniProt 141–416	Fragment：UNP Residues 141-416	Putative uncharacterized protein ECs1815 × 1 （Q8XAL7）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
5	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain I； UniProt 141–416	Fragment：UNP Residues 141-416	Putative uncharacterized protein ECs1815 × 1 （Q8XAL7）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
6	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain K； UniProt 141–416	Fragment：UNP Residues 141-416	Putative uncharacterized protein ECs1815 × 1 （Q8XAL7）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
7	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain M； UniProt 141–416	Fragment：UNP Residues 141-416	Putative uncharacterized protein ECs1815 × 1 （Q8XAL7）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
8	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain O； UniProt 141–416	Fragment：UNP Residues 141-416	Putative uncharacterized protein ECs1815 × 1 （Q8XAL7）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3V3K	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1NW9 STRUCTURE OF CASPASE-9 IN AN INHIBITORY COMPLEX WITH XIAP-BIR3 Deposited 2003-02-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 140–416（277 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；Tris, potassium phosphate, pH 8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.235
2AR9 Crystal structure of a dimeric caspase-9 Deposited 2005-08-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 140–416（277 aa） Fragment：residues 140-416 Chain B 140–416（277 aa） Fragment：residues 140-416	Mutation：C287S, G402C, C403I, F404V, N405S, F406M Mutation：C287S, G402C, C403I, F404V, N405S, F406M	MLT D-MALATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；PEG5000 monomethylether, MES, tacsimate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K	Resolution 2.80 Å R-free 0.288
2AR9 Crystal structure of a dimeric caspase-9 Deposited 2005-08-19	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 140–416（277 aa） Fragment：residues 140-416 Chain D 140–416（277 aa） Fragment：residues 140-416	Mutation：C287S, G402C, C403I, F404V, N405S, F406M Mutation：C287S, G402C, C403I, F404V, N405S, F406M	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；PEG5000 monomethylether, MES, tacsimate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K	Resolution 2.80 Å R-free 0.288
3D9T CIAP1-BIR3 in complex with N-terminal peptide from Caspase-9 (ATPFQE) Deposited 2008-05-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 316–321（6 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；3.1M NA FORMATE,10% GLYCEROL,1.5MM PEPTIDE, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.50 Å R-free 0.205
3D9T CIAP1-BIR3 in complex with N-terminal peptide from Caspase-9 (ATPFQE) Deposited 2008-05-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 316–321（6 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；3.1M NA FORMATE,10% GLYCEROL,1.5MM PEPTIDE, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.50 Å R-free 0.205
3YGS APAF-1 CARD IN COMPLEX WITH PRODOMAIN OF PROCASPASE-9 Deposited 1999-05-08	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 1–96（96 aa） Fragment：PRODOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.50 Å R-free 0.299
4RHW Crystal structure of Apaf-1 CARD and caspase-9 CARD complex Deposited 2014-10-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 1–100（100 aa） Fragment：card domain Chain F 1–100（100 aa） Fragment：card domain	Not recorded	SO4 SULFATE ION × 7 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；13% PEG 3000, 0.2M ammonium sulfate, 0.1M MES (pH5.5), VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.10 Å R-free 0.226
5JUY Active human apoptosome with procaspase-9 Deposited 2016-05-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric	Chain O 1–95（95 aa） Fragment：N-terminal caspase recognition domain Chain P 1–95（95 aa） Fragment：N-terminal caspase recognition domain Chain Q 1–95（95 aa） Fragment：N-terminal caspase recognition domain Chain R 1–95（95 aa） Fragment：N-terminal caspase recognition domain	Not recorded	DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 7 HEC HEME C × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Buffer A cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
9R44 Crystal structure of human caspase-9 CARD Deposited 2025-05-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–99（99 aa） Chain E 1–99（99 aa） Chain H 1–99（99 aa） Chain L 1–99（99 aa）	Not recorded	SO4 SULFATE ION × 18 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.5 M Lithium sulfate, 0.1 M Sodium HEPES, and pH 7.5 Protein concentration: 15 mg/ml Buffer in: 20 mM Hepes, 50 mM NaCl, 2 mM TCEP, and pH 7.5	Resolution 2.46 Å R-free 0.265

7 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CASP9_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–276； UniProt 141–416 Author chain C； PDBConstruct 1–276； UniProt 141–416 Author chain E； PDBConstruct 1–276； UniProt 141–416 Author chain G； PDBConstruct 1–276； UniProt 141–416 Author chain I； PDBConstruct 1–276； UniProt 141–416 Author chain K； PDBConstruct 1–276； UniProt 141–416 Author chain M； PDBConstruct 1–276； UniProt 141–416 Author chain O； PDBConstruct 1–276； UniProt 141–416

Putative uncharacterized protein ECs1815

Escherichia coli O157:H7

UniProt Q8XAL7

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 25–189	Fragment：UNP Residues 25-189	Caspase-9 × 1 （P55211）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 25–189	Fragment：UNP Residues 25-189	Caspase-9 × 1 （P55211）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain F； UniProt 25–189	Fragment：UNP Residues 25-189	Caspase-9 × 1 （P55211）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
4	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain H； UniProt 25–189	Fragment：UNP Residues 25-189	Caspase-9 × 1 （P55211）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
5	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain J； UniProt 25–189	Fragment：UNP Residues 25-189	Caspase-9 × 1 （P55211）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
6	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain L； UniProt 25–189	Fragment：UNP Residues 25-189	Caspase-9 × 1 （P55211）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
7	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain N； UniProt 25–189	Fragment：UNP Residues 25-189	Caspase-9 × 1 （P55211）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259
8	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain P； UniProt 25–189	Fragment：UNP Residues 25-189	Caspase-9 × 1 （P55211）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.75 K-Na-Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.49 Å R-free 0.259

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	Q8XAL7_ECO57
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–165； UniProt 25–189 Author chain D； PDBConstruct 1–165； UniProt 25–189 Author chain F； PDBConstruct 1–165； UniProt 25–189 Author chain H； PDBConstruct 1–165； UniProt 25–189 Author chain J； PDBConstruct 1–165； UniProt 25–189 Author chain L； PDBConstruct 1–165； UniProt 25–189 Author chain N； PDBConstruct 1–165； UniProt 25–189 Author chain P； PDBConstruct 1–165； UniProt 25–189

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3v3k
Deposition date deposition_date	2011-12-13
Structure title title	Human caspase 9 in complex with bacterial effector protein
Keywords keywords	HYDROLASE, Caspase 9; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	55.16 Å
Radius of gyration Rg (electron density) rg_electron	54.86 Å
Forward intensity I(0) i0	1932730000.00
Molecular weight molecular_weight	362580.0 kDa
Excluded volume excluded_volume	451380 Å³
Envelope volume envelope_volume	667250 Å³
Hydration-shell volume shell_volume	101750 Å³
Envelope diameter envelope_diameter	180.0 Å
Shell Rg shell_rg	57.50 Å
Envelope Rg envelope_rg	53.17 Å
Shape Rg shape_rg	54.86 Å
Total Rg total_rg	54.93 Å
Total atoms total_atoms	25428
Residues n_residues	3142
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

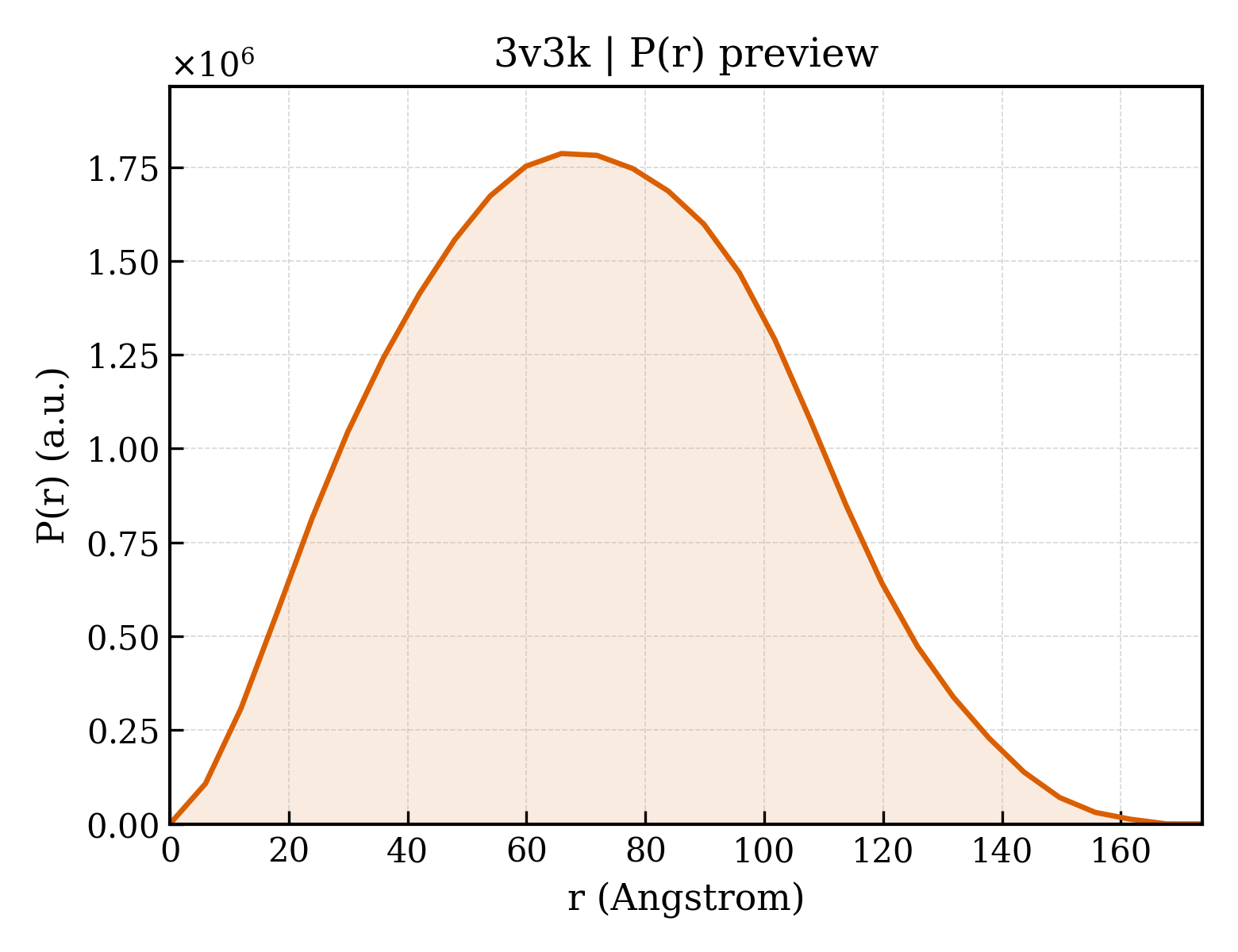

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	173.7 Å
Rg (real space) rg_real	55.01 Å
Rg uncertainty (real space) rg_real_error	1.30 Å
I(0) (real space) i0_real	1.9330e+09
I(0) uncertainty (real space) i0_real_error	3.9090e+07
Rg (reciprocal space) rg_reciprocal	55.26 Å
I(0) (reciprocal space) i0_reciprocal	1933000000.0000
Solution quality estimate total_estimate	0.8705
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	65.9 Å
Skewness Skewness skewness	0.154
Kurtosis Kurtosis kurtosis	-0.581
Angular range angular_range	— – 0.1450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	114900000.0000
Real-space data points n_real_points	30
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.960; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.441

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Caspase-9
Molecular weight formula_weight	30416.6 kDa
EC 编号 ec_number	3.4.22.62
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G,I,K,M,O
Atom count atom_count	25428

ALESLRGNADLAYILSMEPCGHCLIINNVNFCRESGLRTRTGSNIDCEKLRRRFSSLHFMVEVKGDLTAKKMVLALLELARQDHGALDCCVVVILSHGCQASHLQFPGAVYGTDGCPVSVEKIVNIFNGTSCPSLGGKPKLFFIQACGGEQKDHGFEVASTSPEDESPGSNPEPDATPFQEGLRTFDQLDAISSLPTPSDIFVSYSTFPGFVSWRDPKSGSWYVETLDDIFEQWAHSEDLQSLLLRVANAVSVKGIYKQMPGCFNFLRKKLFFKTS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Putative uncharacterized protein ECs1815
Molecular weight formula_weight	18866.2 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H,J,L,N,P

TPESVSELNHNHFLSPELQDKLDVMVSIYSCARNNNELEEIFQELSAFVSGLMDKRNSVFEVRNENTDEVVGALRAGMTIEDRDSYIRDLFFLHSLKVKIEESRQGKEDSKCKVYNLLCPHHSSELYGDLRAMKCLVEGCSDDFNPFDIIRVPDLTYNKGSLQCG

来源 Source

来源生物 organism	Escherichia coli O157:H7
NCBI Class编号 ncbi_taxonomy_id	83334
宿主生物 host_organism	Escherichia coli

▼

7. Fold Classification (SCOP + CATH) 16 domains

CATH v4.4 (16 domains)

Domain ID domain_id	3v3kA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	3v3kB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	90 —

Domain ID domain_id	3v3kC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	3v3kD00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	90 —

Domain ID domain_id	3v3kE00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	3v3kF00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	90 —

Domain ID domain_id	3v3kG00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	3v3kH00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	90 —

Domain ID domain_id	3v3kI00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	3v3kJ00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	90 —

Domain ID domain_id	3v3kK00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	3v3kL00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	90 —

Domain ID domain_id	3v3kM00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	3v3kN00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	90 —

Domain ID domain_id	3v3kO00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	3v3kP00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	90 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	100.703 Å
Unit-cell length b length_b	209.906 Å
Unit-cell length c length_c	317.231 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.494 Å
Low-resolution limit resolution_low	174.080 Å
R factor r_factor	0.2396
R_work r_work	0.2392
R_free r_free	0.2595

fit	/app/data/saxs_computation/v3/3v3k/3v3k.fit
pddf	/app/data/pr_computation/v3/3v3k/3v3k.pr.out
profile	/app/data/saxs_computation/v3/3v3k/3v3k.dat
