9r4k

Crystal structure of CtGH76 from Chaetomium thermophilum

Method: X-RAY DIFFRACTION D_max: 69.1 Å Quality: GOOD

SAXS Profile

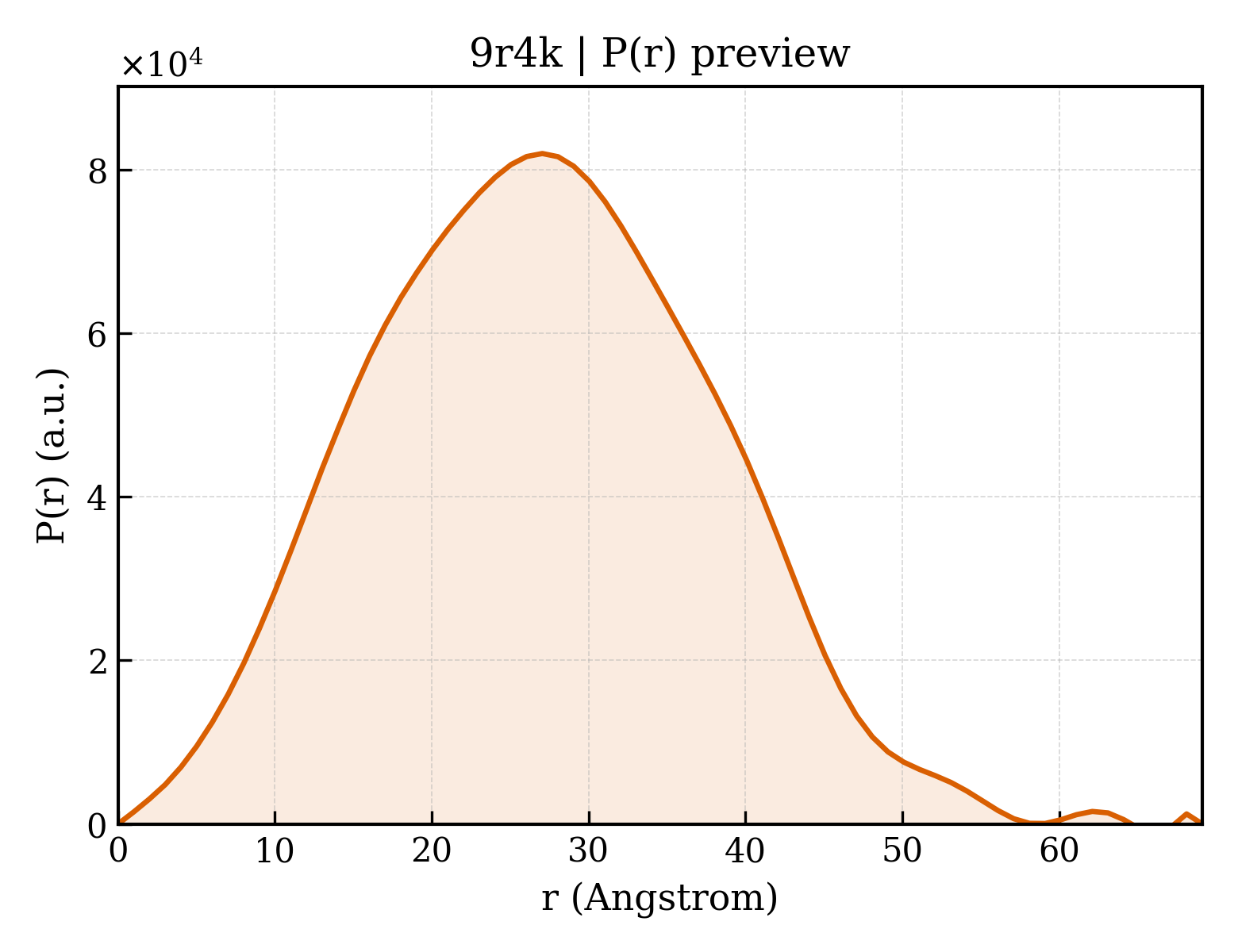

P(r) Distribution

▼

1. Structure Basics

entry_id	9r4k
deposition_date	2025-05-07
title	Crystal structure of CtGH76 from Chaetomium thermophilum
keywords	Glycoside Hydrolases, carbohydrate-binding protein, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	20.62 Å
rg_electron	19.40 Å
i0	28971800.00
molecular_weight	40264.0 kDa
excluded_volume	49716 Å³
envelope_volume	55390 Å³
shell_volume	23059 Å³
envelope_diameter	74.7 Å
shell_rg	26.76 Å
envelope_rg	19.91 Å
shape_rg	19.40 Å
total_rg	20.28 Å
total_atoms	2834
n_residues	362
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	69.1 Å
rg_real	20.48 Å
rg_real_error	0.41 Å
i0_real	2.8970e+07
i0_real_error	3.7970e+05
rg_reciprocal	20.51 Å
i0_reciprocal	28970000.0000
total_estimate	0.7857
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	27.1 Å
skewness	0.149
kurtosis	-0.335
angular_range	— – 0.3850 Å⁻¹
current_alpha	0.0000
highest_alpha	8470000.0000
n_real_points	70
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.739; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Chains: A
formula_weight	48089.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	3062

MAGIADLTAALASADRNRVTRVEAMRRSPTTISLSTLGALSALWGILYFMTCSGRNSRGVLADASSGMLQTRQSDSESLNSTGLAQAAINGLNARFYESSNARWSSDEPWWISGVALTMVIEYMRRSGSKEYLDQVEDVIEVQRQPLSWWPSGEGEFRADATDDTGWWALAMVRMYDLTGNEDYLNISIKDEAYMRQWWTDTECGGGLYVDIQDLTYKNAIANELYLKLVASLANRAPNATIYLDRAQQAWTWFLGSGMINGVNLINDGLARDSNTGSCYNNRLPVWTYNQGVILGALVELYHATKDESYLLSAQAIADAVLSPSNGLTSSSGVLTETCEGSDSCNQDQQVFKGVFALNLAELGDAVAGASSDPDAGQDYREYLDTNMQSMYANDRSEIVPTLFDSSTGDLYDVSWSGPFRNATMPKQASAIGLYVANI

Source

organism	Thermochaetoides thermophila DSM 1495
ncbi_taxonomy_id	759272
host_organism	Escherichia coli B

Entity 2 non-polymer

description	GLYCEROL
formula_weight	92.1 kDa
src_method	syn
entity_count	4

Entity 3 non-polymer

description	FORMIC ACID
formula_weight	46.0 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	1

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	206

▶

6. Citations (1)

▶

length_a	106.787 Å
length_b	106.787 Å
length_c	126.898 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	6

space_group	P 31 2 1
int_tables_number	152
crystal_system	trigonal

resolution	2.020 Å
resolution_low	49.210 Å
r_factor	0.1938
r_work	0.1928
r_free	0.2149
