9r4r

Crystal structure of CtGH76 from Chaetomium thermophilum in complex with glucosamine

Method: X-RAY DIFFRACTION D_max: 70.4 Å Quality: GOOD

SAXS Profile

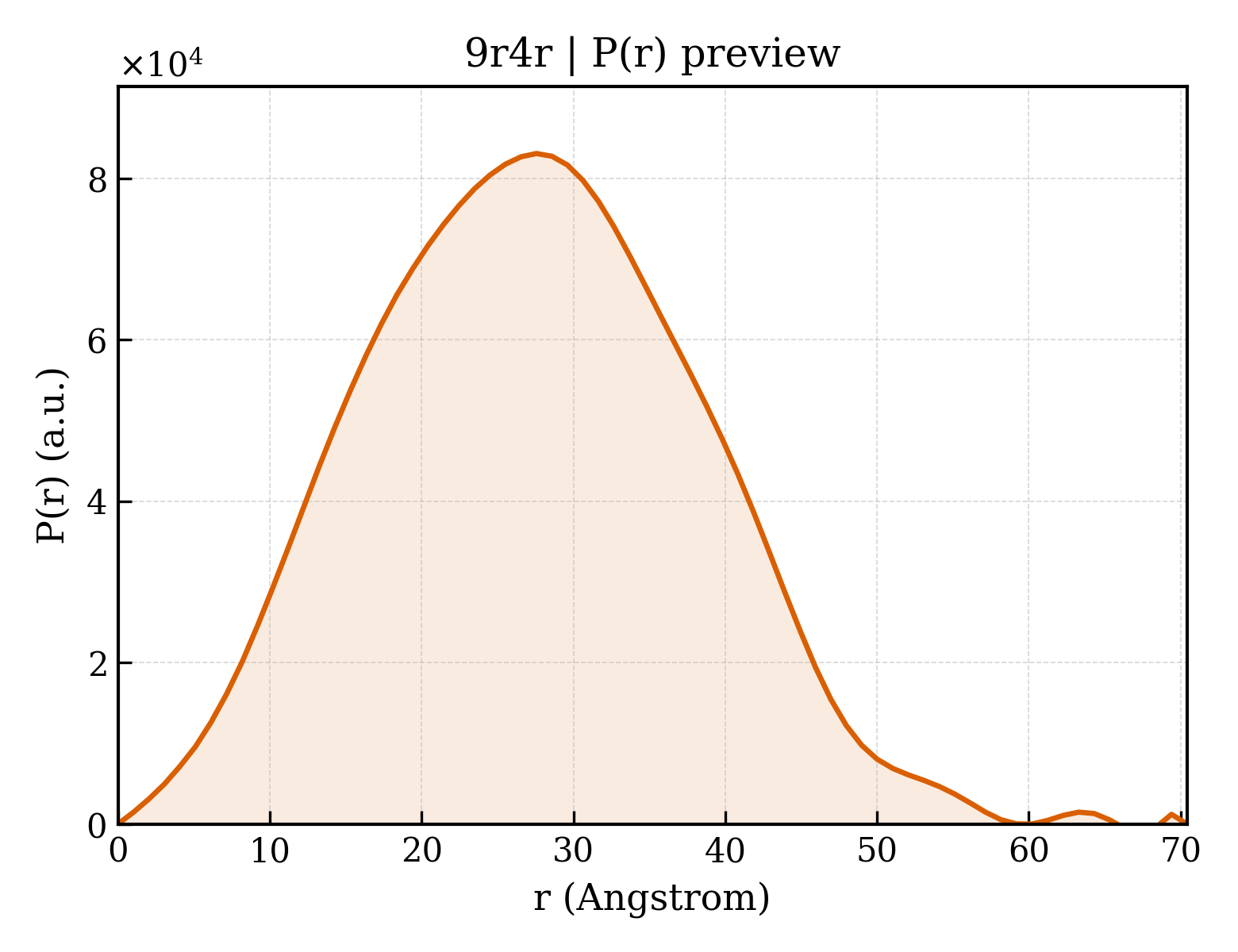

P(r) Distribution

▼

1. Structure Basics

entry_id	9r4r
deposition_date	2025-05-07
title	Crystal structure of CtGH76 from Chaetomium thermophilum in complex with glucosamine
keywords	Glycoside Hydrolases, carbohydrate-binding protein, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	20.84 Å
rg_electron	19.58 Å
i0	29656100.00
molecular_weight	40600.0 kDa
excluded_volume	50101 Å³
envelope_volume	57018 Å³
shell_volume	23540 Å³
envelope_diameter	77.1 Å
shell_rg	27.04 Å
envelope_rg	20.07 Å
shape_rg	19.58 Å
total_rg	20.47 Å
total_atoms	2857
n_residues	362
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	70.4 Å
rg_real	20.70 Å
rg_real_error	0.49 Å
i0_real	2.9660e+07
i0_real_error	4.2220e+05
rg_reciprocal	20.72 Å
i0_reciprocal	29660000.0000
total_estimate	0.7819
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	27.6 Å
skewness	0.148
kurtosis	-0.324
angular_range	— – 0.3800 Å⁻¹
current_alpha	0.0000
highest_alpha	8788000.0000
n_real_points	70
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.723; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Chains: A
formula_weight	48089.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2975

MAGIADLTAALASADRNRVTRVEAMRRSPTTISLSTLGALSALWGILYFMTCSGRNSRGVLADASSGMLQTRQSDSESLNSTGLAQAAINGLNARFYESSNARWSSDEPWWISGVALTMVIEYMRRSGSKEYLDQVEDVIEVQRQPLSWWPSGEGEFRADATDDTGWWALAMVRMYDLTGNEDYLNISIKDEAYMRQWWTDTECGGGLYVDIQDLTYKNAIANELYLKLVASLANRAPNATIYLDRAQQAWTWFLGSGMINGVNLINDGLARDSNTGSCYNNRLPVWTYNQGVILGALVELYHATKDESYLLSAQAIADAVLSPSNGLTSSSGVLTETCEGSDSCNQDQQVFKGVFALNLAELGDAVAGASSDPDAGQDYREYLDTNMQSMYANDRSEIVPTLFDSSTGDLYDVSWSGPFRNATMPKQASAIGLYVANI

Source

organism	Thermochaetoides thermophila DSM 1495
ncbi_taxonomy_id	759272
host_organism	Escherichia coli B

Entity 2 non-polymer

description	2-amino-2-deoxy-alpha-D-glucopyranose
formula_weight	179.2 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	GLYCEROL
formula_weight	92.1 kDa
src_method	syn
entity_count	5

Entity 4 non-polymer

description	FORMIC ACID
formula_weight	46.0 kDa
src_method	syn
entity_count	1

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	101

▶

6. Citations (1)

▶

length_a	108.128 Å
length_b	108.128 Å
length_c	128.633 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	6

space_group	P 31 2 1
int_tables_number	152
crystal_system	trigonal

resolution	2.350 Å
resolution_low	46.820 Å
r_factor	0.2025
r_work	0.2014
r_free	0.2249
