9r4n

Crystal structure of CtGH76 from Chaetomium thermophilum

Method: X-RAY DIFFRACTION Dmax: 69.2 Å Quality: GOOD

SAXS Profile

SAXS profile for 9r4n

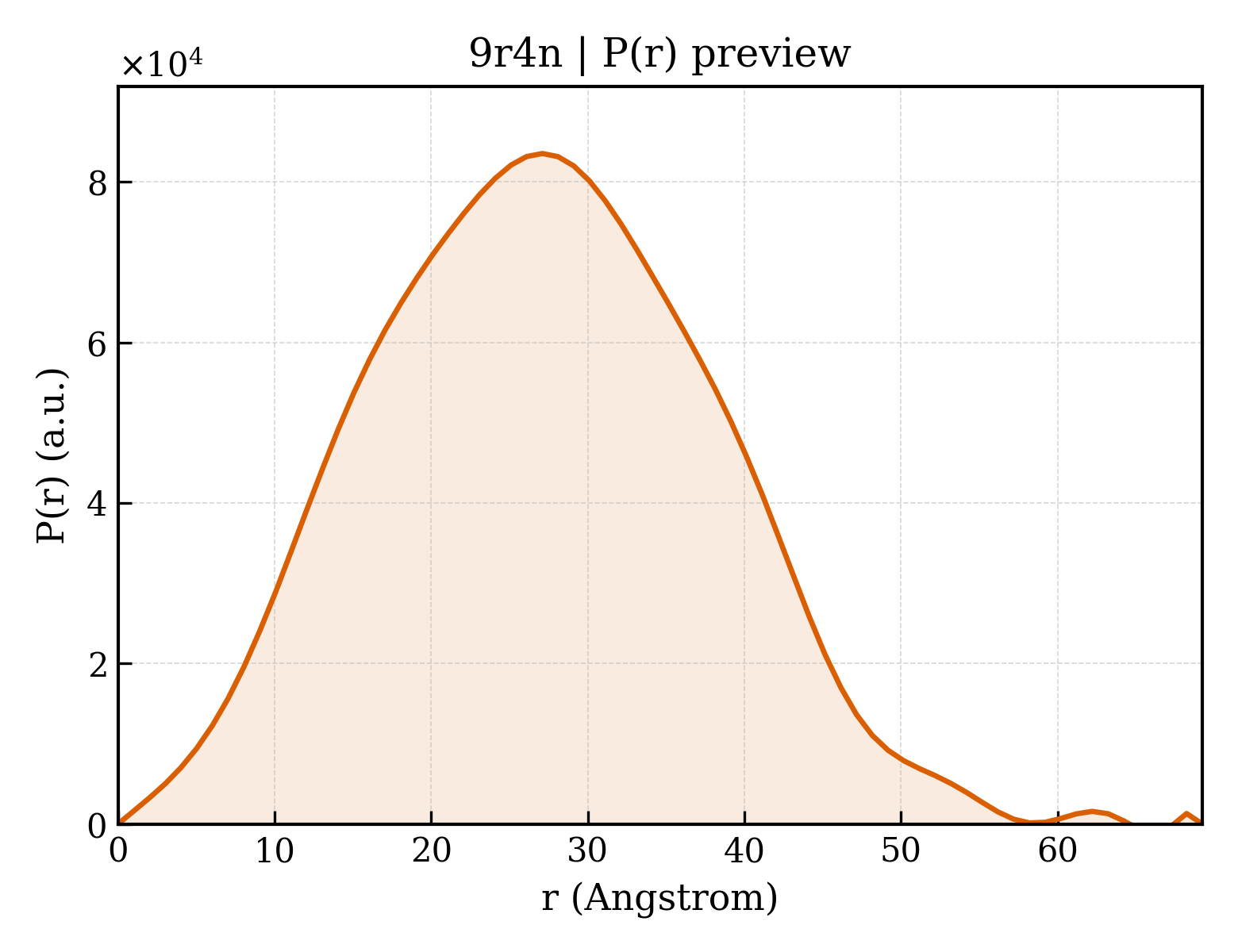

P(r) Distribution

P(r) distribution for 9r4n

1. Structure Basics

entry_id9r4n
deposition_date2025-05-07
titleCrystal structure of CtGH76 from Chaetomium thermophilum
keywordsGlycoside Hydrolases, carbohydrate-binding protein, HYDROLASE; HYDROLASE
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier20.70
rg_electron19.46
i029559100.00
molecular_weight40576.0 kDa
excluded_volume50049 ų
envelope_volume56012 ų
shell_volume23278 ų
envelope_diameter74.9
shell_rg26.87
envelope_rg19.91
shape_rg19.46
total_rg20.33
total_atoms2856
n_residues362
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax69.2
rg_real20.56
rg_real_error0.45
i0_real2.9560e+07
i0_real_error3.5530e+05
rg_reciprocal20.58
i0_reciprocal29560000.0000
total_estimate0.7858
solution_quality GOOD a GOOD solution
n_peaks3
r_peak_primary27.1
skewness0.142
kurtosis-0.338
angular_range— – 0.3850 −1
current_alpha0.0000
highest_alpha9194000.0000
n_real_points70
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.739; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.000

4. Crystallography & Experiment

5. Entities & Polymer Info (6)

6. Citations (1)

7. Files & Curves (10)
